Hozelock 2352 Hose Fitting Starter Set Instruction Manual

1. Уводзіны

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Hozelock 2352 Hose Fitting Starter Set. This set is designed to provide essential connections for your garden hose, ensuring efficient and reliable watering.

The Hozelock Watering Starter Set includes all necessary fittings to begin using your 12.5mm or 15mm garden hose. It features a threaded tap connector, a standard hose end connector, an AquaStop hose end connector, and an adjustable hose nozzle.

Figure 1: Hozelock 2352 Hose Fitting Starter Set packaging showing all included components.

2. Змесціва ўпакоўкі

Please verify that all the following components are included in your Hozelock 2352 Hose Fitting Starter Set:

• 1 x 3/4" & 1/2" Outdoor Threaded Tap Connector: Designed to fit most standard outdoor garden taps.
• 1 x Hose End Connector: For connecting one end of your hose to the tap connector.
• 1 x AquaStop Hose End Connector: For connecting the other end of your hose to an accessory, featuring a water-stop function.
• 1 x Hose Nozzle: An adjustable nozzle for various spray patterns.

3. Інструкцыі па ўсталёўцы

3.1 Attaching the Threaded Tap Connector

1. Identify the 3/4" & 1/2" Outdoor Threaded Tap Connector. This connector features a white inner ring for 1/2" taps and can be removed for 3/4" taps.
2. Screw the tap connector securely onto your outdoor garden tap. Ensure a tight fit to prevent leaks.

Figure 2: Demonstrates the process of screwing the tap connector onto an outdoor tap.

3.2 Attaching Hose End Connectors to the Hose

1. Unscrew the grey collar from both the standard Hose End Connector and the AquaStop Hose End Connector.
2. Slide the grey collar over one end of your garden hose.
3. Push the hose firmly onto the barbed end of the connector until it is fully seated.
4. Screw the grey collar back onto the connector, tightening it to secure the hose. Repeat this process for the other hose end with the AquaStop connector.

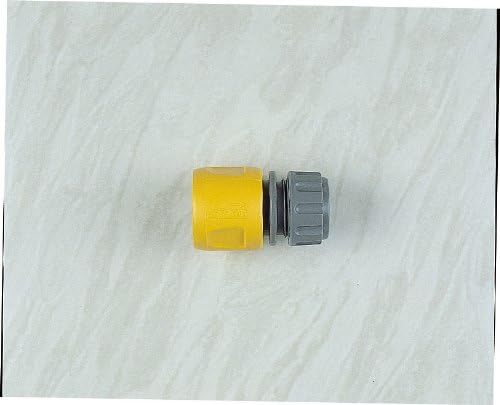

Малюнак 3: Крупны план view of the standard hose end connector.

Малюнак 4: Крупны план view of the AquaStop hose end connector.

4. Інструкцыя па эксплуатацыі

4.1 Connecting the Hose to the Tap

Once the tap connector is installed and the hose end connector is attached to your hose, simply push the hose end connector onto the tap connector until you hear a distinct 'click'. This indicates a secure connection.

4.2 Using the Hose Nozzle

1. Attach the Hose Nozzle to the AquaStop Hose End Connector on the other end of your hose. The AquaStop feature will prevent water flow until an accessory is connected.
2. Turn on the water supply at the tap.
3. Twist the head of the nozzle to adjust the spray pattern. You can select from a powerful jet for cleaning to a fine mist for delicate plants.

Figure 5: A user demonstrating the hose nozzle in action, watering garden plants.

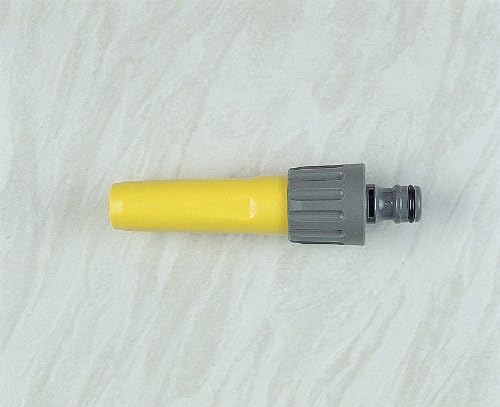

Малюнак 6: Крупны план view of the adjustable hose nozzle component.

5. Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your Hozelock Hose Fitting Starter Set, follow these general maintenance guidelines:

• Бяспечныя злучэнні: Always ensure all connections are secure to prevent leaks and maintain water pressure.
• захоўванне: During colder months or extended periods of non-use, disconnect the set from the tap and store it in a frost-free environment to prevent damage.
• Уборка: Periodically check connectors and the nozzle for debris or mineral buildup. Clean with water and a soft brush if necessary.
• Якасць матэрыялу: The components are made from high-quality materials designed for durability. Avoid harsh chemicals or abrasive cleaning methods.

6. Выпраўленне непаладак

If you encounter any issues with your Hozelock Hose Fitting Starter Set, consider the following:

• Leaks at the Tap Connection: Ensure the threaded tap connector is screwed on tightly and that the rubber washer inside is properly seated and not damaged.
• Leaks at Hose End Connections: Verify that the grey collars are tightened securely and that the hose is fully pushed onto the barbed fitting. Check for any cuts or damage to the hose ends.
• Poor Spray from Nozzle: Check the nozzle head for blockages. Twist the nozzle head to cycle through spray patterns and clear any obstructions. Ensure adequate water pressure from your tap.
• Цяжкасці з падключэннем/адключэннем: Ensure the quick-connect mechanism is clean and free of debris. Apply a small amount of silicone grease if necessary, but avoid petroleum-based lubricants.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

For warranty information or technical support, please refer to the official Hozelock webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў. Захоўвайце чэк аб куплі як пацверджанне пакупкі.
