Waterpik NSL 653

Waterpik NSL 653 Linea 6-Mode Handheld Shower Instruction Manual

Model: NSL 653 | Brand: Waterpik

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Waterpik NSL 653 Linea 6-Mode Handheld Shower. Please read these instructions carefully before use to ensure proper function and longevity of your product.

Waterpik NSL 653 Linea 6-Mode Handheld Shower in chrome finish, spraying water.

Image: The Waterpik NSL 653 Linea 6-Mode Handheld Shower in chrome, actively spraying water, showcasinяго функцыянальнасць.

Настройка і ўстаноўка

Follow these steps to properly install your Waterpik NSL 653 Linea 6-Mode Handheld Shower.

Неабходныя інструменты:

  • Рэгуляваныя абцугі
  • Cloth Towel (to protect finish)

Этапы ўстаноўкі:

  1. Зняць старую душавую лейку:
    • Cover the existing shower head with a cloth towel to prevent scratching.
    • Using adjustable pliers, unscrew the old shower head from the shower arm in a counter-clockwise direction.
    • Once removed, set the old shower head aside.
    • Remove any old Teflon tape or plumber's putty from the shower arm threads.
    • Check inside the shower arm for any remaining washers using a pencil or similar tool and remove them.
  2. Install New Shower Bracket:
    • Ensure the rubber washer is properly seated within the threaded connection on the back of the new shower bracket.
    • Thread the new shower bracket onto the shower arm by hand, turning clockwise until snug.
    • If necessary, use pliers covered with a cloth towel to gently tighten the connection. Не зацягвайце занадта моцна каб не пашкодзіць свяцільня.
  3. Connect Hose and Handheld Shower:
    • Locate the shower hose. Check both ends to ensure rubber washers are in place. One end may be labeled "ATTACH THIS END" for connection to the shower head. If no label is present, either end will work.
    • Connect the appropriate hose end to the shower bracket.
    • Connect the other end of the hose to the handheld shower head.
    • Place the handheld shower head into the bracket and adjust to your desired position.
  4. Тэст на ўцечкі:
    • Уключыце падачу вады ў душ.
    • Carefully check all connections for any signs of leakage.
    • If leaks appear, turn off the water, gently tighten the connections, and retest.
    • If no leaks are visible, your Waterpik NSL 653 Linea 6-Mode Handheld Shower is ready for use.

Video: A step-by-step guide on how to install the Waterpik Hand Held Shower Head with a standard bracket. This video demonstrates removing the old shower head, installing the new bracket, connecting the hose, and testing for leaks.

Components of the Waterpik NSL 653 Linea 6-Mode Handheld Shower, including the shower head, hose, and bracket.

Image: All components of the Waterpik NSL 653 Linea 6-Mode Handheld Shower, including the handheld unit, flexible hose, and wall-mounted bracket, laid out for installation.

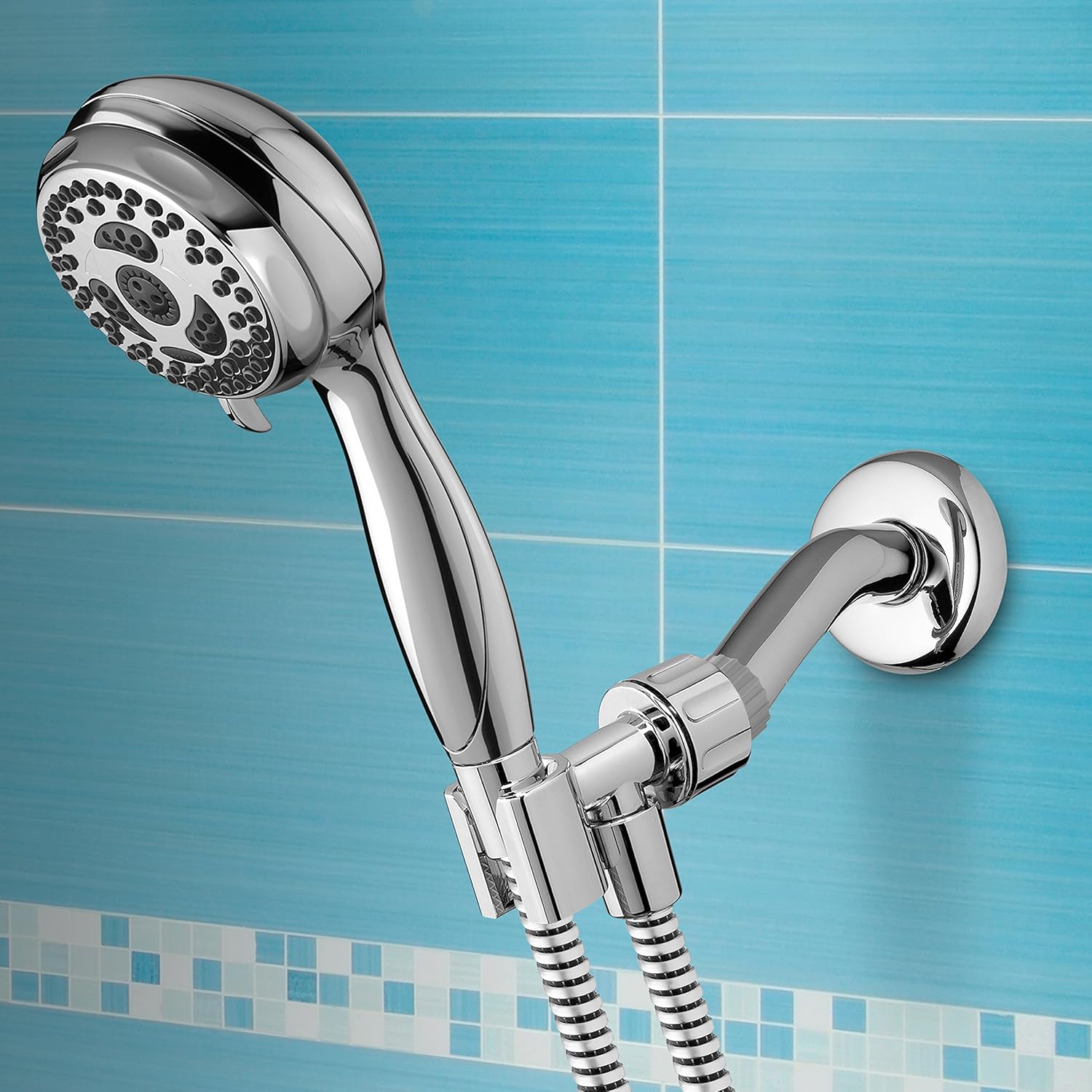

Waterpik NSL 653 Linea 6-Mode Handheld Shower installed on a shower arm.

Image: The Waterpik NSL 653 Linea 6-Mode Handheld Shower fully installed and mounted on a shower arm, ready for use.

Інструкцыя па эксплуатацыі

Your Waterpik NSL 653 Linea Handheld Shower features 6 distinct spray modes for a personalized showering experience. To change the spray mode, rotate the spray control ring located on the shower head face.

Даступныя рэжымы распылення:

  • Поўнае пакрыццё цела: A wide, invigorating spray for complete rinsing.
  • Пульсацыйны масаж: A focused, rhythmic pulse for muscle relaxation.
  • Concentrated Center Spray: A powerful, narrow stream for targeted rinsing.
  • Full Body/Massage Combination: Combines the wide spray with a pulsating massage.
  • Full Body/Center Spray Combination: Blends the full body spray with the concentrated center stream.
  • Water Saver: A reduced flow setting for conserving water.
Close-up of the Waterpik NSL 653 shower head face showing spray nozzles and control ring.

Выява: Падрабязны view of the Waterpik NSL 653 shower head face, highlighting the various spray nozzles and the adjustable control ring for selecting different modes.

Video: This video demonstrates the different spray patterns available on the Waterpik NSL 653 shower head, showcasing the variety of modes for a customized shower experience.

Тэхнічнае абслугоўванне

Regular cleaning will help maintain the performance and appearance of your Waterpik shower head.

  • Чыстка соплаў: Over time, mineral deposits can build up in the spray nozzles. To clean, gently rub the rubber nozzles with your finger or a soft brush to dislodge any deposits.
  • Ачыстка аздаблення: Use a soft cloth and mild soap to clean the chrome finish. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
  • Сыход за шлангам: Periodically check the hose for kinks or damage. Ensure it hangs freely when not in use to prevent stress on the connections.

Ліквідацыю непаладак

If you encounter issues with your Waterpik NSL 653 Linea Handheld Shower, refer to the following common solutions:

праблемаМагчымая прычынаРашэнне
Уцечкі вады з злучэнняўLoose connections, missing or damaged washers.Ensure all connections are hand-tight. Check that all rubber washers are properly seated. If necessary, gently tighten with pliers covered by a cloth, but do not overtighten. Replace damaged washers.
Нізкі ціск вадыMineral buildup in nozzles, flow restrictor (if applicable), or low household water pressure.Clean spray nozzles by rubbing them. Check for any debris in the shower arm or hose connections. Consult a plumber if household water pressure is consistently low.
Shower head does not stay in bracketImproper placement or worn bracket.Ensure the shower head is fully seated in the bracket. If the bracket is worn and no longer holds the shower head securely, contact customer service for assistance.

Тэхнічныя характарыстыкі

  • мадэль: NSL 653
  • Марка: Вадзянік
  • Тып аздаблення: Chrome
  • матэрыял: Метал
  • Колькасць налад: 6
  • Даўжыня шланга: 60 Inches (5 feet)
  • Тып ўстаноўкі: Насценныя
  • Эфектыўнасць: 2.5 GPM (галонаў у хвіліну)
  • Асаблівасці: 6-Mode Hand Held Shower, Advanced OptiFLOW technology

Інфармацыя аб гарантыі

The Waterpik NSL 653 Linea Handheld Shower is backed by a Пажыццёвая гарантыя. For specific terms and conditions, please refer to the warranty card included with your product or contact Waterpik customer service.

Падтрымка кліентаў

For further assistance, questions, or to report any issues with your Waterpik product, please contact our customer service team:

  • тэлефон: 800-525-2774
  • Час працы: Monday - Friday, 7:00 AM - 5:00 PM Mountain Time
  • Вы таксама можаце наведаць чыноўніка Waterpik Store on Amazon каб атрымаць дадатковую інфармацыю пра прадукт і рэсурсы падтрымкі.
