3M HVLP High Performance Flow Cup Nozzle Head 1.6 mm (Model 26716) Instruction Manual

Уводзіны

This instruction manual provides essential information for the proper use and maintenance of the 3M HVLP High Performance Flow Cup Nozzle Head, 1.6 mm, Model 26716. Designed for professional applications, this atomizing head ensures superior spray performance, excellent atomization, and high transfer efficiency when used with compatible 3M spray gun systems.

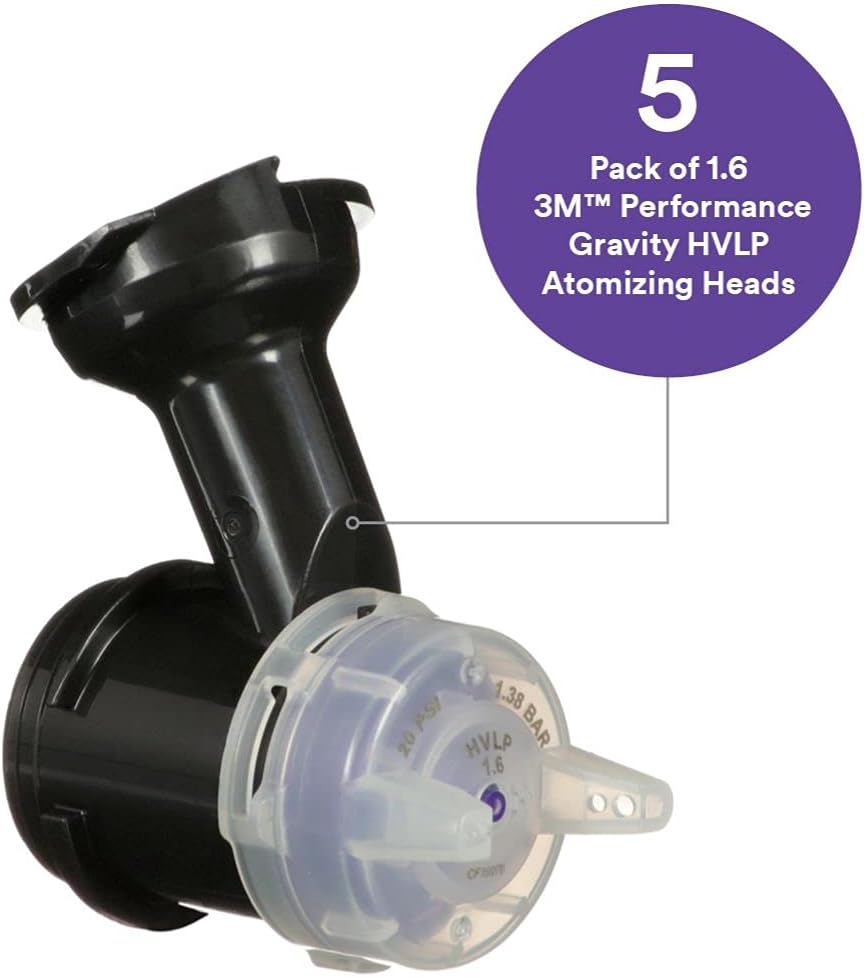

Image: The 3M HVLP High Performance Flow Cup Nozzle Head, 1.6 mm, showing its design and the "Pack of 5" label.

Інфармацыя па бяспецы

Always wear appropriate personal protective equipment (PPE) including respirators, safety glasses, and gloves when operating spray equipment. Ensure adequate ventilation in the work area. Refer to the safety data sheets (SDS) for the materials being sprayed. Disconnect air supply before performing any maintenance or changing components.

Кампаненты прадукту

The 3M HVLP High Performance Flow Cup Nozzle Head (Model 26716) is part of a comprehensive spray system. Key components include:

• Atomizing Head: The core component responsible for material atomization. Model 26716 is a 1.6 mm size.
• 3M Performance Spray Gun: The main body of the spray gun (sold separately) to which the atomizing head attaches.
• Air Flow Valve: Regulates air pressure for optimal spray patterns.
• Замыкальны каўнер: Secures the atomizing head to the spray gun body.
• 3M PPS™ Series 2.0 Spray Cup System: Compatible paint cups, disposable lids, and liners for efficient material handling and reduced cleaning.

Image: A diagram illustrating the components of the 3M Spray Gun Gravity Setup, including the spray gun, atomizing head, air flow valve, and locking collar. It also shows the 3M PPS™ Series 2.0 Paint Cups, Lids, and Liners.

Настройка

1. Prepare the Spray Gun: Ensure the 3M Performance Spray Gun is clean and free from any previous material.
2. Attach the Atomizing Head: Align the 1.6 mm atomizing head (Model 26716) with the spray gun body. Twist the locking collar to securely fasten the head. The design ensures no material flows through the gun body, simplifying cleaning.
3. Connect PPS Cup System: Attach a compatible 3M PPS™ Series 2.0 Paint Cup with a disposable lid and liner to the spray gun.
4. Fill with Material: Pour the desired coating material into the PPS cup liner.
5. Падключэнне падачы паветра: Attach the air hose to the spray gun, ensuring the air flow valve is properly installed and adjusted to the recommended pressure for your material.

Image: A person attaching a 3M PPS™ Series 2.0 Paint Cup to the spray gun, demonstrating the integration of the cup system.

Інструкцыя па эксплуатацыі

The 1.6 mm atomizing head is versatile and suitable for various coatings. Refer to the chart below for recommended applications.

Image: A chart detailing recommended applications for various 3M Performance Gravity HVLP Atomizing Head sizes, including the 1.6 mm head, for different types of coatings such as High Build Primer and Primer Surfacer.

1. Рэгуляванне ціску паветра: Set the air pressure according to the material manufacturer's recommendations and the desired spray pattern.
2. Тэставы спрэй: Always perform a test spray on a scrap surface to verify the spray pattern and material flow before applying to the actual workpiece.
3. Ужыванне: Maintain a consistent distance and angle from the surface. Overlap each pass by approximately 50% for even coverage.
4. Аптымальная прадукцыйнасць: The 3M HVLP system provides excellent atomization and transfer efficiency, resulting in a high-quality finish.

Image: A professional technician demonstrating precision spraying with the 3M Performance Spray Gun, highlighting the quality of application.

Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and consistent performance of your 3M HVLP atomizing head.

1. Cleaning the Atomizing Head: After each use, disconnect the air supply. Twist the locking collar to remove the atomizing head from the spray gun body.
2. Ачысціць: Wipe the needle and the exterior of the atomizing head clean with a suitable cleaning agent. Since no material passes through the gun body, cleaning is significantly simplified.
3. Замена фарсункі: For optimal performance and to effectively clean the system, it is recommended to replace the atomizing head as needed. Each replacement provides the performance of a new spray gun.
4. захоўванне: Store the atomizing heads in a clean, dry environment.

Image: Hands demonstrating the quick removal of the atomizing head by twisting the locking collar, followed by wiping the needle clean, illustrating the "Cleans in Seconds" feature.

Ліквідацыю непаладак

If you encounter issues during operation, consider the following common troubleshooting steps:

• Poor Spray Pattern:
  • Check air pressure settings.
  • Ensure the atomizing head is clean and free of dried material.
  • Verify the material viscosity is appropriate for the 1.6 mm nozzle.
• Material Leaking:
  • Ensure the atomizing head is securely attached with the locking collar.
  • Check for any damage to the atomizing head or PPS cup system.
• No Material Flow:
  • Confirm the PPS cup system is properly assembled and material is present.
  • Check for blockages in the atomizing head.

For persistent issues, consult a qualified technician or contact 3M customer support.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

3M products are manufactured to high standards. For specific warranty details regarding the 3M HVLP High Performance Flow Cup Nozzle Head, please refer to the official 3M webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў 3M. Захоўвайце чэк аб куплі як пацверджанне пакупкі.

Падтрымка кліентаў

For technical assistance, product inquiries, or to report any issues, please contact 3M customer support. Visit the official 3M webсайт для кантактнай інфармацыі і дадатковых рэсурсаў.

Інтэрнэт-рэсурсы: www.3m.com
