Caldera Spas Highland Series Heater 240V 4.0KW Instruction Manual

1. Уводзіны

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Caldera Spas Highland Series Heater, model 73994. This 240V, 4.0KW heater is designed for specific spa models. Please read this manual thoroughly before proceeding with any installation or operation.

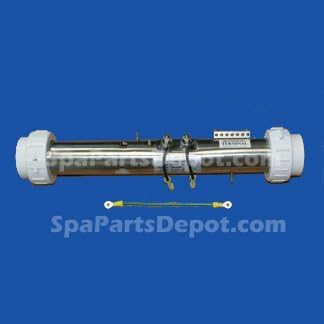

Image: The Caldera Spas Highland Series Heater, model 73994, shown as a cylindrical stainless steel component with electrical connections and plumbing unions on each end. A grounding wire is visible below the main unit.

2. Інфармацыя па бяспецы

Няправільная ўстаноўка, рэгуляванне, змена, абслугоўванне або тэхнічнае абслугоўванне могуць прывесці да пашкоджання маёмасці, траўмы або смерці. Перад устаноўкай або абслугоўваннем гэтага абсталявання ўважліва прачытайце інструкцыі па ўстаноўцы, эксплуатацыі і абслугоўванню.

• Электрычная небяспека: This heater operates on 240V. All electrical work must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power is disconnected before any service.
• Небяспека для вады: Always ensure the spa is drained or isolated from the heater before performing any maintenance or installation to prevent water damage or electrical shock.
• Гарачыя паверхні: The heater and surrounding components can become hot during operation. Avoid contact to prevent burns.
• Прафесійная ўстаноўка: It is highly recommended that this heater be installed by a certified spa technician or qualified professional.

3. Product Description and Compatibility

The Caldera Spas Highland Series Heater, model 73994, is a 240V, 4.0KW heating element designed for specific spa applications. This heater is compatible with:

• Caldera Spas: Olympia, Cumberland, and Aventine models from 2006 to current.
• Watkins Solana Spa Models (2006 to current, serial # range 1H1001 to current):
  • RX (Round)
  • SX (Square)
  • TX (Triangle)
• Hot Spot Spa Models (2006 to current, serial # range 1H1001 to current):
  • Mallorca (MAL)
  • Sorrento (SOR)
  • Trinidad (TRI)
  • Tobago (TOB)

This heater is identified by part numbers TC# C2400 C3330 1 and CAT# TC HEP 00 00 00.

4. Настройка і ўстаноўка

Installation of this heater requires specialized knowledge of spa plumbing and electrical systems. It is strongly recommended that installation be performed by a qualified spa technician.

1. Адключыць харчаванне: Ensure all power to the spa is completely disconnected at the main breaker before beginning any work.
2. Drain Spa: If replacing an existing heater, drain the spa completely or isolate the heater section from the water flow.
3. Зняць стары абагравальнік: Carefully disconnect plumbing unions and electrical wiring from the old heater. Note the orientation and wiring connections.
4. Усталяваць новы абагравальнік: Position the new 73994 heater in the correct orientation. Connect plumbing unions, ensuring proper seals to prevent leaks.
5. Электрычныя злучэнні: Connect the 240V electrical wiring according to the spa's wiring diagram and local electrical codes. Ensure proper grounding.
6. Fill Spa and Test: Once plumbing and electrical connections are secure, refill the spa and check for leaks before restoring power. Test the heater's functionality.

5. Інструкцыя па эксплуатацыі

The Caldera Spas Highland Series Heater operates in conjunction with your spa's control system to maintain the desired water temperature. Once installed and powered, the heater will activate automatically when the spa's thermostat calls for heat.

• Кіраванне тэрмастатам: Adjust the desired water temperature using your spa's main control panel. The heater will engage to reach and maintain this setting.
• Flow Requirement: The heater requires adequate water flow to operate safely and efficiently. Ensure your spa's circulation pump is functioning correctly. Low flow can cause the heater to shut off or damage the element.
• Светавыя індыкатары: Refer to your spa's main control panel for any heater status or error indicator lights.

6. Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне дапаможа забяспечыць даўгавечнасць і эфектыўную працу вашага абагравальніка.

• Хімічны склад вады: Maintain proper spa water chemistry (pH, alkalinity, calcium hardness) as recommended by your spa manufacturer. Imbalanced water can lead to scale buildup or corrosion, damaging the heater element.
• Праверка патоку: Periodically check for obstructions in the plumbing leading to and from the heater, such as debris or clogged filters, which can restrict water flow.
• Візуальны агляд: With power disconnected, visually inspect the heater element and connections for any signs of corrosion, leaks, or damage.
• Уборка: If scale buildup is observed on the heater element (only visible if disassembled by a professional), consult a spa technician for appropriate cleaning methods.

7. Выпраўленне непаладак

If your spa heater is not functioning correctly, consider the following common issues:

• Няма цяпла:
  • Check if the spa's main power breaker is tripped.
  • Verify the thermostat setting on your spa's control panel.
  • Ensure adequate water flow. Clogged filters or a malfunctioning pump can prevent the heater from activating.
  • Check for error codes on your spa's control panel.
• Нізкая цеплааддача:
  • Confirm the spa cover is properly insulated and in place to prevent heat loss.
  • Verify water chemistry is balanced to prevent scale buildup on the element.
• Уцечкі:
  • Inspect plumbing unions and seals around the heater for signs of drips. Tighten connections if necessary, but do not overtighten.

For persistent issues, contact a qualified spa technician.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For specific warranty information regarding your Caldera Spas Highland Series Heater, please refer to the documentation provided at the time of purchase or contact your authorized Caldera Spas dealer or the original seller. Warranty terms may vary.

For technical support or service inquiries, please contact your authorized Caldera Spas service center or the professional who installed your spa heater.
