Westinghouse 7863100 Quince 24-Inch Chrome Indoor Ceiling Fan Instruction Manual

Прадукт скончаныview

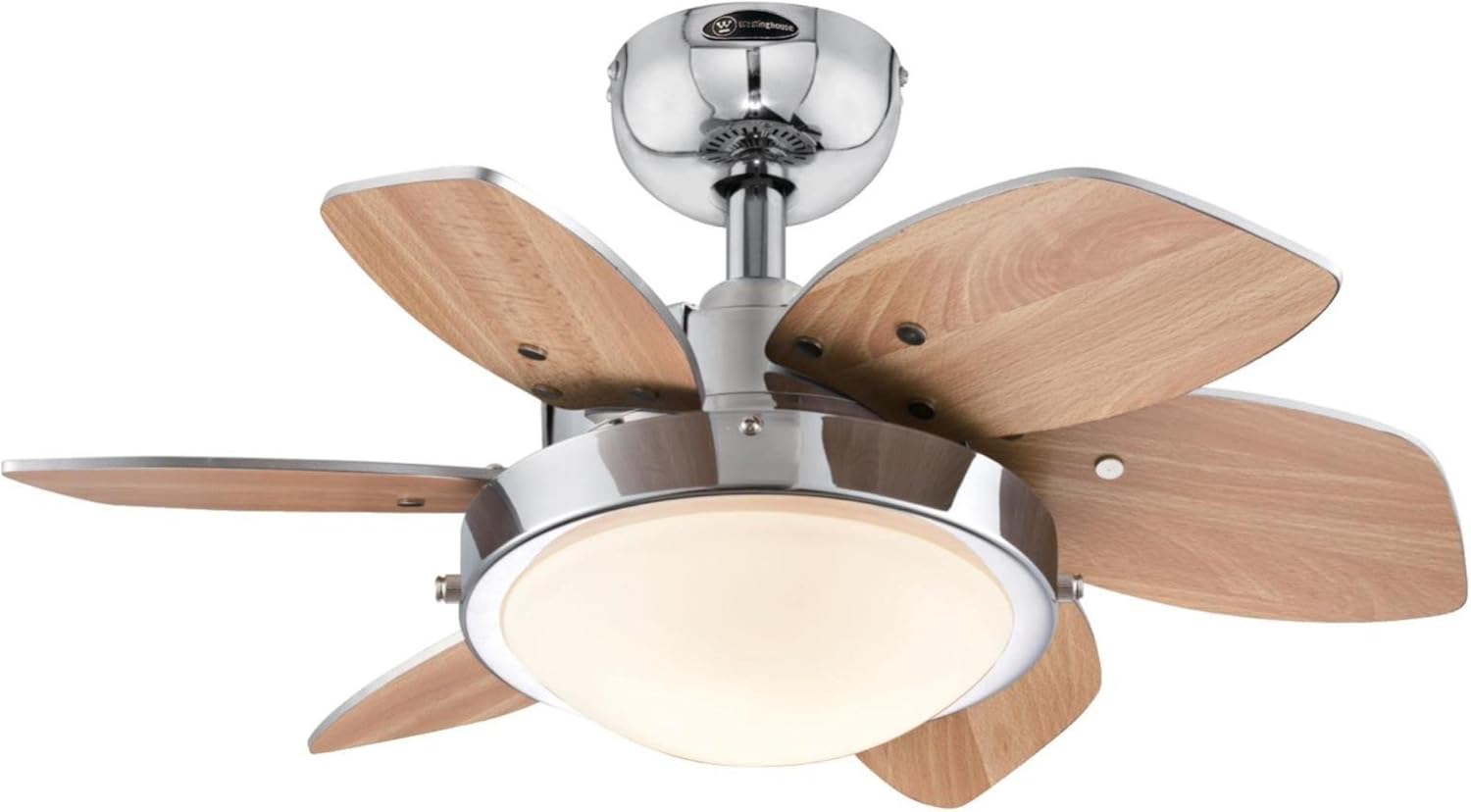

The Westinghouse Quince 24-inch indoor ceiling fan provides efficient air circulation and integrated lighting. This model features a sleek chrome finish, streamlined opal frosted glass light fixture, and reversible wengue/beech blades. Designed for rooms up to 80 square feet, it offers three fan speeds and a reversible switch for year-round comfort.

Асноўныя характарыстыкі

• Two-light 24-inch reversible six-blade indoor ceiling fan for rooms up to 80 square feet (8 by 10 feet)
• Silicon steel motor with dual capacitor; three fan speeds (high/medium/low); reversible switch for year-round use
• Airflow: 1,270 cfm; Energy Usage: 25 watts without light; Airflow Efficiency: 39 cfm per watt. Slope Angle (in degrees): 18
• Includes 3/4-Inch by 4-Inch down rod, 78-Inch lead wire, and two candelabra-base 40-watt G16-1/2 light bulbs
• Lifetime warranty on motor; two-year warranty on all other parts

Важная інфармацыя па бяспецы

Read and save these instructions. To reduce the risk of fire, electric shock, or personal injury, observe the following:

• Устаноўка павінна выконвацца кваліфікаваным электрыкам у адпаведнасці з усімі мясцовымі і нацыянальнымі электрычнымі нормамі.
• Disconnect power at the main circuit breaker or fuse box before installation, cleaning, or servicing.
• Ensure the mounting structure can securely support the fan's weight (approximately 11 pounds).
• Do not bend blade holders during installation or cleaning. Ensure blades are properly balanced.
• Keep foreign objects clear of rotating fan blades.

Інструкцыя па ўстаноўцы

Змест пакета

• Зборка рухавіка потолочного вентылятара
• Лопасці вентылятара (6)
• Кранштэйны ляза
• Down Rod (3/4-inch by 4-inch)
• Навес
• Мантажны кранштэйн
• Камплект свяцільні з матавым шклом з опалу
• Candelabra-base 40-watt G16-1/2 Light Bulbs (2)
• Набор фурнітуры (шрубы, шайбы, гайкі)
• Lead Wire (78-inch)

Неабходныя інструменты

• Крыжовая адвёртка
• Плоская адвёртка
• Развадны ключ
• Для зачысткі правадоў
• Электрычная стужка
• Прыступкавая лесвіца

Пакрокавая ўстаноўка

1. Выключыць харчаванне: Before beginning, ensure power is turned off at the circuit breaker or fuse box to prevent electrical shock.
2. Ўстаноўка мантажнага кранштэйна: Замацуйце мантажны кранштэйн да разеткі на столі. Пераканайцеся, што разетка надзейна замацавана да канструкцыі будынка і можа вытрымаць вагу вентылятара.
3. Assemble Down Rod: Insert the down rod through the canopy and then through the fan motor assembly. Secure with the provided pin and screw.
4. Павесіць вентылятар: Carefully lift the fan assembly and hang it from the mounting bracket using the hook provided on the down rod ball. This allows for hands-free wiring.
5. Падключэнне правадоў: Connect the fan's electrical wires to the household wiring according to local electrical codes. Typically, this involves connecting black to black (hot), white to white (neutral), and green/bare copper to green/bare copper (ground). Use wire nuts to secure connections.
6. Бяспечны навес: Once wiring is complete, carefully push the canopy up to the ceiling and secure it to the mounting bracket with the screws.
7. Прымацаваць лязы: Attach each fan blade to its blade bracket using the provided screws. Then, attach the blade assemblies to the motor housing. Ensure all screws are tightened securely. The blades are reversible, offering wengue or beech finishes.
8. Устанавіць камплект асвятлення: Connect the light kit wires to the corresponding wires from the fan motor. Secure the light kit to the bottom of the fan motor housing.
9. Усталюйце шкляны штор і лямпачкі: Insert the two candelabra-base 40-watt G16-1/2 light bulbs into the sockets. Carefully attach the opal frosted glass shade to the light kit.
10. Аднавіць сілу: Зноў уключыце сілкаванне на аўтаматычным выключальніку.

Operating Your Ceiling Fan

The Westinghouse Quince ceiling fan is operated using two pull chains.

Кантроль хуткасці вентылятара

One pull chain controls the fan speeds. Pull the chain repeatedly to cycle through the following settings:

1. Высокая хуткасць
2. Сярэдняя хуткасць
3. Нізкая хуткасць
4. Выкл

Кіраванне святлом

The second pull chain controls the integrated light kit. Pull the chain once to turn the light on, and pull it again to turn the light off.

Зваротная функцыя

A reversible switch on the motor housing allows you to change the direction of the fan blades for year-round use.

• Летняя аперацыя: Set the switch to allow blades to rotate counter-clockwise, pushing air downwards to create a cooling effect.
• Зімовая аперацыя: Set the switch to allow blades to rotate clockwise, drawing air upwards to recirculate warm air from the ceiling and reduce cold spots.

Note: The fan must be off and completely stopped before changing the direction of rotation.

Догляд і абслугоўванне

• Уборка: Перыядычна чысціце вентылятар мяккай губкайamp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or blades.
• Сыход за лязом: To prevent warping, ensure blades are not exposed to direct sunlight or high humidity.
• Замена лямпачкі: When replacing bulbs, ensure the power is off. Use only candelabra-base 40-watt G16-1/2 bulbs or equivalent LED bulbs.
• Зацягніце зашпількі: Check all screws and fasteners annually to ensure they are secure.

Кіраўніцтва па ліквідацыі непаладак

Тэхнічныя характарыстыкі прадукту

Інфармацыя аб гарантыі

The Westinghouse Quince ceiling fan model 7863100 comes with a lifetime motor warranty і а двухгадовая гарантыя on all other parts. For detailed warranty terms and conditions, please refer to the official Westinghouse webсайт або звярніцеся ў службу падтрымкі кліентаў.

Падтрымка кліентаў

For technical assistance, replacement parts, or warranty claims, please contact Westinghouse customer support.

You can visit the official Westinghouse webсайт для атрымання дадатковай інфармацыі: Крама Westinghouse на Amazon

Калі ласка, падрыхтуйце нумар мадэлі (7863100) і дату пакупкі перад зваротам у службу падтрымкі.
