Cisa 1A630.00.0 Electric Rim Lock User Manual

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of the Cisa 1A630.00.0 Electric Rim Lock. Designed specifically for wooden doors, this innovative locking system features a swivel hook latch and offers robust security with a pull resistance of up to 2000 kg. It incorporates patented systems for enhanced vibration and impact resistance, a steel protective cover, and a variable backset. Understanding the functions described herein will ensure optimal performance and longevity of your lock.

2. Інфармацыя па бяспецы

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in injury, product damage, or voiding of the warranty.

• Электрабяспека: This lock operates on 12V AC (3A). Ensure all electrical connections are made by a qualified electrician and comply with local electrical codes. Disconnect power before performing any installation or maintenance.
• Механічная бяспека: Handle all components with care. Keep fingers clear of moving parts during testing and operation.
• Прафесійная ўстаноўка: Due to the precision required for both electrical and mechanical components, professional installation is highly recommended to ensure correct function and security.
• Прызначэнне: This product is designed for use on wooden doors only. Do not attempt to install it on other door types.

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя і не пашкоджаныя:

• Cisa 1A630.00.0 Electric Rim Lock Unit
• Ударная пласціна
• Паваротная штанга
• Кручок-зашчапка
• Мантажныя элементы (шрубы, шайбы і г.д.)
• Кіраўніцтва карыстальніка (гэты дакумент)

4. Прадукт скончыўсяview

The Cisa 1A630.00.0 Electric Rim Lock is a robust and secure locking solution. The main lock unit houses the electrical and mechanical components, including the innovative swivel hook latch. The exterior features a cylinder for key access, while the interior provides a push button and an additional cylinder for manual operation.

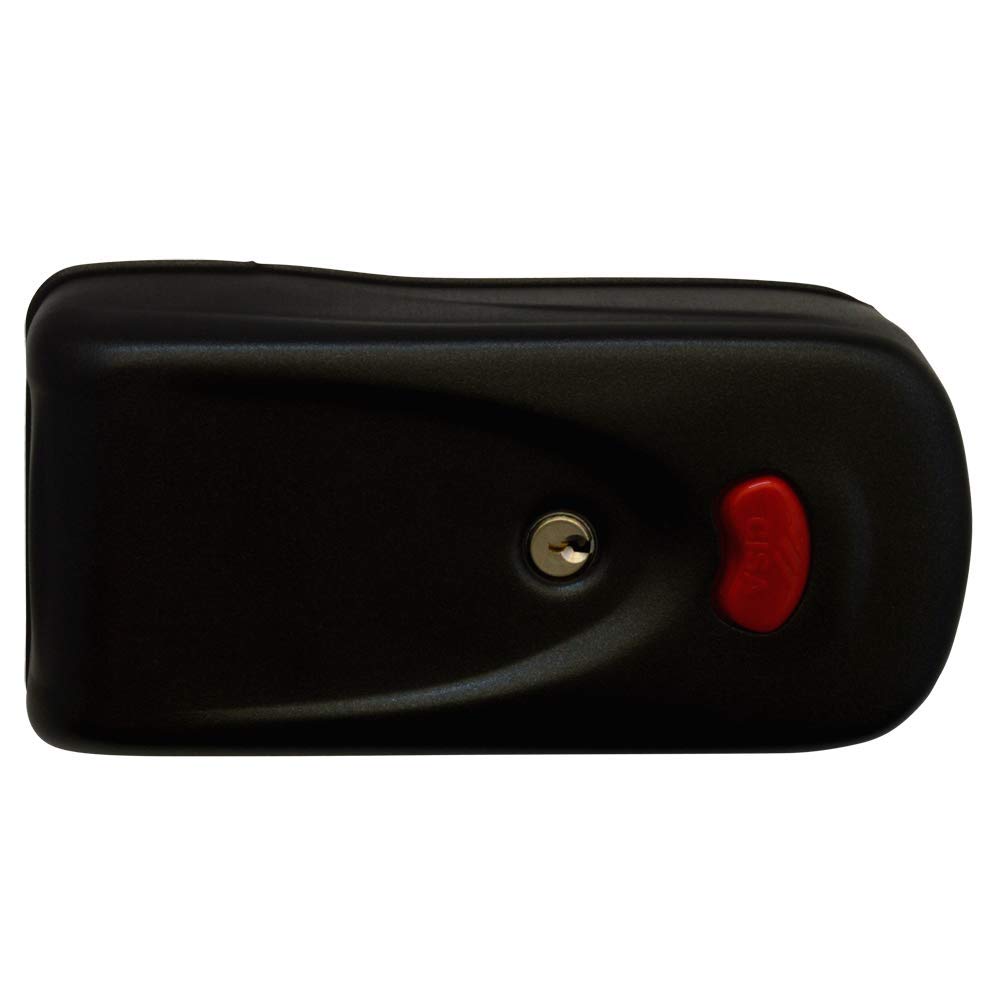

Image: Cisa 1A630.00.0 Electric Rim Lock, showing its robust construction and key components.

5. Настройка і ўстаноўка

The Cisa 1A630.00.0 Electric Rim Lock is designed for installation on wooden doors. Due to the precision required for electrical and mechanical components, professional installation is highly recommended.

Асноўныя этапы ўстаноўкі:

1. Падрыхтоўка дзвярэй: Ensure the door frame and door edge are prepared according to the lock's dimensions. The lock features a variable backset from 50 to 80 mm, allowing for flexible positioning.
2. Mounting the Lock Unit: Securely attach the main lock unit to the door surface. Ensure proper alignment with the door frame.
3. Installing the Striker Plate: Mount the striker plate on the door frame, aligning it precisely with the lock's swivel hook latch. The striker plate dimensions are 31mm (H) x 94mm (W) x 37mm (D).
4. Электрычнае падключэнне: Connect the lock to a 12V AC (3A) power supply. Ensure all electrical connections are secure and comply with local electrical codes. Incorrect wiring can damage the unit or pose a safety hazard.
5. Cylinder and Button Installation: Install the exterior cylinder and the interior push button/cylinder as per the door's configuration.
6. Тэставанне: After installation, thoroughly test all lock functions before regular use to ensure smooth and secure operation.

6. Інструкцыя па эксплуатацыі

The Cisa 1A630.00.0 Electric Rim Lock offers two primary operating modes for its rotary latch, along with additional features:

• Automatic Opening: When activated (e.g., via an intercom or access control system), the latch rotates, and the door automatically opens. This mode is suitable for high-traffic areas or where immediate access is desired.
• Ready to Open: In this mode, the latch retracts, but the door remains in a closed position. The door can then be manually pushed open. This provides a moment of control before the door fully opens.
• Internal Push Button: The internal push button allows for manual unlocking from the inside. It can also be configured to block the inside cylinders, preventing external key access when desired.
• Retaining Device: If selected, a retaining device allows the lock to be held in its open position, useful for extended periods of access.
• Ціхая праца: The innovative envelope system ensures silent opening and closing, reducing noise disturbance.
• Gate Rebound Effect: The design minimizes the gate rebound effect, ensuring smooth door closure.

7. Тэхнічнае абслугоўванне

To ensure the longevity and reliable operation of your Cisa 1A630.00.0 Electric Rim Lock, follow these maintenance guidelines:

• Уборка: Periodically clean the exterior surfaces of the lock and striker plate with a soft, damp тканінай. Пазбягайце абразіўных ачышчальнікаў або растваральнікаў.
• змазка: Apply a small amount of graphite-based lubricant to the internal moving parts of the lock and cylinder mechanisms annually. Do not use oil-based lubricants, as they can attract dust and debris.
• Праверце злучэнні: Regularly inspect electrical connections for any signs of wear or looseness. Ensure all mounting screws are tight.
• Праверка функцыянальнасці: Periodically test all operating modes (automatic opening, ready to open, push button) to ensure smooth operation.

8. Выпраўленне непаладак

If you encounter issues with your Cisa 1A630.00.0 Electric Rim Lock, refer to the following troubleshooting steps:

• Lock Does Not Engage/Disengage:
  • Check power supply: Ensure the lock is receiving the correct 12V AC (3A) power.
  • Inspect wiring: Verify all electrical connections are secure and undamaged.
  • Check alignment: Ensure the lock unit and striker plate are correctly aligned. Misalignment can prevent proper latch engagement.
  • Obstructions: Clear any debris or obstructions around the latch and striker.
• Push Button Not Working:
  • Check for blockage: Ensure the internal mechanism for the push button is not obstructed.
  • Cylinder block: Verify if the cylinder block feature is engaged, which might prevent the button from operating as expected.
• Празмерны шум падчас працы:
  • Lubrication: Apply lubricant as per maintenance instructions.
  • Mounting: Check if the lock is securely mounted; loose screws can cause rattling.

If issues persist after attempting these steps, contact Cisa customer support or a qualified technician.

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

For detailed warranty information, technical assistance, or to purchase replacement parts, please refer to the official Cisa website or contact your authorized Cisa dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
