Summit MT-770 Micro Torch Instruction Manual

1. Важная інфармацыя па бяспецы

Read all instructions and warnings before using this micro torch. Failure to follow these instructions may result in fire, explosion, property damage, or personal injury.

• Use in a well-ventilated area: Ensure adequate airflow to prevent accumulation of flammable gases.
• Беражыце ад дзяцей: This product is not a toy. Store out of reach of children. The torch includes a safety lock mechanism.
• Keep away from face and clothing: Always point the torch away from yourself and others when igniting.
• Do not expose to heat or direct sunlight: Butane is highly flammable. Store in a cool, dry place.
• Do not puncture or incinerate: Even after use, the torch may contain residual gas under pressure.
• Use only butane fuel: Do not attempt to use other types of fuel.
• Allow to cool before storing: The torch head can remain hot for a significant period after use.
• Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны (СІА): Such as safety glasses and heat-resistant gloves, especially for welding or soldering applications.

2. Прадукт скончыўсяview: Summit MT-770 Micro Torch

The Summit MT-770 Micro Torch is a versatile, professional-grade tool designed for various applications including welding, soldering, culinary tasks (like caramelizing sugar), and other precision heating needs. Its compact design and adjustable flame make it suitable for both professional and home use.

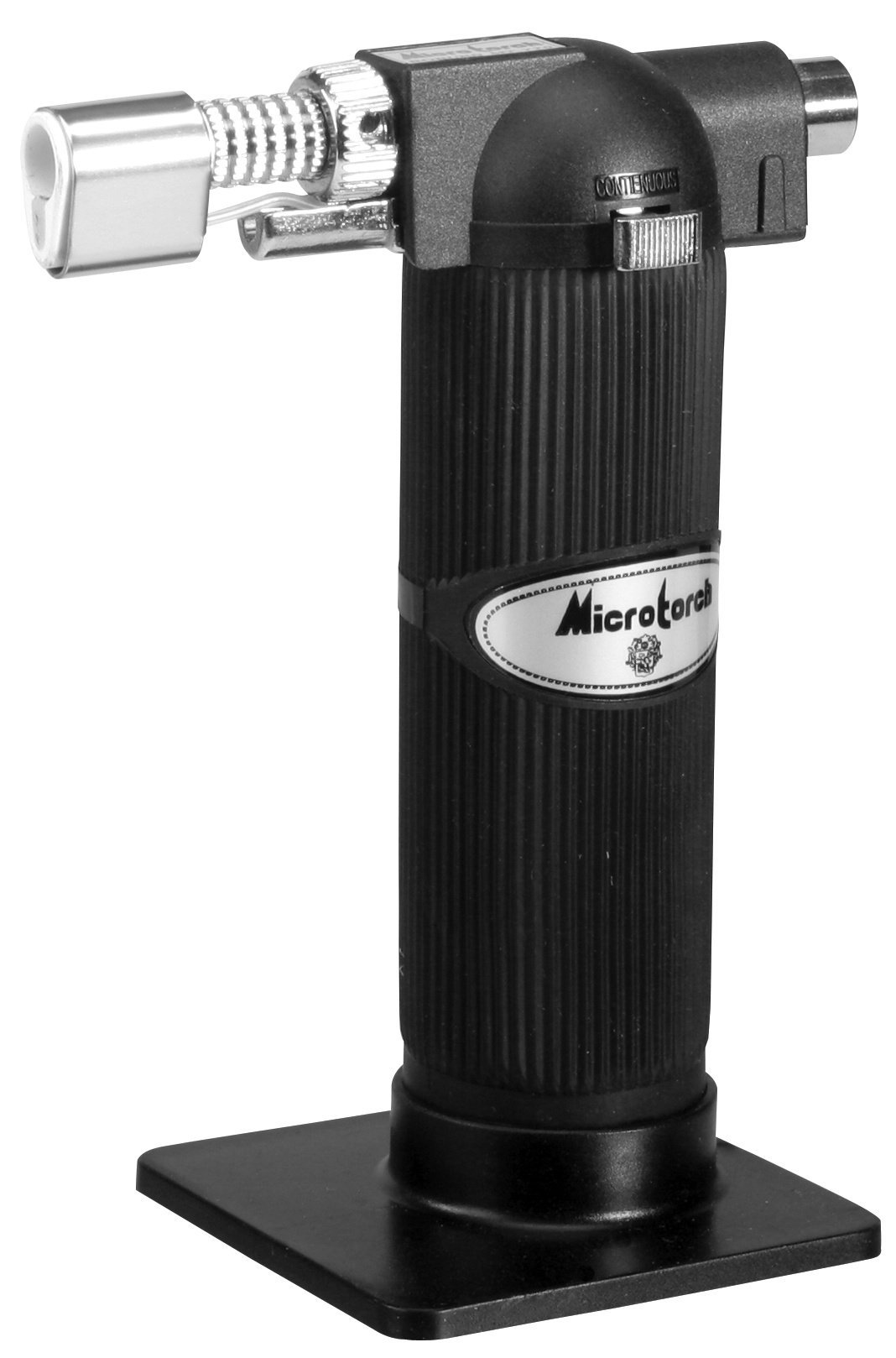

Figure 2.1: The Summit MT-770 Micro Torch features a durable black body with silver accents, designed for precision heating tasks.

3. Настройка

3.1. Fueling the Torch

The MT-770 Micro Torch uses standard butane gas. Ensure you are in a well-ventilated area, away from any ignition sources, when refilling.

1. Turn the torch upside down.
2. Insert the nozzle of the butane gas canister vertically into the filling valve at the bottom of the torch.
3. Press down firmly for approximately 5-10 seconds. You may hear a slight hiss or see a small amount of liquid butane escape, which is normal.
4. Repeat the process 2-3 times to ensure a full fill.
5. Пасля запраўкі пачакайце некалькі хвілін, перш чым падпальваць, каб газ стабілізаваўся.

3.2. Першапачатковыя праверкі

• Verify that the flame adjustment knob is set to the lowest setting before ignition.
• Ensure the safety lock (if present and engaged) is disengaged before attempting to ignite.

4. Інструкцыя па эксплуатацыі

4.1. Запальванне

1. Ensure the torch is filled with butane and the flame adjustment is at its lowest setting.
2. If your model has a safety lock, disengage it.
3. Press the ignition button. You should hear a click and see a flame.
4. If the torch does not ignite, release the button, wait a few seconds, and try again. Ensure there is sufficient butane.

4.2. Рэгуляванне полымя

• The flame size and intensity can be adjusted using the flame adjustment knob, typically located at the base or side of the torch.
• Turn the knob clockwise to decrease the flame and counter-clockwise to increase it.
• Always adjust the flame carefully to suit your specific task.

4.3. Continuous Flame Operation (if applicable)

Some models may feature a continuous flame lock. If present:

• After igniting the torch, push the continuous flame lock switch (if available) to engage it. This will keep the flame on without holding the ignition button.
• To turn off, disengage the continuous flame lock switch and then release the ignition button.

4.4. Turning Off the Torch

• Release the ignition button. If the continuous flame lock was engaged, disengage it first.
• Ensure the flame is completely extinguished.
• Engage the safety lock (if applicable) to prevent accidental ignition.

5. Тэхнічнае абслугоўванне

5.1. Уборка

• Ensure the torch is completely cool before cleaning.
• Wipe the exterior of the torch with a soft, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
• Keep the nozzle area clear of debris. Use a small brush or compressed air if necessary, ensuring the torch is completely empty of fuel.

5.2. Захоўванне

• Store the torch in a cool, dry place, away from direct sunlight and heat sources.
• Ensure the torch is turned off and the safety lock is engaged (if applicable) before storage.
• Захоўваць у месцах, недаступных дзецям і хатнім жывёлам.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

8. Інфармацыя аб гарантыі

Specific warranty details for the Summit MT-770 Micro Torch may vary depending on the retailer and region of purchase. Generally, products are covered by a limited manufacturer's warranty against defects in materials and workmanship.

Please retain your proof of purchase for any warranty claims. For detailed warranty terms and conditions, refer to the documentation provided with your purchase or contact the manufacturer directly.

9. Падтрымка кліентаў

If you encounter any issues not covered in this manual, require assistance with your Summit MT-770 Micro Torch, or have questions regarding its operation or maintenance, please contact customer support.

• вытворца: Summit (or StealStreet (Home))
• Кантактная інфармацыя: Please refer to the packaging or the official website of Summit or your retailer for the most current contact details.
• When contacting support, please have your model number (MT-770 or SS-Y-1321) and proof of purchase readily available.
