Уводзіны
This manual provides instructions for the safe and effective use of your Safety 1st Crystal Clear Audio Monitor. This audio monitor is designed to help you hear your baby from another room, offering peace of mind with its reliable audio transmission. It features a 49 MHz analog frequency, two channels to minimize interference, and a range of over 600 feet.
Змест пакета
Image: The product packaging displaying the Safety 1st Crystal Clear Audio Monitor units.
Калі ласка, праверце змесціва пакета, каб пераканацца ў наяўнасці ўсіх прадметаў:
- 1 x Baby Unit (Transmitter)
- 1 x Parent Unit (Receiver) with convertible belt clip / carry loop
- 2 х адаптары пераменнага току
- Кіраўніцтва карыстальніка (гэты дакумент)
Настройка

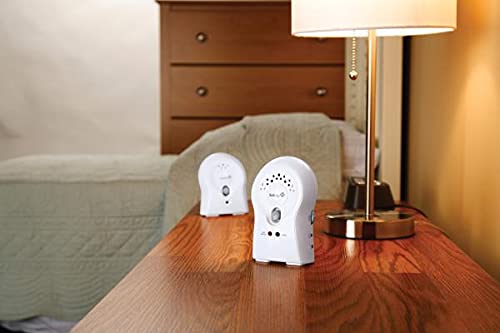

Image: The baby and parent units of the monitor set up on a table.
- Харчаванне агрэгатаў:
- Магутнасць пераменнага току: For continuous use, plug one AC power adapter into the Baby Unit and the other into the Parent Unit. Connect the adapters to standard electrical outlets.
- Харчаванне ад батарэі (дадаткова): For portability, both units can operate on batteries (not included). Open the battery compartment on the back of each unit and insert the required batteries, observing polarity.
- Placing the Baby Unit:
Place the Baby Unit in your baby's room, within 6 to 10 feet (1.8 to 3 meters) of the crib. Ensure it is out of reach of the baby and any cords are secured to prevent entanglement. Avoid placing it near other electronic devices that may cause interference.
- Placing the Parent Unit:
Place the Parent Unit in the room where you will be listening. This unit is portable and can be carried with you using the belt clip/carry loop.
- Выбар канала:
Both the Baby Unit and Parent Unit have a channel selector switch (Channel 1 or Channel 2). Set both units to the same channel to establish a connection. If you experience interference, try switching both units to the other channel.
- Пачатковы тэст:
After setup, perform a test. Have someone speak softly near the Baby Unit while you listen through the Parent Unit. Adjust the volume on the Parent Unit to a comfortable level. Ensure clear audio transmission.
Інструкцыя па эксплуатацыі
- Уключэнне/выключэнне:
Use the power switch on each unit to turn it ON or OFF. Ensure both units are turned on and set to the same channel for monitoring.
- Рэгуляванне гучнасці:
The Parent Unit features a volume control dial. Rotate the dial to increase or decrease the listening volume to your preference.
- Using the Audio Jack:
The Parent Unit includes an audio jack. You can plug in earphones (not included) for private listening, which can be useful in noisy environments or to avoid disturbing others.
- Using the Belt Clip / Carry Loop:
The Parent Unit is equipped with a convertible belt clip/carry loop for easy portability. Attach it to your belt or use it as a loop to carry the unit around your home.
- Індыкатар разраду батарэі:
If operating on batteries, a low battery indicator light (if present on your model) will illuminate when batteries are running low. Replace batteries promptly or switch to AC power.
Тэхнічнае абслугоўванне
- Уборка:
Працірайце прылады мяккай тканінайamp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі. Перад выкарыстаннем пераканайцеся, што прылады цалкам сухія.
- Замена батарэі:
When replacing batteries, always use the recommended type and size. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly.
- захоўванне:
If storing the monitor for an extended period, remove all batteries from both units to prevent leakage and damage. Store in a cool, dry place.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Няма гуку або слабы гук |
|
|
| Статыка або перашкоды |
|
|
| Абмежаваны дыяпазон |
|
|
Тэхнічныя характарыстыкі
- Нумар мадэлі: MO065
- Дыяпазон частот: 49 MHz (Analog)
- Колькасць каналаў: 2
- Максімальная далёкасць размовы: 600+ Feet (open field)
- Тып цюнэра: Аналаг
- Пратакол падлучэння: Аналагавы FM-сігнал
- Дадатковыя магчымасці: Audio only, Audio jack for earphones, Convertible belt clip / carry loop
- Вага прадмета: 8 унцый (прыблізна)
- колер: Белы
- вытворца: Dorel Juvenile Group-CA
Інфармацыя аб гарантыі
For specific warranty details, please refer to the warranty card included with your product packaging or visit the official Safety 1st webсайт. Захоўвайце чэк аб куплі як пацвярджэнне пакупкі ў выпадку любых гарантыйных прэтэнзій.
Падтрымка
If you require further assistance or have questions not covered in this manual, please contact Safety 1st customer support. Contact information can typically be found on the product packaging or on the official Safety 1st webсайт.
