Уводзіны
This manual provides detailed instructions for the installation, operation, and maintenance of your Lightkiwi E7574 Dimmable LED Under Cabinet Lighting 4 Panel Kit. Please read this manual thoroughly before installation and retain it for future reference.
Інфармацыя па бяспецы
- Always disconnect power before installing, servicing, or cleaning the fixture.
- This product is designed for indoor use only. Do not expose to water or moisture.
- Пераканайцеся, што ўсе злучэнні надзейныя і адпавядаюць мясцовым электрычным нормам.
- Do not attempt to modify the product. Any modifications may void the warranty and create safety hazards.
- The product is UL-Listed, indicating it meets specific safety standards.
Змест пакета
Пераканайцеся, што ўсе пералічаныя ніжэй кампаненты ўваходзяць у камплект пастаўкі:
- 4 x 12-inch LED Light Panels
- 1 x 12 Watt Power Supply
- 1 x Dimmer Switch
- 1 x 4-Way Splitter
- Модульныя раздымы
- Mounting Brackets with Screws
- 3ft Interconnect Cables
Выява: Зверхуview of the Lightkiwi E7574 kit components, including LED panels, power supply, dimmer switch, 4-way splitter, modular connectors, mounting brackets, and interconnect cables.
Асаблівасці прадукту
- Professional Grade Lighting: Provides clear, vivid, and distinguishable light while consuming less energy.
- Зацямненне: Features continuous 0% - 100% flicker-free dimming with the included inline electric dimmer switch.
- Дызайн з магчымасцю пашырэння: The modular LED under cabinet lighting kit can be expanded by using a power supply with higher wattage, allowing for increased configuration without overburdening the product.
- Сертыфікавана UL: Panels and power supply are UL-Listed, ensuring compliance with regulatory safety requirements.
- Функцыя памяці: The dimmer switch retains its previous brightness and power settings, making it compatible with wall on/off switches or plug-in timers.
- Нізкі Profile: Ultra-thin design (0.35 inches) with an aluminum body for durability.
Настройка і ўстаноўка
1. Планаванне макета
Before installation, determine the desired placement of each LED panel. Consider the length of interconnect cables and the location of the power outlet and dimmer switch.
2. Злучэнне кампанентаў
Connect the LED panels to each other using either the modular connectors for a continuous strip or the 3ft interconnect cables for spacing between panels. Connect the assembled panels to the 4-way splitter, then connect the dimmer switch to the splitter, and finally the power supply to the dimmer switch. Ensure all connections are firm.
Image: Connection options for LED panels, illustrating the use of interconnect cables and modular connectors.
3. Mounting the LED Panels
You have two primary options for mounting the LED panels:
- Mounting Brackets with Screws (Permanent Use): Secure the mounting brackets to your desired surface using the provided screws. Snap the LED panels into the brackets.
- Double-Sided Adhesive Tape (Temporary Use): Apply double-sided adhesive tape (not included, but often used for temporary installations) to the back of the LED panels and press them firmly onto the surface.
Image: Installation options for LED panels, detailing bracket mounting and adhesive tape application.
4. Hardwire Installation (Optional)
If you intend to use a wall dimmer switch (110V), a hardwire installation with a dimmable 24VDC transformer is required. The included plug-in power supply is not compatible with 110V wall dimmer switches due to voltage differences. If a 24V dimmer switch is used with a plug-in power supply, you may need to splice the power plug from the power cord and connect it to the power source using a junction box or similar method. Consult a qualified electrician for hardwire installations.
Інструкцыя па эксплуатацыі
Using the Dimmer Switch
- Уключэнне/выключэнне харчавання: Press the power button on the dimmer switch to turn the lights on or off.
- Зацямненне: Use the 'DIMMER' buttons (up and down arrows) to adjust the brightness level from 0% to 100%.
- Функцыя памяці: The dimmer switch will recall the last brightness setting when turned back on, even if power is interrupted by a wall switch or timer.
Тэхнічнае абслугоўванне
- Уборка: Ensure the power is off before cleaning. Wipe the LED panels and other components with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- агляд: Periodically check all connections for tightness and ensure no cables are pinched or damaged.
- No user-serviceable parts are inside the LED panels or power supply.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Святло не гарыць. | No power to the unit; loose connections; faulty dimmer switch or power supply. | Check power outlet; ensure all cables are securely connected; test with a different power supply or bypass dimmer if possible. |
| Фары нечакана мігцяць або цьмянеюць. | Loose connections; incompatible power supply wattage; dimmer malfunction. | Verify all connections; ensure power supply wattage matches requirements; replace dimmer switch if necessary. |
| Dimmer switch not responding. | Dimmer switch not properly connected; faulty dimmer switch. | Check dimmer connections; replace dimmer switch. |
Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Нумар мадэлі | E7574 |
| Светлы колер | Цёплы белы (3000 Кельвінаў) |
| Яркасць | 1120 Lumen (Total for 4 panels) |
| Ватtage | 12 Watts (Total for 4 panels) |
| тtage | 24 Вольты пастаяннага току |
| Panel Dimensions (Each) | 11.75 цаляў (Д) х 1.30 цаляў (Ш) х 0.35 цаляў (У) |
| Памеры блока харчавання | 2.70 цаляў (Д) х 1.92 цаляў (Ш) х 1.04 цаляў (У) |
| Матэрыял | Aluminum Body (Panels), Plastic (Shade) |
| Атэстацыя | У спісе UL |
| Метад кантролю | Push Button Dimmer Switch |
| Выкарыстанне ў памяшканні/на вуліцы | У памяшканні |

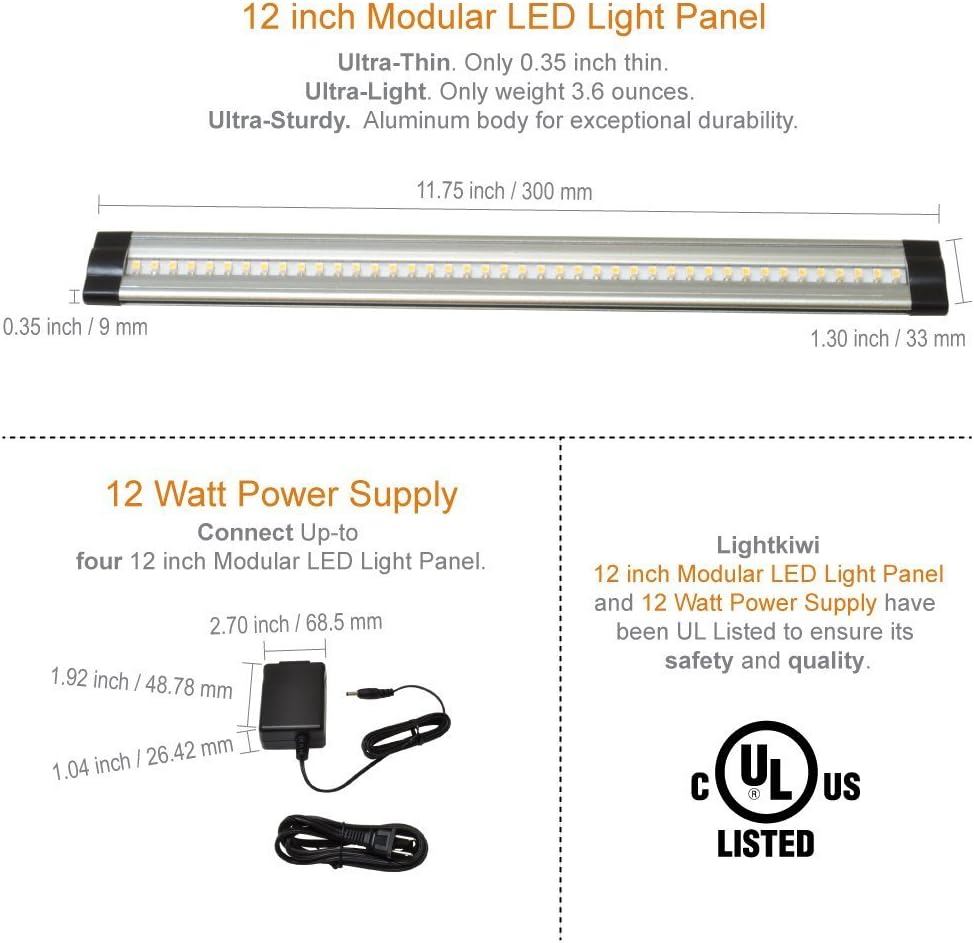

Image: Detailed dimensions of the 12-inch LED light panel and the 12-watt power supply, highlighting their ultra-thin and ultra-light design, and UL certification.
Інфармацыя аб гарантыі
This Lightkiwi product is covered by a 3-гадовая гарантыя вытворцы з даты пакупкі. Гэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
Падтрымка кліентаў
For further assistance, technical support, or warranty inquiries, please visit the official Lightkiwi store or contact their customer service department. Refer to your product packaging or the Lightkiwi webсайт для атрымання актуальнай кантактнай інфармацыі.
