Baby Lock BL400, SL200, 5040, EZ100, S432
Baby Lock Serger Upper Looper Arm Instruction Manual
For Models: BL400, SL200, 5040, EZ100, S432
Уводзіны
This manual provides essential information for the installation, maintenance, and troubleshooting of your new Baby Lock Serger Upper Looper Arm. This component is a critical part of your serger, responsible for forming stitches correctly. Please read these instructions carefully before attempting any installation or maintenance to ensure proper function and longevity of your serger.
Сумяшчальнасць
This Upper Looper Arm is compatible with the following Baby Lock Serger models:
- Дзіцячы замак BL400
- Baby Lock SL200
- Baby Lock 5040
- Baby Lock EZ100
- Baby Lock S432
Ensure your serger model is listed above before proceeding with installation.
Важная інфармацыя па бяспецы
Заўсёды выконвайце наступныя меры бяспекі:
- Адключыць харчаванне: Always unplug your serger from the power outlet before installing, removing, or performing any maintenance on parts.
- Асцярожна звяртайцеся: Serger components can have sharp edges. Handle the looper arm and surrounding parts carefully to avoid injury.
- Consult Main Manual: Refer to your specific Baby Lock serger's original instruction manual for detailed diagrams and model-specific instructions regarding looper arm replacement.
- Захоўваць удалечыні ад дзяцей: Small parts can be a choking hazard. Keep all components out of reach of children.
Настройка і ўстаноўка
The upper looper arm is a precision component. If you are unsure about the installation process, it is recommended to seek assistance from a qualified sewing machine technician.
Агульныя этапы ўстаноўкі:
- Prepare the Serger: Unplug the serger from the power source. Open the front and side covers to access the looper mechanism.
- Identify the Old Looper Arm: Locate the existing upper looper arm. Note its position and how it interacts with other components.
- Remove the Old Looper Arm: Carefully loosen any screws or fasteners holding the old upper looper arm in place. Gently remove it, taking care not to damage surrounding parts. Keep track of all removed screws.
- Install the New Looper Arm: Position the new Baby Lock Upper Looper Arm (Part No. 61758) into the correct location. Ensure it aligns properly with the mounting points and other looper components.
- Secure the New Looper Arm: Fasten the new looper arm using the screws removed earlier. Tighten them securely but do not overtighten.
- Тэставы рух: Manually turn the handwheel of your serger to observe the movement of the new upper looper arm. It should move smoothly and freely without obstruction.
- Зборка і тэставанне: Close the serger covers. Plug in the serger and perform a test stitch on scrap fabric to ensure proper operation and stitch formation. Adjust tension as needed.

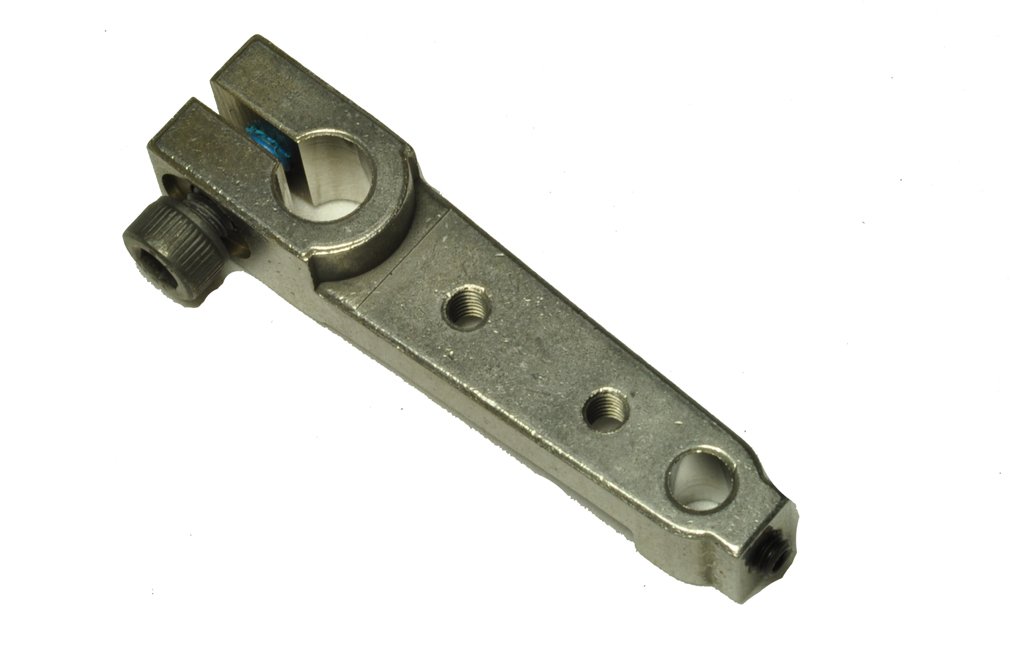

Image: The Baby Lock Serger Upper Looper Arm. This image shows the replacement part, which is crucial for forming stitches on compatible Baby Lock serger models.
For detailed visual guides, refer to your specific serger model's service manual or online resources provided by Baby Lock.
Тэхнічнае абслугоўванне
Proper maintenance ensures the longevity and optimal performance of your upper looper arm and serger.
- Рэгулярная ўборка: Periodically clean lint and thread debris from around the looper arm area using a small brush or vacuum. Accumulation can hinder movement and affect stitch quality.
- змазка: Refer to your serger's main instruction manual for specific lubrication points and frequency. Some looper mechanisms require a drop of sewing machine oil. Use only high-quality sewing machine oil.
- агляд: Regularly inspect the looper arm for any signs of wear, bending, or damage. A damaged looper arm can lead to skipped stitches or thread breakage.
Ліквідацыю непаладак
If you encounter issues after replacing the upper looper arm, consider the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Прапушчаныя шыўкі | Incorrect looper timing or positioning; bent looper arm; improper threading. | Recheck looper arm installation and ensure it is securely fastened and correctly positioned. Verify threading path. If timing is suspected, consult a technician. |
| Thread Breakage (Upper Looper Thread) | Rough spot on looper arm; incorrect thread tension; burrs on thread path. | Inspect the looper arm for any nicks or rough spots. Adjust upper looper thread tension. Ensure the thread path is clear and smooth. |
| No Stitch Formation | Looper arm not installed correctly; severe timing issue; incorrect threading. | Double-check the installation steps. Ensure the looper arm moves in conjunction with the needles and lower looper. Reread threading instructions carefully. |
If troubleshooting steps do not resolve the issue, contact Baby Lock customer support or a certified service technician.
Тэхнічныя характарыстыкі
| Назва часткі: | Upper Looper Arm |
| вытворца: | Babylock |
| Сумяшчальныя мадэлі: | BL400, SL200, 5040, EZ100, S432 |
| Вага прадмета: | Прыблізна 1 фунт (0.45 кг) |
| ASIN: | B008MM78JY |
Гарантыя і падтрымка
This Baby Lock Upper Looper Arm is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation included with your original serger purchase or visit the official Baby Lock webсайт.
For technical support, replacement parts, or service inquiries, please contact Baby Lock customer service directly or visit their authorized dealer network. Always provide your serger model number and the part number (61758) when seeking support.
Baby Lock Official Webсайт: www.babylock.com
