ELTO Dryer Thermostat User Manual

1. Уводзіны

1.1 Прадукт скончыўсяview

This manual provides instructions for the ELTO replacement thermostat, an essential component designed for specific ELTO tumble dryer models. This thermostat ensures the correct operating temperature within your dryer, preventing overheating and maintaining efficient drying cycles. It is a genuine ELTO product, identified by manufacturer code C00095536.

1.2 Выкарыстанне па прызначэнні

This ELTO thermostat is intended as a direct replacement part for the following ELTO tumble dryer models: 37701, TD41, TD410RS, TD46. Use of this thermostat with incompatible models may result in improper operation or damage.

1.3 Інфармацыя па бяспецы

• Always disconnect the dryer from the main power supply before attempting any installation, maintenance, or repair. Failure to do so can result in electric shock or serious injury.
• Installation should only be performed by a qualified technician or a person with sufficient electrical and appliance repair knowledge.
• Падчас мантажу выкарыстоўвайце адпаведныя сродкі індывідуальнай абароны, такія як пальчаткі.
• Ensure all connections are secure and correctly wired according to the dryer's service manual.
• Do not bypass any safety features of the appliance.

2. Ўстаноўка

2.1 Агульныя этапы ўстаноўкі

The following steps provide a general guide for replacing a dryer thermostat. Specific procedures may vary depending on your dryer model. Always refer to your dryer's service manual for detailed, model-specific instructions.

1. Адключыць харчаванне: Unplug the dryer from the wall outlet or turn off the circuit breaker supplying power to the dryer.
2. Доступ да тэрмастата: Depending on your dryer model, you may need to remove the back panel, top panel, or front panel to access the thermostat.
3. Locate Old Thermostat: Identify the existing thermostat. It is typically a small, disc-shaped component with two wires connected to it, often mounted near the heating element or blower housing.
4. Адлучыце правады: Carefully disconnect the wires from the old thermostat. Note their positions for correct re-connection.
5. Выдаліць стары тэрмастат: Адкруціце або адмацуйце стары тэрмастат ад яго мантажнага кранштэйна.
6. Усталюйце новы тэрмастат: Mount the new ELTO thermostat in the same location and orientation as the old one. Secure it with screws or clips.
7. Зноў падключыце правады: Connect the wires to the new thermostat, ensuring they are securely attached.
8. Зборка сушылкі: Reattach any panels removed during the process.
9. Аднавіць сілу: Plug the dryer back into the wall outlet or turn on the circuit breaker.
10. Тэставая аперацыя: Run a short drying cycle to ensure the dryer heats correctly and the thermostat functions as expected.

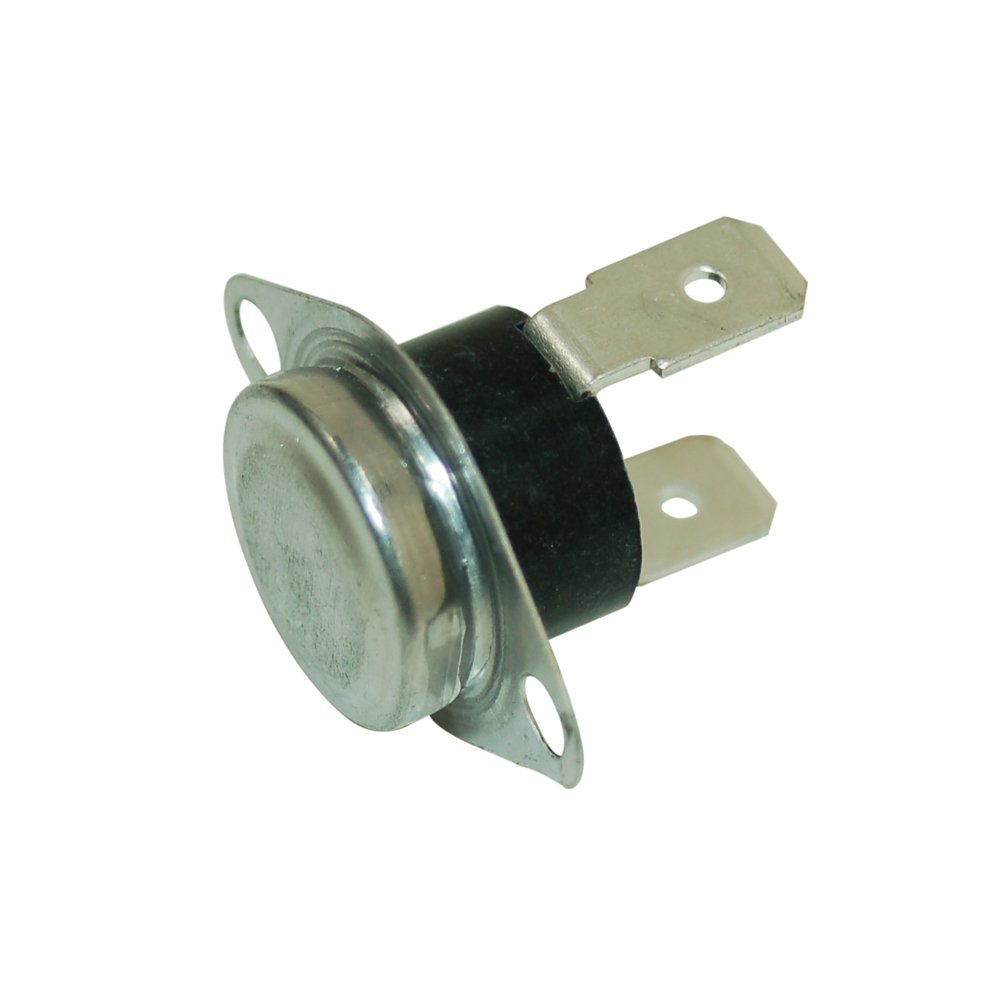

Малюнак 1: ELTO Dryer Thermostat. This image shows the typical appearance of the replacement thermostat, a small, disc-shaped component with electrical terminals.

3. Аперацыя

The ELTO dryer thermostat operates automatically to regulate the temperature inside your tumble dryer. It functions as a safety device and a temperature control component. When the dryer reaches a predetermined temperature, the thermostat opens the electrical circuit to the heating element, turning it off. As the temperature drops, the thermostat closes the circuit, turning the heating element back on. This cycle maintains the desired drying temperature and prevents overheating.

No user intervention is required for the thermostat's operation once correctly installed.

4. Тэхнічнае абслугоўванне

The ELTO dryer thermostat is a sealed unit and does not require routine maintenance. However, regular maintenance of your tumble dryer can help ensure the longevity and proper function of all its components, including the thermostat.

• Ачысціце фільтр для ворса: Always clean the lint filter before or after every load to ensure proper airflow.
• Check Venting: Periodically inspect and clean the dryer's exhaust vent to prevent lint buildup, which can restrict airflow and cause overheating. Restricted airflow can lead to premature failure of heating elements and thermostats.
• Праверце праводку: During any other dryer maintenance, visually inspect the thermostat's wiring for any signs of wear, fraying, or loose connections.

5. Выпраўленне непаладак

If your dryer is experiencing issues related to heating, the thermostat might be a contributing factor. Always ensure the dryer is disconnected from power before inspecting components.

• Сушылка не награваецца: If the dryer is running but not producing heat, the thermostat may have failed in the open position, preventing power from reaching the heating element.
• Перагрэў сушылкі: If the dryer gets excessively hot or shuts off prematurely, the thermostat might have failed to open the circuit at the correct temperature. This can also be caused by restricted airflow due to clogged vents.
• No Power to Dryer: While less common for a thermostat, a shorted thermostat could potentially trip a circuit breaker. However, other components are more likely culprits for a complete power loss.

Рэкамендацыя: Diagnosing thermostat issues often requires a multimeter to test for continuity. If you suspect a faulty thermostat or any other electrical component, it is highly recommended to consult a qualified appliance repair technician for diagnosis and repair.

6. Тэхнічныя характарыстыкі

7. Гарантыя і падтрымка

7.1 Інфармацыя аб гарантыі

Specific warranty details for this ELTO replacement thermostat are not provided within this document. Please refer to the original purchase documentation or contact the retailer from whom the product was purchased for information regarding warranty coverage.

7.2 Падтрымка кліентаў

For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact the seller or the manufacturer, Elto. When contacting support, please have your product model numbers (37701, TD41, TD410RS, TD46) and the manufacturer code (C00095536) readily available.

You may also find additional support resources on the official Elto webна сайце або праз аўтарызаваныя сэрвісныя цэнтры.
