iFrogz CAL-VANGAU

iFrogz CAL-VANGAU Caliber Vanguard Premium Gaming Headphones

Model: CAL-VANGAU

Прадукт скончаныview

The iFrogz Caliber Vanguard headphones are designed for an immersive audio experience, suitable for both gaming and personal entertainment. They feature 40mm drivers that deliver clear and powerful 7.1 channel sound. An optional bass vibration feature enhances the audio experience by allowing users to feel the action. The integrated microphone is retractable, providing convenience for in-game communication or auto-muting when not in use. The headphones boast a sleek black finish with techno-cyan accents.

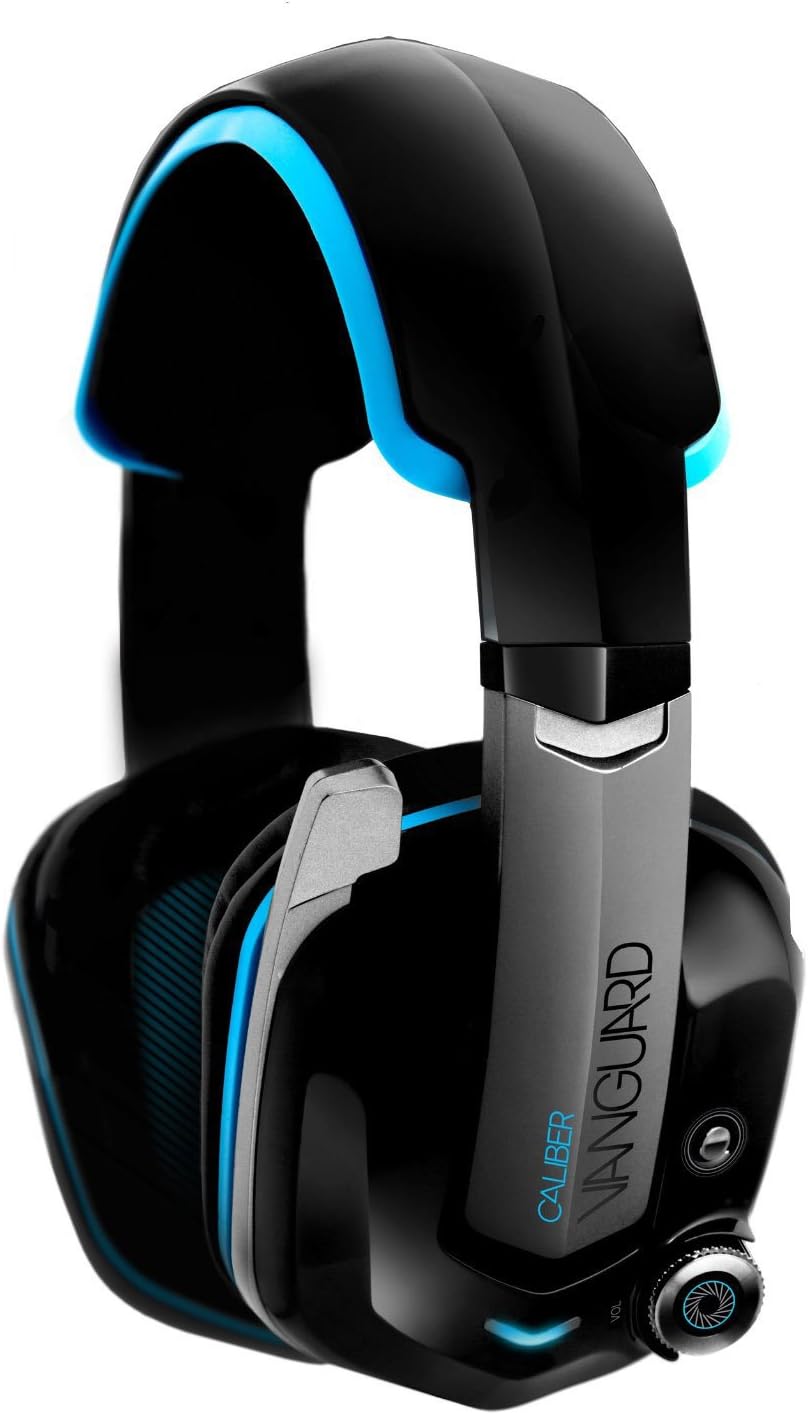

iFrogz Caliber Vanguard Premium Gaming Headphones, black with blue accents

Image: iFrogz Caliber Vanguard Premium Gaming Headphones. This image displays the headphones from a front-side angle, highlighting their black and techno-cyan design, the retractable microphone, and the volume control knob on the ear cup.

Асноўныя характарыстыкі

  • Высоўны мікрафон: For clear communication during gaming or convenient storage.
  • Аб'ёмны гук 7.1: Provides an immersive audio experience for gaming and multimedia.
  • Vibrating Bass Driver: Enhances low-frequency sounds, allowing users to feel the bass.
  • Closed-Ear Design: Offers passive noise isolation for focused listening.
  • 40-міліметровыя неадымавыя дынамікі: Delivers crisp, clear, and powerful audio.
  • Правадное падключэнне: Ensures a stable audio connection via a 3.5mm jack.

Інструкцыя па наладзе

  1. Распакаванне: Carefully remove the headphones and any included accessories from the packaging. Ensure all components are present.
  2. Падключэнне да прылады:
    • Locate the 3.5mm audio jack on your gaming console, PC, or other audio device.
    • Insert the 3.5mm connector from the headphone cable firmly into the audio jack.
  3. Рэгуляванне падгонкі:
    • Extend or retract the headband to comfortably fit your head. The earcups should fully enclose your ears.
    • Ensure a snug fit to optimize sound quality and passive noise isolation.
  4. Размяшчэнне мікрафона:
    • To use the microphone, gently pull it down from its retracted position until it is near your mouth.
    • To mute the microphone, push it back into its retracted position.

Інструкцыя па эксплуатацыі

Рэгулятар гучнасці

The headphones feature an integrated volume control knob, typically located on one of the earcups or along the cable. Rotate the knob clockwise to increase volume and counter-clockwise to decrease volume.

Bass Vibration Feature

The Caliber Vanguard headphones include an optional bass vibration feature. A dedicated button, usually located near the volume control, allows you to toggle this feature on or off. When activated, the headphones will vibrate in sync with low-frequency sounds, enhancing the immersive experience.

Выкарыстанне мікрафона

The retractable microphone can be extended for voice communication during gaming or calls. When not needed, retract the microphone fully into the earcup to automatically mute it and keep it out of the way.

Тэхнічнае абслугоўванне

  • Уборка: Use a soft, dry cloth to wipe down the headphones. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the speaker grilles or control buttons.
  • захоўванне: Захоўвайце навушнікі ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур. Не кладзіце на іх цяжкія прадметы.
  • Сыход за кабелем: Avoid sharp bends or kinks in the cable. Do not pull the cable to disconnect the headphones; always grasp the plug.
  • Амбушюры: Перыядычна правярайце амбушюры на наяўнасць зносу. Запасныя амбушюры можна набыць у вытворцы або ў аўтарызаваных прадаўцоў.

Ліквідацыю непаладак

праблемаМагчымая прычынаРашэнне
Няма гуку з навушнікаў.
  • Кабель не цалкам падключаны.
  • Гучнасць прылады занадта нізкая або выключаная.
  • Занадта нізкі гук у навушніках.
  • На прыладзе выбраны няправільны аўдыёвыхад.
  • Пераканайцеся, што 3.5-мм раз'ём цалкам устаўлены ў прыладу.
  • Павялічце гучнасць на падлучанай прыладзе і праверце налады адключэння гуку.
  • Rotate the volume knob on the headphones clockwise to increase volume.
  • Verify that the correct audio output (e.g., "Headphones") is selected in your device's sound settings.
Не працуе мікрафон.
  • Microphone is retracted (muted).
  • На прыладзе выбраны няправільны ўваход для мікрафона.
  • Privacy settings blocking microphone access.
  • Extend the microphone fully.
  • Check your device's sound settings to ensure the correct microphone input is selected.
  • Review privacy settings on your operating system or application to allow microphone access.
Bass vibration not active.
  • Feature is turned off.
  • Audio content lacks sufficient bass.
  • Press the bass vibration button to activate the feature.
  • Test with audio content known to have strong bass frequencies.

Тэхнічныя характарыстыкі

Назва мадэліCAL-VANGAU
Тэхналогія падлучэнняПравадны (раз'ём 3.5 мм)
Блок драйвера40 мм неадым
Імпеданс32 Ом
Адчувальнасць95 dB +/- 3 dB at 1 kHz
АЧХад 20 Гц да 20 кГц
Даўжыня шнура2 метраў
Формаў-фактарClosed-back, Over-ear
МікрафонВысоўная
Аб'ёмны гукКанал 7.1
АсаблівасціVibrating Bass Driver
Памеры прадукту11.43 х 20.32 х 24.77 см
Вага прадмета0.5 фунта (прыблізна 226.8 г)
КолерBlack with Techno-Cyan Accents
ВытворцаЗАГГ

Інфармацыя аб гарантыі

For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official iFrogz webсайт. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.

Заўвага: Умовы гарантыі могуць адрознівацца ў залежнасці ад рэгіёна і прадаўца.

Падтрымка кліентаў

If you encounter any issues or have questions not covered in this manual, please contact iFrogz customer support. Support contact information can typically be found on the product packaging, the official iFrogz webсайце або праз вашага прадаўца.

Інтэрнэт-рэсурсы: Visit the official iFrogz website for FAQs, updated manuals, and support contact details.

вытворца: ЗАГГ

© 2024 iFrogz. All rights reserved.
