Shure GLXD16 Digital Wireless Guitar Pedal System Instruction Manual

Уводзіны

The Shure GLXD16 Rechargeable Wireless System offers guitarists and bassists unparalleled freedom and exceptional digital audio clarity. Designed for seamless operation, this system combines revolutionary LINKFREQ Automatic Frequency Management with reliable battery technology and robust Shure construction. This manual provides essential information for setting up, operating, and maintaining your GLXD16 system.

Што ў скрынцы

Your Shure GLXD16 system includes the following components:

• GLXD6 Digital Guitar Pedal Receiver: The central unit for receiving wireless signals and managing system functions.
• GLXD1 Bodypack Transmitter: A compact transmitter designed to connect to your instrument.
• WA305 Instrument (Guitar) Cable: Connects your instrument to the GLXD1 transmitter.
• SB902A Lithium-Ion Rechargeable Battery: Provides power for the GLXD1 transmitter.
• PS24 Power Supply: For powering the GLXD6 receiver.
• Wall Battery Charger: For recharging the SB902A battery.
• Кіраўніцтва карыстальніка: Гэтая інструкцыя па эксплуатацыі.

Image: The complete Shure GLXD16 Digital Wireless Guitar Pedal System, showcasing the GLXD6 receiver, GLXD1 transmitter, and associated cables and power supply.

Інструкцыя па наладзе

1. Charge the Transmitter Battery

Before initial use, fully charge the SB902A Lithium-Ion rechargeable battery. Insert the battery into the GLXD1 bodypack transmitter and connect the wall battery charger to the transmitter's charging port. A 15-minute charge provides approximately 1.5 hours of use, while a full charge offers up to 11.5 hours (or up to 16 hours with an SB902 battery).

Image: The SB902A Lithium-Ion rechargeable battery, used to power the GLXD1 transmitter.

Выява: Збоку view of the GLXD1 Bodypack Transmitter, showing the micro-USB charging port.

Image: The PS24 power supply and a USB cable, used for charging the transmitter battery.

2. Connect the Transmitter to your Instrument

Connect one end of the WA305 instrument cable to your guitar or bass, and the other end to the input jack on the GLXD1 bodypack transmitter.

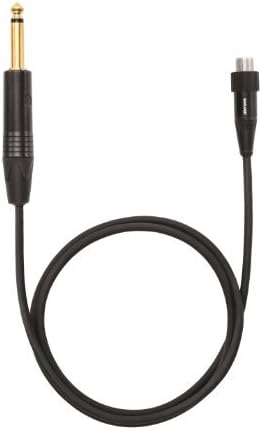

Image: The WA305 instrument cable, featuring a 1/4-inch jack on one end and a mini XLR connector on the other for the bodypack transmitter.

3. Connect the Receiver to your Amplifier/Pedalboard

Place the GLXD6 Digital Guitar Pedal Receiver on your pedalboard or near your amplifier. Connect the PS24 power supply to the receiver and plug it into a power outlet. Use a standard 1/4-inch instrument cable to connect the receiver's output to your amplifier's input or the next pedal in your signal chain.

Image: The GLXD6 Digital Guitar Pedal Receiver with its illuminated display showing channel and signal information.

Інструкцыя па эксплуатацыі

1. Power On the System

Turn on the GLXD1 bodypack transmitter using its power switch. Then, turn on the GLXD6 receiver. The system will automatically scan for open frequencies and link the transmitter and receiver.

2. Automatic Frequency Management (LINKFREQ)

The GLX-D system utilizes LINKFREQ Automatic Frequency Management to continuously scan for open 2.4 GHz frequencies. If interference is detected, the system seamlessly switches to a clear backup frequency without interrupting your performance. This ensures a solid signal and exceptional digital audio clarity.

3. Integrated Tuner

The GLXD6 receiver features a built-in chromatic tuner. Engage the tuner mode to mute your signal and accurately tune your instrument. The display provides clear visual feedback for precise tuning.

Image: The GLXD6 Digital Guitar Pedal Receiver display showing the integrated chromatic tuner in action.

4. Battery Life Monitoring

The GLXD6 receiver's display shows real-time battery life for the GLXD1 transmitter, indicated in minutes. This allows you to monitor your remaining playtime and plan recharges accordingly.

5. Multiple Transmitters (Advanced)

The system supports up to 4 compatible channels in typical settings. If using multiple GLXD1 transmitters (e.g., for different instruments), the GLXD6 receiver allows you to set and remember individual input signal levels for each transmitter, ensuring consistent sound when switching instruments.

Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your Shure GLXD16 Wireless System, follow these maintenance guidelines:

• Уборка: Use a soft, dry cloth to clean the exterior of the receiver and transmitter. Avoid using harsh chemicals or abrasive materials.
• Сыход за батарэяй: Recharge the SB902A battery regularly. Store the battery in a cool, dry place when not in use. Avoid extreme temperatures.
• Праверка кабеля: Periodically check the WA305 instrument cable for any signs of wear or damage. Replace if necessary to maintain signal integrity.
• захоўванне: When not in use for extended periods, store the system components in a protective case to prevent dust and physical damage.

Ліквідацыю непаладак

If you encounter issues with your GLXD16 system, consider the following:

• No Signal/Dropouts:
  • Ensure both transmitter and receiver are powered on and fully charged.
  • Check for a clear line of sight between the transmitter and receiver. Obstacles can block the signal.
  • Verify that the transmitter and receiver are linked and on the same channel. The system should automatically manage frequencies, but manual re-scan may help in crowded environments.
  • Move away from other 2.4 GHz devices (Wi-Fi routers, Bluetooth devices) that might cause interference.
• Акумулятар не зараджаецца:
  • Ensure the charging cable and power supply are securely connected.
  • If the transmitter's charging indicator is blinking red or staying red without turning green, try turning the transmitter off, holding down the link button, and turning it back on while still holding the link button until the light goes out. This can reset the unit.
• Дрэнная якасць гуку:
  • Check the input level settings on the receiver for your specific transmitter. Adjust as needed.
  • Ensure all cables are securely connected and undamaged.

Тэхнічныя характарыстыкі

Відэа аб прадуктах

Гарантыя і падтрымка

The Shure GLXD16 Rechargeable Wireless System comes with a Гарантыя 2 год. For technical support, service, or warranty claims, please refer to the contact information provided in the original product packaging or visit the official Shure webсайт.
