DHP Junior Twin Metal Loft Bed with Slide Instruction Manual

1. Уводзіны

Thank you for choosing the DHP Junior Twin Metal Loft Bed with Slide. This manual provides essential information for the safe assembly, operation, and maintenance of your new loft bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This loft bed features a sturdy metal frame, integrated guardrails for safety, and a fun slide. It is designed to accommodate a standard twin-size mattress without the need for a box spring, offering a versatile space solution for children's rooms.

Image 1.1: DHP Junior Twin Metal Loft Bed with Red Slide, showcasinагульны дызайн.

2. Інфармацыя па бяспецы

УВАГА: Невыкананне гэтых папярэджанняў і інструкцый можа прывесці да сур'ёзных траўмаў або смерці.

• This loft bed is intended for use by children aged 6 years and older.
• The maximum weight capacity for the upper bunk is 200 lbs (90.7 kg). Do not exceed this limit.
• Always use the recommended mattress size: Twin (39" x 75"). The mattress thickness should not exceed 6 inches to ensure the effectiveness of the guardrails.
• Ensure the mattress foundation is securely in place before use.
• Periodically check and ensure that all connections are tight and secure. Do not use the bed if any structural part is compromised.
• Не дазваляйце дзецям гуляць на ложку або пад ім без нагляду.
• Забараніць больш чым аднаму чалавеку знаходзіцца на верхняй койцы.
• Prohibit jumping on the bed.
• Заўсёды карыстайцеся лесвіцай, каб залазіць на верхнюю койку і вылазіць з яе.
• The slide should be used in a seated position, feet first. Ensure the area around the slide exit is clear.
• Keep all assembly hardware out of reach of small children.

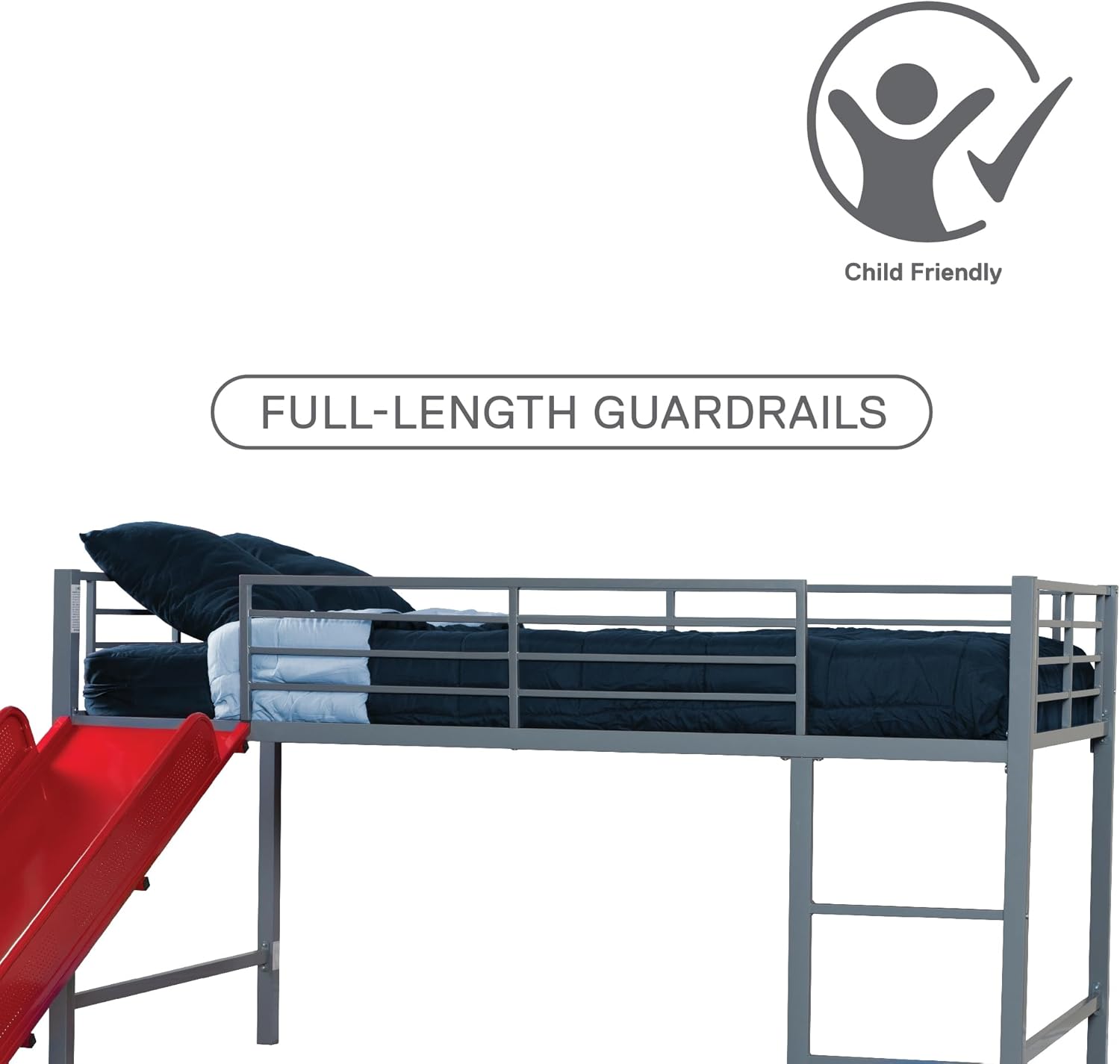

Image 2.1: Illustration highlighting the full-length guardrails for user safety.

3. Змесціва ўпакоўкі

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Metal Bed Frame Components (Headboard, Footboard, Side Rails, Ladder, Support Legs)
• Metal Slats for Mattress Support
• Red Slide Assembly
• Hardware Pack (Bolts, Screws, Washers, Allen Wrench)
• Кіраўніцтва па эксплуатацыі

4. Налада і зборка

Assembly of this product is required. It is recommended that two adults perform the assembly to ensure safety and efficiency. An electric drill/driver with appropriate bits (not included) may expedite the process, but ensure not to overtighten fasteners.

1. Падрыхтуйце тэрыторыю: Вызваліце ​​прасторную пляцоўку для зборкі. Размясціце ўсе кампаненты і фурнітуру.
2. Збярыце асноўную раму: Connect the headboard, footboard, and side rails according to the diagrams provided in the separate assembly guide. Ensure all bolts are finger-tightened initially.
3. Attach Support Legs and Ladder: Securely attach the support legs and the integrated ladder to the main frame.
4. Усталяваць ламелі: Place the metal slats across the bed frame and secure them as instructed. These slats provide the necessary support for the mattress.
5. Attach the Slide: Securely attach the red slide to the designated side of the loft bed. Note that the slide's position is fixed and cannot be changed to the opposite side.
6. Канчатковая зацяжка: Once all components are in place, systematically tighten all bolts and screws using the provided Allen wrench or your own tools. Do not overtighten.
7. Канчатковая праверка: Before use, perform a thorough inspection to ensure all parts are correctly assembled and all fasteners are tight.

Image 4.1: Dimensional diagram of the DHP Junior Twin Metal Loft Bed, illustrating key measurements for placement and assembly.

Малюнак 4.2: Падрабязнасці view of the secured metal slats, providing robust mattress support without a box spring.

5. Інструкцыя па эксплуатацыі

This loft bed is designed for sleeping and recreational use of the slide. Adhere to all safety guidelines during operation.

• Спальная зона: Place a standard twin-size mattress (not included) directly onto the metal slats. Ensure the mattress fits snugly within the frame and does not exceed the recommended thickness to maintain guardrail effectiveness.
• Выкарыстанне лесвіцы: Always use the integrated ladder to access and exit the upper bunk. Ensure a firm grip and stable footing.
• Выкарыстанне слайдаў: The slide is intended for recreational use. Users should descend in a seated position, feet first. Ensure the landing area is clear of obstructions.
• Прастора пад ложкам: The area beneath the loft bed can be utilized for storage or as a play space. Ensure any items stored or activities conducted in this area do not interfere with the bed's stability or pose a hazard.

Image 5.1: The loft bed integrated into a child's room, demonstrating its functional use and space-saving design.

6. Тэхнічнае абслугоўванне

Regular maintenance will help prolong the life and ensure the safety of your DHP Junior Twin Metal Loft Bed.

• Уборка: Працярыце металічную раму мяккай губкайamp тканінай. Пазбягайце абразіўных ачышчальнікаў або агрэсіўных хімічных рэчываў, якія могуць пашкодзіць пакрыццё.
• Праверка крапяжу: Periodically (e.g., monthly) inspect all bolts, screws, and connections to ensure they remain tight. Retighten any loose fasteners to maintain structural integrity.
• Структурная праверка: Check the bed frame, ladder, and slide for any signs of wear, damage, or bending. Discontinue use immediately if any structural damage is found and contact customer support for replacement parts or guidance.

7. Выпраўленне непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца пры выкарыстанні ложка-гарышча.

• Issue: The bed feels unstable or wobbly.
  рашэнне: Ensure all assembly bolts and screws are fully tightened. Over time, fasteners can loosen with use. Re-check and tighten all connections. Verify that the bed is placed on a flat, level surface.
• Issue: The slide makes noise during use.
  рашэнне: The slide is made of metal, and some noise may occur during use. Ensure all bolts connecting the slide to the bed frame are securely tightened. Check for any loose connections or points of friction.
• Issue: Mattress does not fit properly.
  рашэнне: Confirm you are using a standard twin-size mattress (39" x 75"). Ensure the mattress thickness does not exceed 6 inches to maintain adequate guardrail height.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

DHP is committed to providing quality products. Your DHP Junior Twin Metal Loft Bed is backed by a worry-free manufacturer warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official DHP webсайт.

Should you require assistance with assembly, missing parts, or have any questions regarding your product, our customer support team is available 7 days a week.

• Падтрымка кліентаў: For inquiries, please visit the DHP brand store or contact our support team.
• Інтэрнэт-запчасткі для замены: Replacement parts can be ordered online through the official DHP channels.

For more information and to access support resources, please visit the DHP Brand Store.
