1. Уводзіны
Thank you for choosing the Fluidmaster Stainless Steel Dishwasher Supply Line. This product is designed to provide a durable and reliable connection for water supply to your dishwasher. This manual provides essential information for safe installation, proper use, and maintenance of your supply line.

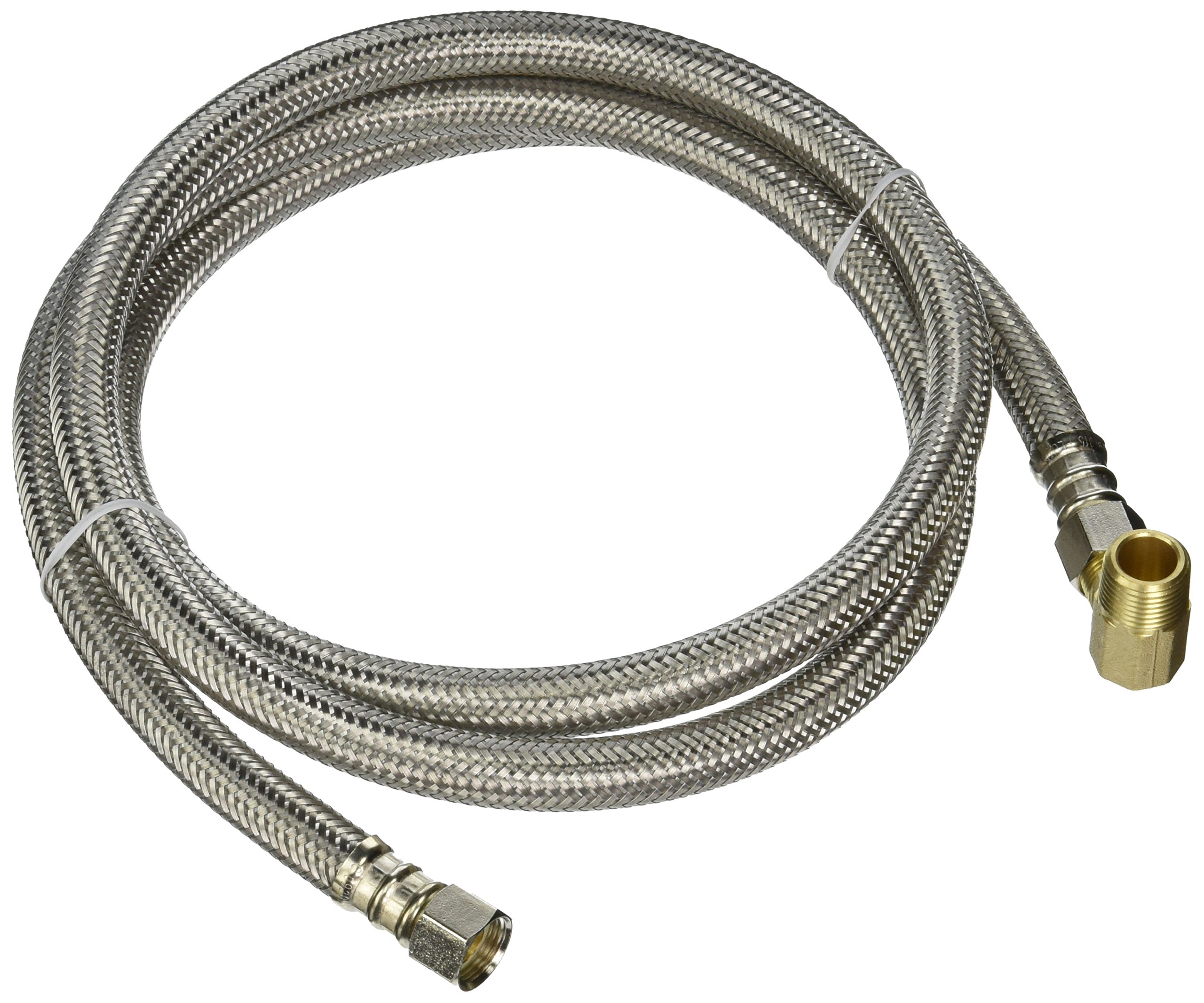

Image showing the Fluidmaster Stainless Steel Dishwasher Supply Line, highlighting its braided stainless steel construction and fittings.
2. Інфармацыя па бяспецы
- Always turn off the main water supply before beginning any plumbing installation or repair.
- Апранайце адпаведныя сродкі індывідуальнай абароны, такія як ахоўныя акуляры і пальчаткі.
- Ensure all connections are tight to prevent leaks, but do not overtighten, which can damage threads or fittings.
- Inspect the supply line regularly for any signs of wear, damage, or leaks.
- Калі вы не ўпэўненыя ў якім-небудзь кроку, звярніцеся да кваліфікаванага сантэхніка.
3. Змесціва ўпакоўкі
Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:
- One (1) Fluidmaster Stainless Steel Dishwasher Supply Line (60 inches long, 3/8" Compression x 3/8" Compression)
- One (1) 3/8" Compression x 3/8" Male Iron Pipe (MIP) Brass Elbow Fitting
4. Настройка і ўстаноўка
Follow these steps to properly install your dishwasher supply line:
- Выключыце падачу вады: Locate the main water shut-off valve for your home or the specific shut-off valve for the dishwasher and turn it off completely.
- Disconnect Old Supply Line (if applicable): If replacing an existing line, use a wrench to carefully disconnect the old supply line from both the dishwasher inlet valve and the water supply valve. Have a towel ready to catch any residual water.
- Prepare Dishwasher Connection: Apply thread sealant tape (Teflon tape) to the threads of the dishwasher's water inlet connection. If using the included 3/8" MIP brass elbow, attach it to the dishwasher inlet first, ensuring a snug fit.
- Connect to Dishwasher: Attach one end of the Fluidmaster Stainless Steel Dishwasher Supply Line to the dishwasher's water inlet connection (or the brass elbow, if used). Hand-tighten, then use a wrench to tighten an additional 1/4 to 1/2 turn. Do not overtighten.
- Падключэнне да водазабеспячэння: Attach the other end of the supply line to the water supply shut-off valve. Hand-tighten, then use a wrench to tighten an additional 1/4 to 1/2 turn. Do not overtighten.
- Праверце ўцечкі: Slowly turn the main water supply back on. Carefully inspect all connections for any signs of leaks. If leaks are detected, turn off the water supply, tighten the connection slightly, and recheck.
- Secure Line: Ensure the supply line is not kinked or pinched. Secure it if necessary to prevent accidental damage.
5. Інструкцыя па эксплуатацыі
The Fluidmaster Stainless Steel Dishwasher Supply Line is a passive component designed to deliver water from your home's water supply to your dishwasher. Once properly installed and the water supply is turned on, the supply line will automatically provide water to the dishwasher as needed during its wash cycles. No further operational steps are required for the supply line itself.
6. Тэхнічнае абслугоўванне
To ensure the longevity and reliable performance of your Fluidmaster Dishwasher Supply Line, consider the following maintenance tips:
- Рэгулярны агляд: Periodically inspect the entire length of the supply line and its connections for any signs of wear, corrosion, kinks, or leaks. This is especially important if the dishwasher is moved for cleaning or service.
- Чысціня: Keep the area around the supply line clean and free from debris that could potentially damage the hose.
- Пазбягайце рэзкіх хімічных рэчываў: Do not use harsh chemical cleaners near the supply line, as they could potentially degrade the material over time.
- Экстрэмальныя тэмпературы: Ensure the supply line is not exposed to extreme temperatures, which can affect its material integrity.
7. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Water Leak at Connection Points | Loose connection, damaged washer/gasket, improper thread sealant. | Turn off water supply. Tighten connections slightly. If leak persists, disconnect, inspect/replace washer/gasket, reapply thread sealant tape, and reconnect. |
| No Water Flow to Dishwasher | Water supply valve is off, supply line is kinked or blocked. | Ensure the water supply valve is fully open. Check the supply line for any kinks or obstructions. |
| Visible Damage to Supply Line | Physical damage, excessive wear. | Turn off water supply immediately. Replace the damaged supply line with a new one. |
8. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | Fluidmaster |
| Нумар мадэлі | B6W60 |
| Матэрыял | Нержавеючая сталь |
| Колер | сталь |
| Памеры вырабу (Д х Ш) | 60"Д х 0.38"Ш |
| Даўжыня прадмета | 60 цалі |
| Вонкавы дыяметр | 0.38 цалі |
| Вага прадмета | 11.2 фунта |
| UPC | 039961002778, 703765990905 |
| Вытворца | Fluidmaster |
| Колькасць адзінак | 1.0 Граф |
9. Інфармацыя аб гарантыі
Specific warranty details for the Fluidmaster Stainless Steel Dishwasher Supply Line are not provided in this manual. For information regarding product warranty, please refer to the packaging or contact Fluidmaster directly through their official webсайт або каналы абслугоўвання кліентаў.
10. Падтрымка кліентаў
If you have any questions, require assistance with installation, or need to report an issue with your Fluidmaster Stainless Steel Dishwasher Supply Line, please contact Fluidmaster customer support. Contact information can typically be found on the product packaging or on the official Fluidmaster webсайт: www.fluidmaster.com
