Hormann PB3 Internal Push Button User Manual

1. Прадукт скончыўсяview

The Hormann PB3 Internal Push Button (Model 436452) is a practical and comfortable accessory designed for convenient control of your garage door or gate. This internal button allows you to easily open and close your gate from within your garage, enhancing user convenience. It is a standard component for Hormann LIFTRONIC 700 and LIFTRONIC 800 systems.

This device is particularly practical and comfortable, enabling you to operate your gate effortlessly by pressing the button mounted on the inner wall of your garage.

Image 1.1: Hormann PB3 Internal Push Button in its original blister packaging. The button unit is visible next to the packaging, showcasing its design and the two control buttons.

2. Інфармацыя па бяспецы

Please read and understand all safety instructions before installing and operating the Hormann PB3 Internal Push Button. Failure to follow these instructions may result in injury or damage to property.

• Электрабяспека: Ensure the power supply to the garage door operator is disconnected before installation to prevent electrical shock.
• Месца мантажу: Install the push button within sight of the garage door, but out of reach of small children (at least 1.5 meters / 5 feet above the floor).
• Прызначэнне: This device is intended solely for controlling compatible Hormann garage door or gate operators. Do not use for other purposes.
• дзеці: Do not allow children to play with the push button or the garage door operator.
• Аперацыя: Always ensure the area around the garage door is clear before operating.

3. Змесціва ўпакоўкі

The Hormann PB3 Internal Push Button package typically includes the following:

• 1 x Hormann PB3 Internal Push Button
• Installation materials (e.g., screws, wall plugs - may vary)
• Інструкцыя па эксплуатацыі (гэты дакумент)

Note: Batteries are not included and not required for this wired device.

4. Усталёўка і налада

The PB3 internal push button is designed for wired connection to your compatible Hormann garage door operator. Follow these steps for proper installation:

1. Выберыце месца: Select a suitable location on the inner wall of your garage. The button should be easily accessible, within sight of the garage door, and at a height that prevents accidental operation by children (recommended at least 1.5 meters / 5 feet from the floor).
2. Адключыць харчаванне: ВАЖНА: Before proceeding, ensure the main power supply to your garage door operator is completely disconnected at the circuit breaker.
3. Падрыхтуйце праводку: Route the necessary low-voltage wiring from your garage door operator to the chosen installation location for the PB3 button. Refer to your garage door operator's manual for specific wiring terminal locations for external push buttons.
4. Mount the Button:
   • Асцярожна адкрыйце casing of the PB3 button to access the mounting holes and wiring terminals.
   • Mark the drilling points on the wall using the button's base as a template.
   • Drill pilot holes and insert wall plugs if necessary.
   • Secure the button's base to the wall using the provided screws.
5. Падключэнне правадоў:
   • Падключыце нізкую гучнасцьtage wires from the garage door operator to the corresponding terminals on the PB3 button. Ensure correct polarity if specified by your operator's manual. Typically, two wires are used for simple open/close functionality.
   • Secure the wires firmly in the terminals.
6. Зачыніць Casing: Carefully close the button casinг, пераканаўшыся, што ніякія правады не заціснутыя.
7. Аднаўленне харчавання і тэст: Reconnect the main power supply to your garage door operator. Test the PB3 button by pressing the main operating button to ensure the garage door opens and closes correctly.

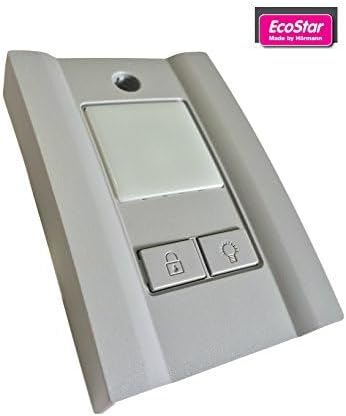

Выява 4.1: Спераду view of the Hormann PB3 Internal Push Button, showing the large main button and two smaller function buttons below it. The "EcoStar Made by Hormann" logo is visible in the top right corner.

5. Інструкцыя па эксплуатацыі

The Hormann PB3 Internal Push Button provides simple and intuitive control for your garage door or gate operator.

• Main Operating Button: The large central button is used for the primary function of opening and closing your garage door.
  • Press once to open the door if it is closed.
  • Press once to close the door if it is open.
  • Press once during operation to stop the door. Press again to resume operation in the opposite direction.
• Кнопка блакавання (значок замка): This button typically activates or deactivates the operator's holiday/lock function, which disables external remote controls for added security.
  • Press and hold for a few seconds to activate the lock function. The operator's light may flash or an indicator LED on the button may illuminate.
  • Press and hold again to deactivate the lock function.
  • Refer to your specific garage door operator's manual for detailed information on the lock function.
• Кнопка святла (значок лямпачкі): This button controls the integrated lighting of your garage door operator.
  • Press once to turn the operator's light ON.
  • Press again to turn the operator's light OFF.
  • The light may also activate automatically when the door is operated.

Малюнак 5.1: Пад вуглом view of the Hormann PB3 Internal Push Button, highlighting the textured surface and the distinct main button and two smaller function buttons.

6. Тэхнічнае абслугоўванне

The Hormann PB3 Internal Push Button requires minimal maintenance to ensure long-lasting and reliable operation.

• Уборка: Periodically wipe the surface of the push button with a soft, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі, бо яны могуць пашкодзіць пластыкавае пакрыццё.
• агляд: Occasionally check the wiring connections to ensure they are secure and free from damage. If any damage is observed, disconnect power and have it inspected by a qualified technician.
• Без батарэек: This device is wired and does not require batteries.

7. Выпраўленне непаладак

If you experience issues with your Hormann PB3 Internal Push Button, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Hormann customer support or a qualified technician.

8. Тэхнічныя характарыстыкі прадукту

• мадэль: PB3
• Даведачны нумар: 436452
• вытворца: Горман
• Памеры прадукту (Д х Ш х У): 8 х 3 х 11 см (прыблізна 3.15 х 1.18 х 4.33 цалі)
• Вага: 190.51 грамаў (прыблізна 0.42 фунта)
• матэрыял: Пластыкавыя
• колер: Multicolored (typically grey/black as shown in images)
• Крыніца харчавання: Wired (No batteries required)
• Краіна паходжання: Нямеччына
• Сумяшчальнасць: Designed for Hormann LIFTRONIC 700 and LIFTRONIC 800 garage door operators, and other compatible Hormann systems.

9. Гарантыя і падтрымка

Інфармацыя аб гарантыі

Hormann products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your PB3 Internal Push Button, please refer to the warranty card included with your product or visit the official Hormann webсайт. Гарантыйнае пакрыццё звычайна распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні.

Падтрымка кліентаў

Should you require technical assistance, have questions about installation, or need to report a defect, please contact Hormann customer support. You can typically find contact information (phone numbers, email, or online contact forms) on the official Hormann webсайт для вашага рэгіёну.

Official Hormann Webсайт: www.hormann.com
