Ribimex Pulpro 1L Manual Sprayer Instruction Manual

1. Прадукт скончыўсяview

This instruction manual provides detailed information for the Ribimex Pulpro 1L Manual Sprayer. It covers product features, safety warnings, setup, operation, maintenance, troubleshooting, and specifications for effective use in plant care, home cleaning, and surface sanitization.

Асноўныя характарыстыкі:

• Uniform and precise nebulization: The high-quality nozzle ensures a fine and homogeneous spray, ideal for plant and flower care, home cleaning, and surface sanitization.
• 1 L semi-transparent tank: The durable and lightweight polyethylene body allows easy monitoring of liquid levels, preventing waste and frequent refills.
• Ergonomic and comfortable handle: The polypropylene trigger design provides a secure grip and allows for prolonged use without hand fatigue.
• Easy to use and handle: Thanks to its reduced weight and compact structure, the Pulpro 1 sprayer is perfect for all types of use, both indoors and in the garden.
• Versatility of use: Ideal for misting indoor and outdoor plants, sanitizing furniture and surfaces, and applying detergents or specific cleaning products.

2. Інфармацыя па бяспецы

Please read and understand all safety warnings before using the Ribimex Pulpro 1L Manual Sprayer to prevent injury or damage.

• Папярэджанне: Do not point the sprayer at people or animals.
• Увага: Захоўваць далей ад крыніц цяпла.
• Утылізацыя: Dispose of contents appropriately after use, following local regulations.

3. Настройка

1. Распакаванне: Асцярожна выміце ўсе кампаненты з упакоўкі. Пераканайцеся, што ўсе дэталі наяўныя і непашкоджаныя.
2. Напаўненне бака:
   • Unscrew the pump assembly from the tank by turning it counter-clockwise.
   • Fill the semi-transparent tank with the desired liquid (water, plant food, cleaning solution, etc.) up to the 1-liter mark. Do not overfill.
   • Ensure the liquid is compatible with plastic materials and does not contain corrosive substances unless specified.
3. Замацаванне помпы: Screw the pump assembly back onto the tank by turning it clockwise until it is hand-tight. Ensure a secure seal to prevent leaks and maintain pressure.

4. Інструкцыя па эксплуатацыі

1. Pressurizing the Sprayer:
   • Pump the handle up and down several times until resistance is felt and the tank is pressurized.
   • Do not over-pressurize. The sprayer is designed for manual operation and does not require excessive force.
2. Рэгуляванне фарсункі:
   • Фарсунку можна рэгуляваць, каб змяніць форму распылення.
   • Turn the nozzle tip clockwise for a fine mist spray, suitable for delicate plants or broad coverage.
   • Turn the nozzle tip counter-clockwise for a direct stream, ideal for targeted application or cleaning.
3. Апырскванне:
   • Aim the nozzle at the target area.
   • Press the trigger on the handle to release the spray.
   • Адпусціце курок, каб спыніць распыленне.
4. рэлеasinЦіск: After use, it is recommended to release any remaining pressure in the tank. This can usually be done by pulling up the pressure release valve (if present) or by unscrewing the pump assembly slightly until the air escapes.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and optimal performance of your sprayer.

• Ачыстка бака:
  • After each use, especially when using chemicals, empty any remaining liquid.
  • Старанна прамыйце бак чыстай вадой.
  • Pump clean water through the nozzle to flush out any residue.
• Ачыстка сопла: If the nozzle becomes clogged, unscrew the tip and rinse it under running water. Use a small brush or pin to clear any blockages if necessary.
• Праверка ўшчыльнення: Periodically check the O-rings and seals for wear or damage. Replace them if they appear cracked or worn to maintain proper pressure.
• захоўванне: Захоўвайце апырсквальнік у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур. Перад захоўваннем пераканайцеся, што рэзервуар пусты і чысты.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

8. Візуальныя матэрыялы прадукту

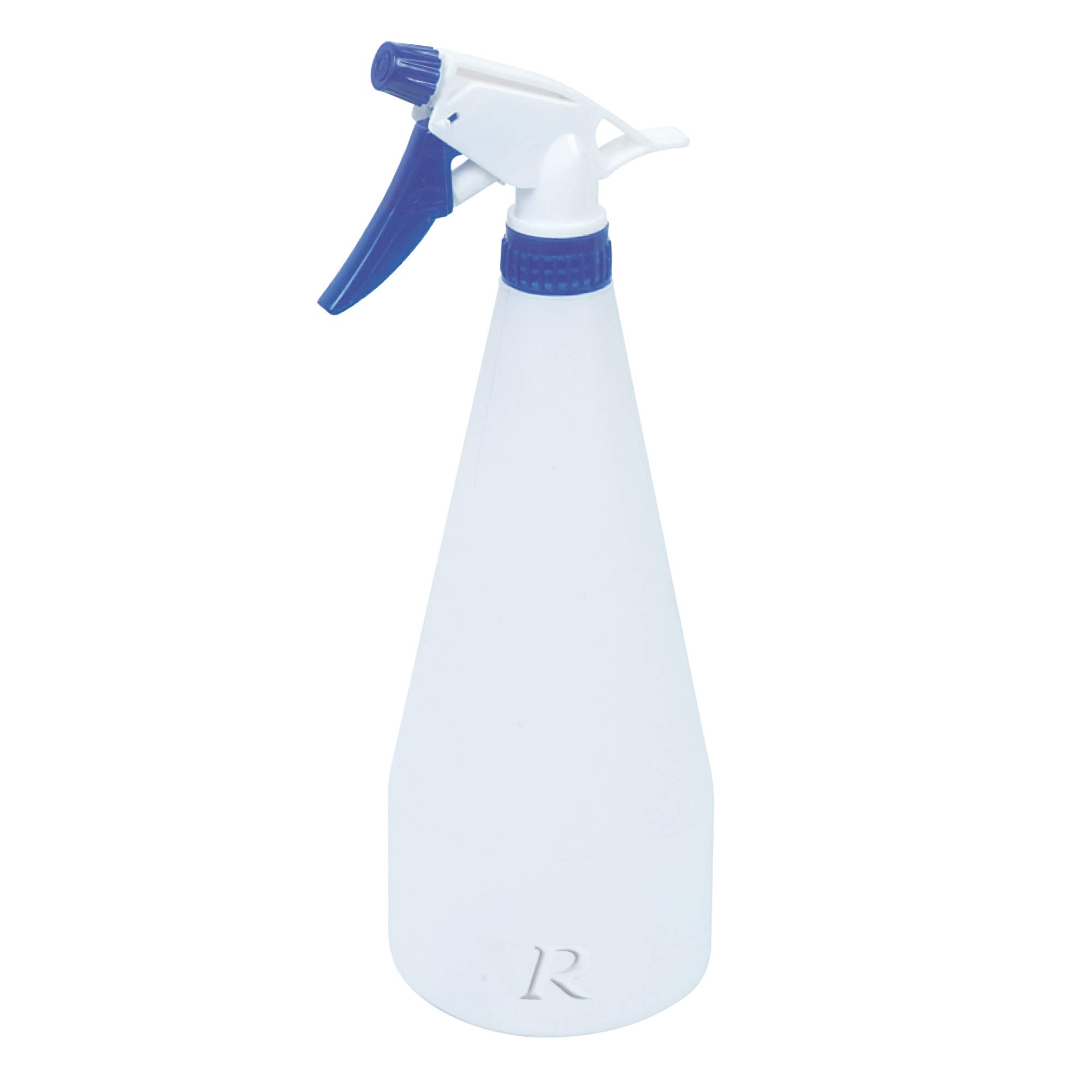

Figure 1: Ribimex Pulpro 1L Manual Sprayer.

Афіцыйных відэа прадукту ад прадаўца для непасрэднага ўбудавання ў гэта кіраўніцтва не было.

9. Гарантыя і падтрымка

For warranty information, please refer to the product packaging or contact Ribimex customer support directly. Keep your purchase receipt as proof of purchase.

For further assistance or technical support, please visit the official Ribimex webсайт або звярніцеся ў іх аддзел абслугоўвання кліентаў.

Заўвага: Характарыстыкі і характарыстыкі прадукту могуць быць зменены без папярэдняга паведамлення.
