Holzmann BF25VLN Drill and Milling Machine User Manual

1. Уводзіны і інфармацыя па бяспецы

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Holzmann BF25VLN Drill and Milling Machine. Read and understand all instructions before operating the machine. Failure to follow these instructions may result in serious injury or damage to the equipment.

Агульныя папярэджанні па бяспецы

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and suitable work clothing.
• Пераканайцеся, што працоўная зона чыстая, добра асветленая і без перашкод.
• Keep children and bystanders away from the machine during operation.
• Disconnect the machine from the power supply before making any adjustments, changing accessories, or performing maintenance.
• Securely fasten the workpiece before drilling or milling to prevent movement.
• Never operate the machine if it is damaged or malfunctioning.
• Use only accessories and attachments recommended by Holzmann.

2. Прадукт скончыўсяview

The Holzmann BF25VLN is a versatile drill and milling machine designed for precision work. It features a variable angle head, allowing for flexible drilling and milling operations. The machine is powered by a corded electric motor, providing consistent performance.

Уключаныя кампаненты

• Holzmann BF25VLN Drill and Milling Machine
• Свердзел
• Гаечны ключ

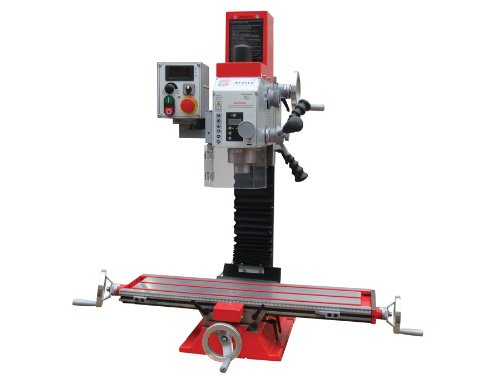

Image 1: The Holzmann BF25VLN Drill and Milling Machine. This image shows the overall structure of the machine, including the main body, drill head, and base. It provides a visual reference for identifying the product.

3. Настройка

Proper setup is crucial for safe and accurate operation. Follow these steps to prepare your machine for use:

1. Распакаванне: Carefully remove all components from the packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
2. Мантаж: Securely mount the machine to a sturdy workbench or stand using appropriate fasteners. Ensure the mounting surface can support the weight of the machine and any workpiece.
3. Падключэнне сілкавання: Connect the machine to a grounded 230 Volt power outlet. Ensure the power supply matches the machine's requirements. Do not use extension cords unless absolutely necessary, and ensure they are rated for the machine's power consumption.
4. Ўстаноўка інструмента: Insert the appropriate drill bit or milling cutter into the chuck. Tighten the chuck securely using the provided wrench. Ensure the tool is properly seated and centered.
5. Нарыхтоўка ClampING: Заўсёды клamp the workpiece firmly to the machine table using suitable clamps or a vise. Never hold the workpiece by hand during operation.

4. Інструкцыя па эксплуатацыі

Familiarize yourself with the controls and functions before beginning any work.

Базавая аперацыя

1. Уключэнне: Уключыце машыну з дапамогай галоўнага выключальніка сілкавання.
2. Выбар хуткасці: Adjust the spindle speed according to the material and tool being used. Refer to material-specific guidelines for optimal speeds.
3. пазіцыянаванне: Carefully position the workpiece and adjust the machine head or table to align the tool with the desired drilling or milling location.
4. Бурэнне: Slowly lower the spindle, applying steady pressure. Allow the drill bit to cut through the material. Avoid excessive force.
5. фрэзераванне: For milling operations, engage the feed mechanism (if applicable) or manually move the workpiece table. Take light passes to avoid overloading the machine or breaking the cutter.
6. Variable Angle Feature: To utilize the variable angle feature, loosen the locking mechanism for the head, adjust to the desired angle, and securely re-tighten the lock before operation.
7. Выключэнне: Once the operation is complete, raise the spindle, turn off the machine, and wait for all moving parts to stop before removing the workpiece.

Важныя парады па эксплуатацыі

• Always use sharp and appropriate cutting tools.
• Apply cutting fluid when necessary to improve tool life and finish.
• Clear chips and debris regularly, but only when the machine is off and stationary.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your Holzmann BF25VLN machine.

Штодзённае абслугоўванне

• Clean the machine thoroughly after each use, removing all chips and dust.
• Агледзіце сеткавы шнур на наяўнасць пашкоджанняў.
• Праверце, ці зацягнуты ўсе крапежныя элементы.

Штотыднёвае/штомесячнае тэхнічнае абслугоўванне

• Lubricate all moving parts and sliding surfaces with appropriate machine oil.
• Inspect the chuck and spindle for wear or damage.
• Check belt tension (if applicable) and adjust as needed.

Заўвага: Always disconnect the machine from the power supply before performing any maintenance or cleaning.

6. Выпраўленне непаладак

У гэтым раздзеле прадстаўлены рашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца.

If you encounter problems not listed here or if solutions do not resolve the issue, contact Holzmann customer support or a qualified technician.

7. Тэхнічныя характарыстыкі

Key technical specifications for the Holzmann BF25VLN Drill and Milling Machine:

• Марка: Holzmann
• мадэль: BF25VLN
• Крыніца харчавання: Правадная электрычная
• тtage: 230 вольт
• асаблівасць: Variable Angle
• Тып свердзела: Базавая дрыль
• Drilling Capacity in Wood: 25 міліметра
• Уключаныя кампаненты: Drill bit, wrench

8. Гарантыя і падтрымка

For specific warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Holzmann dealer. Information regarding the availability of spare parts is not provided in this manual; please contact Holzmann customer service or your retailer for assistance with parts and technical support.

For further assistance, visit the official Holzmann webсайт або звярніцеся ў службу падтрымкі кліентаў.
