HIFIMAN HE560 Over-Ear Planar Magnetic Headphone Instruction Manual

Уводзіны

The HIFIMAN HE560 is a premium quality, full-size planar magnetic headphone designed for reference use in home or studio environments. It features a single-ended planar magnetic driver for superior soundstage and spatial imaging, and is engineered for increased comfort and efficiency.

Асаблівасці прадукту

• Single-ended planar magnetic driver for superior soundstage and spatial imaging.
• Approximately 30% lighter than other full-size planar magnetic designs, enhancing comfort during extended listening sessions.
• Increased efficiency, making it easier to drive with various audio sources.
• Beveled ear pads designed for improved comfort and a better seal.
• Newly-designed cable constructed from crystalline copper and crystalline silver for optimal signal transfer.

Што ў скрынцы

The HIFIMAN HE560 package includes:

• HIFIMAN HE560 Over-Ear Planar Magnetic Headphone
• Detachable Headphone Cable

Настройка

1. Распакаванне: Асцярожна дастаньце навушнікі і ўсе аксэсуары з упакоўкі.
2. Кабельнае злучэнне: Locate the detachable headphone cable. Connect the two smaller connectors to the corresponding jacks on the bottom of each earcup. Ensure a secure fit. The cable is designed to be connected to the left and right earcups.
3. Падключэнне да крыніцы: Connect the larger end of the headphone cable (6.35 mm jack) to your audio source (e.g., headphone amplifier, DAC, audio interface).
4. Burn-in Period: For optimal sound performance, a burn-in period of approximately 150 hours is recommended. During this period, the sound signature may evolve, with bass becoming deeper and treble becoming smoother. This can be achieved through normal listening or by leaving the headphones connected to an audio source playing music at a moderate volume.

Image: HIFIMAN HE560 headphones with the detachable cable connected, viewрэд з фронту.

Інструкцыя па эксплуатацыі

1. Нашэнне навушнікаў:
   • Adjust the headband to comfortably fit over your head. The HE560 features a suspension-style headband for even weight distribution.
   • Ensure the earcups fully enclose your ears (over-ear design) for optimal sound isolation and comfort.
   • The beveled ear pads are designed to conform to the shape around your ears.
2. Рэгулятар гучнасці: Adjust the volume using your audio source or amplifier. Start with a low volume and gradually increase it to a comfortable listening level. Avoid excessively high volumes to prevent hearing damage.
3. Ampвызваленне: The HE560 headphones are designed for high-fidelity audio and benefit significantly from a dedicated headphone amplifier. While they have increased efficiency, a quality amplifier will help unlock their full potential in terms of dynamics, detail, and soundstage.

Image: HIFIMAN HE560 headphones shown in use, demonstrating the over-ear fit and headband design.

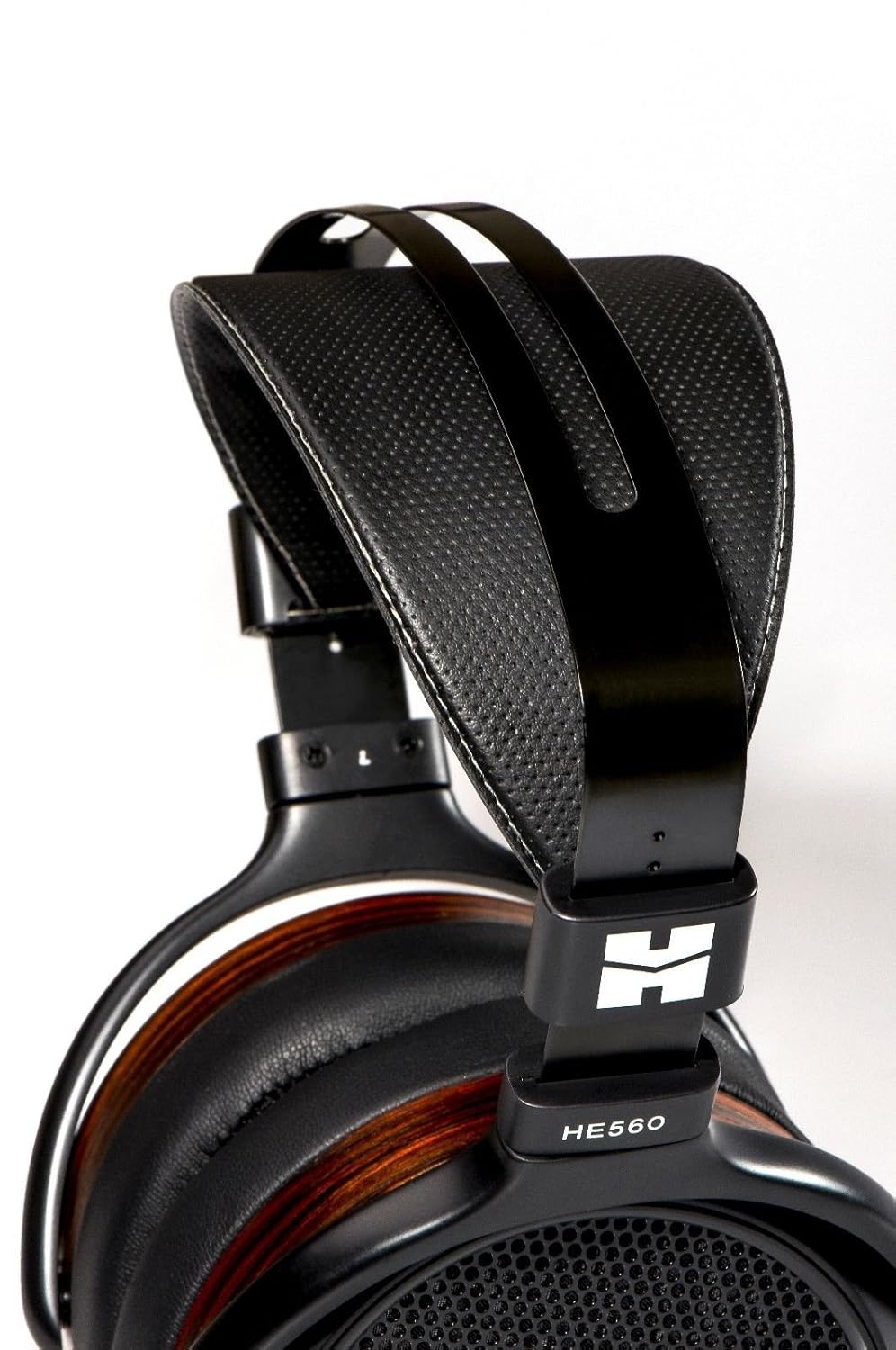

Выява: Падрабязная view of the HIFIMAN HE560's suspension headband, highlighting its construction and comfort features.

Тэхнічнае абслугоўванне

• Уборка: Use a soft, dry cloth to wipe the earcups and headband. Avoid using harsh chemicals or abrasive materials.
• Амбушюры: The ear pads are designed for comfort but may show wear over time. If replacement is needed, contact HIFIMAN support or an authorized dealer for genuine replacement parts.
• захоўванне: When not in use, store the headphones in a clean, dry place, preferably in their original case or on a headphone stand, to protect them from dust and physical damage.
• Сыход за кабелем: Handle the detachable cable with care. Avoid sharp bends or excessive pulling, which can damage the internal wiring.

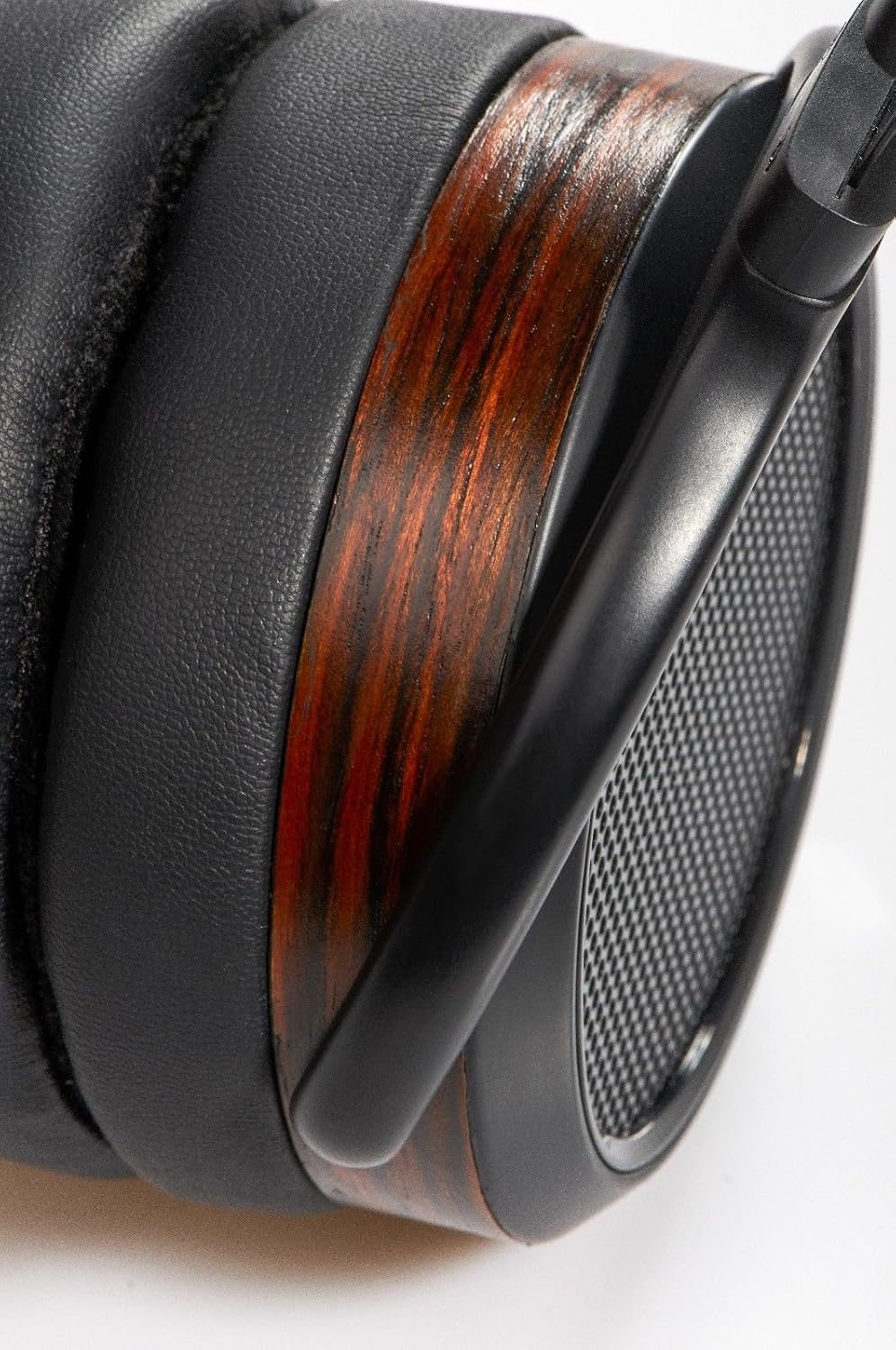

Image: Close-up of the HIFIMAN HE560 earcup, showcasing the woodgrain finish and mesh grille.

Ліквідацыю непаладак

Няма гуку або перарывісты гук:

• Ensure the headphone cable is securely connected to both earcups and the audio source.
• Check the volume level on your audio source and ampзадымнік.
• Test the headphones with a different audio source or ampвыратавальнік, каб выключыць праблемы з знешнім абсталяваннем.
• Агледзіце кабель на наяўнасць бачных пашкоджанняў.

Poor Sound Quality (e.g., distorted, weak bass, harsh treble):

• Пераканайцеся, што крыніца гуку падае чысты сігнал.
• Пераканайцеся ў сваім amplifier is adequately powerful for the HE560's impedance (45 Ohms) and efficiency (90dB).
• Allow for the recommended burn-in period (approximately 150 hours) as sound quality can improve.
• Check if the ear pads are properly seated around your ears, as a poor seal can affect bass response.

Crackling or Popping Noise:

• This can sometimes occur during the initial burn-in period and may diminish over time.
• Ensure all cable connections are firm.
• Праверце з іншай крыніцай гуку або amplifier to determine if the noise originates from the headphones or the connected equipment.
• Environmental electromagnetic or radio frequency interference can sometimes cause such noises. Try moving the headphones and audio setup to a different location.

Дыскамфорт падчас выкарыстання:

• Adjust the headband for a looser fit if clamping pressure is too firm. The headband is made of spring steel and can be gently bent to reduce pressure.
• Рабіце перапынкі падчас працяглых сеансаў праслухоўвання.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

The HIFIMAN HE560 headphones come with a manufacturer's warranty. For detailed information regarding warranty terms, coverage, and duration, please refer to the warranty card included with your product or visit the official HIFIMAN webсайт.

Падтрымка

For further assistance, technical support, or inquiries about your HIFIMAN HE560 headphones, please visit the official HIFIMAN webсайт або звяжыцеся з іх аддзелам абслугоўвання кліентаў. Вы таксама можаце наведаць HIFIMAN Store on Amazon для атрымання дадатковай інфармацыі аб прадукце і рэсурсаў.
