Уводзіны
This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your Radio Flyer All-Terrain Balance Bike, Model 803X. Please read these instructions carefully before use to ensure safe and proper operation. This balance bike is designed to help children aged 2.5 to 5 years develop balance and coordination, preparing them for a two-wheeled bicycle without the need for training wheels.

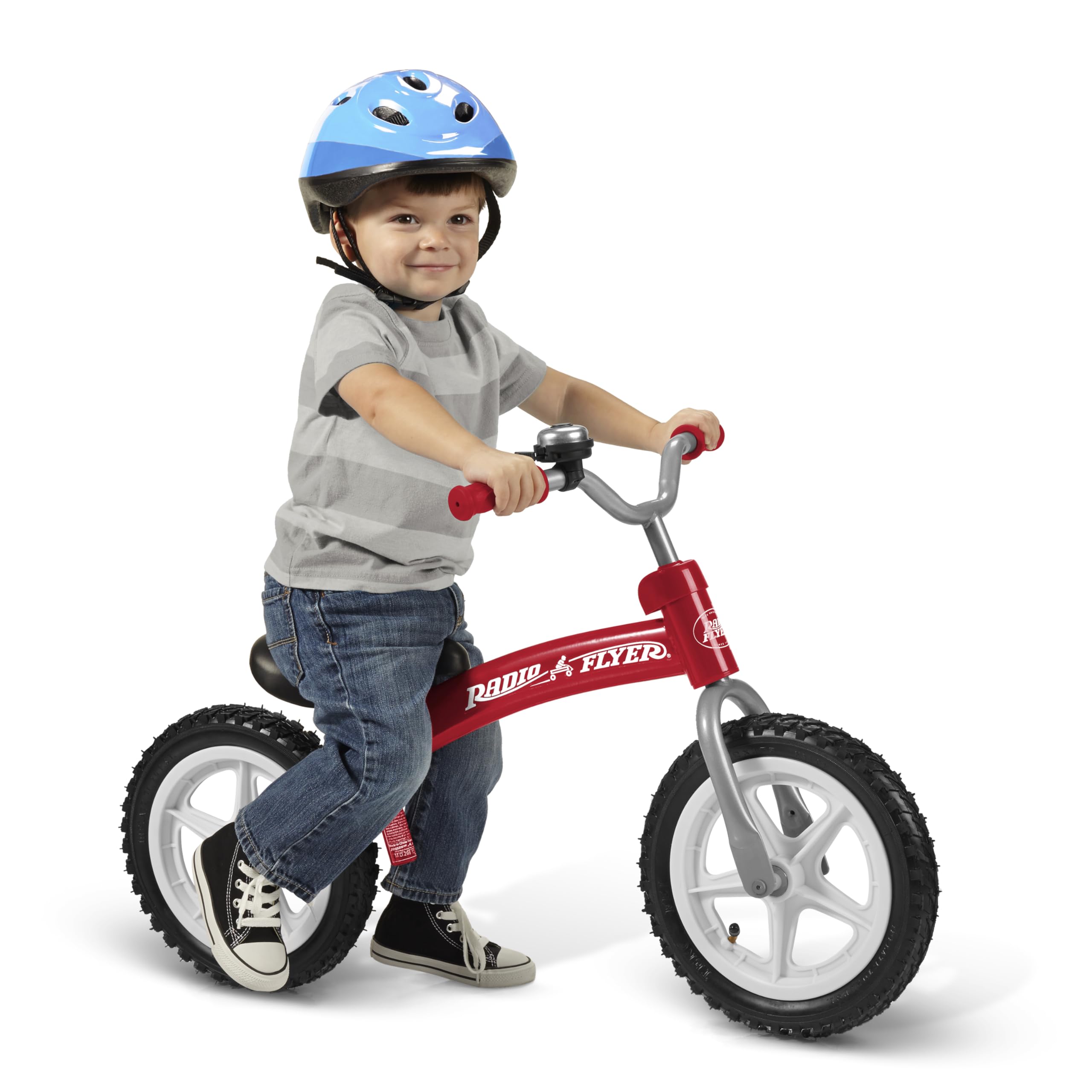

Image: The Radio Flyer All-Terrain Balance Bike, Model 803X, in its complete form.
Інфармацыя па бяспецы
- Always ensure the child wears a properly fitted helmet when riding.
- Увесь час неабходны нагляд дарослых.
- Do not use near motor vehicles, streets, swimming pools, steep inclines, or stairs.
- Ensure all nuts and bolts are securely tightened before each use.
- Рэгулярна правярайце ціск у шынах.
- Максімальная грузападымальнасць: 50 фунтаў (22.7 кг).
- Recommended age range: 2.5 - 5 years.
Інструкцыя па зборцы
The Radio Flyer All-Terrain Balance Bike requires some assembly. Please follow these steps carefully.
Уключаныя кампаненты:
- Balance bike frame
- Пярэдняе кола
- Рулі
- Seat post with seat
- Hardware (nuts, bolts, washers)
Неабходныя інструменты:
- Adjustable wrench or appropriate size wrenches
- Allen key (if applicable, check hardware)
- Помпа для шын
Пакрокавая зборка:
- Attach the Front Wheel: Insert the front wheel into the fork. Secure it with the provided nuts and washers, ensuring the wheel spins freely and is centered.
- Install the Handlebars: Insert the handlebar stem into the fork tube. Align the handlebars straight with the front wheel. Tighten the stem bolt securely.
- Устаўце штыфт сядзення: Insert the seat post with the attached seat into the frame's seat tube. Do not tighten yet.
- Напампаваць шыны: Use a tire pump to inflate the 12-inch rubber air tires to the recommended pressure, typically found on the tire sidewall.
- Adjust Seat Height: Adjust the seat height so the child can comfortably place both feet flat on the ground with a slight bend in their knees. Secure the seat post using the quick-release lever or bolt.
- Канчатковая праверка: Verify all connections are tight and secure. Ensure the handlebars are aligned and the wheels spin freely.
Інструкцыя па эксплуатацыі
The Radio Flyer Balance Bike is designed to teach balance and coordination in three stages: Walk, Run, and Glide.
Stage 1: Walk
Encourage your child to sit on the seat and use their feet to walk forward, pushing off the ground. This helps them get accustomed to the bike's feel and weight.
Image: A child walking with the balance bike, using their feet to propel forward.
Stage 2: Run
As confidence grows, your child will naturally start to run with the bike, pushing off the ground with more force and speed. This builds momentum and further develops balance.
Stage 3: Glide
Once comfortable running, your child will begin to lift their feet off the ground and glide, maintaining balance for short distances. This is the final step before transitioning to a pedal bike.
Image: A child gliding on the balance bike with feet lifted, demonstrating developed balance.
Выкарыстанне звона
The integrated ringing bell provides an enjoyable feature for children. Instruct your child on appropriate use of the bell to alert others while riding.
Выява: буйны план view of the classic ringing bell attached to the handlebars.
Product Video: Learning to Ride
Video: An official product video demonstrating how children learn to ride the Radio Flyer All-Terrain Balance Bike.
Тэхнічнае абслугоўванне
- Ціск у шынах: Regularly check and maintain the recommended tire pressure for the 12-inch rubber air tires. Proper inflation ensures a smooth ride and extends tire life.
- Уборка: Ачысціце ровар damp тканінай і мяккім мылам. Пазбягайце выкарыстання агрэсіўных хімічных рэчываў, якія могуць пашкодзіць пакрыццё.
- захоўванне: Store the bike in a dry place away from direct sunlight and extreme temperatures to prevent material degradation.
- Інспекцыі: Periodically inspect all nuts, bolts, and moving parts for tightness and wear. Replace any worn or damaged components immediately.
- Рэгуляванае сядзенне: The seat height can be adjusted tool-free to accommodate your growing child. Ensure the quick-release lever is securely fastened after adjustment.
Image: A close-up of the 12-inch all-terrain air tire, highlighting the valve stem for inflation.
Image: The adjustable seat mechanism, showing how the seat height can be modified.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Bike feels unstable or wobbly | Loose bolts, low tire pressure | Check and tighten all assembly bolts. Inflate tires to recommended pressure. |
| Child struggling to push off or glide | Seat height incorrect, lack of confidence | Adjust seat height so feet are flat on the ground. Encourage walking first, then running. |
| Tires losing air quickly | Puncture or faulty valve stem | Inspect tires for punctures. Check valve stem for leaks. Repair or replace as needed. |
Тэхнічныя характарыстыкі
- мадэль: 803X
- Тып ровара: Дзіцячы ровар-балансір
- Узроставы дыяпазон: 2.5 - 5 гадоў
- Памер колы: 12 цалі
- Матэрыял рамы: Легаваная сталь
- Матэрыял шыны: Rubber Air Tires
- Максімальная ёмістасць: 50 фунтаў (22.7 кг)
- Памеры ў сабраным выглядзе: 34.3" Д х 15.8" Ш х 23.6" В (87.1 см Д х 40.1 см Ш х 59.9 см В)
- Вага прадмета: 4.33 кг (9.55 фунтаў)
- Асаблівасці: Adjustable Seat, Ringing Bell
Image: A child riding the balance bike, illustrating the recommended age range of 2.5 to 5 years.
Інфармацыя аб гарантыі
The product warranty is valid for one year from the date of purchase. A dated sales receipt is required as proof of purchase. A two-year warranty policy will be provided to all customers who register their product at radioflyer.com.
Падтрымка кліентаў
For further assistance, questions, or to register your product, please visit the official Radio Flyer webсайт або звярніцеся ў службу падтрымкі кліентаў. Кантактную інфармацыю можна знайсці на ўпакоўцы прадукту.
