Westbrass D201-20 Air Gap Cap Instruction Manual

1. Прадукт скончыўсяview

The Westbrass D201-20 is a non-skirted solid brass air gap cap designed to prevent dishwasher water from overflowing into main water lines. This component is essential for maintaining plumbing code compliance in many regions by providing an air break between the dishwasher drain and the sink drain system. This specific model features a stainless steel finish, offering both durability and a complementary aesthetic to various kitchen fixtures.

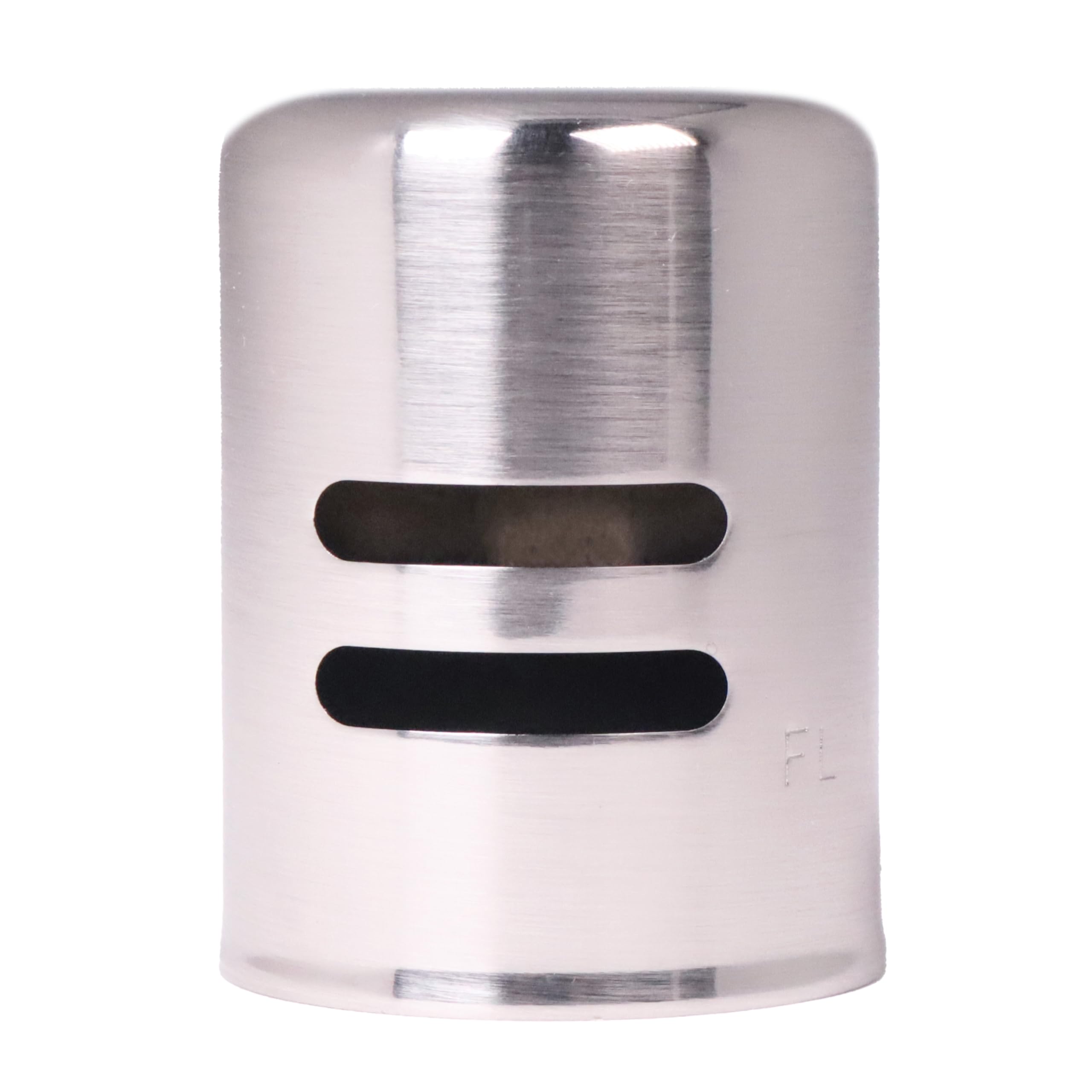

Image 1.1: The Westbrass D201-20 non-skirted air gap cap in stainless steel finish.

2. Асаблівасці прадукту

• Standard Air Gap Cap Only: This product includes only the decorative cap, designed to fit standard air gap bodies.
• Памеры: Features a 1-5/8 inch diameter and a 2-1/4 inch height.
• Універсальны падыход: Compatible with all standard air gap bodies.
• Non-Skirted Design: The cap's design ensures that the lip of the air gap body remains exposed when installed.
• матэрыял: Constructed from solid brass with a stainless steel finish for durability and corrosion resistance.

Малюнак 2.1: Крупны план view highlighting the design and finish of the air gap cap.

Image 2.2: Detail showing the 'FL' marking, indicating the front or flow direction for proper installation.

3. Тэхнічныя характарыстыкі

Image 3.1: Technical drawing illustrating the dimensions of the D201-20 air gap cap.

4. Інструкцыя па ўстаноўцы

This section provides general instructions for installing an air gap cap. Always refer to local plumbing codes and consult a professional if you are unsure about any steps.

1. Connect 7/8" Outlet Hose: Connect the 7/8" outlet hose (B) to the air gap using a #16 worm gear clamp. Leave the other end loose.
2. Connect Dishwasher Discharge Hose: Connect the dishwasher 5/8" discharge hose (C) to the air gap using a worm gear clamp. Ensure hoses are not kinked.
3. Position Air Gap Body: Push the air gap threaded neck through the deck hole. Adjust the nut so that threads protrude not more than 1/2" above the sink top.
4. Connect Air Gap Outlet Hose to Disposer: Connect the air gap outlet hose to the disposer or dishwasher tailpiece above the water level of the sink trap. Use a #16 worm gear clamp. Avoid any low spots that could trap water.
5. Install Top Washer and Top Nut: Install the top washer and top nut. Slip the D201-20 cap onto the air gap body with the relief opening facing the wall.

Image 4.1: Installation diagram for air gap systems, showing hose connections and cap placement.

5. Тэхнічнае абслугоўванне

The Westbrass D201-20 air gap cap requires minimal maintenance. To keep its stainless steel finish looking new:

• Рэгулярная ўборка: Wipe the cap regularly with a soft, damp тканінай, каб выдаліць плямы ад вады і адбіткі пальцаў.
• Мяккае мыла: For more stubborn marks, use a mild soap solution and rinse thoroughly.
• Пазбягайце абразіваў: Не выкарыстоўвайце абразіўныя ачышчальнікі, абразіўныя губкі або агрэсіўныя хімікаты, бо яны могуць пашкодзіць пакрыццё.
• Праверце наяўнасць перашкод: Periodically inspect the air gap body (underneath the cap) for any debris or blockages that might affect its function.

6. Выпраўленне непаладак

The D201-20 is a passive component (a cap) and does not typically require troubleshooting. Any issues related to water flow or drainage are usually associated with the air gap body or the connected plumbing lines, not the cap itself.

• Water Leaking from Air Gap: If water is leaking from the air gap, the issue is likely with the air gap body or a blockage in the drain line, not the cap. Check the air gap body for cracks or improper sealing, and inspect the dishwasher drain hose for clogs.
• Cap Not Fitting Securely: Ensure the air gap body is a standard size and that the cap is correctly aligned and pushed down fully.

7. Гарантыя і падтрымка

Гарантыя: This Westbrass product is covered by a 1-гадовая абмежаваная гарантыя з даты пакупкі. Гэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні.

падтрымка: For technical assistance, warranty claims, or further information, please contact Westbrass customer service. Refer to the official Westbrass webсайт для атрымання актуальнай кантактнай інфармацыі.
