Smatree Flexible Jaws Clamp Інструкцыя па мантажу

Уводзіны

Thank you for choosing the Smatree Flexible Jaws Clamp Mount. This product is designed to provide versatile mounting options for your action cameras, webcams, and compact digital cameras. Its flexible gooseneck arm and strong clamp allow for secure attachment to various surfaces, enabling diverse shooting angles and stable positioning. Please read this manual carefully before use to ensure proper operation and longevity of your device.

Image: The Smatree Flexible Jaws Clamp Mount, showcasing its gooseneck arm and clamp, with various compatible cameras illustrated around it.

Інструкцыя па наладзе

1. Unpack the Mount: Carefully remove all components from the packaging. Ensure you have the flexible jaws clamp mount and any included adapters.
2. Падключыце прыладу:
   • For cameras with a 1/4-inch tripod thread: Screw the camera directly onto the 1/4-inch screw at the end of the gooseneck arm.
   • For GoPro or similar action cameras: Attach your action camera to the included GoPro-style mount adapter, then connect the adapter to the 1/4-inch screw on the gooseneck arm.


   Image: Diagram illustrating the 1/4-inch thread compatibility with various compact cameras, webcams, and GoPro cameras.
3. Clamp the Mount: Identify a stable surface for clampінж. Клamp opens up to 1.8 inches (4.5 cm) wide. Press the clamp handles together to open the jaws and secure it firmly to a desk, shelf, pipe, or other suitable object. The heavy-duty rubber lines inside the clamp provide anti-slip grip.


   Выява: Крупны план views highlighting the 360-degree rotation, double stainless spring for stronger clamping, 1.8-inch maximum clamp opening with heavy-duty rubber lines, and arbitrary bending capability of the gooseneck.

4. Adjust the Gooseneck Arm: The flexible arm can be bent and positioned to achieve your desired height and angle. The maximum extension of the arm is 12 inches (30.5 cm).

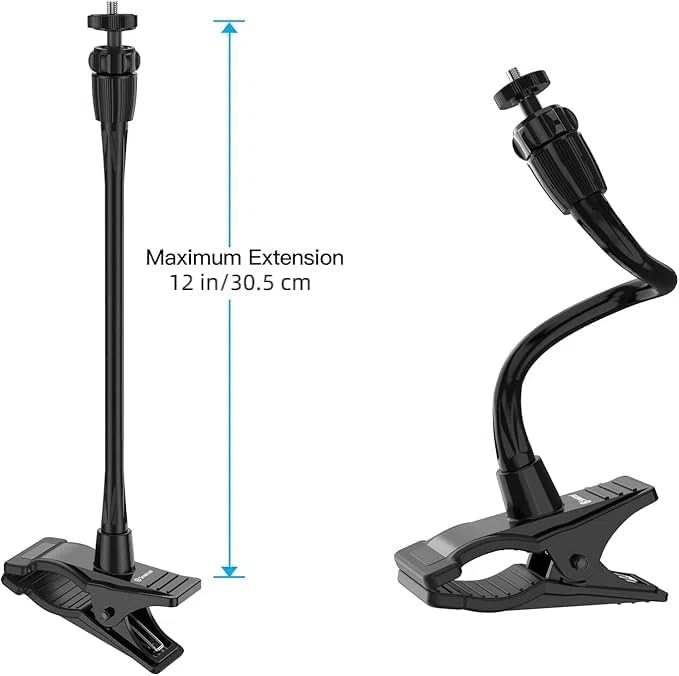

   Image: The Smatree Jaws Clamp Mount in its fully extended and bent configurations, indicating a maximum extension of 12 inches (30.5 cm).

Інструкцыя па эксплуатацыі

Once the mount is securely attached and your device is in place, you can fine-tune its position:

• Рэгуляванне кута: The flexible tripod head at the end of the gooseneck arm allows for 360-degree rotation, enabling you to capture footage or stream from virtually any angle.
• Positioning the Flexible Arm: Gently bend and twist the gooseneck arm to achieve the desired height and distance from your subject. The arm is designed to hold its position once set.
• Important Usage Note: For optimal stability and to prevent camera shake, it is recommended to mount the Smatree Flexible Jaws Clamp Support on a non-moving object. Avoid mounting it on surfaces that vibrate or are unstable.

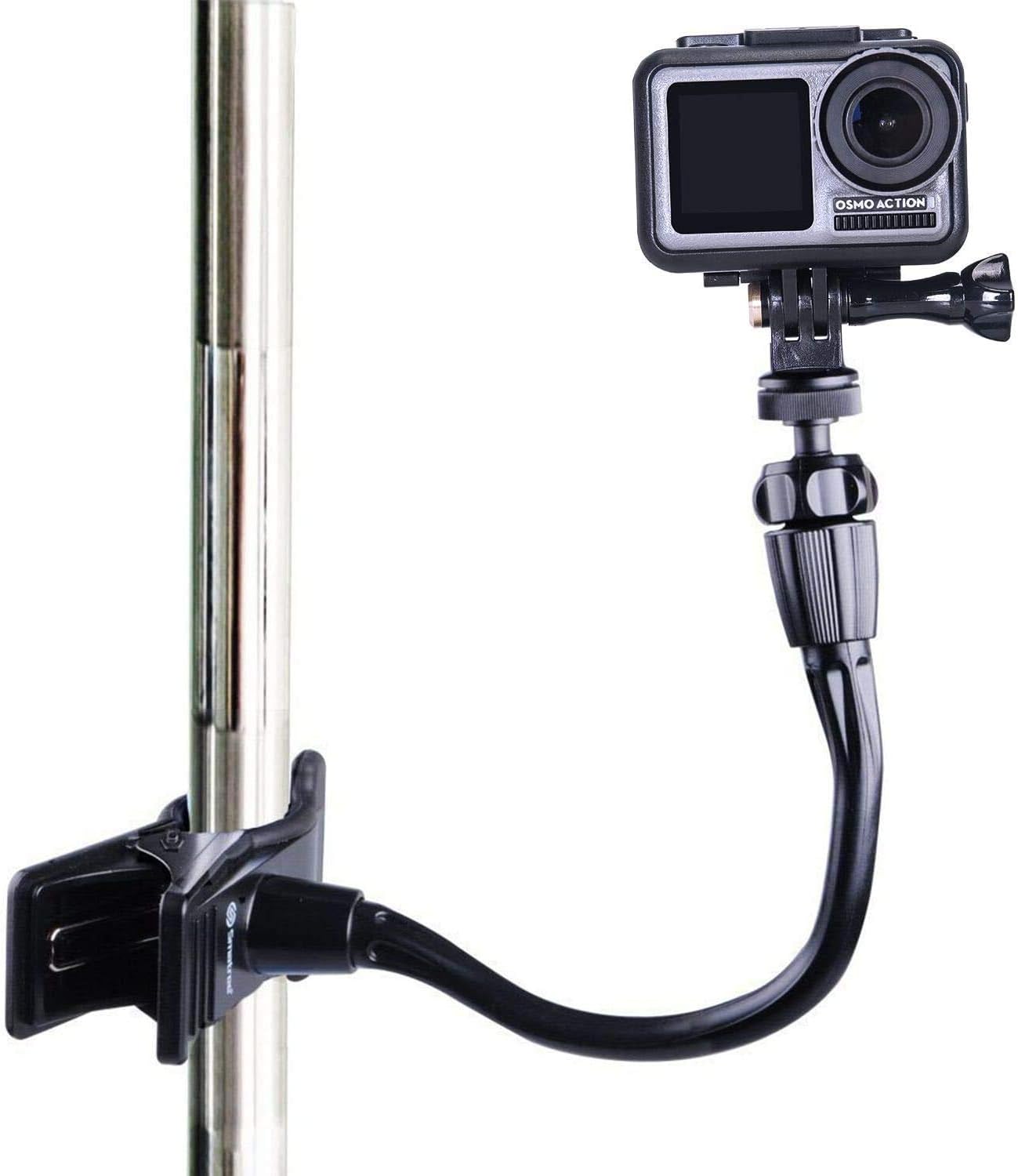

Image: An action camera mounted on a pole using the Smatree Jaws Clamp Mount, demonstrating its secure grip and flexible positioning.

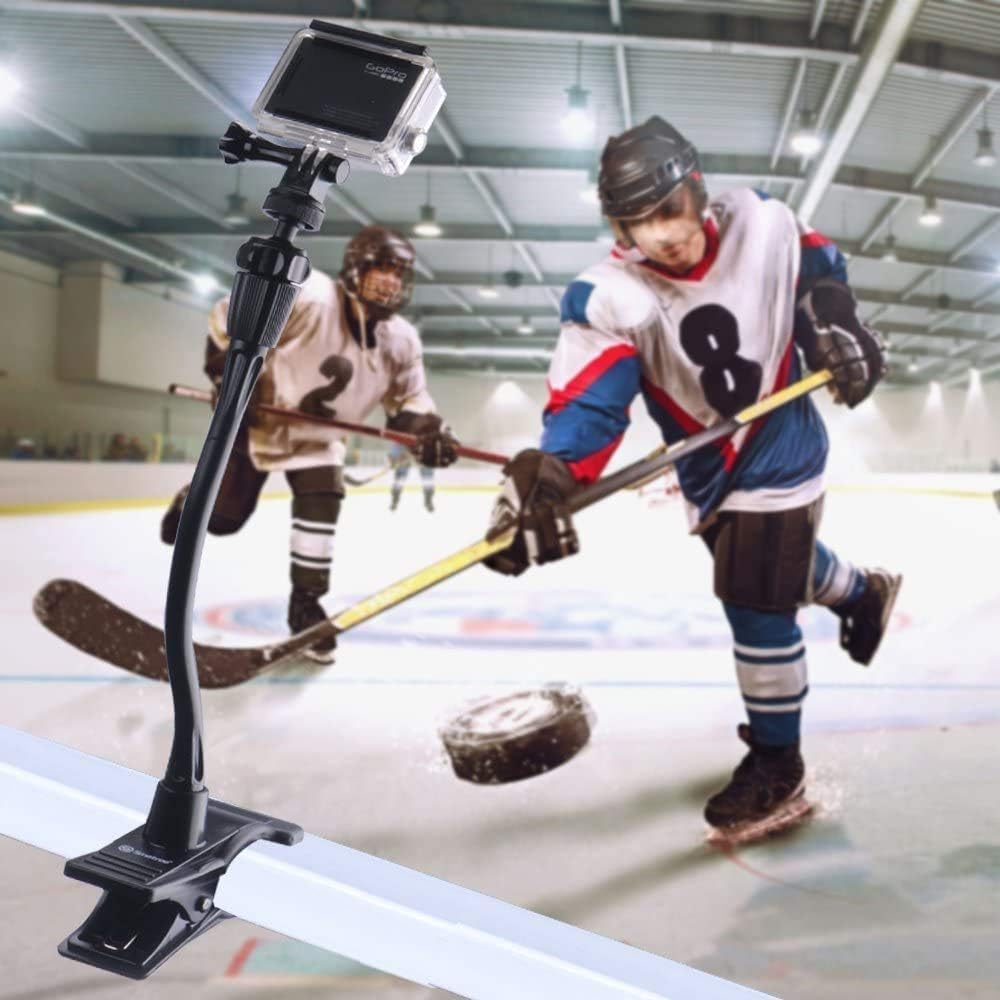

Image: The Smatree Jaws Clamp Mount holding an action camera on a rink barrier during a hockey game, illustrating its use in dynamic environments.

Image: A collage showing the Smatree Jaws Clamp Mount in various applications, including clamping to a brick, a tree branch, a metal pole, and a desk.

Image: The Smatree gooseneck extension holding a webcam, demonstrating its utility for video conferencing or streaming setups.

Тэхнічнае абслугоўванне

• Уборка: Wipe the mount with a soft, dry cloth to remove dust and dirt. For stubborn grime, a slightly damp можна выкарыстоўваць тканіну, а затым неадкладна высушыць. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя ачышчальнікі.
• захоўванне: Store the mount in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the gooseneck arm is not bent into extreme positions for prolonged periods during storage to maintain its flexibility.
• агляд: Перыядычна правярайце клamp springs and screw threads for any signs of wear or damage. Ensure all connections are secure before each use.

Ліквідацыю непаладак

• Mount is not stable:
  • Пераканайцеся, што клamp is fully engaged and securely tightened onto a stable, non-vibrating surface.
  • Verify that the surface material is suitable for clamping and provides adequate grip.
  • Check that your camera or device is properly attached to the 1/4-inch screw or GoPro adapter.
• Gooseneck arm sags or does not hold position:
  • Ensure the weight of the attached device does not exceed the mount's capacity.
  • Reposition the gooseneck arm to distribute the weight more evenly or reduce leverage.
  • Avoid over-extending the arm horizontally with heavy devices.
• Device connection feels loose:
  • Tighten the 1/4-inch screw connection to your camera.
  • If using a GoPro adapter, ensure the thumb screw is fully tightened.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

Smatree products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Smatree webсайт. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

Падтрымка кліентаў

If you encounter any issues or have questions regarding your Smatree Flexible Jaws Clamp Mount, please contact Smatree customer support through their official website or the retailer from whom you purchased the product. Please have your model number (EU-Smatree0014) and purchase details ready when contacting support.
