Sollos 200W 12V Stainless Steel Landscape Lighting Transformer User Manual

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Sollos 200W 12V Stainless Steel Landscape Lighting Transformer. This transformer is designed to provide safe and reliable low-voltage power for outdoor landscape lighting systems. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage or injury.

Інфармацыя па бяспецы

Always adhere to the following safety precautions to reduce the risk of fire, electric shock, or injury to persons:

• Disconnect power at the circuit breaker before installing or servicing.
• Устаноўка павінна выконвацца кваліфікаваным электрыкам у адпаведнасці з усімі мясцовымі і нацыянальнымі электрычнымі нормамі.
• Do not immerse the transformer in water. It is designed for outdoor use but should be protected from direct water spray from sprinklers or hoses.
• Ensure the transformer is mounted securely to a solid surface.
• Do not overload the transformer. The total wattage of connected fixtures must not exceed 200W.
• Use only 12V low-voltage landscape lighting fixtures with this transformer.
• Keep children away from the transformer during operation.

Змест пакета

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• Sollos 200W 12V Stainless Steel Landscape Lighting Transformer
• Кіраўніцтва па эксплуатацыі
• Мантажныя элементы (шрубы, анкеры)

Настройка і ўстаноўка

Для правільнай усталёўкі трансфарматара выканайце наступныя дзеянні:

1. Выберыце месца: Select a suitable outdoor location near a GFCI (Ground Fault Circuit Interrupter) protected 120V AC outlet. The location should be easily accessible, well-ventilated, and protected from direct sprinkler spray. Mount the transformer at least 1 foot above ground level.


   Выява: спераду view of the Sollos 200W 12V Stainless Steel Landscape Lighting Transformer, showing the stainless steel casing and the black control panel with a digital display and arrow buttons.

2. Устанавіце трансфарматар: Use the provided mounting hardware to securely attach the transformer to a wall or sturdy post. Ensure it is level and firmly fixed.

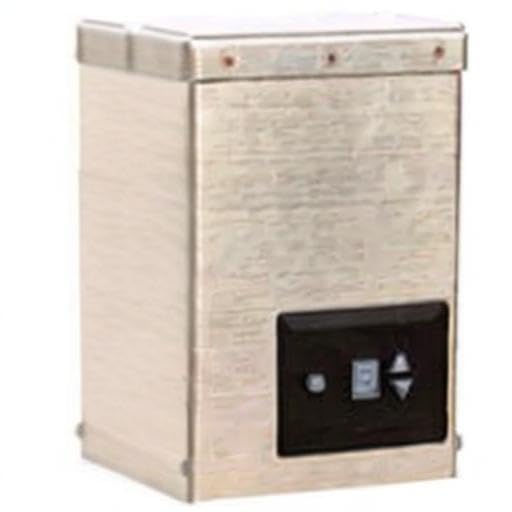

   Выява: Пад вуглом view of the Sollos 200W 12V Stainless Steel Landscape Lighting Transformer, highlighting its compact stainless steel design and the integrated control panel.

3. Падключэнне нізкавольтнагаtage Cables: Route your low-voltage landscape lighting cables from your fixtures to the transformer's low-voltage terminals. Strip approximately 1/2 inch of insulation from the cable ends and securely connect them to the 12V output terminals. Ensure a tight connection to prevent voltagэлектронная кропля.
4. Падключыць: Once all low-voltage connections are made and verified, plug the transformer's power cord into the GFCI-protected 120V AC outlet.

Інструкцыя па эксплуатацыі

The Sollos transformer features a built-in photocell and timer for automated operation. The control panel consists of a digital display and two arrow buttons (Up/Down) for setting modes.

Setting the Operating Mode:

Press the Up or Down arrow button to cycle through the available operating modes displayed on the digital screen:

• ВКЛ: Фары пастаянна гараць.
• AUTO (Photocell): Lights turn on automatically at dusk and turn off at dawn. The integrated photocell detects ambient light levels.
• TIMER (1-7 Hours): Lights turn on automatically at dusk and remain on for the selected duration (1 to 7 hours). Use the arrow buttons to adjust the hour setting.
• OFF: Lights remain off.

Праца фотаэлемента:

Ensure the photocell sensor (small circular sensor on the control panel) is not obstructed by dirt, debris, or direct light sources (e.g., porch lights) that could interfere with its operation.

Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and longevity of your transformer:

• Уборка: Periodically wipe the exterior of the transformer with a soft, damp cloth to remove dirt and dust. Do not use abrasive cleaners or solvents.
• Фотаэлемент: Каб забяспечыць дакладную працу ад змяркання да світання, падтрымлівайце датчык фотаэлемента ў чысціні і без перашкод.
• Сувязі: Annually inspect all low-voltage cable connections for corrosion or looseness. Tighten as necessary.
• Вентыляцыя: Ensure the transformer's ventilation openings are clear of debris to prevent overheating.

Ліквідацыю непаладак

Тэхнічныя характарыстыкі

• мадэль: Sollos 200W 12V Stainless Steel Landscape Lighting Transformer
• Уваходны кнtage: 120V AC, 60Hz
• Выхад Voltage: 12 В пераменнага току
• Максімальная ватtage: 200 Вт
• матэрыял: Нержавеючая сталь
• Асаблівасці: Built-in Photocell, Digital Timer (1-7 hours), Manual ON/OFF
• Памеры: (Approximate, based on typical models) 6" H x 4" W x 3" D
• Вага: (Approximate) 5 lbs
• UPC: 636134771105
• ASIN: B0100Q913A

Гарантыя і падтрымка

For warranty information or technical support, please contact Sollos customer service. Keep your purchase receipt as proof of purchase for warranty claims.

Кантактная інфармацыя: Please refer to the Sollos official webна сайце або на ўпакоўцы прадукту, каб атрымаць найноўшую кантактную інфармацыю.
