EZVIZ BD-1424B1
EZVIZ FULL HD 1080p Outdoor Surveillance System User Manual
1. Уводзіны
Апісанне прадукту
The EZVIZ wired surveillance system is a smart home-capable solution designed for comprehensive security. It integrates seamlessly with the EZVIZ platform, allowing centralized management of all your cameras and video feeds. This system is compatible with popular apps, websites, email accounts, and smart devices via IFTTT, ensuring continuous improvement and added functionality through one-click updates. The cameras are built to withstand harsh outdoor conditions, being waterproof and dustproof with an IP66 rating, and operational in temperatures ranging from -40°F to 140°F. They deliver exceptionally clear HD video and image quality, adapting to varying light levels throughout the day. Night vision mode automatically activates in low light, providing clear video up to 100 ft. away. Customizable motion detection sends instant notifications to your smartphone, and all video is securely recorded to a 1TB security-grade hard drive with multi-layer security and end-to-end encryption.
Асноўныя характарыстыкі
- COMPLETE PREMIUM SMART HOME IOT SURVEILLANCE KIT - View and record 4 critical points of your home or business on a built in 1TB security grade hard drive. Power Consumption maximum 4 Watt.
- VIEW FROM ANYWHERE, ANYTIME - The EZVIZ app lets you see all of your EZVIZ cameras in one place. Check in on your home or business wherever you have an internet connection. Real-Time, High-Definition Video-High-definition wired kits deliver clear video and sharp details even when people, animals, and objects are far away.
- CUSTOMIZABLE ADVANCED MOTION DETECTION - Any movement detected will be recorded and notification will be sent immediately to your smart phone. Detection area can be customized directly from your DVR to minimize false alarms.
- SAFEGUARDED AND RELIABLE - Cameras are certified IP66 and capable of operating in extreme temperatures outdoors, - 40°F to 140°F. Multi-layer security and end-to-end video encryption protect your data.
- LIFETIME TECH SUPPORT AND FREE 12 MONTH WARRANTY - Technology experts available for chat and one button system upgrades whenever updates are released.
2. Прадукт скончыўсяview
Кампаненты сістэмы
Your EZVIZ surveillance system includes the following main components:
- 1 x 4-Channel DVR with 1TB Hard Drive
- 4 x Weatherproof HD Security Cameras
- Necessary power adapters and cables for installation
The EZVIZ 1080p Outdoor Surveillance System, featuring four cameras and the central DVR unit.
All components included in the EZVIZ Surveillance System package, such as cameras, DVR, cables, and power supplies.
Падключэнне DVR
The Digital Video Recorder (DVR) serves as the central hub for your surveillance system, managing video input, storage, and output. Familiarize yourself with the various ports for proper setup.
Падрабязны view of the EZVIZ DVR's back panel, showing video input, HDMI, VGA, audio ports, LAN, and USB connections.
Інтэграцыя разумнага дома
The EZVIZ system is designed for seamless integration into your smart home ecosystem, offering voice control capabilities and compatibility with IFTTT for enhanced automation.
Illustration of the EZVIZ system's smart home capabilities, including voice control via Amazon Echo and integration with IFTTT.
3. Кіраўніцтва па наладцы
Пачатковая налада сістэмы
- Распакуйце кампаненты: Carefully remove all items from the packaging and verify against the component list.
- Падключэнне камер: Connect each camera to the DVR using the provided BNC coaxial cables. Ensure connections are secure.
- Падключэнне манітора: Connect a monitor to the DVR via HDMI or VGA port.
- Падключыце мыш: Падключыце мыш USB да порта USB на відэарэгістратары.
- Падключэнне да сеткі: Connect the DVR to your router using an Ethernet cable for remote viewныя магчымасці.
- Уключэнне: Connect the power adapter to the DVR and plug it into a power outlet. The system will boot up.
- First-Time Configuration: Follow the on-screen prompts to complete the initial setup, including setting up a password and configuring basic network settings.
Ўстаноўка камеры
The EZVIZ cameras are designed for outdoor use and can withstand various weather conditions. Choose strategic locations that provide optimal coverage and are within reach of the provided cables.

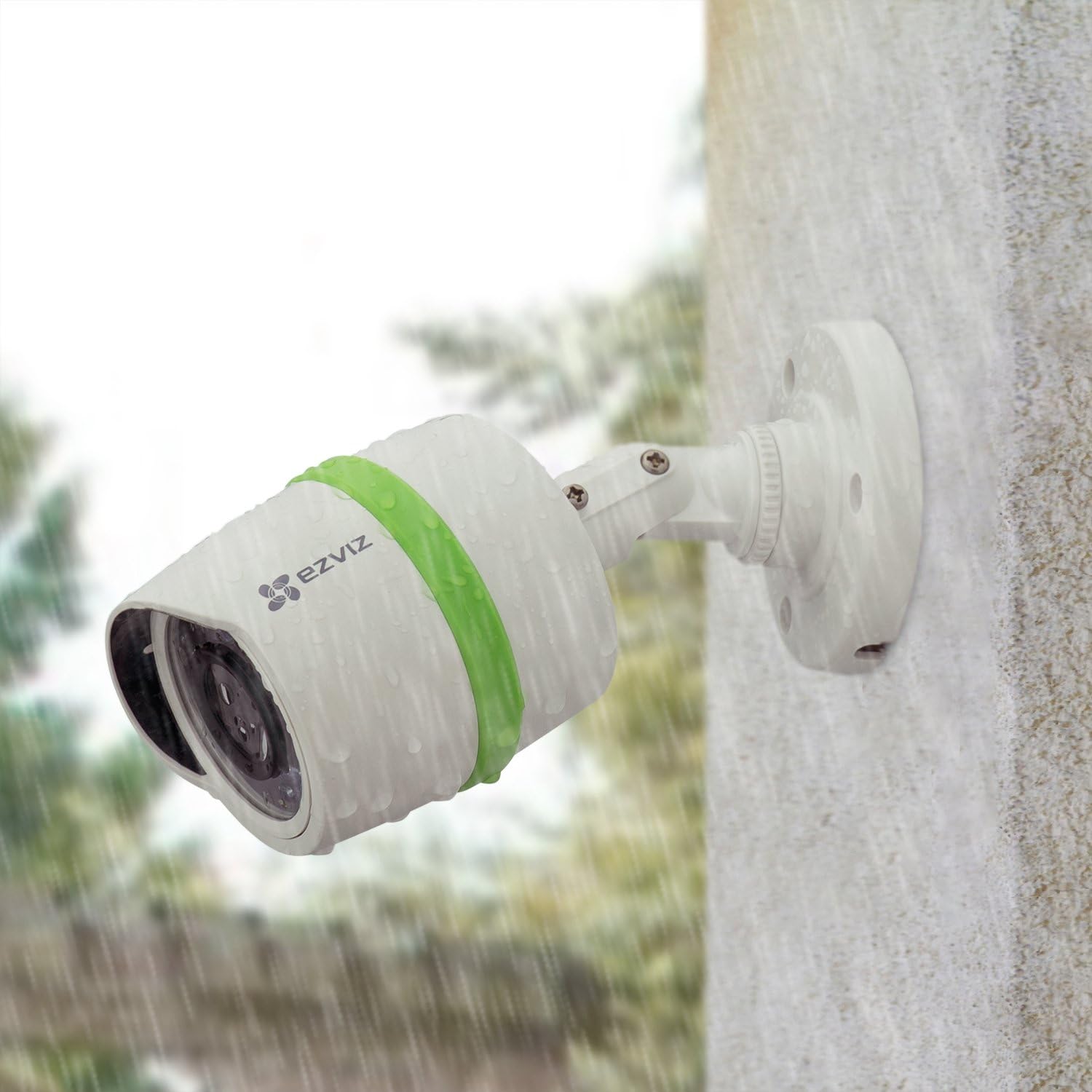

An EZVIZ camera mounted outdoors, demonstrating its weatherproof design.
- Мантаж: Securely mount cameras to a wall or ceiling using the provided screws and anchors. Adjust the camera angle for desired viewінж.
- Кабельнае кіраванне: Route cables neatly and protect them from environmental damage.
4. Інструкцыя па эксплуатацыі
Using the EZVIZ App
The EZVIZ app is your primary interface for remote monitoring and management of your surveillance system. Download it from your device's app store.
Demonstration of accessing the EZVIZ surveillance system remotely via the EZVIZ app on various devices.
- жыць View: Access real-time video feeds from all connected cameras.
- Прайграванне: Review запісана footage stored on the DVR's hard drive.
- Абвесткі аб выяўленні руху: Receive instant notifications on your smartphone when motion is detected in configured areas.
A smartphone screen displaying a motion detection alert from the EZVIZ app.
Начное бачанне
The cameras automatically switch to night vision mode in low-light conditions, providing clear black-and-white footagда 100 футаў.
Comparison showing the clarity of EZVIZ night vision versus low-contrast night vision.
Афіцыйнае відэа пра прадукт
An official product video demonstrating the features and capabilities of the EZVIZ FULL HD 1080p Outdoor Surveillance System.
5. Тэхнічнае абслугоўванне
Сыход за камерай
- Рэгулярна чысціце аб'ектывы камеры мяккай губкайamp тканіна, каб забяспечыць выразную якасць выявы.
- Check cable connections periodically to ensure they remain secure and free from damage.
- Clear any obstructions (e.g., spiderwebs, leaves) that may block the camera's field of view.
DVR Maintenance
- Ensure the DVR is placed in a well-ventilated area to prevent overheating.
- Keep the DVR free from dust and debris.
- Перыядычна рабіце рэзервовыя копіі важных файлаўtage from the hard drive.
6. Выпраўленне непаладак
Агульныя праблемы і рашэнні
| выпуск | Магчымая прычына | Рашэнне |
|---|---|---|
| Няма відэа на маніторы | Няўстойлівае падключэнне кабеля, няправільная крыніца ўваходнага сігналу, праблема з харчаваннем. | Check HDMI/VGA cable, ensure monitor is on correct input, verify DVR power. |
| Няма пульта viewing via app | No internet connection, incorrect network settings, app not configured. | Verify DVR's internet connection, check router settings, reconfigure app. |
| Выяўленне руху не працуе | Incorrect sensitivity settings, detection area not set, obstructions. | Adjust motion sensitivity, define detection zones, clear camera view. |
| Дрэнная якасць выявы | Dirty lens, low light, cable interference. | Clean camera lens, ensure adequate lighting or proper night vision activation, check cable integrity. |
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | ЭЗВІЗ |
| Нумар мадэлі | BD-1424B1 |
| Тэхналогія падлучэння | Правадная |
| Дазвол відэазахопу | 1080p |
| Асаблівасці | Начное бачанне, датчык руху |
| Колькасць каналаў | 4 |
| Ёмістасць памяці | 1 ТБ |
| Колер | Белы |
| Крыніца харчавання | Правадная электрычная |
| Памеры прадмета Д х Ш х У | 13.39 х 10.24 х 10.51 цалі |
| Рэкамендуемае выкарыстанне для прадукту | Бяспека |
| Сумяшчальныя прылады | Камеры |
| Фармат сігналу | Аналаг |
| Тэхналогія нізкай асветленасці | так |
| Дыяпазон начнога бачання | 100 футаў |
| Частата кадраў | 15 |
| Тэхналогія аптычнага датчыка | CMOS (with advanced motion detection capabilities) |
| Усяго партоў USB | 2 |
| Абсталяванне інтэрфейсу | Ethernet |
| Тып аб'ектыва | Рыбін вачэй |
| Відэа ўваход | USB |
| Viewing кут | 130 градусаў |
| Вытворца | ЭЗВІЗ |
| Вага прадмета | 1.25 фунта |
| Памеры прадукту | 13.39 х 10.24 х 10.51 цалі |
| Дата першай даступнасці | 1 кастрычніка 2015 г |
8. Гарантыя і падтрымка
EZVIZ offers comprehensive support for your surveillance system:
- Гарантыя: The product comes with a FREE 12 MONTH WARRANTY.
- Тэхнічная падтрымка: Enjoy LIFETIME TECH SUPPORT with technology experts available for chat and assistance.
- Абнаўленні сістэмы: Benefit from one-button system upgrades as new features and functionalities are released.
