Westek SW103CT Outdoor Swivel Photo Control Instruction Manual

Уводзіны

The Westek SW103CT Outdoor Swivel Photo Control is designed to automate your outdoor lighting. This device utilizes a photocell sensor to detect ambient light levels, automatically turning connected lights on at dusk and off at dawn. This manual provides essential information for safe installation, proper operation, and maintenance of your photo control unit.

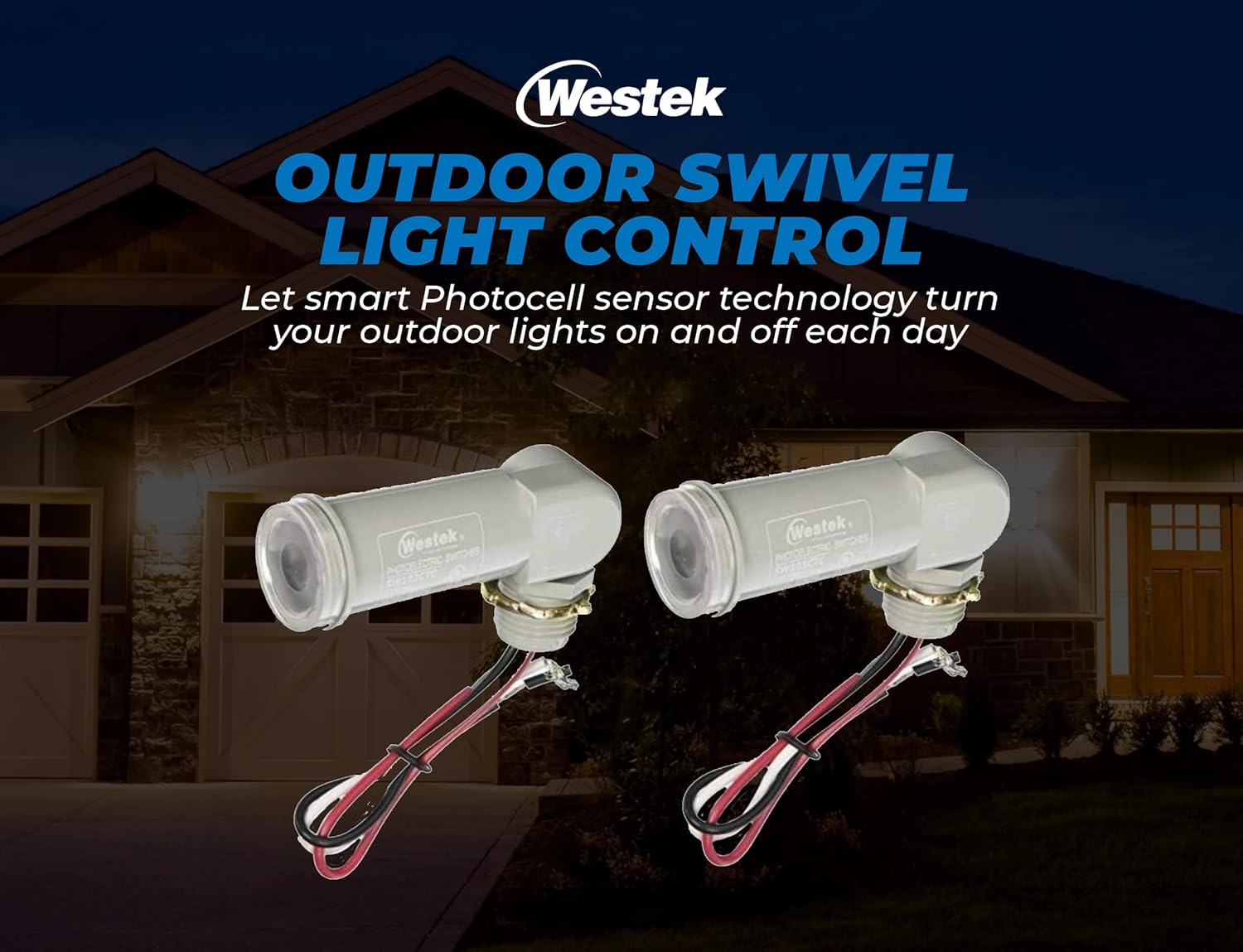

Image: Two Westek SW103CT Outdoor Swivel Photo Controls, illustrating the product's appearance and wiring.

Інфармацыя па бяспецы

• ПАПЯРЭДЖАННЕ: Рызыка паразы электрычным токам. Перад устаноўкай або абслугоўваннем адключыце электрычнасць з дапамогай аўтаматычнага выключальніка або засцерагальніка.
• Installation should be performed by a qualified electrician or a person with electrical knowledge.
• Пераканайцеся, што ўсе злучэнні правадоў надзейныя і адпавядаюць мясцовым электрычным нормам.
• This product is designed for outdoor use. While the sensor itself is described as weather-proof, ensure all electrical connections are properly sealed and protected from direct water exposure to prevent damage and ensure safety. The product is not submersible.
• Не перавышайце максімальную ватtage rating of 150 watts for connected lighting.
• Operate only within the specified voltage range (2 Volts, typically 120V AC for household applications, please verify your specific application voltagе).

Змест пакета

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• Westek SW103CT Outdoor Swivel Photo Control (2 units)
• Мантажнае абсталяванне

Тэхнічныя характарыстыкі

Image: Key features of the Westek SW103CT, highlighting the photocell sensor, swivel adjustment, and weatherproof construction.

Ўстаноўка

Перш чым пачаць: Ensure power is disconnected at the circuit breaker. Failure to do so may result in serious injury or death.

1. Падрыхтуйце праводку: The photo control unit comes with 6-inch pre-stripped leads for easy connection.
2. Мантаж: The unit connects directly to a standard 1/2-inch pipe thread electrical box. Secure the photo control to the electrical box using the provided mounting hardware.
3. Падключэнне правадоў: Connect the photo control wires to your electrical system as follows:
   • Чорны провад: Connect to the incoming лінія (гарачая) wire from your power source.
   • Белы дрот: Падключыцеся да Нейтральны wire from your power source and to the neutral wire of your light fixture.
   • Чырвоны провад: Падключыцеся да Load (Hot) wire of your outdoor light fixture.
   Ensure all connections are tight and insulated with appropriate wire connectors.
4. пазіцыянаванне: The swivel feature allows for optimal light positioning of the photocell sensor. Aim the sensor away from direct artificial light sources (e.g., porch lights, streetlights) that could interfere with its operation. Ensure it has clear exposure to natural daylight.
5. Аднавіць сілу: Пасля завяршэння ўстаноўкі і надзейнасці ўсіх злучэнняў аднавіце электраэнергію з дапамогай аўтаматычнага выключальніка.

Image: Westek SW103CT photo control with visible wiring for electrical connection.

Image: Installation details for the Westek SW103CT, showing connection to an electrical box and maximum wattage.

Аперацыя

The Westek SW103CT Photo Control operates automatically based on ambient light levels:

• Dusk Activation: When natural light diminishes to a certain level (dusk), the photocell sensor will activate, turning on the connected outdoor lights.
• Dawn Deactivation: As natural light increases to a sufficient level (dawn), the photocell sensor will deactivate, turning off the connected outdoor lights.
• Затрымка па часе: The unit incorporates a time delay feature to prevent nuisance flickering or false activation/deactivation due to transient light changes (e.g., car headlights, lightning).

Тэхнічнае абслугоўванне

To ensure optimal performance and longevity of your photo control unit:

• Чысты датчык: Periodically inspect the photocell sensor lens for dirt, dust, or debris. Gently wipe it clean with a soft, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі.
• Праверце злучэнні: Annually, or if issues arise, inspect all electrical connections for corrosion or looseness. Ensure they remain secure and properly insulated.
• Выдаліць перашкоды: Ensure no new obstructions (e.g., growing foliage, new structures) are blocking the sensor's exposure to natural light.

Ліквідацыю непаладак

Гарантыя і падтрымка

For warranty information, technical support, or replacement parts, please contact Westek customer service. Keep your purchase receipt as proof of purchase.

вытворца: American Tack

Webсайт: Visit the Westek Store on Amazon
