Ingersoll Fairbanks IN1416YL Automatic Watch User Manual

1. Уводзіны

This manual provides instructions for the proper setup, operation, and maintenance of your Ingersoll Fairbanks IN1416YL automatic analog watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

2. Кампаненты гадзінніка

Азнаёмцеся з асноўнымі кампанентамі вашага гадзінніка:

• Карона: Used for setting time and winding.
• штурхачы: Used for operating chronograph functions.
• Набраць: Displays time, date, month, year, and 24-hour sub-dial.
• Рукі: Гадзінная, хвілінная і секундная стрэлкі.
• Папружка: Beige leather strap with deployant buckle.

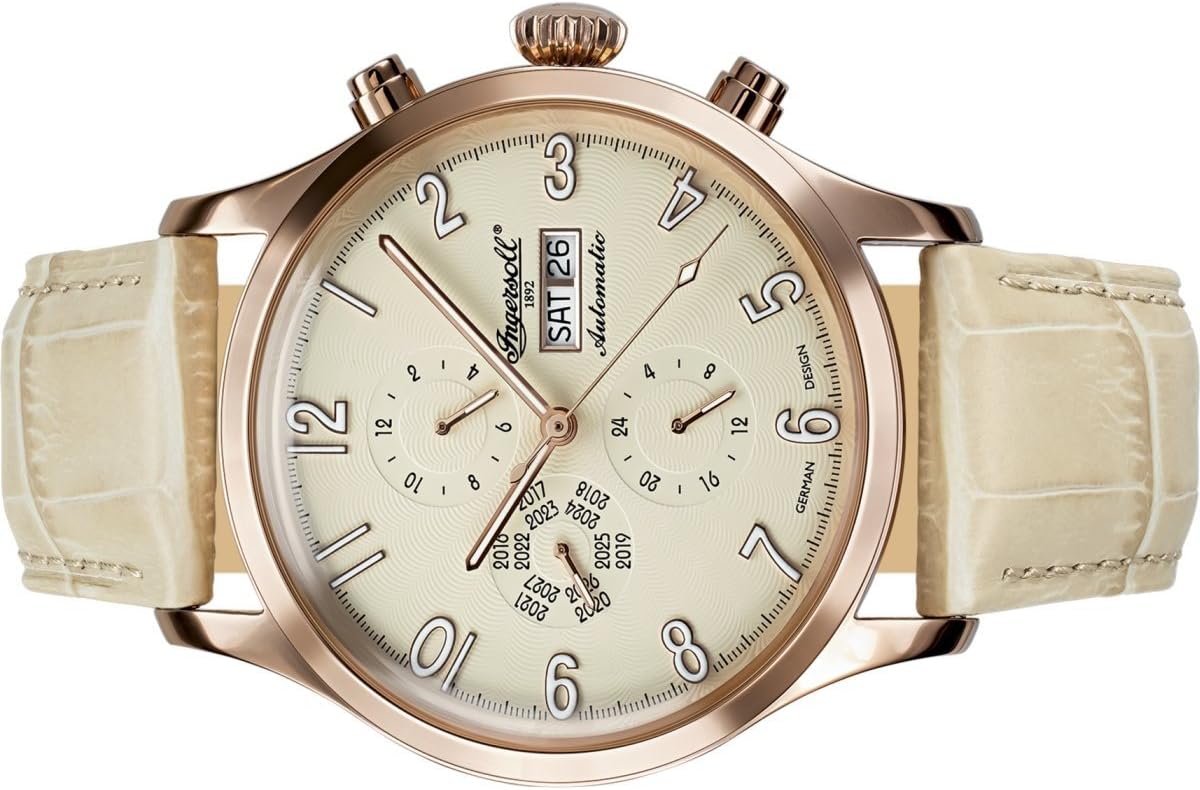

Апісанне малюнка: Буйны план view of the Ingersoll Fairbanks IN1416YL automatic watch. The rose gold-tone stainless steel case frames a cream-colored dial with Arabic numerals and stick markers. Three sub-dials display chronograph functions and a 24-hour indicator. A date window is visible at the 3 o'clock position, and additional windows show the month and year. The watch features a beige leather strap with a crocodile pattern.

3. Усталёўка і пачатковы ўвод у эксплуатацыю

3.1 Завод гадзінніка

Your Ingersoll Fairbanks watch is an automatic timepiece, meaning it is powered by the motion of your wrist. However, for initial setup or if the watch has stopped, manual winding is recommended:

1. Ensure the crown is in its normal, pushed-in position.
2. Павярніце заводную галоўку па гадзіннікавай стрэлцы прыкладна 30-40 разоў. Гэтага будзе дастаткова для запуску гадзінніка.
3. The watch will continue to wind itself as you wear it.

3.2 Настройка часу

1. Pull the crown out to the furthest position (usually position 2 or 3, depending on the model).
2. Павярніце заводную галоўку па гадзіннікавай стрэлцы або супраць гадзіннікавай стрэлкі, каб усталяваць гадзінную і хвілінную стрэлкі.
3. Каб запусціць гадзіннік, вярніце заводную галоўку ў звычайнае становішча.

3.3 Setting Date, Month, and Year

Your watch features date, month, and year displays. The specific method for setting these may vary slightly, but generally involves using the crown in an intermediate pulled-out position or dedicated pushers:

• Дата: Gently pull the crown out to the first click position. Turn the crown to adjust the date.
• Month/Year: These are typically adjusted using small recessed pushers on the side of the watch case. Use a small, non-sharp tool (like a toothpick) to press these pushers to advance the month and year.
• 24-гадзінны дадатковы цыферблат: This sub-dial usually synchronizes with the main time setting and does not require separate adjustment.

Важна: Avoid setting the date, month, or year between 9 PM and 3 AM, as this can damage the movement while the automatic date change mechanism is engaged.

4. Кіраванне хранографам

Your watch is equipped with a chronograph function for measuring elapsed time. It typically operates using two pushers located on the side of the case, usually above and below the crown.

1. Пачаць: Press the upper pusher to start the chronograph (the central second hand and sub-dials will begin moving).
2. Stop: Зноў націсніце верхнюю кнопку, каб спыніць хранограф. На дадатковых цыферблатах будзе адлюстроўвацца час, які прайшоў.
3. Скінуць: Press the lower pusher to reset the chronograph hands to zero. This can only be done when the chronograph is stopped.

5. Тэхнічнае абслугоўванне і догляд

5.1 Воданепранікальнасць

Your watch has a water resistance rating of 5 meters (5 ATM). This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is не падыходзіць для плавання, прыняцця душа або дайвінгу.

• Заўсёды пераканайцеся, што заводная галоўка цалкам уціснута, перш чым дакранацца да вады.
• Не круціце заводную галоўку або штурхачы, калі гадзіннік мокры або пагружаны ў ваду.
• Avoid exposing the watch to extreme temperature changes, which can affect water resistance.

5.2 Ачыстка

Каб пачысціць гадзіннік:

• Wipe the case and mineral glass with a soft, dry, lint-free cloth.
• For the leather strap, wipe with a slightly damp cloth and allow it to air dry completely. Avoid excessive moisture.
• Do not use chemical cleaners or abrasive materials.

5.3 Сыход за скураным раменьчыкам

Leather straps are susceptible to wear and tear. To prolong their life:

• Avoid prolonged exposure to direct sunlight, extreme heat, or humidity.
• Minimize contact with water, oils, cosmetics, and perfumes.
• Clean regularly as described above.

5.4 Агульныя меры засцярогі

• Avoid strong impacts or shocks to the watch.
• Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones), as these can affect the accuracy of the automatic movement.
• For long-term storage, ensure the watch is fully wound or stored in a watch winder.

6. Выпраўленне непаладак

• Watch has stopped or is running inaccurately: Manually wind the watch (Section 3.1). If the issue persists, it may require professional servicing.
• Date/Month/Year not changing: Ensure you are not attempting to set these functions between 9 PM and 3 AM. Check if the crown is fully pushed in after setting.
• Кандэнсат пад шклом: This indicates moisture has entered the watch. Immediately seek professional service to prevent damage to the movement.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

8.1 Інфармацыя аб гарантыі

Your Ingersoll watch is covered by a manufacturer's warranty against defects in materials and workmanship. The duration and terms of the warranty may vary by region. Please refer to the warranty card included with your purchase or visit the official Ingersoll webсайт для атрымання падрабязнай інфармацыі.

8.2 Падтрымка кліентаў

For service, repairs, or any questions not covered in this manual, please contact Ingersoll customer support or an authorized service center. Contact information can typically be found on the official Ingersoll website or in your watch's packaging.
