1. Прадукт скончыўсяview
The VIVOTEK AM-116 is a 20cm white pendant pipe designed to provide an extended and secure mounting solution for compatible VIVOTEK surveillance cameras. This accessory facilitates optimal camera positioning for various surveillance applications.

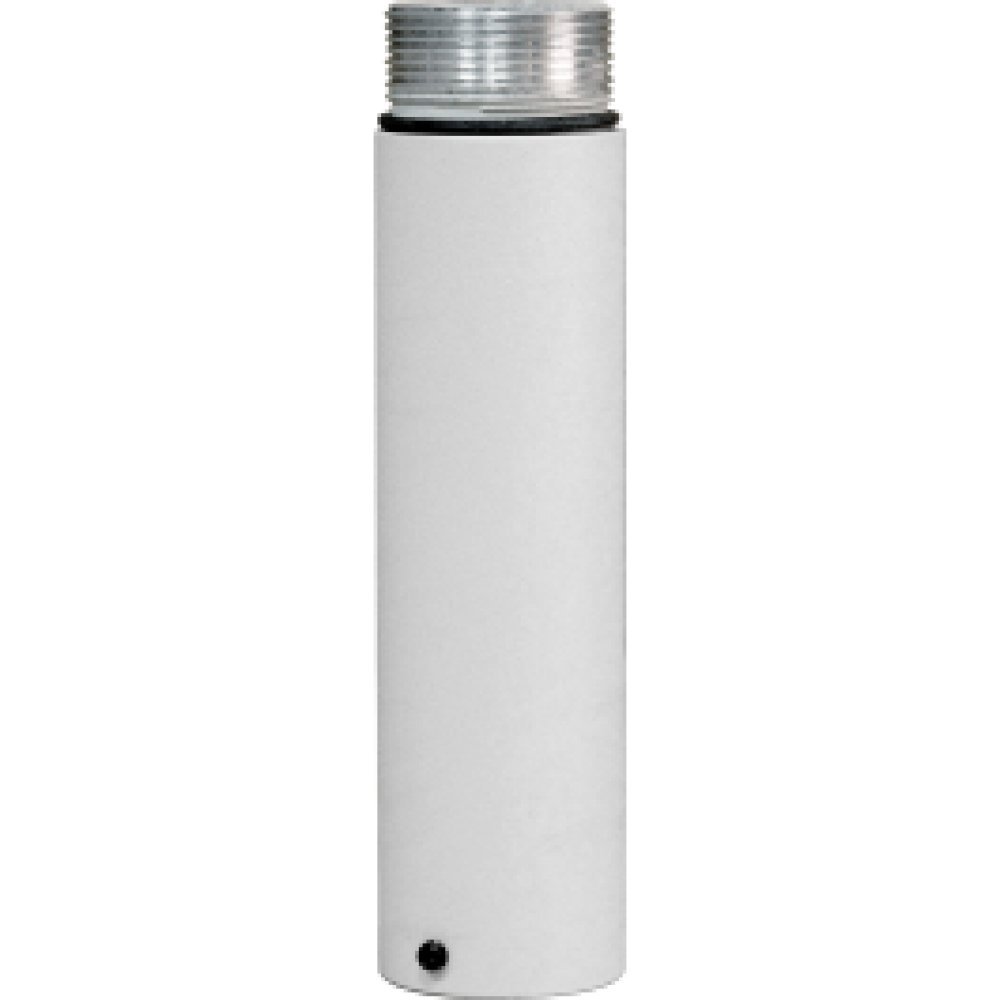

Image 1.1: VIVOTEK AM-116 Pendant Pipe. This image shows the white cylindrical pendant pipe, approximately 20cm in length, designed for camera mounting.
2. Змесціва ўпакоўкі
Перад тым, як працягнуць усталёўку, пераканайцеся, што ўсе элементы ёсць у камплекце.
- VIVOTEK AM-116 Pendant Pipe (1 piece, 20cm, White)
- Мантажныя элементы (шрубы, дзюбелі для сцяны)
- Кіраўніцтва па ўстаноўцы (гэты дакумент)
3. Інфармацыя па бяспецы
Калі ласка, прачытайце і зразумейце ўсе інструкцыі па тэхніцы бяспекі перад устаноўкай і выкарыстаннем. Невыкананне гэтых інструкцый можа прывесці да траўмаў або пашкоджання вырабу.
- Рэкамендуецца прафесійная ўстаноўка: For optimal safety and performance, installation by a qualified professional is recommended.
- Бяспечнае мацаванне: Ensure the mounting surface is capable of supporting the combined weight of the pendant pipe and the attached camera. Use appropriate mounting hardware for the specific surface material.
- Выкарыстоўвайце правільныя інструменты: Always use the correct tools for installation to prevent damage to the product or injury.
- Пазбягайце перашкод: Do not install the pendant pipe in a location where it might obstruct emergency exits or pathways.
- Электрабяспека: If connecting to a powered camera, ensure all electrical work is performed by a qualified electrician and complies with local electrical codes.
4. Настройка
Follow these steps for proper installation of the VIVOTEK AM-116 Pendant Pipe.
4.1 Mounting the Pendant Pipe
- Вызначыць месца мантажу: Select a suitable, stable surface (e.g., ceiling, wall) that can securely hold the weight of the pendant pipe and the camera.
- Пазначце адтуліны для свідравання: Use the pendant pipe's mounting base as a template to mark the positions for drilling holes.
- Прасвідраваць пілотныя адтуліны: Drill pilot holes of the appropriate size for the provided mounting screws and wall anchors (if necessary for the surface material).
- Secure Pendant Pipe: Attach the pendant pipe securely to the mounting surface using the provided screws. Ensure it is firmly fixed and does not wobble.
- Падключыце сумяшчальную прыладу: Connect your compatible VIVOTEK camera (e.g., AE-131 + AM-114, AE-132 + AM-114, AE-151 + AM-114 AM-520, SD83xxE) to the bottom of the pendant pipe according to the camera's specific installation instructions. Ensure all connections are tight and secure.
5. Аперацыйная
The VIVOTEK AM-116 Pendant Pipe is a passive mounting accessory. Once properly installed, its primary function is to provide a stable and extended platform for your compatible VIVOTEK surveillance camera. There are no active operational controls for the pendant pipe itself. The operation of the surveillance system will depend on the attached camera and its associated software.
6. Тэхнічнае абслугоўванне
Regular maintenance helps ensure the longevity and reliability of your pendant pipe.
- Візуальны агляд: Periodically inspect the pendant pipe and its mounting points for any signs of damage, corrosion, or loosening.
- Уборка: If necessary, clean the exterior of the pendant pipe with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish.
- Зацягніце зашпількі: If any mounting screws appear loose, carefully re-tighten them to ensure the pipe remains securely fixed.
7. Выпраўленне непаладак
This section addresses common issues related to the VIVOTEK AM-116 Pendant Pipe.
| выпуск | Магчымая прычына | Рашэнне |
|---|---|---|
| Pendant pipe feels loose or wobbly after installation. | Mounting screws are not sufficiently tightened, or the mounting surface is inadequate. | Ensure all mounting screws are securely tightened. If the surface is weak, consider reinforcing it or choosing a different mounting location. |
| Camera cannot be attached to the pendant pipe. | Incompatibility with the camera model or incorrect attachment method. | Verify that your camera model is listed as compatible (e.g., AE-131 + AM-114, AE-132 + AM-114, AE-151 + AM-114 AM-520, SD83xxE). Refer to the camera's manual for specific attachment instructions. |
| Visible damage to the pendant pipe. | Physical impact or environmental factors. | If the pipe is damaged, replace it immediately to prevent potential failure and damage to the attached camera. |
8. Тэхнічныя характарыстыкі
Key technical specifications for the VIVOTEK AM-116 Pendant Pipe.
| Асаблівасць | Дэталь |
|---|---|
| мадэль | AM-116 |
| Вытворца | ВІВОТЭК |
| Колер | Белы |
| Даўжыня | 20 см (прыкладна 7.87 цаляў) |
| Памеры ўпакоўкі | 10.98 х 2.72 х 2.6 цалі |
| Вага прадмета | 1.06 фунта |
| ASIN | B01FRC2D2S |
| Падтрымліваюцца прылады | AE-131 + AM-114, AE-132 + AM-114, AE-151 + AM-114 AM-520, SD83xxE |
9. Інфармацыя аб гарантыі
The VIVOTEK AM-116 Pendant Pipe is covered by a standard manufacturer's warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the official VIVOTEK webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
10. Падтрымка
For technical assistance, product inquiries, or further support, please contact VIVOTEK customer service through their official channels:
- Афіцыйны Webсайт: Visit the VIVOTEK official webсайт з рэсурсамі падтрымкі, адказамі на часта задаваныя пытанні і кантактнай інфармацыяй.
- Абслугоўванне кліентаў: Refer to the VIVOTEK website for regional contact numbers or email support.
