GeoVision GV-VS2400 4-Channel H.264 TVI Video Server User Manual

1. Уводзіны

The GeoVision GV-VS2400 is a compact and powerful 4-channel H.264 Video Server designed for converting analog video signals into high-resolution digital images. This device supports TVI 1080p/720p and analog 960H/D1 real-time video inputs, making it an integral part of a comprehensive IP surveillance solution when integrated with GV-System (GV-DVR/NVR) or GV-VMS.

Key features include support for over 50 PTZ camera models, local video recording to USB storage, and a Tampering Alarm system to enhance security. The GV-VS2400 is suitable for various surveillance applications requiring reliable video digitization and management.

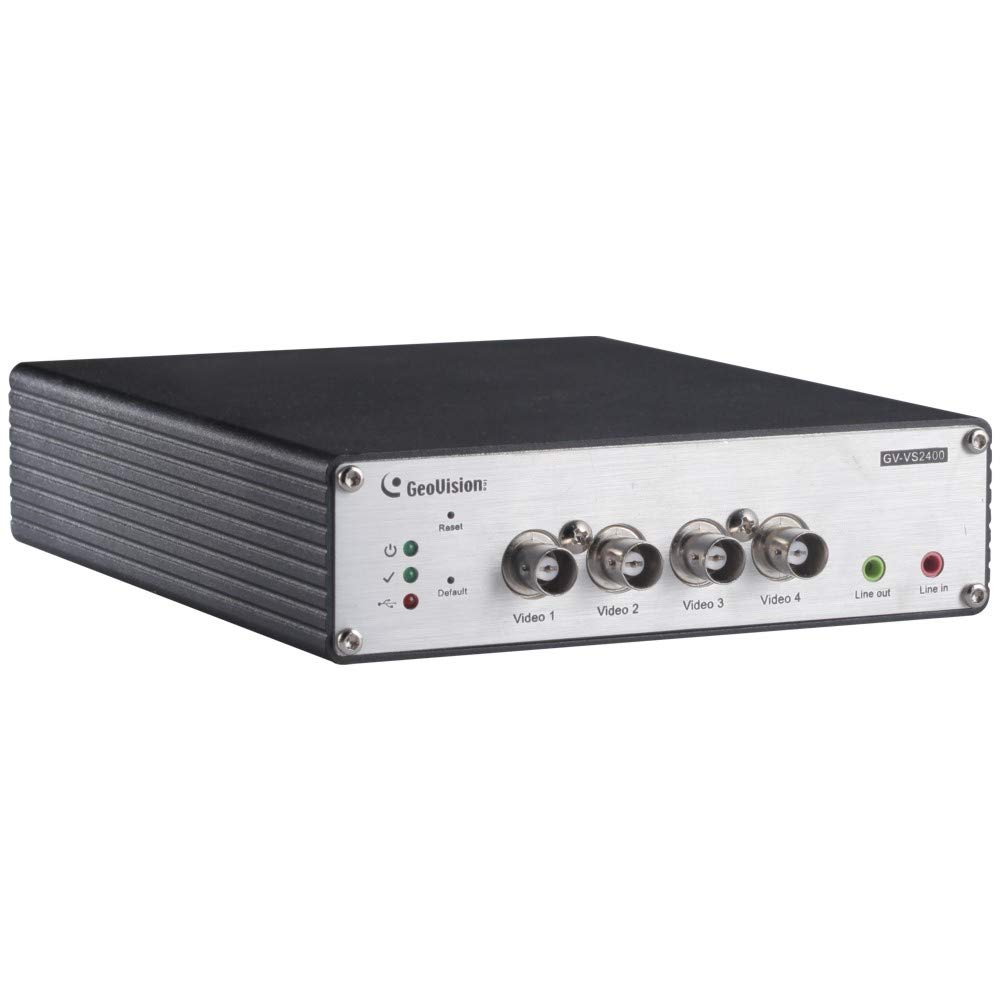

Малюнак 1: Спераду view of the GeoVision GV-VS2400 Video Server, showing its compact design and ports.

2. Настройка

2.1 Змест пакета

Before beginning installation, verify that all items are present in the package:

• GV-VS2400 Video Server Unit
• Адаптар сілкавання (12 В пастаяннага току)
• Кароткае кіраўніцтва
• Software CD (GV-System/GV-VMS)
• Мантажны камплект (пры наяўнасці)

2.2 Устаноўка абсталявання

1. Падключэнне камер: Connect up to four TVI 1080p/720p or analog 960H/D1 cameras to the video input ports on the GV-VS2400. Ensure secure connections.
2. Падключэнне да сеткі: Connect the GV-VS2400 to your network using an Ethernet cable. Alternatively, configure Wi-Fi or 3G/4G connectivity as required.
3. USB-назапашвальнік (неабавязкова): For local recording, connect a compatible USB HDD to the USB port on the GV-VS2400.
4. Падключэнне сілкавання: Connect the 12V DC power adapter to the GV-VS2400 and then plug it into a power outlet. The device will power on automatically.

Малюнак 2: Задняя частка view of the GV-VS2400, illustrating video input, network, and power connections.

2.3 Пачатковая канфігурацыя

After hardware installation, access the device's web interface for initial configuration:

1. Адкрыйце для сябе прыладу: Use the GeoVision IP Device Utility software (available on the provided CD or GeoVision website) to discover the GV-VS2400 on your network.
2. Доступ Web інтэрфейс: Адкрыйце a web browser and enter the IP address of the GV-VS2400. Log in using the default credentials (refer to the Quick Start Guide for details).
3. Налады сеткі: Configure network settings, including IP address, subnet mask, and gateway, to match your network environment.
4. Налады відэа: Adjust video input settings for each connected camera, including resolution, frame rate, and compression (H.264).
5. Кантроль PTZ: If using PTZ cameras, configure the appropriate PTZ protocol and settings.
6. Канфігурацыя сховішча: Format and configure the connected USB HDD for video recording.

3. Operating the GV-VS2400

3.1 У прамым эфіры View і запіс

The GV-VS2400 can be monitored and managed through its web interface or integrated with GeoVision's GV-System/GV-VMS software.

• жыць View: Access the live video streams from connected cameras through the web інтэрфейс або кліенцкае праграмнае забеспячэнне.
• Ручная запіс: Initiate manual recording of video streams to the configured USB storage or network storage.
• Запланаваны запіс: Set up recording schedules based on time or events (e.g., motion detection).

3.2 Тampсігналізацыя

Тampering Alarm feature detects attempts to obstruct or disable cameras.

1. Уключыць TampВыяўленне пашкоджанняў: У ст web interface, navigate to the camera settings and enable the Tampering Alarm for desired channels.
2. Configure Actions: Specify actions to be taken when a tampering event is detected, such as sending notifications, triggering recording, or activating an alarm output.

3.3 Мабільны доступ

The GV-VS2400 supports remote access via mobile devices using GeoVision's mobile applications.

• Спампаваць прыкладанне: Download the appropriate GeoVision mobile app from your device's app store.
• Дадаць прыладу: Add the GV-VS2400 to the app using its IP address or QR code.
• View Live Feeds: Access live video feeds and manage basic settings remotely.

4. Тэхнічнае абслугоўванне

4.1 Абнаўленне прашыўкі

Рэгулярна правярайце наяўнасць абнаўленняў прашыўкі і ўсталёўвайце іх, каб забяспечыць аптымальную прадукцыйнасць і бяспеку.

• Visit the official GeoVision webсайт апошніх версій прашыўкі.
• Follow the provided instructions for firmware update procedures.

4.2 System Backup and Restore

It is recommended to regularly back up your system configurations.

• Выкарыстоўвайце web interface to export configuration files.
• Store backup files in a secure location.

4.3 Ачыстка

Keep the device clean to prevent dust accumulation and ensure proper ventilation.

• Выкарыстоўвайце мяккую сухую тканіну для ачысткі вонкавага боку прылады.
• Не выкарыстоўвайце вадкія ачышчальнікі або абразіўныя матэрыялы.

5. Выпраўленне непаладак

6. Тэхнічныя характарыстыкі

7. Гарантыя і падтрымка

7.1 Гарантыя на выраб

GeoVision products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official GeoVision website for detailed warranty terms and conditions specific to the GV-VS2400. Keep your proof of purchase for warranty claims.

7.2 Тэхнічная падтрымка

For technical assistance, product inquiries, or troubleshooting beyond this manual, please contact GeoVision technical support:

• Webсайт: Visit the official GeoVision webсайт з рэсурсамі падтрымкі, адказамі на часта задаваныя пытанні і загрузкай драйвераў.
• Кантактная інфармацыя: Refer to the GeoVision website for regional contact numbers and email addresses for technical support.
• Інтэрнэт-рэсурсы: Explore GeoVision's online knowledge base and forums for community support and additional information.
