1. Уводзіны

The VOX BC108 Black Cab Series Amplifier Cabinet is a compact and portable speaker cabinet designed to deliver quality sound for guitar amplification. Featuring an 8-inch speaker and 25 Watts of power handling, it is ideal for practice, studio use, and small venues. This manual provides essential information for the safe and effective use of your BC108 cabinet, ensuring optimal performance and longevity.

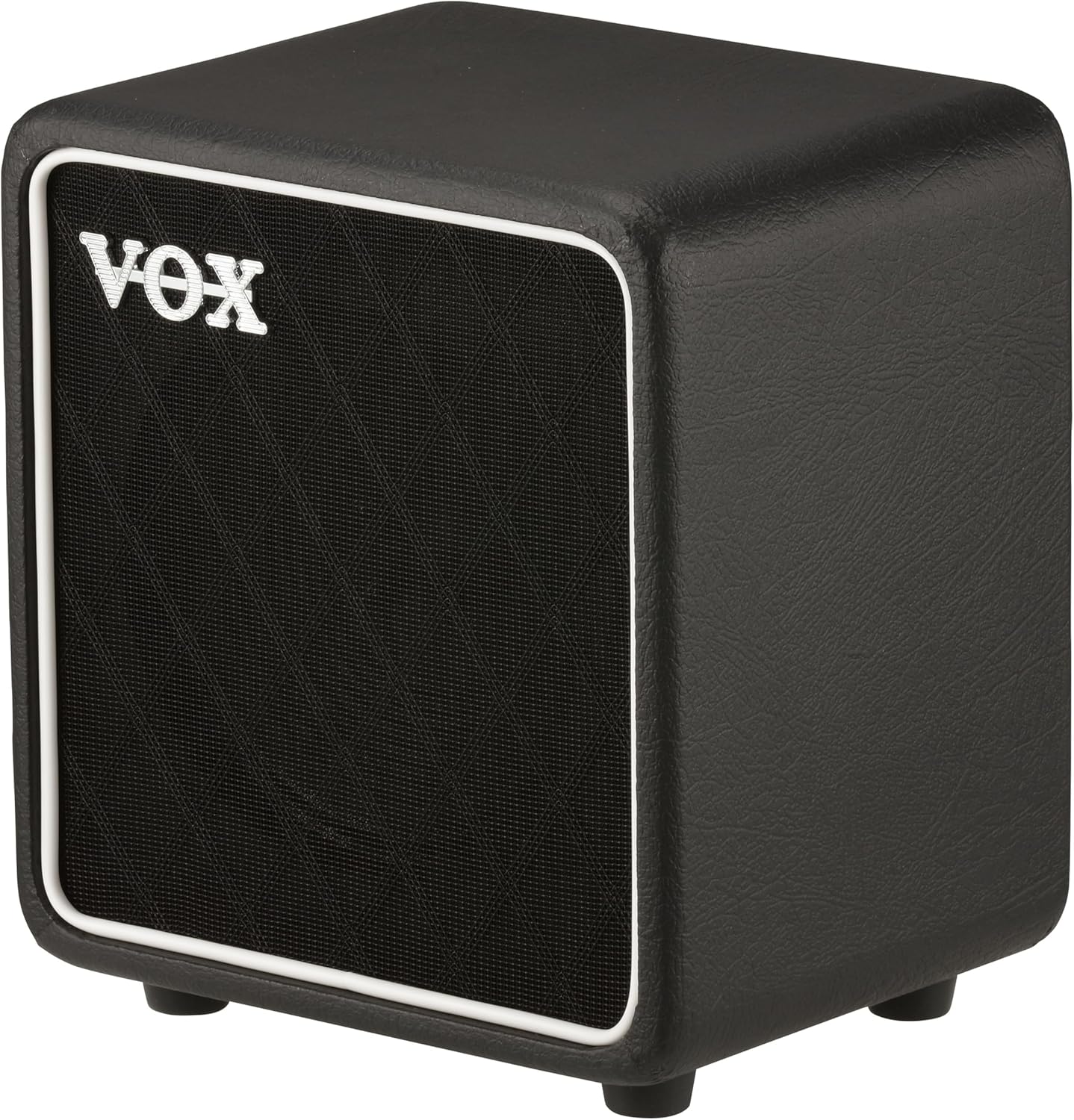

Малюнак 1: Спераду view of the VOX BC108 Amplifier Cabinet.

2. Тэхніка бяспекі

To prevent electric shock, fire, or damage to the unit, please read and follow all instructions carefully.

• Крыніца харчавання: This cabinet is passive and does not require direct power. Ensure any connected amplifier is properly grounded and uses the correct voltage.
• Вентыляцыя: Do not block any ventilation openings. Ensure adequate airflow around the cabinet.
• Вада і вільгаць: Do not expose the unit to rain, moisture, or excessive humidity. Do not place objects filled with liquids on or near the unit.
• Цяпло: Трымайце прыладу далей ад крыніц цяпла, такіх як радыятары, абагравальнікі, пліты або іншыя прыборы, якія выпрацоўваюць цяпло.
• Уборка: Чысціце толькі сухой анучай. Не выкарыстоўвайце вадкія і аэразольныя ачышчальнікі.
• Абслугоўванне: Не спрабуйце самастойна абслугоўваць гэты прадукт. Звярніцеся да ўсіх абслугоўванняў кваліфікаванага абслуговага персаналу.
• Размяшчэнне: Place the cabinet on a stable, level surface to prevent it from falling.
• Акустычныя кабелі: Use high-quality speaker cables with appropriate gauge for connections to prevent signal loss or damage.

3. Змесціва ўпакоўкі

Праверце наяўнасць усіх прадметаў у камплекце:

• VOX BC108 AmpЛіфіятар кабінета
• Speaker Cable (may vary by region/retailer)
• Інструкцыя па эксплуатацыі (гэты дакумент)

4. Настройка

Follow these steps to set up your VOX BC108 amplifier cabinet:

1. Размяшчэнне: Position the BC108 cabinet on a stable surface. For optimal sound projection, consider placing it on the floor or on a sturdy stand.
2. Падключэнне да an Amplifier Head:

   Locate the speaker output jack on your amplifier head and one of the input jacks on the rear of the BC108 cabinet. Use a high-quality speaker cable to connect these two points. Ensure both the amplifier and the cabinet are powered off before making connections.



   Figure 2: The BC108 cabinet paired with an MV50 ampліфіяльная галава.



   Figure 3: Rear panel of the BC108, illustrating the parallel speaker jacks.

3. Адпаведнасць імпедансу: The BC108 has an impedance of 8 Ohms. Ensure your amplifier head's output impedance setting matches or is compatible with the cabinet's impedance to prevent damage to your ampзадымнік.
4. Parallel Speaker Jacks: The BC108 features two parallel speaker jacks. One jack serves as the input from your amplifier, and the other can be used to connect an additional speaker cabinet in parallel. When connecting two 8-Ohm cabinets in parallel, the total impedance presented to the amplifier will be 4 Ohms. Ensure your amplifier can safely operate at this lower impedance.

5. Аперацыя

The BC108 is a passive speaker cabinet and its operation is directly controlled by the connected ampліфіяльная галава.

• Уключэнне/выключэнне харчавання: Уключыце свой amplifier head after all connections are securely made. Turn off the amplifier head before disconnecting any cables.
• Рэгулятар гучнасці: Adjust the volume and tone settings directly on your ampліфіяльная галава.
• Daisy-Chaining (Connecting Multiple Cabinets): If you wish to connect a second 8-Ohm cabinet, use a speaker cable to connect the second parallel jack on the BC108 to the input of the additional cabinet. Remember that this configuration will result in a 4-Ohm load for your ampзадымнік.


Figure 4: Two BC108 cabinets stacked, demonstrating a potential multi-cabinet setup.

6. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and performance of your BC108 cabinet.

• Уборка: Wipe the exterior of the cabinet with a soft, dry cloth. Do not use abrasive cleaners, solvents, or waxes, as these can damage the finish.
• захоўванне: When not in use for extended periods, store the cabinet in a dry, temperature-controlled environment, away from direct sunlight and extreme temperatures.
• агляд: Periodically check speaker cables for any signs of wear or damage. Replace damaged cables immediately.

7. Выпраўленне непаладак

If you encounter issues with your BC108 cabinet, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact VOX customer support or a qualified service technician.

8. Тэхнічныя характарыстыкі

9. Інфармацыя аб гарантыі

The VOX BC108 Amplifier Cabinet comes with a 1-гадовая абмежаваная гарантыя from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, modification, unauthorized repair, or normal wear and tear.

For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official VOX webсайт.

10. Падтрымка кліентаў

If you have any questions, require technical assistance, or need to arrange for service, please contact VOX customer support:

• Webсайт: Visit the official VOX webсайт з часта задаванымі пытаннямі, рэсурсамі падтрымкі і кантактнай інфармацыяй.
• Кантакты: Refer to the contact section on the VOX webсайт для нумароў тэлефонаў або падтрымкі па электроннай пошце.
• Дылер: Contact your authorized VOX dealer for local support and service options.
