Prolink PRT7011L Portable 4G LTE WiFi Travel Router Hotspot User Manual

1. паview

The Prolink PRT7011L is a portable 4G LTE WiFi hotspot designed for high-speed mobile internet access. It supports data transmission rates of up to 150Mbps and allows sharing of the wireless connection with up to 16 users or devices simultaneously. The device features a built-in rechargeable battery providing up to 10 hours of usage on a single charge, ensuring connectivity even without a nearby power source. LED indicators on the front panel provide clear status updates for battery, Wi-Fi, and 4G signal strength. Its compact and lightweight design makes it suitable for travel.

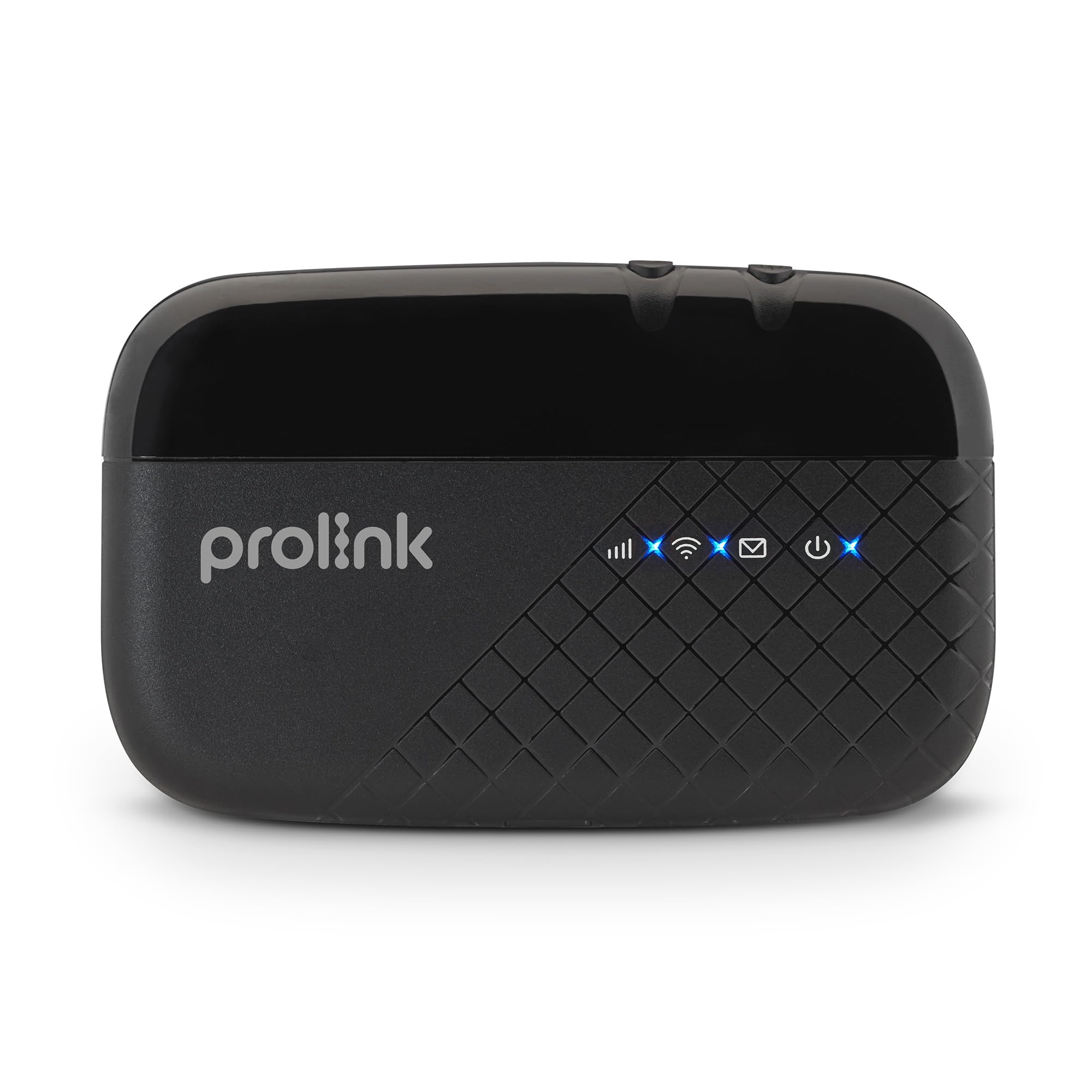

Image: Prolink PRT7011L Portable 4G LTE WiFi Travel Router Hotspot.

2. Змесціва ўпакоўкі

Праверце, ці ёсць усе прадметы ў вашай упакоўцы:

• 1 x PRT7011L Portable 4G LTE WiFi Hotspot
• 1 х USB-кабель для зарадкі
• 1 x 2000mAh Lithium (Li-ion) Battery
• 1 х Кіраўніцтва па хуткай усталёўцы (QIG)

3. Схема прадукту

Familiarize yourself with the components of your Prolink PRT7011L device.

Фронт View: LED indicators for signal, Wi-Fi, messages, and power.

Збоку View: Micro USB charging port.

Тыл View (internal): Battery compartment and SIM card slots.

4. Настройка

4.1 Устаноўка батарэі

1. Акуратна зніміце заднюю крышку прылады.
2. Insert the provided 2000mAh Lithium (Li-ion) battery into its compartment, ensuring the contacts align correctly.
3. Устаўце заднюю крышку на месца, моцна націскаючы, пакуль яна не зашчапіцца.

4.2 Усталёўка SIM -карты

1. With the back cover removed, locate the SIM card slot. The PRT7011L uses a standard-sized SIM card.
2. Insert your data SIM card into the slot, ensuring the gold contacts face downwards and the notched corner aligns with the slot's orientation.
3. Gently push the SIM card until it is securely in place.

4.3 Уключэнне

1. Press and hold the Power button (usually located on the side or top of the device) for a few seconds until the screen illuminates.
2. The device will boot up and attempt to connect to the 4G LTE network. This may take a few moments.

4.4 Падключэнне да Wi-Fi

1. Once the device is powered on and connected to the mobile network, the Wi-Fi network name (SSID) and password (Wi-Fi Key) will be displayed on the device screen.
2. On your Wi-Fi enabled device (smartphone, tablet, laptop), navigate to the Wi-Fi settings.
3. Пошук available Wi-Fi networks and select the SSID matching your Prolink PRT7011L.
4. Увядзіце ключ Wi-Fi, калі будзе прапанавана.
5. Цяпер ваша прылада павінна быць падключана да Інтэрнэту праз кропку доступу.

5. Аперацыя

5.1 Multi-user Sharing

The PRT7011L allows up to 16 users or devices to connect simultaneously, providing internet access for multiple smartphones, tablets, and laptops. This feature is ideal for sharing connectivity with family, friends, or colleagues.

Image: Share Wi-Fi with up to 16 users simultaneously.

5.2 Extended Battery Life

The integrated 2000mAh battery provides up to 10 hours of continuous 4G sharing on a single charge. The device can be recharged via the included Micro USB charging cable, allowing for continuous operation when connected to a power source or power bank.

Image: Up to 10 hours of 4G sharing on a single charge.

5.3 Карта MicroSD File Абмен

The device supports MicroSD cards up to 64GB. This feature enables wireless sharing of photos, music, and videos among all connected devices, turning your hotspot into a portable media server.

Image: MicroSD card file sharing up to 64GB.

5.4 mProMiFi App Management

The dedicated "PROLiNK mWiFi" app allows for easy configuration and monitoring of your hotspot. Download the app from Google Play or the App Store to manage your device from your smartphone.

Image: Manage and monitor with the PROLiNK mWiFi app. Download the app тут.

• Роўмінг дадзеных: Easily enable or disable data roaming as needed to control costs while traveling internationally.
• Налады Wi-Fi: Change the Network Name (SSID) and password for your Wi-Fi network. Note: You will need to reconnect your devices after changing these settings.
• SMS Management: Send and receive SMS messages directly through the app, using your hotspot's SIM card.
• Data Limit Settings: Set daily or monthly data limits to manage your data consumption and avoid overage charges.
• Band Lock: Select preferred LTE/5G NR bands for optimized performance based on your location and network provider.

6. Тэхнічнае абслугоўванне

• Захоўвайце прыладу ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
• Avoid dropping the device or exposing it to water.
• Use only the provided or approved charging cable and battery.
• Працірайце прыладу мяккай сухой тканінай. Не выкарыстоўвайце вадкія ачышчальнікі.
• Для аптымальнага тэрміну службы батарэі пазбягайце частай поўнай разрадкі батарэі.

7. Выпраўленне непаладак

• Няма падключэння да Інтэрнэту: Ensure the SIM card is correctly inserted and activated with a data plan. Check the signal strength indicator on the device. Try restarting the device.
• Не магу падключыцца да Wi-Fi: Verify that the Wi-Fi is enabled on the hotspot and your connecting device. Double-check the Wi-Fi network name (SSID) and password. Try restarting both the hotspot and your connecting device.
• Нізкая хуткасць: Check the 4G signal strength. Reduce the number of connected devices if too many are using the hotspot simultaneously. Ensure your data plan has sufficient speed and remaining data.
• Прылада не ўключаецца: Ensure the battery is correctly installed and charged. Connect the device to a power source using the USB cable to check if it powers on.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

9.1 Інфармацыя аб гарантыі

The Prolink PRT7011L comes with a 3-year local manufacturer warranty for the device itself, and a 1-year warranty for the included battery.

9.2 Тэхнічная падтрымка

For technical assistance or inquiries, please contact Prolink support:

• электронная пошта: support@prolink2u.com
• Тэлефон: (65) 6357 0666

Image: Prolink support contact details.

10. Supported Countries

The Prolink PRT7011L is designed to support various mobile networks across numerous countries. Below is a general list of regions and countries where the device is expected to function. For specific band compatibility, it is recommended to consult with your SIM operator.

Image: Supported Countries for Prolink devices.
