King Canada KC-3900S Multi-Purpose Electric Sharpener User Manual

1. Уводзіны

This manual provides essential information for the safe and effective operation and maintenance of your King Canada KC-3900S Multi-Purpose Electric Sharpener. This versatile tool is designed to sharpen a variety of items including drill bits, knives, scissors, straight chisels, and plane blades. Please read and understand all instructions before use.

2. Інструкцыі па тэхніцы бяспекі

ПАПЯРЭДЖАННЕ: Невыкананне гэтых інструкцый па бяспецы можа прывесці да паражэння электрычным токам, пажару і/або сур'ёзных траўмаў.

• Заўсёды карыстайцеся адпаведнымі сродкамі індывідуальнай абароны, у тым ліку ахоўнымі акулярамі, падчас працы.
• Ensure the sharpener is placed on a stable, level surface.
• Keep hands and fingers away from the sharpening wheel during operation.
• Unplug the sharpener from the power source before making any adjustments, changing accessories, or performing maintenance.
• Не карыстайцеся тачылкай у вільготным абоamp умовы.
• Не дапускайце дзяцей і старонніх асоб да рабочай зоны.
• Use only accessories specifically designed for this sharpener.
• Do not force the tool. Allow the sharpener to work at its intended speed.
• Перад кожным выкарыстаннем правярайце шнур харчавання на наяўнасць пашкоджанняў. Не выкарыстоўвайце, калі ён пашкоджаны.

3. Прадукт скончыўсяview

The King Canada KC-3900S is an electric multi-purpose sharpener designed for various household and workshop tools. It features a durable diamond sharpening wheel and comes with four specialized attachments for different tool types.

Кампаненты:

• Main Sharpener Unit
• Durable Diamond Sharpening Wheel (internal)
• Knife and Scissor Guide Attachment
• Drill Bit Guide Attachment
• Chisel and Plane Blade Guide Attachment
• Power Cord with On/Off Switch

4. Настройка

Before operating, ensure the sharpener is securely placed on a stable workbench. Select the appropriate attachment for the tool you intend to sharpen and securely mount it onto the main sharpener unit. Each attachment is designed to fit into a specific port on the sharpener.

5. Інструкцыя па эксплуатацыі

5.1 Агульныя дзеянні

1. Connect the sharpener to a suitable power outlet.
2. Turn on the sharpener using the On/Off switch. Allow the sharpening wheel to reach full speed before beginning.
3. Follow the specific instructions for each tool type below.
4. After sharpening, turn off the sharpener and unplug it.

5.2 Sharpening Drill Bits

Use the drill bit guide attachment for sharpening drill bits. This attachment is designed to hold the drill bit at the correct angle for optimal sharpening.

1. Insert the drill bit into the appropriate slot on the drill bit guide attachment.
2. Rotate the drill bit slightly to ensure it is seated correctly against the sharpening wheel.
3. Apply light, even pressure while rotating the drill bit slowly. Sharpen each flute evenly.
4. Праверце рэзкасць і пры неабходнасці паўтарыце.

5.3 Sharpening Knives

Attach the knife and scissor guide. This attachment provides a consistent angle for knife blades.

1. Carefully insert the knife blade into the designated slot on the attachment.
2. Pull the knife blade slowly and steadily through the sharpening slot, maintaining light pressure.
3. Repeat this process several times on each side of the blade until desired sharpness is achieved.
4. For serrated knives, use caution and follow manufacturer guidelines if applicable.

5.4 Sharpening Scissors

Use the same knife and scissor guide attachment. There is a specific slot for scissors.

1. Open the scissors and insert one blade into the scissor sharpening slot.
2. Pull the blade through the slot with light, even pressure.
3. Repeat for the other blade.
4. Test the sharpness and repeat if needed.

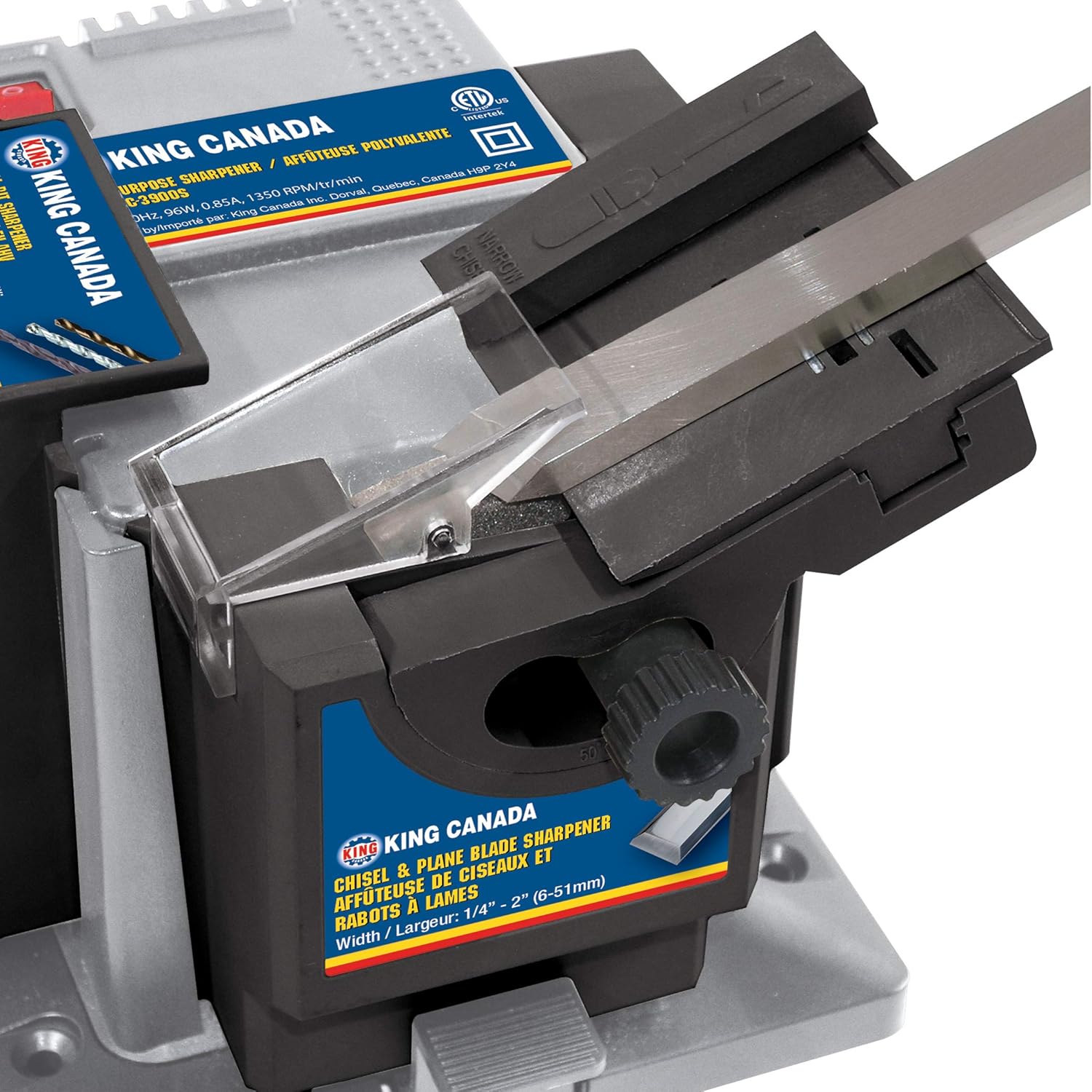

5.5 Sharpening Chisels and Plane Blades

Utilize the chisel and plane blade guide attachment. This attachment accommodates widths from 1/4" to 2" (6-51 mm).

1. Adjust the guide to the desired sharpening angle for your chisel or plane blade.
2. Securely place the blade into the guide.
3. Gently push the blade across the sharpening wheel, maintaining consistent pressure and angle.
4. Ensure even material removal across the entire bevel.
5. Check for sharpness and burr, then remove the burr if present.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and optimal performance of your sharpener.

6.1 Ачыстка

• Always unplug the sharpener before cleaning.
• Use a dry cloth or soft brush to remove metal dust and debris from the sharpening area and attachments.
• Do not use water or liquid cleaners on the electrical components.

6.2 Diamond Sharpening Wheel Replacement

The diamond sharpening wheel is designed for durability but will eventually wear out. Replace the wheel when you notice a decrease in sharpening effectiveness.

• Unplug the sharpener.
• Refer to the detailed diagrams in the product packaging for specific instructions on accessing and replacing the sharpening wheel.
• Ensure the replacement wheel is securely fastened before resuming operation.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

9.1 Гарантыя вытворцы

This King Canada KC-3900S Multi-Purpose Electric Sharpener comes with a 2-гадовая гарантыя вытворцыГэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.

9.2 Падтрымка кліентаў

For technical assistance, troubleshooting, or warranty inquiries, please contact King Canada customer support. Contact information can typically be found on the product packaging or the official King Canada webсайт.
