WAC Lighting DS-WS05-FA-CC-GH Graphite Single Light 33° Flood Beam Instruction Manual

1. Прадукт скончыўсяview

The WAC Lighting Tube Architecture ilumenight is a sophisticated single light fixture designed for both indoor and outdoor use. It features advanced LED color-changing technology, controllable via an iOS application. The ilumenight system allows users to adjust color and brightness directly from a smartphone or tablet. This model, in Graphite, provides a 33° flood beam directed away from the wall, utilizing energy-efficient LED technology with a built-in reflector for optimal light distribution. Its cylindrical profile is suitable for accent and wall wash lighting applications.

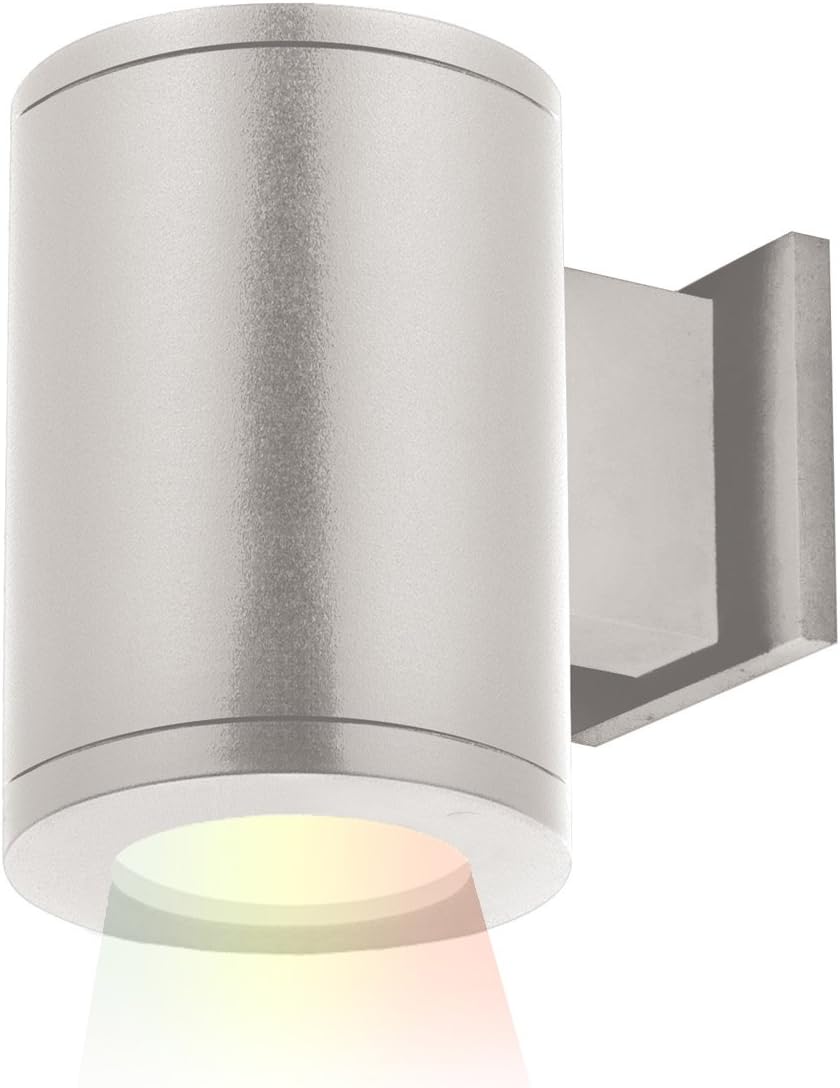

Image 1.1: The WAC Lighting DS-WS05-FA-CC-GH Graphite Single Light fixture.

2. Важная інфармацыя па бяспецы

• ПАПЯРЭДЖАННЕ: Risk of electric shock. Disconnect power at the circuit breaker before installation or servicing.
• All wiring connections must be in accordance with local and national electrical codes. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
• Do not install this fixture in areas with explosive atmospheres.
• Пераканайцеся, што прыстасаванне надзейна замацавана, каб прадухіліць падзенне.
• Не спрабуйце мадыфікаваць прыстасаванне. Любыя мадыфікацыі могуць ануляваць гарантыю і стварыць пагрозу бяспецы.
• This product is rated for 120V-277V applications. Ensure your power supply matches this requirement.

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• WAC Lighting DS-WS05-FA-CC-GH Fixture (1)
• Інструкцыя па эксплуатацыі (1)
Камплект мантажнага абсталявання (1)

4. Настройка і ўстаноўка

Installation of this lighting fixture should be performed by a qualified electrician in accordance with local electrical codes. Ensure power is disconnected at the circuit breaker before beginning installation.

1. Падрыхтуйце мантажную паверхню: Identify the desired mounting location. The fixture is designed for ceiling mount.
2. Мантажнае абсталяванне: Securely attach the provided mounting hardware to the junction box.
3. Праводка: Connect the fixture's electrical wires to the building's wiring according to local codes. Ensure proper grounding. The universal driver supports 120V-220V-277V applications.
4. Бяспечнае прыстасаванне: Attach the fixture to the mounting hardware, ensuring it is firmly in place.
5. Уключэнне: Аднавіце сілкаванне на выключальніку.

Refer to the dimension diagram below for precise measurements during installation.

Image 4.1: Dimensional drawing for single and double light fixtures. The single light fixture measures approximately 4.88"W x 7.13"H with a 7.76"L projection.

5. Інструкцыя па эксплуатацыі

The WAC Lighting ilumenight fixture is controlled via the free iOS ilumenight app.

1. Спампаваць прыкладанне: Download the 'ilumenight' app from the Apple App Store onto your iOS smartphone or tablet.
2. Спалучыць прыладу: Follow the in-app instructions to pair your iOS device with the ilumenight fixture via Bluetooth. Ensure Bluetooth is enabled on your device.
3. Кіраванне асвятленнем: Once paired, use the app to adjust the light's color, brightness, and other available settings. This model provides a 33° flood beam. The app offers smooth and continuous brightness control.

6. Тэхнічнае абслугоўванне

To maintain the appearance and performance of your WAC Lighting fixture:

• Уборка: Ачысціце прыстасаванне мяккай, damp cloth. Do not use abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish or electrical components.
• Даўгавечнасць святлодыёда: The high-powered replaceable LED has a rated life of 50,000 hours. No routine bulb replacement is necessary under normal operating conditions.
• Wet Location Rating: This fixture is IP65 rated and ETL & cETL wet location listed, making it suitable for outdoor use and exposure to water. Ensure all seals and connections remain intact to maintain its wet rating.

Image 6.1: Icon indicating the product is rated for wet locations.

7. Выпраўленне непаладак

If your WAC Lighting fixture is not operating as expected, consult the following:

• Няма святла:
  • Праверце аўтаматычны выключальнік, каб пераканацца, што прыбор падаецца на электрычнасць.
  • Праверце, ці ўсе злучэнні правадоў надзейныя і правільныя.
  • Ensure the fixture is properly paired with the ilumenight app and not set to minimum brightness or off.
• Праблемы з падключэннем праграмы:
  • Пераканайцеся, што Bluetooth уключаны на вашай прыладзе iOS.
  • Move closer to the fixture to improve Bluetooth signal strength.
  • Restart the ilumenight app or your iOS device.
• Непаслядоўная яркасць/колер:
  • Ensure the ilumenight app is updated to the latest version.
  • Check for any physical obstructions that might interfere with the Bluetooth signal between your device and the fixture.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

This WAC Lighting product comes with a 5-year functional warranty і а 2-year finish warranty. Гэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры звычайным выкарыстанні.

For technical support, warranty claims, or further assistance, please contact WAC Lighting customer service. Contact information can typically be found on the manufacturer's official webсайт (www.waclighting.com) or on the original product packaging.

Please have your model number (DS-WS05-FA-CC-GH) and proof of purchase available when contacting support.
