Koblenz ER-2800 Automatic Voltage Кіраўніцтва карыстальніка рэгулятара

1. Уводзіны

The Koblenz ER-2800 is an Automatic Voltage Regulator designed to protect your electronic equipment from voltage fluctuations, surges, and spikes. It provides stable power to connected devices, ensuring their optimal performance and extending their lifespan. This regulator features a 2800 VA / 1800 W capacity and six regulated outlets, making it suitable for high-consumption electronics such as large televisions, gaming consoles, home theater systems, Blu-ray players, laser printers, and photocopiers.

The ER-2800 incorporates an automatic disconnection feature that activates if the voltage exceeds 150 VCA, safeguarding your equipment. Its robust metal casing is built for durability and heavy-duty use, complemented by a Platinum Protection Level for superior energy variation defense.

2. Інструкцыі па тэхніцы бяспекі

Please read and understand all safety instructions before operating the device. Failure to follow these instructions may result in electric shock, fire, or damage to the product and connected equipment.

• Толькі для выкарыстання ў памяшканні: This device is intended for indoor use in a dry environment. Do not expose it to rain, moisture, or excessive humidity.
• Правільнае зазямленне: Ensure the wall outlet used is properly grounded. Do not remove the grounding prong from the power cord.
• Вентыляцыя: Do not block any ventilation openings. Allow adequate space around the regulator for proper airflow to prevent overheating.
• Абарона ад перагрузкі: Do not exceed the maximum capacity of 2800 VA / 1800 W. Overloading can cause damage to the regulator and connected devices, and may pose a fire hazard.
• Кантакт з вадкасцю: Keep liquids away from the regulator. In case of accidental spills, immediately disconnect the power and contact qualified service personnel.
• Абслугоўванне: Do not attempt to open or service the regulator yourself. Refer all servicing to qualified service personnel.
• Дзеці і хатнія жывёлы: Захоўвайце прыладу ў месцах, недаступных дзецям і хатнім жывёлам.

3. Прадукт скончыўсяview і кампаненты

Familiarize yourself with the components of your Koblenz ER-2800 Automatic Voltage рэгулятар.

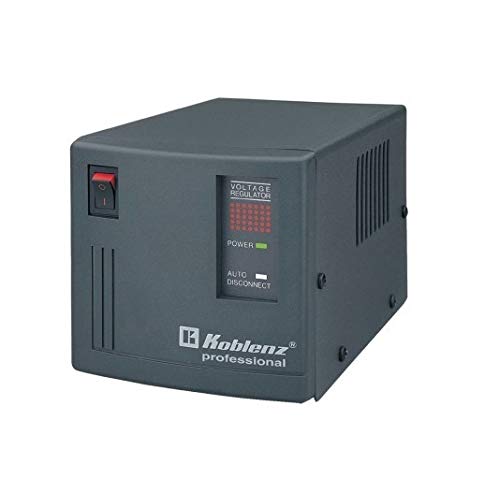

This image displays the front panel of the Koblenz ER-2800 Automatic Voltage Regulator. On the left, there is a red power switch. The center features a display with 'VOLTAGE REGULATOR' text above a series of red indicator lights, a 'POWER' indicator with a green light, and an 'AUTO DISCONNECT' indicator. The device has a dark gray metallic casing with ventilation slots on the left side and screw fasteners on the right side. Dimensions are indicated as 17cm deep, 11cm wide, and 11cm high.

Пярэдняя панэль:

• Выключальнік сілкавання: Red rocker switch to turn the unit ON/OFF.
• тtage Regulator Indicators: A series of red LED lights indicating the input voltagе ўзровень.
• Індыкатар харчавання: A green LED light that illuminates when the unit is powered ON.
• Auto Disconnect Indicator: An indicator that illuminates when the unit has automatically disconnected due to extreme voltagе ўмовы.

Rear Panel (Not shown in image):

• 6 Grounded and Regulated Outlets: For connecting your electronic devices.
• Шнур харчавання: For connecting the regulator to a wall outlet.

4. Настройка

Follow these steps to set up your Automatic Voltagэлектронны рэгулятар:

1. Размяшчэнне: Place the regulator on a stable, flat surface in a well-ventilated area, away from direct sunlight, heat sources, and moisture. Ensure there is sufficient space around the unit for proper airflow.
2. Першапачатковае падключэнне: Ensure the power switch on the front panel is in the OFF (0) position.
3. Падключыцеся да разеткі: Plug the regulator's power cord into a properly grounded 3-prong wall outlet.
4. Падключыце прылады: Plug your electronic devices (TVs, consoles, computers, etc.) into the 6 regulated outlets on the rear panel of the regulator. Ensure the total power consumption of all connected devices does not exceed 1800 W (2800 VA).
5. Уключэнне: Flip the power switch on the front panel to the ON (I) position. The green 'POWER' indicator light should illuminate.

5. Інструкцыя па эксплуатацыі

Once set up, the Koblenz ER-2800 operates automatically to protect your devices.

• Нармальны рэжым працы: When the regulator is powered on, the green 'POWER' indicator will be lit. The 'VOLTAGE REGULATOR' red LED lights will indicate the current input voltage level. The regulator will automatically adjust the output voltage to a safe range for your connected devices.
• Аўтаматычнае адключэнне: Калі ўвесці абtage goes too high (above 150 VCA) or too low, the regulator will automatically disconnect power to the outlets to protect your equipment. When this occurs, the 'AUTO DISCONNECT' indicator will illuminate.
• Reconnection After Disconnection: If the 'AUTO DISCONNECT' indicator is lit, the regulator has protected your devices. Once the voltage returns to a safe operating range, the regulator should automatically reconnect power. If it does not, turn the power switch OFF, wait a few minutes, and then turn it back ON.
• Выключэнне: To turn off the regulator and all connected devices, simply flip the power switch to the OFF (0) position.

6. Тэхнічнае абслугоўванне

The Koblenz ER-2800 is designed for minimal maintenance. Follow these guidelines to ensure its longevity:

• Уборка: Disconnect the regulator from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid or aerosol cleaners, as they may damage the unit or pose an electrical hazard.
• Вентыляцыя: Periodically check that the ventilation slots are free from dust and obstructions.
• захоўванне: If storing the unit for an extended period, ensure it is kept in a cool, dry place, away from extreme temperatures and humidity.

7. Выпраўленне непаладак

If you encounter issues with your Koblenz ER-2800, refer to the following troubleshooting guide:

• Няма сілкавання прылад:
  • Ensure the regulator's power switch is in the ON (I) position and the green 'POWER' indicator is lit.
  • Check if the regulator's power cord is securely plugged into a working wall outlet.
  • Verify that the connected devices are properly plugged into the regulator's outlets and are switched on.
  • Check if the 'AUTO DISCONNECT' indicator is lit. If so, the voltage may be outside the safe operating range. Wait for the voltage to stabilize or manually reset the unit by turning it OFF and then ON.
• 'AUTO DISCONNECT' Indicator is Lit:
  • This indicates that the input voltage is either too high or too low, and the regulator has disconnected power to protect your equipment.
  • Wait for a few minutes. The unit should automatically reconnect once the voltagе стабілізуецца.
  • If it does not reconnect, turn the regulator OFF, then ON again. If the problem persists, consult an electrician to check your household wiring.
• Перагрэў:
  • Ensure the regulator is placed in a well-ventilated area and its vents are not blocked.
  • Reduce the load by disconnecting some devices if the total power consumption exceeds the unit's capacity.

If the problem persists after following these steps, please contact Koblenz customer support.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

The Koblenz ER-2800 Automatic Voltage Regulator comes with a 7-гадовая абмежаваная гарантыя, ensuring long-term reliability and peace of mind. Additionally, the product includes an insurance policy that covers connected equipment up to $25,000 USD against damages caused by power fluctuations while connected to the regulator.

For warranty claims, technical support, or any inquiries regarding your product, please refer to the contact information provided in your product packaging or visit the official Koblenz webсайт. Захоўвайце чэк аб куплі як пацвярджэнне пакупкі для гарантыйнага абслугоўвання.
