1. Уводзіны
This manual provides essential instructions for the safe and efficient use, setup, operation, and maintenance of your Stihl AK20 Lithium-Ion Battery. Please read this manual thoroughly before using the battery and keep it for future reference. The Stihl AK20 is a compact 36V, 118Wh lithium-ion battery designed for the Stihl Compact cordless power system, featuring an LED charge level indicator.
2. Інфармацыя па бяспецы
Always observe the following safety precautions to prevent injury and damage to the battery or connected equipment.
- Прачытайце ўсе інструкцыі: Перад выкарыстаннем акумулятара прачытайце ўсе інструкцыі і папераджальныя знакі на акумулятары, зараднай прыладзе і вырабе, у якім ён выкарыстоўваецца.
- Зарадка: Only charge the battery with Stihl-approved chargers (AL 101, AL 100, AL 300, AL 500). Using an incompatible charger may result in fire, electric shock, or injury.
- Пазбягайце кароткага замыкання: Do not short-circuit the battery terminals. This can cause severe burns or fire.
- тэмпература: Do not store or use the battery in temperatures exceeding 40°C (104°F) or below -10°C (14°F). Extreme temperatures can damage the battery and pose a fire risk.
- Ўздзеянне вады: Do not expose the battery to water or rain. If the battery becomes wet, do not use it.
- пашкоджанне: Do not use a damaged or modified battery. Damaged batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
- Утылізацыя: Dispose of batteries responsibly according to local regulations. Do not dispose of batteries in fire.
- дзеці: Захоўвайце батарэі ў месцах, недаступных дзецям.
3. Настройка
3.1 Распакаванне
Carefully remove the Stihl AK20 Lithium-Ion Battery from its packaging. Inspect the battery for any signs of damage. If any damage is observed, do not use the battery and contact your dealer.

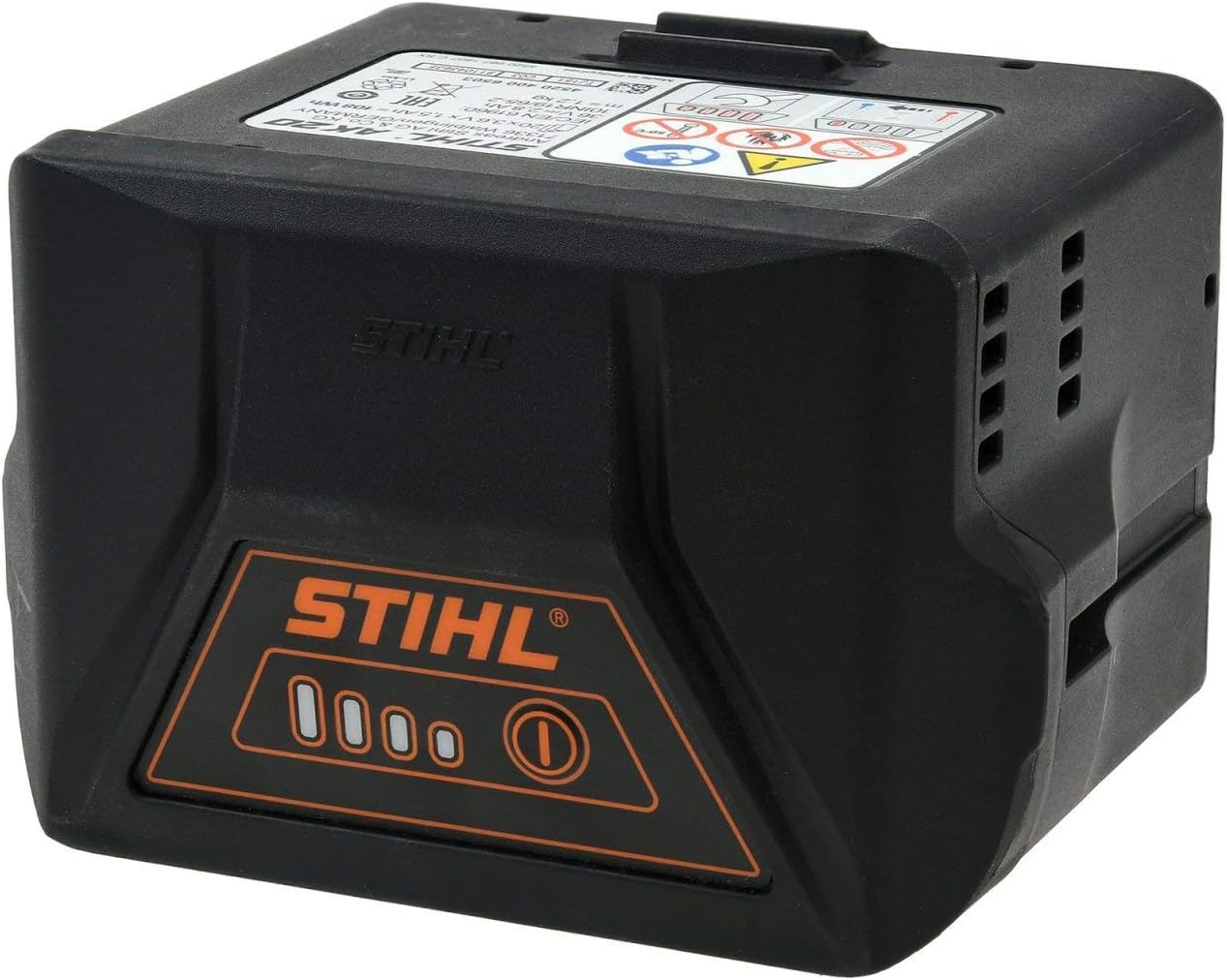

Малюнак 1: Спераду view of the Stihl AK20 Lithium-Ion Battery, showing the Stihl logo and LED charge indicator.
3.2 Першапачатковая зарадка
Before first use, fully charge the AK20 battery. Connect the battery to a compatible Stihl charger (AL 101, AL 100, AL 300, or AL 500). The charger's indicator lights will show the charging status. Refer to your charger's manual for specific charging instructions.
3.3 Устаўка акумулятара ў інструмент
Align the battery with the battery compartment of your compatible Stihl cordless power tool. Push the battery firmly into the compartment until it clicks into place. Ensure the battery is securely seated before operating the tool.
Малюнак 2: Верх view of the Stihl AK20 Lithium-Ion Battery, showing the connection terminals and warning labels.
4. Эксплуатацыя акумулятара
4.1 Праверка ўзроўню зарада
The Stihl AK20 battery features an LED charge level indicator. Press the button next to the LEDs to display the current charge status. The number of illuminated LEDs indicates the remaining charge:
- 4 святлодыёда: Поўны зарад
- 3 святлодыёда: Прыблізна 75% зарада
- 2 святлодыёда: Прыблізна 50% зарада
- 1 святлодыёд: Нізкі зарад, хутка падзарадзіце
- Мігаючы святлодыёд: Battery is critically low or has an error.
4.2 Using with Compatible Tools
Once inserted and fully charged, the AK20 battery is ready to power your compatible Stihl cordless tools. The battery life will vary depending on the specific tool and the intensity of use. Always refer to your tool's instruction manual for optimal usage guidelines.
5. Тэхнічнае абслугоўванне
5.1 Працэдуры зарадкі
Always charge the battery in a well-ventilated area, away from flammable materials. Do not leave the battery on the charger indefinitely after it is fully charged. Disconnect the battery from the charger once charging is complete to prolong battery life.
5.2 Захоўванне
For optimal battery longevity, store the AK20 battery in a cool, dry place, ideally between 10°C and 20°C (50°F and 68°F). Store the battery with a partial charge (around 50-75%) if it will not be used for an extended period. Avoid storing fully discharged or fully charged batteries for long durations.
5.3 Ачыстка
Keep the battery terminals clean and free from dirt or debris. Use a dry, soft cloth to wipe the battery. Do not use solvents or abrasive cleaners. Ensure no moisture enters the battery housing.
Малюнак 3: унізе view of the Stihl AK20 Lithium-Ion Battery, showing product labels and specifications.
6. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Акумулятар не зараджаецца |
|
|
| Акумулятар не працуе ад інструмента |
|
|
| LED indicator flashing rapidly |
|
|
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Назва мадэлі | АК20 |
| Марка | Stihl |
| Тып батарэі | Літый-іённы |
| тtage | 36 вольт |
| Ёмістасць | 118 Вт·г (ват-гадзіны) |
| Склад батарэі | Літый-іённы |
| Шматразовае выкарыстанне | Акумулятарная |
| Сумяшчальныя зарадная прылада | AL 101, AL 100, AL 300, AL 500 |
| Святлодыёдны індыкатар | Yes, charge level indicator |
| Вага прадмета | 1.2 кілаграма |
| Памеры прадмета (ДxШxВ) | 3.94 х 3.94 х 3.94 цалі |
| UPC | 886661117789 |
8. Гарантыя і падтрымка
For information regarding the warranty of your Stihl AK20 Lithium-Ion Battery, please refer to the warranty card included with your purchase or visit the official Stihl website. For technical support, service, or to purchase replacement parts, please contact your authorized Stihl dealer or Stihl customer service directly. Keep your proof of purchase for warranty claims.
