1. Уводзіны
Thank you for choosing the TOOLPORT PROFESSIONAL Pop-Up Canopy. This manual provides essential information for the safe and efficient assembly, operation, maintenance, and troubleshooting of your 10x15 ft canopy. Please read these instructions carefully before setup and retain them for future reference.

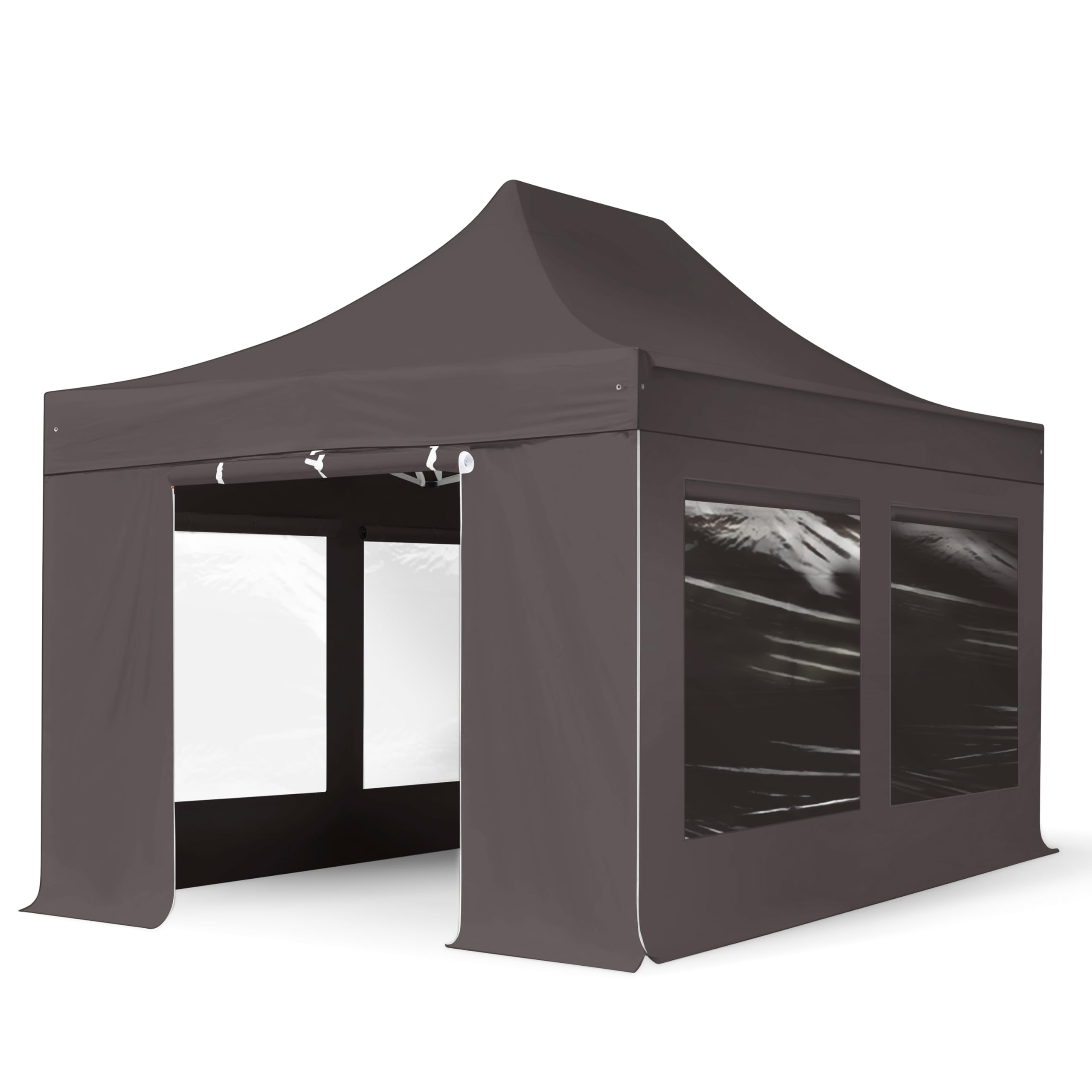

Image 1.1: Fully assembled TOOLPORT 10x15 ft Pop-Up Canopy.
2. Інструкцыі па тэхніцы бяспекі
Каб забяспечыць бяспечнае выкарыстанне і прадухіліць пашкоджанні, выконвайце наступныя правілы бяспекі:
- Замацуеце навес: Always use the provided guy ropes and ground stakes to firmly anchor the canopy. Failure to do so may result in the canopy lifting or collapsing in windy conditions.
- Умовы надвор'я: Do not use the canopy in strong winds, heavy rain, hail, or snow. Disassemble and store the canopy during adverse weather to prevent damage to the structure and potential injury.
- Небяспека пажару: Keep all heat sources and open flames away from the canopy fabric. The material is not fireproof.
- Вентыляцыя: If using heating or cooking equipment near or under the canopy, ensure adequate ventilation to prevent carbon monoxide buildup.
- Персанал зборкі: Assembly is recommended for 1-2 people. Ensure all individuals involved are aware of the assembly steps and safety precautions.
- Праверце перад выкарыстаннем: Before each use, inspect the frame, fabric, and all connectors for any signs of wear or damage. Do not use if damaged.
3. Змесціва ўпакоўкі
Пры атрыманні пераканайцеся, што ўсе кампаненты наяўныя і не пашкоджаныя:
- Hexagonal Aluminum Frame with Scissors Mechanism
- 100% Waterproof Roof Tarp (PES 800 Polyester with PVC coating)
- Sidewalls with Panorama Windows (Quantity as per package)
- вяроўкі
- Наземныя стаўкі
- Sturdy Wheeled Storage Bag
- Інструкцыя па эксплуатацыі (гэты дакумент)
Image 3.1: The sturdy wheeled bag for convenient storage and transport.
4. Інструкцыі па ўсталёўцы
The TOOLPORT Pop-Up Canopy is designed for quick and intuitive assembly by 1-2 people without the need for tools.
4.1. Разгортванне рамы
- Place the folded frame on a flat, clear surface.
- With a person at each end, gently pull the outer legs apart to begin unfolding the frame.
- Continue pulling until the frame is partially open, forming a square or rectangle.
Image 4.1: Folded frame.
Image 4.2: Partially unfolded frame.
4.2. Attaching the Roof Tarp
- Drape the roof tarp over the partially opened frame. Ensure the corners of the tarp align with the corners of the frame.
- Secure the tarp to the frame using the hook-and-loop fasteners or clips provided on the tarp.
Image 4.3: Roof tarp placed on frame.
Image 4.4: Detail of frame joint.
4.3. Extending the Legs and Securing
- From each corner, lift the frame slightly and push the central hub upwards until it locks into place.
- Extend each leg to the desired height by pressing the release button/ring and sliding the inner leg section downwards until it locks. Ensure all legs are at the same height for stability.
- Attach the guy ropes to the designated points on the canopy frame and secure them to the ground using the provided stakes. Ensure ropes are taut.
Image 4.5: Fully extended canopy.
Image 4.6: Leg height adjustment mechanism.
4.4. Attaching Sidewalls (Optional)
If your package includes sidewalls, attach them to the canopy frame using the hook-and-loop fasteners or zippers along the top edge and sides. Ensure they are securely fastened to provide full enclosure.
5. Інструкцыя па эксплуатацыі
5.1. Рэгуляванне вышыні
The canopy legs feature multiple height settings. To adjust, press the release ring on each leg and slide the inner leg section up or down to the desired position. Ensure all legs are locked at the same height for stability.
5.2. Разборка і захоўванне
- Remove all sidewalls, guy ropes, and ground stakes.
- Retract the legs by pressing the release rings and sliding the inner leg sections upwards.
- Press the central hub release buttons and gently push the frame downwards to collapse it.
- Once fully collapsed, remove the roof tarp.
- Fold the tarp and sidewalls neatly. Place all components into the wheeled storage bag.
Image 5.1: Folded canopy frame ready for storage.
Малюнак 5.2: Прыкладample of canopy usage with furniture.
6. Тэхнічнае абслугоўванне
Proper maintenance will extend the life of your canopy.
- Cleaning the Tarp: Clean the roof tarp and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this can damage the PVC coating and fabric. Rinse thoroughly and allow to air dry completely.
- Сушка перад захоўваннем: Ensure the entire canopy (tarp and sidewalls) is completely dry before folding and storing. Storing a damp canopy can lead to mold, mildew, and fabric degradation.
- Агляд рамы: Regularly inspect the aluminum frame for any signs of bending, cracks, or corrosion. Check all connection points and locking mechanisms for proper function.
- змазка: Periodically apply a silicone-based lubricant to the sliding parts of the frame to ensure smooth operation.
Image 6.1: Waterproof fabric showing water beading.
7. Выпраўленне непаладак
Вось рашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Навес няўстойлівы або хісткі. | Ногі не цалкам выцягнутыя/зафіксаваныя; недастатковае мацаванне; няроўная падлога. | Ensure all legs are fully extended and locked. Use all guy ropes and ground stakes. Relocate to a flatter surface if possible. |
| Вада збіраецца на даху. | Tarp not taut enough; incorrect pitch. | Ensure the roof tarp is stretched tightly over the frame. Adjust leg heights slightly to create a better pitch for water runoff. |
| Frame difficult to open or close. | Dirt/debris in joints; lack of lubrication; bent components. | Clean joints and apply silicone lubricant. Inspect for bent parts; if severely bent, contact support for replacement parts. |
8. Тэхнічныя характарыстыкі
Detailed specifications for your TOOLPORT Pop-Up Canopy:
- Марка: ІНСТРУМЕНТЫ
- Нумар мадэлі: 600204
- Памер: 10x15 ft (Product Dimensions: 177"L x 118"W x 133"H)
- колер: Шэры
- Матэрыял рамы: Hexagonal Aluminium (1.6 inch poles)
- Roof Tarp Material: High Performance Polyester (PES 800) with PVC coating
- Узровень воданепранікальнасці: Воданепранікальны
- Абарона ад ультрафіялетавага выпраменьвання: 50
- Вага прадмета: Прыблізна 50.1 кг (110.4 фунта)
- Патрабуецца зборка: Yes (1-2 people, no tools)
Image 8.1: Canopy dimensions (3.0m x 4.5m, height adjustable).
Image 8.2: Hexagonal aluminum pole detail.
Image 8.3: Aluminum base foot for stability.
9. Гарантыя і падтрымка
For warranty information, replacement parts, or technical support, please contact TOOLPORT customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.
вытворца: ІНСТРУМЕНТЫ
ASIN: B072FJ7FQC
