Holzmann WP20PLUS 20 Ton Hydraulic Workshop Press User Manual

1. Інструкцыі па тэхніцы бяспекі

Read and understand all safety instructions before operating the Holzmann WP20PLUS hydraulic press. Failure to follow these instructions may result in serious injury or property damage.

• Сродкі індывідуальнай абароны (СІЗ): Always wear safety glasses, gloves, and appropriate protective clothing when operating the press.
• Працоўная зона: Ensure the work area is clean, well-lit, and free from obstructions. Keep bystanders at a safe distance.
• Стабільная паверхня: Mount or place the press on a stable, level, and strong surface capable of supporting its weight and the maximum pressing force.
• Упаўнаважаны персанал: Толькі падрыхтаваны і ўпаўнаважаны персанал павінен працаваць з гэтым абсталяваннем.
• Перагрузка: Never exceed the maximum rated capacity of 20 tons. Overloading can damage the press and cause injury.
• Стабільнасць дэталі: Always ensure the workpiece is securely positioned and stable before applying pressure. Use appropriate fixtures or supports.
• Гідраўлічная сістэма: Regularly inspect hydraulic hoses, fittings, and the cylinder for leaks or damage. Do not operate with a damaged hydraulic system.
• Тэхнічнае абслугоўванне: Perform regular maintenance as described in this manual. Disconnect power (if applicable) and relieve pressure before performing any maintenance or adjustments.
• Аварыйная прыпынак: Familiarize yourself with the procedure to quickly release pressure in an emergency.

2. Прадукт скончыўсяview

The Holzmann WP20PLUS is a robust 20-ton hydraulic workshop press designed for various tasks such as pressing, bending, straightening, mounting, and dismounting bearings, shafts, and other components. Its durable frame and construction ensure reliable performance in workshop and garage environments.

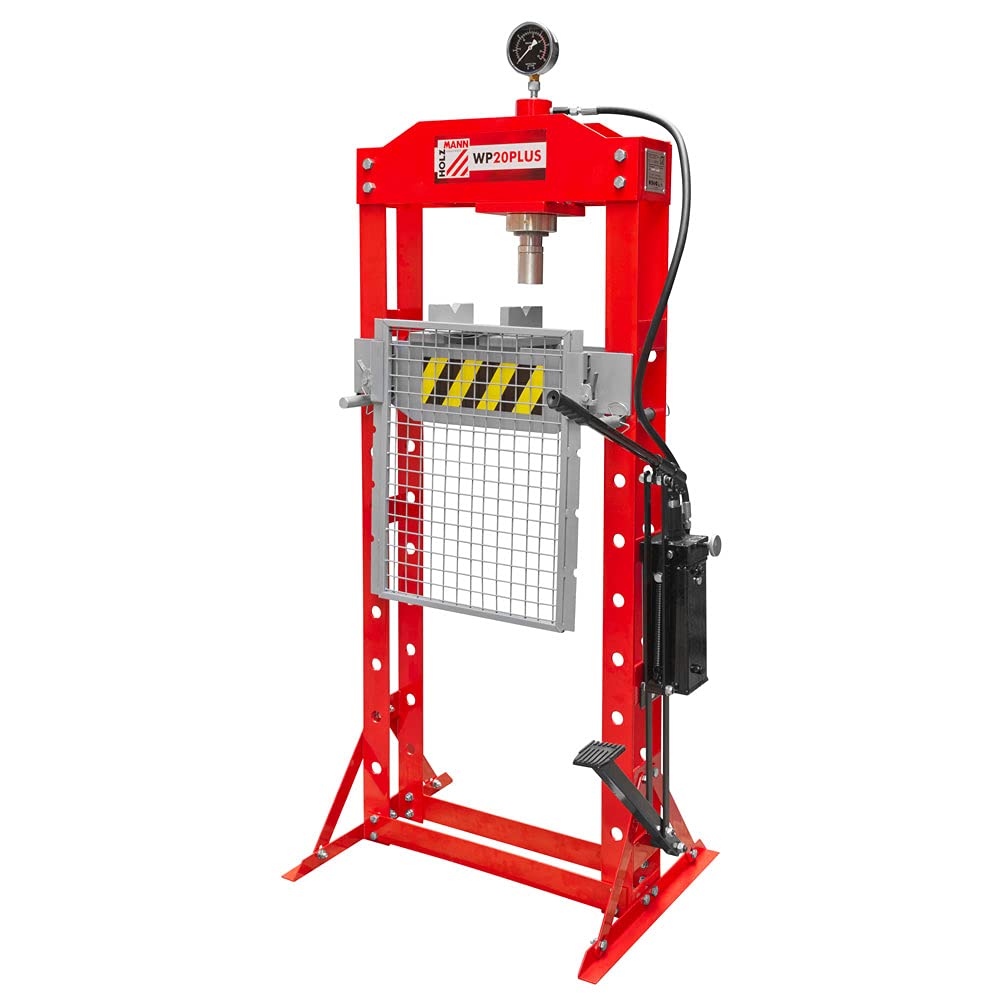

Малюнак 1: Holzmann WP20PLUS 20 Ton Hydraulic Workshop Press. This image shows the complete assembly of the hydraulic press, including the frame, hydraulic cylinder, hand pump, and adjustable work table.

Асноўныя характарыстыкі:

• Грузападымальнасць 20 тона: Забяспечвае ample force for demanding workshop applications.
• Трывалая канструкцыя: Solid frame designed for long-term use.
• Манометр: Integrated pressure gauge to monitor applied force.
• Manual Hand Pump: For precise control over the pressing operation.
• Adjustable Work Table: Height can be adjusted to accommodate various workpiece sizes.
• Аўтаматычны вяртанне поршня: Cylinder automatically retracts after pressure release.
• Ахоўная рашотка: Equipped with a safety grille, compliant with European Directive 2006/42/EG.

3. Настройка

Careful setup is essential for safe and efficient operation. Follow these steps for initial assembly and installation.

1. Распакаванне: Carefully unpack all components and check against the packing list. Report any missing or damaged parts immediately.
2. Зборка рамы: Assemble the main frame components according to the included assembly diagrams. Ensure all bolts are securely tightened.
3. Мантаж: Position the assembled press on a firm, level, and stable floor. For permanent installation, consider bolting the press to the floor using appropriate anchors (not included).
4. Hydraulic Pump Installation: Attach the hand pump to the designated location on the press frame. Connect the hydraulic hose from the pump to the cylinder inlet, ensuring all connections are tight and leak-free.
5. Fill Hydraulic Fluid: If the hydraulic system is not pre-filled, add the recommended hydraulic fluid to the reservoir. Refer to the fluid specifications for the correct type. Ensure the fluid level is within the specified range.
6. Прапампоўка паветра з сістэмы: Before first use, operate the pump several times without a workpiece to bleed any air from the hydraulic system. The cylinder should extend and retract smoothly.
7. Work Table Adjustment: Adjust the height of the work table to a suitable position for your typical tasks. Ensure the locking pins are fully engaged.
8. Safety Grille Installation: Install the safety grille as per the instructions to ensure compliance and operator protection.

4. Інструкцыя па эксплуатацыі

Follow these steps for safe and effective operation of your Holzmann WP20PLUS hydraulic press.

1. Падрыхтоўка:
   • Ensure all safety instructions have been reviewрэд.
   • Wear appropriate PPE.
   • Праверце ўзровень гідраўлічнай вадкасці.
   • Пераканайцеся, што ўсе злучэнні надзейныя.
2. Adjust Work Table: Adjust the work table height using the locking pins to position the workpiece at an optimal distance from the cylinder ram. Ensure both pins are fully inserted and secured.
3. Пазіцыя дэталі: Place the workpiece centrally on the work table or on appropriate V-blocks/supports. Ensure it is stable and will not shift during pressing.
4. Прыкласці ціск: Close the release valve (if applicable, typically by turning clockwise). Operate the hand pump handle to extend the hydraulic cylinder ram. Observe the manometer to monitor the applied pressure. Apply pressure gradually and evenly.
5. Праца манітора: Continuously observe the workpiece and the press during operation. If any unusual sounds or movements occur, immediately release pressure.
6. Ціск вызвалення: Once the pressing operation is complete, slowly open the release valve (typically by turning counter-clockwise) to retract the cylinder ram. The piston will return automatically.
7. Выдаліць дэталь: Once the ram is fully retracted, safely remove the workpiece.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your hydraulic press.

• Штодзённыя праверкі:
  • Inspect for visible damage, leaks, or loose connections.
  • Праверце ўзровень гідраўлічнай вадкасці.
  • Ensure the work table locking pins are functioning correctly.
• Штомесячныя праверкі:
  • Lubricate all moving parts, including the pump mechanism and cylinder rod, with appropriate grease or oil.
  • Inspect the frame for any signs of stress, cracks, or deformation.
  • Check the manometer for accurate readings.
• Hydraulic Fluid Replacement: Replace hydraulic fluid annually or as recommended by the fluid manufacturer, or if it appears contaminated. Use only the specified type of hydraulic fluid.
• Праверка ўшчыльнення: Periodically inspect hydraulic seals for wear or damage. Replace worn seals promptly to prevent pressure loss.
• Уборка: Keep the press clean and free from dirt, dust, and debris. Do not use harsh chemicals that could damage seals or painted surfaces.

6. Выпраўленне непаладак

У гэтым раздзеле прыведзены рашэнні распаўсюджаных праблем з эксплуатацыяй. Калі ў вас праблемы, якія не пералічаны тут, звярніцеся ў службу падтрымкі кліентаў.

7. Тэхнічныя характарыстыкі

Technical data for the Holzmann WP20PLUS Hydraulic Workshop Press.

• мадэль: WP20PLUS
• Сіла націску: 20 тоны
• Cylinder Stroke: 145 мм
• Working Range (Height): 58 мм да 1080 мм
• Max. Working Width: 540 мм
• Дыяметр цыліндру: 53.20 мм
• Machine Dimensions (L x W x H): 760 х 600 х 1663 мм
• Вага нета: 102 кг
• Вага брута: 129 кг
• Адпаведнасць: European Directive 2006/42/EG

8. Гарантыя і падтрымка

The Holzmann WP20PLUS Hydraulic Workshop Press comes with a Гарантыя 2 год, excluding wear parts. This warranty covers manufacturing defects and material faults under normal use.

For technical assistance, spare parts, or warranty claims, please contact your authorized Holzmann dealer or Holzmann customer support. When contacting support, please provide your model number (WP20PLUS) and the date of purchase.

Note: Information regarding spare parts availability is currently unavailable. Please contact Holzmann support for specific inquiries.
