Benetech GM605 Wood Moisture Tester

1. Уводзіны

The Benetech GM605 is a DC resistance (probe type) wood moisture tester designed for accurate measurement of moisture content. It offers selection among four wood types and an 'other' material type, making it widely applicable for testing moisture in wood, bamboo products, paper articles, and traditional Chinese medicinal materials, particularly those with wood fiber construction.

Выява: спераду view of the Benetech GM605 Wood Moisture Tester, showing its LCD display and control buttons.

2. Асаблівасці прадукту

• Selection among 4 types of wood and other material for precise measurements.
• Reading lock function to hold the displayed value.
• Review of maximum moisture reading.
• Review of minimum moisture reading.
• Battery volume alert to indicate low power.
• Large, non-parallax LCD with legible display for easy reading.
• Automatic and manual power-off options to conserve battery life.
• Measuring range: 0% to 41% moisture content.
• Operating temperature range: -10℃ to 40℃.
• Operating humidity range: 20%RH to 90%RH.

3. Кампаненты і элементы кіравання

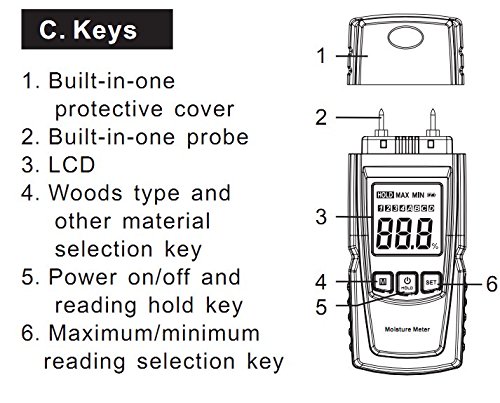

Image: Diagram illustrating the key components and controls of the GM605 Wood Moisture Tester.

1. Built-in Protective Cover: Protects the probes when not in use.
2. Built-in Probe: The two pins used to penetrate the material for moisture measurement.
3. ВК-дысплей: Shows moisture readings, wood type selection, and other indicators.
4. 'M' (Mode) Key: Used for selecting among 4 wood types and other material.
5. 'HOLD' Key: Functions as the power on/off button and also to hold the current reading.
6. 'SET' Key: Used for selecting maximum/minimum reading review.

4. Настройка

4.1 Устаноўка батарэі

The GM605 Wood Moisture Tester requires two 1.5V AAA batteries (not included). To install the batteries:

1. Знайдзіце вечка батарэйнага адсека на задняй панэлі прылады.
2. Зрушыце або адшчэпіце вечка, каб адкрыць адсек.
3. Устаўце дзве батарэйкі тыпу ААА, сочачы за правільнай палярнасцю (+ і -), як паказана ўнутры адсека.
4. Надзейна заменіце крышку батарэйнага адсека.

4.2 Першапачатковыя праверкі

Before first use, ensure the protective cover is removed from the probes. Press and hold the 'HOLD' button to power on the device. The LCD display should illuminate and show a reading, typically 0.0% in air.

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне сілкавання

• Уключэнне: Press and hold the 'HOLD' button for approximately 2 seconds.
• Выключэнне: Press and hold the 'HOLD' button for approximately 2 seconds. The device also features an automatic power-off function after about 10 minutes of inactivity to save battery.

5.2 Selecting Wood Type

The GM605 allows selection among 4 wood types (A, B, C, D) and an 'other' material type to improve measurement accuracy. Refer to the wood type chart (usually provided separately or in a more detailed manual) for specific wood species corresponding to each type.

• Press the 'M' (Mode) button repeatedly to cycle through the wood types (A, B, C, D) and the 'other' material setting.
• The selected wood type will be indicated on the LCD display.

5.3 Вымярэнне

• Ensure the device is powered on and the correct wood type is selected.
• Carefully insert the two probes into the material you wish to measure. Ensure both probes penetrate the material sufficiently and are fully in contact.
• The moisture content percentage будзе адлюстроўвацца на ВК-дысплеі.
• For consistent results, take multiple readings in different spots of the material.

5.4 Reading Lock (HOLD Function)

• While a measurement is being displayed, briefly press the 'HOLD' button.
• The current reading will be frozen on the display, indicated by a 'HOLD' icon.
• Press the 'HOLD' button again to release the reading and return to live measurement mode.

5.5 Reviewing Max/Min Readings

• After taking measurements, press the 'SET' button to review the maximum moisture reading recorded during the current session. An 'MAX' icon will appear.
• Press the 'SET' button again to review the minimum moisture reading recorded. A 'MIN' icon will appear.
• Press 'SET' a third time to exit the review mode and return to live measurement.

6. Тэхнічныя характарыстыкі

7. Тэхнічнае абслугоўванне

• Уборка: Працірайце прыладу мяккай сухой тканінай. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
• захоўванне: When not in use, store the tester in a dry, cool place, away from direct sunlight and extreme temperatures. Always replace the protective cover over the probes to prevent damage and injury.
• Замена батарэі: Replace batteries promptly when the low battery indicator appears on the display to ensure accurate readings and prevent battery leakage. Remove batteries if the device will not be used for an extended period.
• Сыход за зондам: Ensure the probes are clean and free from debris. Bent or damaged probes can affect accuracy and should be handled with care.

8. Выпраўленне непаладак

9. Гарантыя і падтрымка

For warranty information, technical support, or service inquiries regarding your Benetech GM605 Wood Moisture Tester, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase.

Manufacturer: Benetech

For further assistance, you may visit the official Benetech store on Amazon: Benetech Store
