Acoustic Audio PSW500-12 Home Theater Powered 12" LFE Subwoofer User Manual

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Acoustic Audio PSW500-12 Home Theater Powered 12" LFE Subwoofer. Please read this manual thoroughly before using the product to ensure proper setup and optimal performance. Retain this manual for future reference.

Інструкцыі па тэхніцы бяспекі

Выконвайце наступныя меры бяспекі, каб пазбегнуць паражэння электрычным токам, пажару або пашкоджання прылады:

• Крыніца харчавання: Connect the subwoofer only to a standard US 110V grounded wall outlet.
• Вентыляцыя: Забяспечце належную вентыляцыю вакол сабвуфера. Не блакуйце вентыляцыйныя адтуліны.
• Вада і вільгаць: Не падвяргайце прыладу ўздзеянню дажджу, вільгаці або празмернай вільготнасці. Не стаўце на прыладу прадметы, напоўненыя вадкасцямі, такія як вазы.
• Крыніцы цяпла: Keep the subwoofer away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Уборка: Перад чысткай адключыце прыладу ад разеткі. Выкарыстоўвайце для чысткі сухую тканіну.
• Абслугоўванне: Не спрабуйце самастойна абслугоўваць гэты прадукт. Звярніцеся да ўсіх абслугоўванняў кваліфікаванага абслуговага персаналу.
• Размяшчэнне: Размясціце сабвуфер на ўстойлівай роўнай паверхні, каб прадухіліць яго падзенне.

Змест пакета

Праверце наяўнасць усіх прадметаў у камплекце:

• Acoustic Audio PSW500-12 Powered Subwoofer
• 9-foot Dual RCA/LFE Cable
• RCA "Y" Adapter
• Інструкцыя па эксплуатацыі (гэты дакумент)

Image: The subwoofer, a 9-foot dual RCA/LFE cable, an RCA "Y" adapter, and the user manual are included in the package.

Прадукт скончаныview

Фронт View

Выява: спераду view of the subwoofer with its black acoustically transparent grille and the Acoustic Audio logo at the bottom.

Элементы кіравання і раздымы на задняй панэлі

Image: Rear panel of the subwoofer displaying the power switch, power input, LFE/Line inputs, High Level inputs/outputs, Phase control, Gain control, and Crossover frequency control.

The PSW500-12 subwoofer features a high-current, 500-watt amplifier driving a 12-inch front-firing woofer. Key controls and connections on the rear panel include:

• LFE/Line Inputs: RCA inputs for connecting to a home theater receiver's subwoofer output.
• High Level Inputs/Outputs: Speaker wire terminals for connecting to a stereo receiver or ampзадымнік.
• Gain Control: Adjusts the subwoofer's output volume.
• Кіраванне кросоверам: Adjusts the upper frequency limit (40-140 Hz) for seamless integration with main speakers.
• Кантроль фазы: A 0-180 degree switch to match the subwoofer's phase with other speakers.
• Аўтаматычнае ўключэнне/выключэнне: Signal sensing feature to automatically turn the subwoofer on/off.
• Выключальнік сілкавання: Асноўны рэгулятар харчавання для прылады.

Знізу View і Памеры

Выява: Ніжняя частка view of the subwoofer, highlighting the bass reflex port and vibration-absorbing feet.

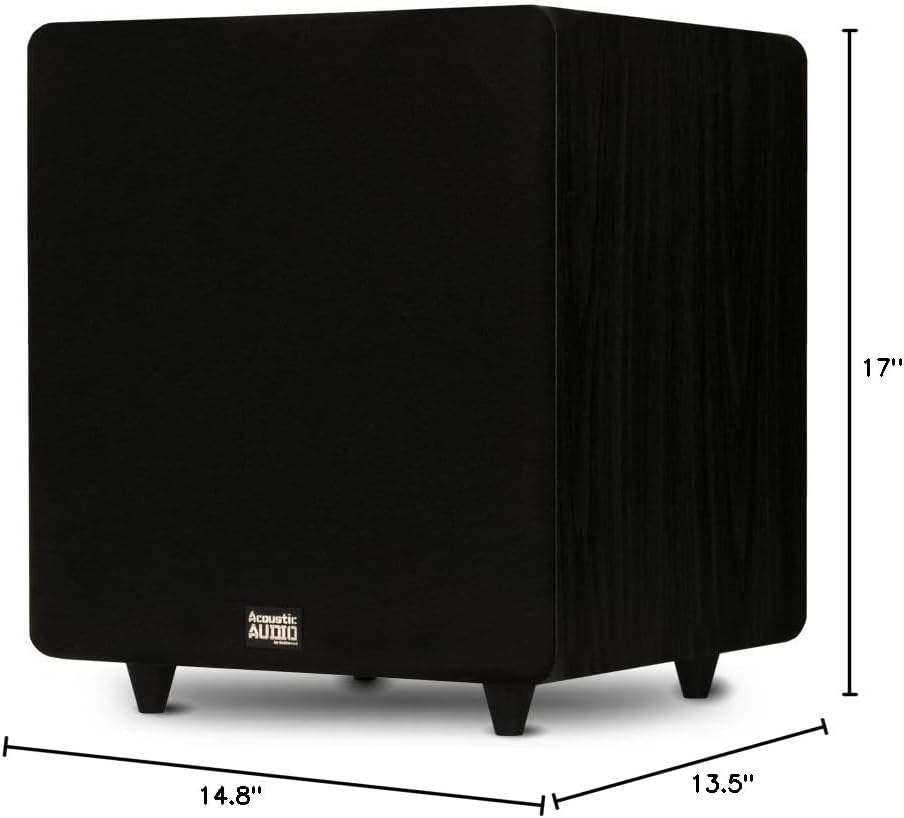

Image: Diagram showing the dimensions of the subwoofer: 17 inches (Height), 14.8 inches (Width), and 13.5 inches (Depth).

Настройка

Размяшчэнне

The placement of your subwoofer can significantly affect its performance. Experiment with different locations to find the best sound for your room. Generally, placing the subwoofer in a corner can enhance bass output, while placing it along a wall can provide a more balanced response. Ensure the subwoofer is placed on a stable surface and has adequate space for ventilation.

Параметры падлучэння

There are two primary ways to connect your PSW500-12 subwoofer to your audio system:

1. LFE/RCA Input (Recommended for Home Theater Receivers):

   If your home theater receiver has a dedicated "Subwoofer Out" or "LFE Out" RCA jack, use the supplied RCA cable to connect this output on your receiver to the "LFE IN" or "LINE IN" (L or R) jack on the subwoofer's rear panel. If using a single RCA cable, you can use the supplied "Y" adapter to split the signal for both L and R inputs on the subwoofer for potentially stronger signal, though connecting to just one (L or R) is often sufficient for LFE.
2. High Level Input (For Stereo Receivers/Amplifiers without Subwoofer Out):

   Калі ваш прыёмнік або amplifier does not have a dedicated subwoofer output, you can connect the subwoofer using the "High Level Input" terminals. Connect the speaker outputs from your receiver/amplifier to the "Hi Level Input" terminals on the subwoofer. Then, connect the "Hi Level Output" terminals on the subwoofer to your main speakers. Ensure correct polarity (+ to + and - to -) for all connections.

Падключэнне сілкавання

Once audio connections are made, plug the subwoofer's power cord into a standard US 110V grounded wall outlet. Ensure the power switch on the rear panel is in the "OFF" position before plugging it in.

Інструкцыя па эксплуатацыі

Першапачатковае ўключэнне

After all connections are secure, flip the power switch on the rear panel to the "ON" position. The subwoofer features an Auto ON/OFF function, which will activate the subwoofer when an audio signal is detected and put it into standby mode after a period of inactivity.

Рэгуляванне элементаў кіравання

• Gain Control: Start with the Gain control set to its minimum position. Play some audio and slowly increase the Gain until the subwoofer's output blends smoothly with your main speakers. Avoid setting the gain too high, as this can lead to distorted bass.
• Crossover Control (40-140 Hz): Гэты рэгулятар вызначае найвышэйшую частату, якую будзе прайграваць сабвуфер.
  • If your receiver has a built-in bass management system (e.g., LFE output), set the subwoofer's crossover control to its maximum (140 Hz) or bypass position, and manage the crossover frequency through your receiver's settings.
  • If your receiver does not have bass management, adjust the crossover control to match the low-frequency capabilities of your main speakers. For smaller bookshelf speakers, a higher crossover frequency (e.g., 80-100 Hz) might be appropriate. For larger floor-standing speakers, a lower frequency (e.g., 40-60 Hz) may be suitable. The goal is a seamless transition between the subwoofer and main speakers.
• Phase Control (0-180 degrees): This switch helps to ensure that the subwoofer's sound waves are in sync with your main speakers.
  • Слухайце музыку з моцнай, паслядоўнай басавай лініяй.
  • Toggle the phase switch between 0 and 180 degrees.
  • Выберыце наладу, якая стварае найбольш гучны і эфектны бас у вашым месцы праслухоўвання.

Тэхнічнае абслугоўванне

Правільнае абслугоўванне забяспечвае даўгавечнасць і прадукцыйнасць вашага сабвуфера.

• Уборка: Disconnect the power cord before cleaning. Use a soft, dry cloth to wipe the cabinet. Do not use liquid cleaners or aerosol sprays, as they may damage the finish or internal components.
• Рашотка: The acoustically transparent grille is removable. If it becomes dusty, gently brush it or use a low-power vacuum cleaner with a soft brush attachment.
• Вентыляцыя: Перыядычна правярайце, ці не заблакаваныя вентыляцыйныя адтуліны пылам або смеццем.

Ліквідацыю непаладак

Калі ў вас узніклі праблемы з сабвуферам, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

This Acoustic Audio PSW500-12 Subwoofer comes with a Абмежаваная гарантыя. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty card included with your product or contact Acoustic Audio by Goldwood customer support.

Падтрымка

If you require further assistance or have questions not covered in this manual, please contact Acoustic Audio by Goldwood customer support. You can typically find contact information on the manufacturer's webсайце або на ўпакоўцы прадукту.
