Seatcraft Anthem Power Recline Loveseat Instruction Manual

Уводзіны

Thank you for choosing the Seatcraft Anthem Power Recline Loveseat. This manual provides essential information for the safe assembly, operation, and maintenance of your new home theater seating. Please read these instructions thoroughly before use and retain them for future reference.

Image: The Seatcraft Anthem Power Recline Loveseat, showcasinяго дызайн і асаблівасці.

Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: This product requires assembly. Always follow the assembly instructions carefully to ensure stability and safety. This product is a power recliner with adjustable headrests. Always use the controls gently and keep fingers and other body parts away from moving parts to prevent injury. This product is heavy and large. Always ensure it is properly assembled and stable before use to prevent tipping or other accidents.

• Keep children and pets away from moving parts.
• Do not stand on the footrest or armrests.
• Пераканайцеся, што ўсе электрычныя злучэнні надзейныя і належным чынам заземленыя.
• Avoid spilling liquids on electrical components.

Асаблівасці прадукту

The Seatcraft Anthem Loveseat is designed for comfort and convenience, featuring:

• Italian Leather Upholstery: High-grade, quality leather for durability and aesthetic appeal.
• Power Reline: Smooth electric reclining mechanism for personalized comfort.
• Powered Headrests: Adjustable headrests for optimal neck and head support.
• Center Storage Console: A convenient console between seats for storage and additional amenities.
• Arm Storage: Hidden compartments within each armrest for storing small items.
• Парты USB для зарадкі: Integrated USB ports for charging electronic devices.
• Illuminated Cup Holders: Cup holders with ambient lighting for visibility in low-light environments.
• Ambient Base Lighting: LED lighting along the base of the loveseat for enhanced ambiance.
• Бесправадная зарадная пляцоўка: A dedicated surface for wirelessly charging compatible devices.
• Fold-Down Table: The center console can convert into a table surface.
• 110V Power Outlet: An integrated power outlet for additional device charging.

Image: Key features of the Seatcraft Anthem Loveseat.

Ўстаноўка і зборка

Assembly of the Seatcraft Anthem Loveseat is designed to be straightforward, typically taking 30 minutes or less. Follow these general steps:

1. Распакуйце кампаненты: Carefully remove all parts from the packaging. Ensure all components listed in your packing slip are present.
2. Базавая пазіцыя: Place the base of the loveseat in its desired location. Due to its weight (approximately 335 lbs), it is recommended to have at least two people for moving.
3. Прымацаваць спінкі: Slide the backrests onto the metal posts located on the base. Ensure they click securely into place.
4. Падключэнне электрычнасці: Connect any internal electrical cables for power recline, headrests, USB ports, and lighting. Refer to the specific wiring diagram included with your product.
5. Падключыце харчаванне: Падключыце шнур сілкавання да заземленай электрычнай разеткі.

For detailed visual instructions, please refer to the official product video below.

Video: Official Seatcraft Anthem product overview, demonstrating features and functionality.

Інструкцыя па эксплуатацыі

Your Seatcraft Anthem Loveseat offers intuitive controls for a personalized experience.

Power Recline and Headrest Adjustment

Image: Control panel for power recline and headrest.

• Power Reline: Use the left-most buttons on the control panel (labeled 'Powered Recline') to extend or retract the footrest and recline the seat.
• Powered Headrest: Use the right-most buttons on the control panel (labeled 'Powered Headrest') to adjust the angle of the headrest.
• Кнопка дадому: Press and hold the central 'Home' button to return the seat, footrest, and headrest to their upright, default positions.

Зарадныя прылады

• USB-зарадка: Plug your USB cable into the USB port located on the control panel to charge compatible devices.
• Бесправадная зарадка: Place your compatible device on the wireless charging pad (if equipped) located in the center console. The charging indicator will illuminate when charging.
• Разетка 110 В: Utilize the standard 110V power outlet (if equipped) in the center console for larger electronics.

Захоўванне і аксэсуары

• Arm Storage: Lift the armrest covers to access the hidden storage compartments.
• Center Console: The center console lid opens to reveal storage space and additional cup holders.
• Fold-Down Table: The backrest of the center console can be folded down to create a table surface.
• Трымальнікі кубкаў: Use the illuminated cup holders in the armrests and center console for beverages.

Image: Center storage console with cup holders.

Image: Hidden armrest storage.

Тэхнічнае абслугоўванне

Правільны догляд падоўжыць тэрмін службы і знешні выгляд вашага канапа.

• Сыход за скурай: Regularly wipe the Italian leather upholstery with a soft, damp cloth. For deeper cleaning, use a leather-specific cleaner and conditioner according to the product instructions. Avoid harsh chemicals or abrasive materials.
• Электрычныя кампаненты: Ensure all power cords and connections are free from damage. Do not attempt to repair electrical components yourself; contact qualified service personnel.
• Рухомыя часткі: Periodically check the reclining mechanism for smooth operation. Keep the area around moving parts clear of obstructions.
• Генеральная ўборка: Vacuum regularly to remove dust and debris from crevices.

Ліквідацыю непаладак

If you encounter any issues with your Seatcraft Anthem Loveseat, refer to the following common solutions:

• No Power/Recline Not Working:
  • Праверце, ці надзейна падключаны шнур харчавання да спраўнай электрычнай разеткі.
  • Ensure all internal electrical connections are properly seated.
  • Праверце працаздольнасць разеткі, падключыўшы да яе іншы прыбор.
• Незвычайныя шумы падчас працы:
  • Inspect the reclining mechanism for any obstructions.
  • Ensure all assembly bolts are tightened.
• USB/Wireless Charging Not Functioning:
  • Confirm the loveseat is powered on.
  • For wireless charging, ensure your device is compatible and properly aligned on the charging pad.

If problems persist, contact Seatcraft customer support for assistance.

Тэхнічныя характарыстыкі

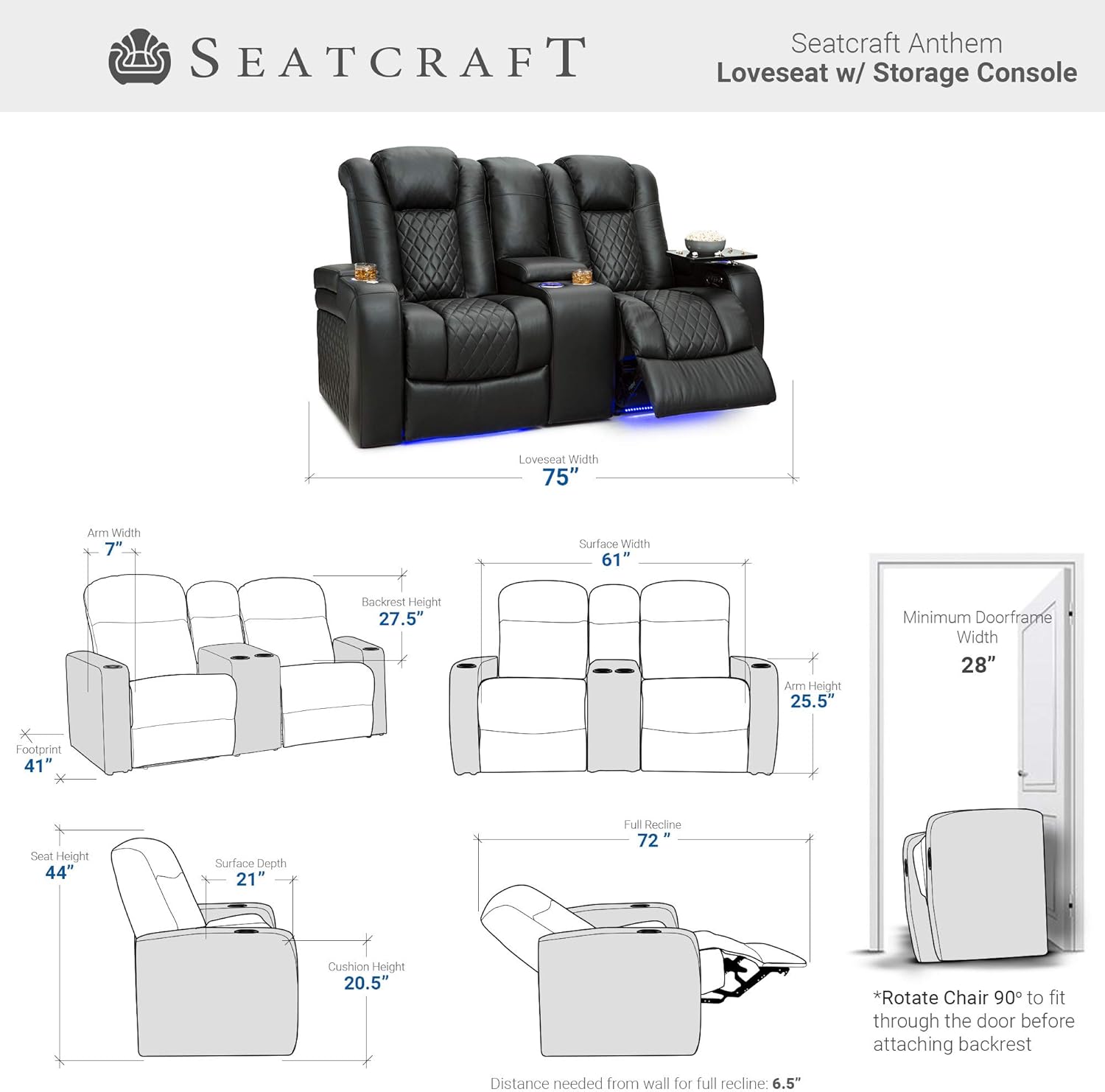

Image: Detailed dimensions of the Seatcraft Anthem Loveseat.

Гарантыя і падтрымка

For warranty information, product support, or to purchase additional accessories, please visit the official Seatcraft webсайт або звярніцеся ў службу падтрымкі кліентаў. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

Для пашырэння гарантыйнага пакрыцця звыш стандартнай гарантыі вытворцы можна набыць дадатковыя планы абароны.
