Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light User Manual

1. Прадукт скончыўсяview

The Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light is designed to provide efficient and aesthetic illumination for outdoor steps and pathways. This recessed fixture features a durable brushed nickel finish and utilizes energy-efficient LED technology, making it suitable for various outdoor environments. Its modern design integrates seamlessly into contemporary landscape architecture.

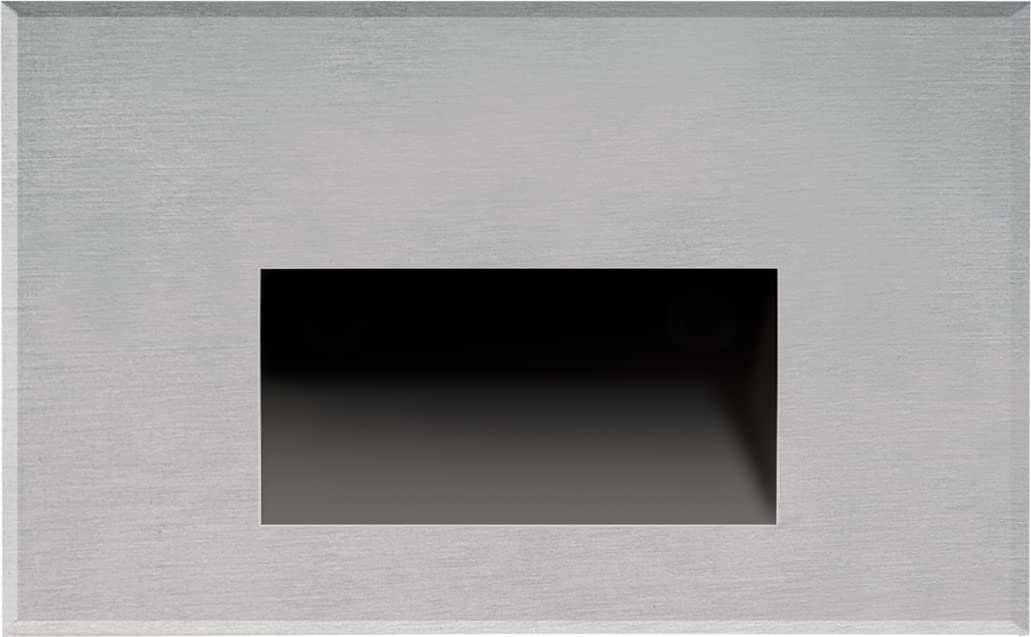

Малюнак 1: Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light. This image displays the front view of the brushed nickel step light, highlighting its rectangular shape and LED light source.

2. Інфармацыя па бяспецы

• Электрабяспека: Installation must be performed by a qualified electrician in accordance with all local electrical codes. Disconnect power at the circuit breaker before installation or servicing.
• Выкарыстанне на адкрытым паветры: This fixture is rated for outdoor use. Ensure all connections are properly sealed to prevent water intrusion.
• тtage: Пераканайцеся, што аб'ём блока харчаванняtage matches the fixture's requirement (120 Volts).
• Апрацоўка: Handle the fixture with care to avoid damage to the LED components or glass/aluminum shade.
• Цяпло: LEDs can generate heat. Do not touch the fixture immediately after prolonged operation.

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• One (1) Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light
• Мантажныя прыналежнасці (шрубы, раздымы для правадоў)
• Кіраўніцтва па ўстаноўцы (гэты дакумент)

4. Настройка і ўстаноўка

This step light is designed for recessed mounting. Professional installation is highly recommended due to the electrical work involved.

4.1 Перад устаноўкай

1. Выключыць харчаванне: Locate the circuit breaker controlling the installation area and turn off the power. Verify power is off using a voltagэлектронны тэстар.
2. Падрыхтуйце адкрыццё: Ensure the recessed opening in the wall or step surface is appropriately sized for the fixture's dimensions (approximately 5"L x 1.5"W x 3"H).
3. Інструменты збору: You will need a screwdriver, wire strippers, electrical tape, and potentially a drill.

4.2 Інструкцыі па падключэнні

1. Вызначыць правады: Identify the live (black), neutral (white), and ground (green or bare copper) wires from your power supply.
2. Падключыце правады: Using the provided wire connectors, connect the fixture's wires to the corresponding power supply wires:
   • Black (Fixture) to Black (Supply)
   • White (Fixture) to White (Supply)
   • Green/Ground (Fixture) to Green/Ground (Supply)
   Пераканайцеся, што ўсе злучэнні надзейныя, і пры неабходнасці ізаляваныя ізаляцыйнай стужкай.

4.3 Мантаж свяцільні

1. Пазіцыя мацавання: Carefully push the wired fixture into the recessed opening.
2. Бяспечнае прыстасаванне: Use the provided mounting screws to secure the fixture firmly into the wall or step surface. Ensure it is flush and stable.
3. Seal (Optional): For added weather protection, apply a bead of outdoor-rated sealant around the edges of the fixture where it meets the mounting surface.

4.4 Пасля ўстаноўкі

1. Аднавіць сілу: Пасля завяршэння ўстаноўкі і надзейнасці ўсіх злучэнняў аднавіце электраэнергію з дапамогай аўтаматычнага выключальніка.
2. Праверка функцыянальнасці: Turn on the light switch connected to the fixture to ensure it operates correctly.

5. Інструкцыя па эксплуатацыі

The Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light operates by a standard electrical switch connected to its power supply. There are no integrated controls on the fixture itself.

• Уключэнне/выключэнне: Use the wall switch or external timer/sensor connected to the fixture's power supply to turn the light on or off.
• Метады кантролю: While the product specifications mention 'App' and 'Remote Control', these typically refer to compatibility with external smart home systems or remote-controlled switches that would be installed separately and control the power supply to the fixture. The fixture itself does not have built-in app or remote control capabilities.

6. Тэхнічнае абслугоўванне

Minimal maintenance is required for your LED step light.

• Уборка: Перыядычна чысціце прыбор мяккай губкайamp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or LED components. Ensure power is off before cleaning.
• агляд: Annually inspect the fixture and wiring connections for any signs of wear, damage, or corrosion. Address any issues promptly to ensure safe operation.
• святлодыёды: Інтэграваная святлодыёдная крыніца святла разлічана на працяглы тэрмін службы і не падлягае замене карыстальнікам.

7. Выпраўленне непаладак

If your step light is not functioning as expected, refer to the following common issues and solutions:

8. Тэхнічныя характарыстыкі

9. Інфармацыя аб гарантыі

This Kuzco Lighting ER3003-BN Sonic Landscape LED Step Light is covered by a 5-гадовая гарантыя вытворцы. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Kuzco Lighting warranty policy or contact customer support.

10. Падтрымка і кантакты

For technical assistance, replacement parts, or warranty inquiries, please contact Kuzco Lighting customer support. Refer to the official Kuzco Lighting webсайт для атрымання самай актуальнай кантактнай інфармацыі.

• Webсайт: www.kuzcolighting.com (Note: This is a general placeholder URL for the brand's website. Please verify the actual support URL.)
• тэлефон: Звярніцеся да webсайт рэгіянальных кантактных тэлефонаў.
• электронная пошта: Звярніцеся да webсайт для адрасоў электроннай пошты службы падтрымкі кліентаў.
