HTRC T240 Duo RC Balance Charger Instruction Manual

1. Уводзіны і большview

The HTRC T240 Duo is a versatile dual-channel RC battery charger and discharger designed for a wide range of battery types. It features a 3.2-inch color touch screen for intuitive operation and real-time monitoring of charging processes. This charger supports both AC (100-240V) and DC (11-18V) input, offering flexibility for various charging environments. With a maximum charging current of 10A per channel and a total power output of 150W (AC) or 240W (DC), it ensures efficient and rapid battery management.

The T240 Duo is equipped with advanced functions including battery metering, internal resistance checking, adjustable digital DC power, and storage/data loading capabilities. Its robust design incorporates flame-retardant plastic and a powerful built-in cooling fan for optimal heat dissipation during operation.

2. Інструкцыі па тэхніцы бяспекі

Please read and understand all safety instructions before operating the HTRC T240 Duo charger. Failure to do so may result in property damage, injury, or fire.

• Always use the charger in a well-ventilated area, away from flammable materials.
• Ніколі не пакідайце зарадную прыладу без нагляду падчас выкарыстання.
• Ensure the correct battery type and parameters are selected before initiating any charging or discharging process. Incorrect settings can damage batteries and pose a fire risk.
• Не зараджайце пашкоджаныя або ўздутыя акумулятары.
• Keep the charger away from moisture, direct sunlight, and extreme temperatures.
• Use only original or approved charging cables and adapters.
• Захоўваць у месцах, недаступных дзецям.

3. Змесціва ўпакоўкі

Пасля распакавання пераканайцеся, што ўсе прадметы ёсць у камплекце:

• 1x HTRC T240 Charger
• 1x кабель сілкавання
• 1x кабель харчавання пастаяннага току
• 2x Banana Connector to Deans Output Cables
• 2x T-Plug to XT60 Extension Cables
• 2x T-Plug to Alligator Clip Extension Cables
• 2x T-Plug to Tamiya Extension Cables
• 1x Кіраўніцтва карыстальніка

4. Асаблівасці прадукту

4.1 Dual-Channel Charging

The T240 Duo features two independent charging channels, allowing simultaneous charging or discharging of two different battery types. This significantly improves efficiency and saves time.

4.2 Wide Battery Type Compatibility

This charger is compatible with a broad range of RC battery types, making it suitable for various applications including RC cars, boats, drones, and airsoft models.

• LiPo / Lilon / LiFe / LiHV: 1S-6S (3.7V, 7.4V, 11.1V, 14.8V, 22.2V options)
• NiMH / NiCD: 1-15S (3.6V, 4.8V, 6V, 7.2V, 9.6V, 12V options)
• PB (Lead-Acid): 1-10S (2-20V)
• Разумная батарэя: I / II / III

4.3 AC/DC Power Input

The charger supports both AC 100-240V and DC 11-18V input, providing flexibility for home or field use. AC input offers a total charging power of 150W (distributable), while DC input allows each channel to reach up to 120W.

4.4 3.2-inch Color Touch Screen

The intuitive 3.2-inch color LCD touch screen simplifies operation and allows for easy switching between channels. It provides clear, real-time charging status through digital graphics, giving you full control over the charging process.

4.5 дадатковых функцый

• Лічыльнік батарэі: Displays lithium battery cell counts, voltage, and capacity percentage.
• Internal Resistance Check: Checks the internal resistance of lithium batteries (except 1S).
• Рэгуляваная лічбавая магутнасць пастаяннага току: Provides adjustable DC power output.
• TVC (Тэмпляр тэрміналаtage Кантроль): Allows setting the final charge/discharge voltage.
• Data Storage & Load: Stores and loads up to 20 groups of data per channel.

4.6 Эфектыўная сістэма астуджэння

A powerful built-in fan ensures good heat dissipation, preventing overheating during prolonged charging or discharging cycles. Note that the fan may produce some noise during operation.

5. Настройка

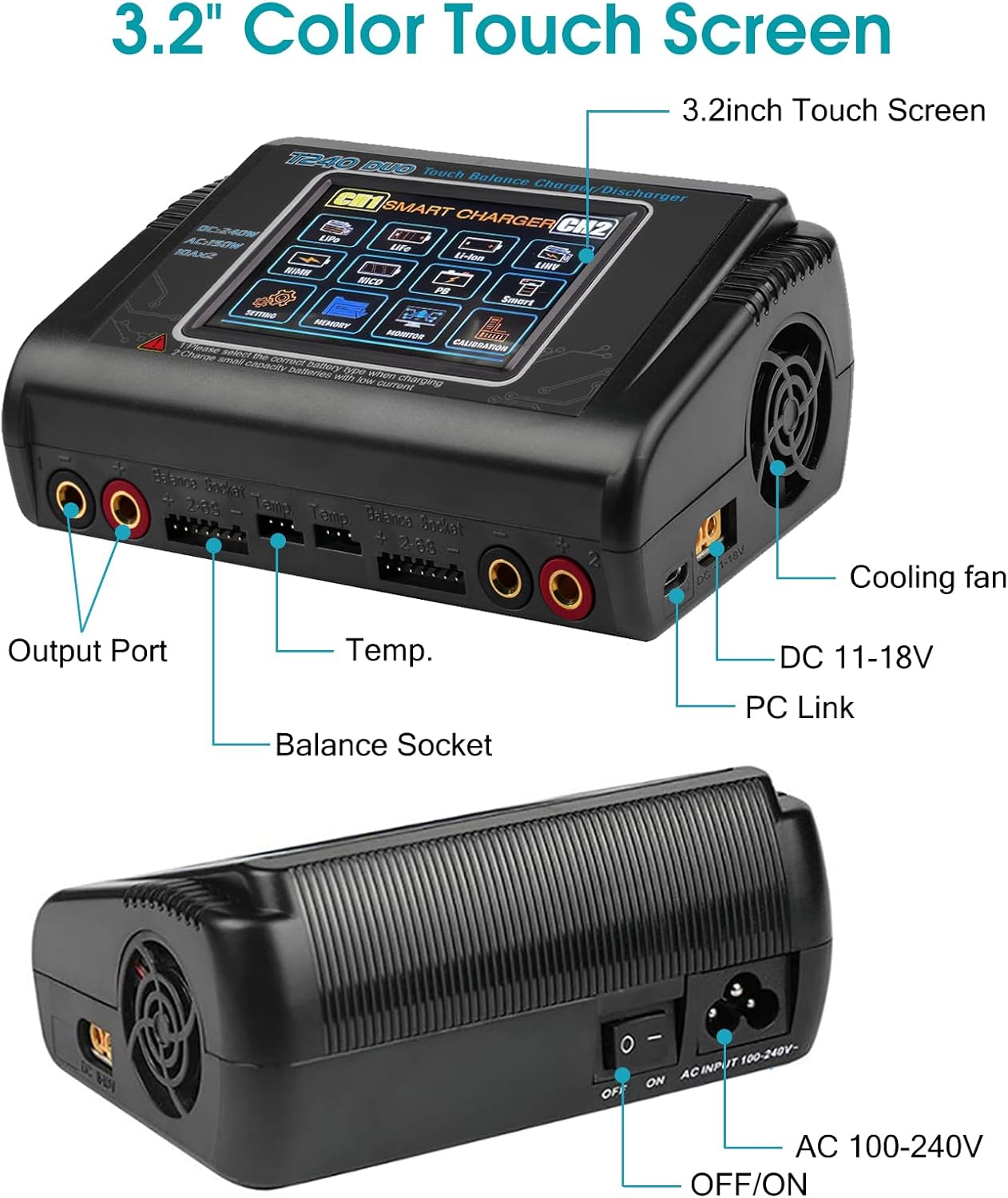

5.1 Падключэнне харчавання

1. Падключыце адпаведны кабель харчавання (пераменнага або пастаяннага току) да ўваходнага порта зараднай прылады.
2. If using AC power, plug the AC cable into a wall outlet.
3. If using DC power, connect the DC cable to a compatible power source (e.g., 12V car battery).
4. Flip the power switch on the side of the charger to the 'ON' position. The screen should illuminate.

5.2 Падключэнне батарэі

1. Вызначце правільны зарадны кабель для вашага тыпу акумулятара.
2. Connect the main charging lead of your battery to one of the charger's output ports (CH1 or CH2).
3. For balance charging, connect the battery's balance lead to the corresponding balance socket on the charger. Ensure the balance lead is inserted correctly.

6. Інструкцыя па эксплуатацыі

The HTRC T240 Duo offers various operating modes for different battery management needs. Use the touch screen to navigate and select options.

6.1 Выбар тыпу і рэжыму батарэі

1. On the main screen, select the desired channel (CH1 or CH2).
2. Tap on the battery type icon (e.g., LiPo, NiMH) that matches your battery.
3. Select the desired operating mode:
• Зарад: Standard charging.
• Аплата за баланс: Charges and balances individual cell voltages for lithium batteries.
• Хуткая зарадка: Faster charging without balancing.
• захоўванне: Charges or discharges lithium batteries to a safe storage voltage.
• Выпіска: Разраджае акумулятар да зададзенага аб'ёмуtage.

6.2 Налада параметраў

1. After selecting the mode, adjust the charging/discharging current and voltage (or cell count for lithium batteries) using the on-screen controls.
2. Confirm the settings. The charger will perform a battery check.
3. Once the check is complete and confirmed, press 'Start' to begin the operation.

6.3 Monitoring and Stopping

• The screen will display real-time information such as current, voltagе, зараджаная ёмістасць і аб'ём асобнага элементаtages (for balance charging).
• To stop the operation at any time, press the 'Stop' button on the screen.

7. Тэхнічнае абслугоўванне

• Уборка: Regularly wipe the charger's exterior with a soft, dry cloth. Do not use solvents or abrasive cleaners. Ensure no dust accumulates in the cooling fan vents.
• захоўванне: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect all batteries and power sources before storing.
• Праверка кабеля: Periodically inspect all charging cables for signs of wear, damage, or frayed wires. Replace damaged cables immediately.

8. Выпраўленне непаладак

• Зарадная прылада не ўключаецца: Ensure the power cable is securely connected and the power switch is in the 'ON' position. Check the power source.
• Charging error message: This often indicates incorrect battery type selection, incorrect cell count, or a faulty battery. Double-check all settings and battery condition.
• Шум вентылятара: The built-in fan operates to dissipate heat during charging/discharging. Some noise is normal. Excessive or unusual noise may indicate a blockage or malfunction; ensure vents are clear.
• Павольная зарадка: Verify that the charging current is set appropriately for your battery's capacity. Ensure the power input (AC/DC) is sufficient for the desired output.

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

The HTRC T240 Duo RC Balance Charger comes with a one-year warranty against manufacturing defects. For technical support, troubleshooting assistance, or warranty claims, please contact HTRC customer service through the retailer where the product was purchased or visit the official HTRC webсайт для кантактнай інфармацыі.
