Cornat SAZ612 Kitchen Faucet Instruction Manual

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Cornat SAZ612 kitchen faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

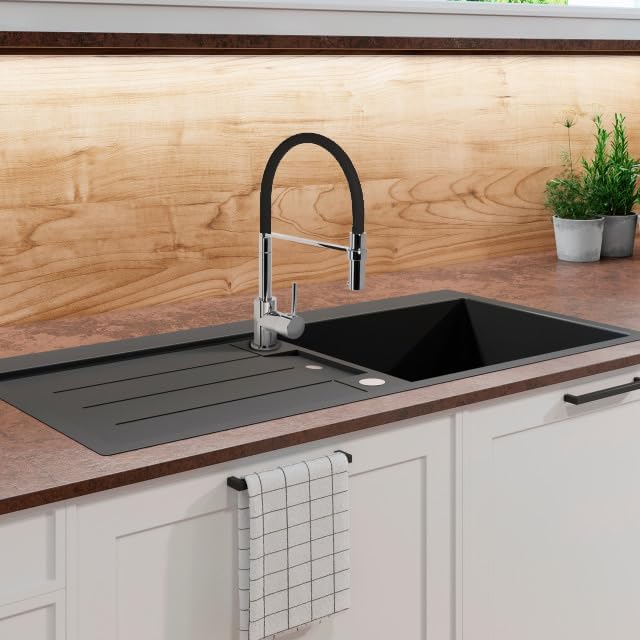

Image: Cornat SAZ612 kitchen faucet with black silicone spout and chrome body, installed in a kitchen sink.

Інфармацыя па бяспецы

Заўсёды выконвайце наступныя меры бяспекі:

• Перад пачаткам любых мантажных або рамонтных работ пераканайцеся, што асноўная падача вады адключана.
• Калі вы не ўпэўненыя ў якім-небудзь этапе працэсу ўстаноўкі, звярніцеся да кваліфікаванага сантэхніка.
• Не выкарыстоўвайце абразіўныя ачышчальнікі або агрэсіўныя хімікаты для мыцця паверхні крана, бо гэта можа пашкодзіць пакрыццё.
• Check all connections for leaks after installation and before regular use.
• This product is designed for kitchen use with hot and cold water supply.

Змест пакета

Verify that all components are present before starting installation. The package should contain:

• Cornat SAZ612 Kitchen Faucet (main body with silicone spout)
• Mounting accessories (fastening nut, washers, seals)
• Flexible connection hoses for hot and cold water
• Інструкцыя па эксплуатацыі (гэты дакумент)

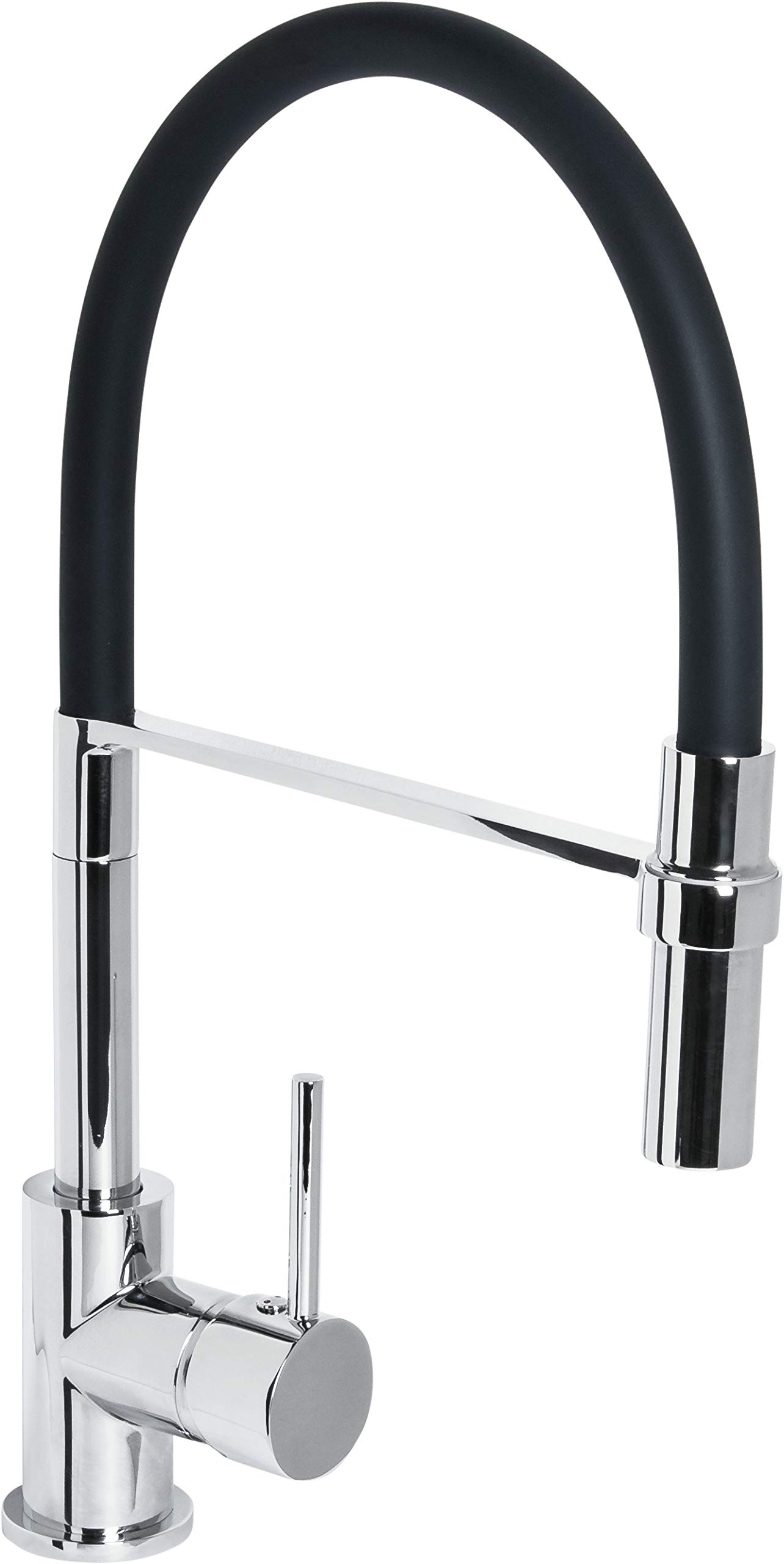

Выява: спераду view of the Cornat SAZ612 kitchen faucet, showing the main body, lever, and silicone spout.

Настройка і ўстаноўка

This faucet is designed for single-hole deck mounting and high-pressure water systems. Tool-free mounting is possible thanks to the shaft fastening mechanism.

Падрыхтоўка

1. Выключыце асноўную падачу вады на кухню.
2. Remove your old faucet, if applicable. Clean the sink hole area.
3. Пераканайцеся, што паверхня мацавання чыстая і сухая.

Этапы ўстаноўкі

1. Устаўце кран: Place the faucet body into the mounting hole on your sink or countertop.
2. Бяспечны кран: From underneath the sink, slide the rubber washer, metal washer, and fastening nut onto the threaded shaft of the faucet. Tighten the fastening nut by hand or with a suitable tool until the faucet is stable. The shaft fastening allows for tool-free assembly.
3. Падключыце шлангі для вады: Connect the flexible hot and cold water hoses from the faucet to your water supply lines. Ensure the hot water hose is connected to the hot supply and the cold water hose to the cold supply. Tighten connections securely but do not overtighten.
4. Праверце ўцечкі: Slowly turn on the main water supply. Check all connections for any signs of leakage. If leaks occur, gently tighten the connections further.
5. Сістэма прамывання: Адкрыйце ручку крана, каб вада цякла некалькі хвілін. Гэта змые смецце з новай устаноўкі.

Image: Diagram illustrating the tool-free installation process using a shaft fastening mechanism.

Інструкцыя па эксплуатацыі

The Cornat SAZ612 is a single-lever mixer designed for easy control of water temperature and flow.

Кантроль патоку і тэмпературы вады

• Кіраванне патокам: Lift the lever handle upwards to increase water flow. Push it downwards to decrease and turn off the water.
• Кантроль тэмпературы: Перамясціце ручку рычага налева для гарачай вады і направа для халоднай вады. Адрэгулюйце становішча паміж левым і правым бокам, каб дасягнуць патрэбнай тэмпературы вады.

Паваротны носік на 360°

The silicone spout can be rotated 360 degrees, providing maximum flexibility for various kitchen tasks, such as filling large pots or washing dishes in a double sink.

Image: Illustration highlighting the 360-degree rotation capability of the faucet spout for enhanced flexibility.

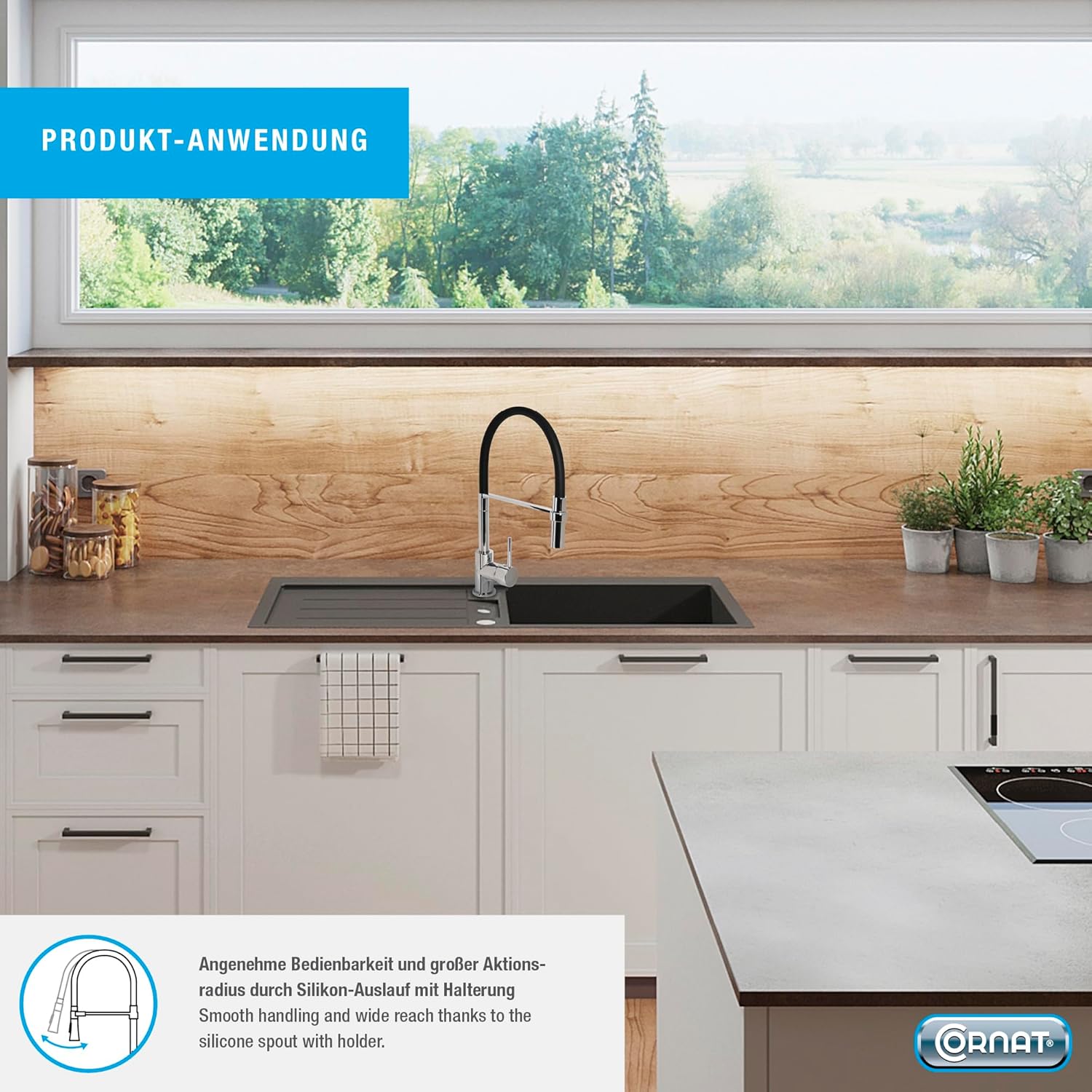

Image: Close-up of the flexible silicone spout with its integrated holder, demonstrating smooth handling and wide reach.

Рэгуляваны мяжа тэмпературы

The faucet features an adjustable temperature limit to reduce energy consumption and prevent scalding. Refer to the installation diagram or consult a professional for adjustment.

Аэратар

The integrated aerator, "Made in Germany," provides a soft, air-enriched water stream, reducing water consumption by up to 40% without compromising comfort. It also ensures quiet water flow.

Image: Diagram illustrating key product features: adjustable temperature limit, German-made aerator for water saving, and tool-free installation.

Тэхнічнае абслугоўванне

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Cornat SAZ612 faucet.

Чыстка крана

• Clean the chrome surface with a soft cloth and mild soap or a non-abrasive liquid cleaner specifically designed for chrome finishes.
• Старанна прамыйце чыстай вадой і высушыце мяккай тканінай, каб пазбегнуць плям ад вады.
• Do not use abrasive sponges, scouring pads, or cleaners containing alcohol, ammonia, or harsh acids, as these can damage the surface finish.
• The silicone spout can be wiped clean with a damp тканіна.

Aerator Cleaning

Over time, mineral deposits can build up in the aerator, reducing water flow. To clean:

1. Unscrew the aerator from the end of the spout (usually by hand or with a coin).
2. Rinse the aerator components under running water. Use a small brush or toothpick to remove any stubborn deposits.
3. For heavy mineral buildup, soak the aerator in a solution of equal parts white vinegar and water for 30 minutes.
4. Rinse thoroughly and reassemble the aerator onto the spout.

Тэхнічнае абслугоўванне картрыджа

The faucet is equipped with a high-quality ceramic cartridge. If you experience persistent drips or difficulty controlling water flow/temperature, the cartridge may need to be cleaned or replaced. This is typically a task for a qualified plumber.

Ліквідацыю непаладак

Перш чым звяртацца ў службу падтрымкі кліентаў, азнаёмцеся з наступнымі распаўсюджанымі праблемамі і іх рашэннямі:

Тэхнічныя характарыстыкі

Image: Detailed product dimensions for the Cornat SAZ612 kitchen faucet, showing height, width, and spout reach.

Гарантыя і падтрымка

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Cornat customer service directly.

Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

Кантактная інфармацыя: Please visit the official Cornat webсайт, каб знайсці найбольш актуальную кантактную інфармацыю для вашага рэгіёна.
