Mi-Heat AH-150W-5.0-E51 Electric Underfloor Heating System

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Mi-Heat AH-150W-5.0-E51 electric underfloor heating system. This system includes a 5m² aluminum heating mat and an E51 digital thermostat with an external floor sensor. Please read this manual carefully before installation and use to ensure safe and efficient operation.

The Mi-Heat electric underfloor heating system is designed for dry installation under various floor coverings such as laminate, parquet, and vinyl on HDF backing. It offers an environmentally friendly heating solution for living rooms, children's rooms, caravans, motorhomes, boats, and yachts.

2. Інструкцыі па тэхніцы бяспекі

• Installation must be carried out by a qualified electrician in accordance with local electrical regulations and standards.
• Always disconnect the power supply before performing any installation, maintenance, or repair work.
• The heating mat must not be cut or shortened. Only the support fabric network can be cut to adjust the mat's layout.
• Ensure the heating mat is not overlapped or installed in areas where it could be punctured or damaged.
• A Residual Current Device (RCD) with a tripping current of 30 mA is required for protection.
• Do not install the heating mat under fixed furniture without legs or heavy objects that could trap heat.
• Keep the thermostat away from direct sunlight, drafts, or other heat sources that could affect its temperature readings.

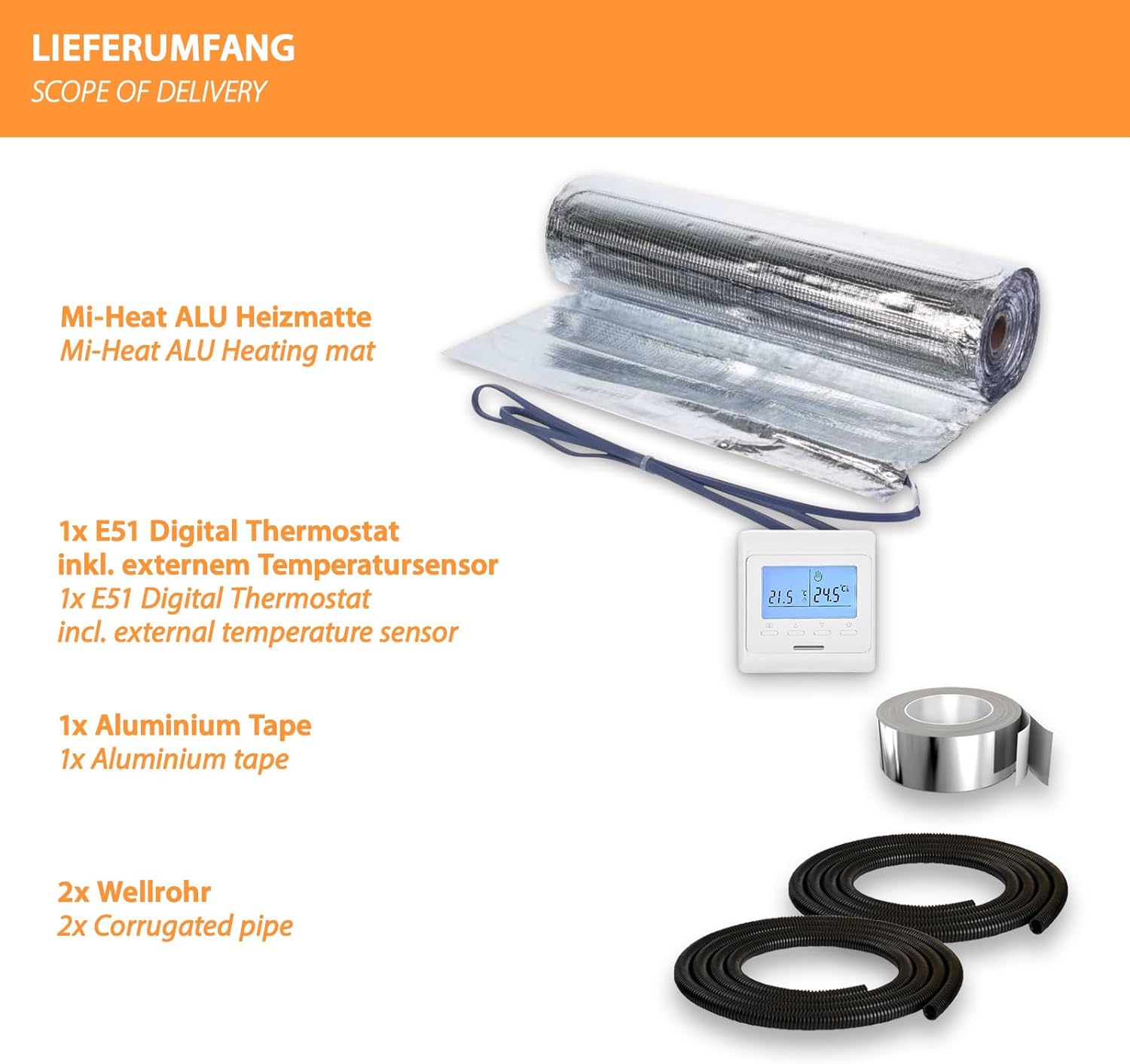

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя і не пашкоджаныя:

• 1x Mi-Heat Aluminum Heating Mat (5m²)
• 1x E51 Digital Thermostat
• 1x External Floor Temperature Sensor
• 1x алюмініевая стужка
• 2x Corrugated Pipes (for sensor and power cables)
• 1x Кіраўніцтва карыстальніка

4. Тэхнічныя характарыстыкі прадукту

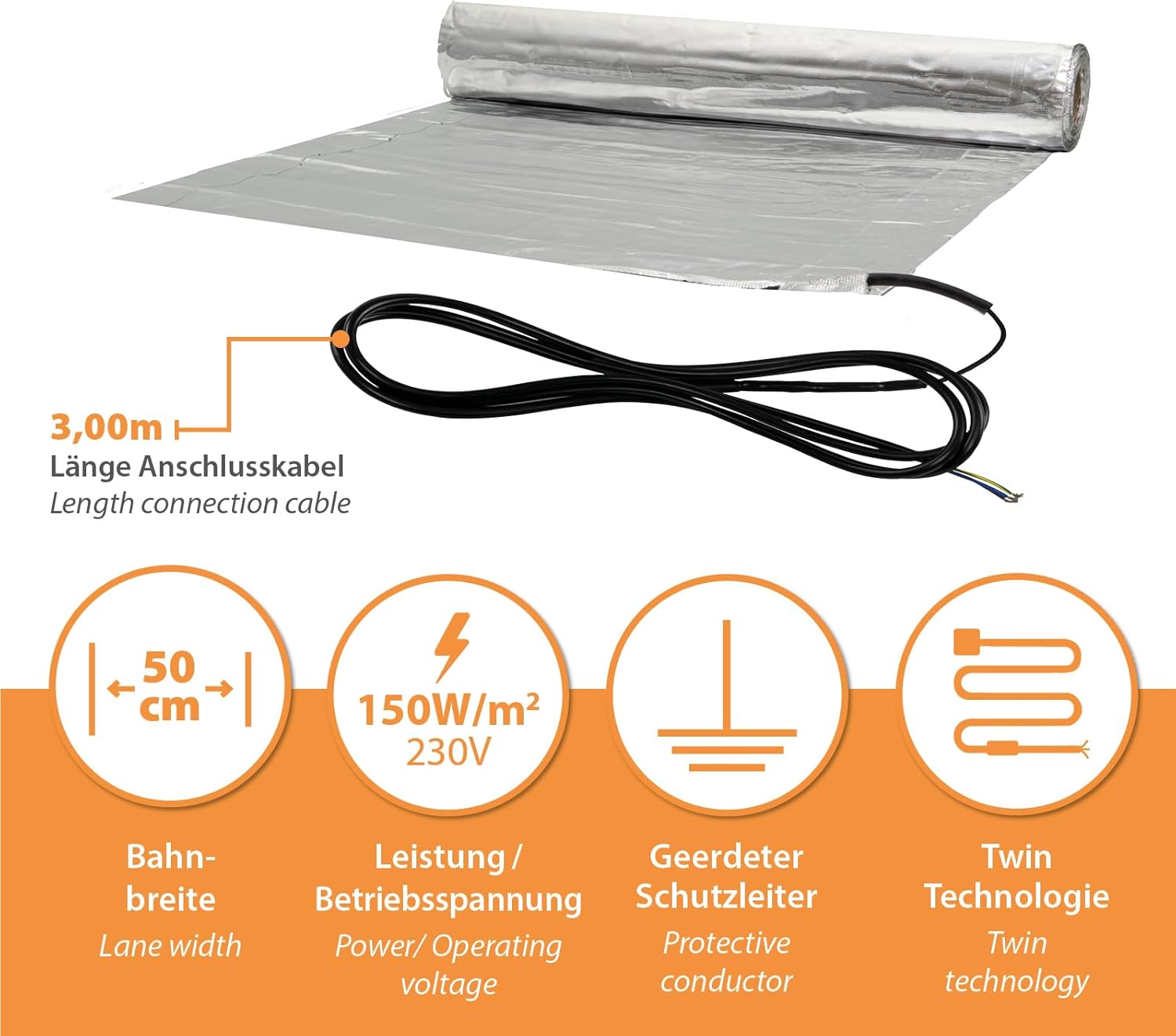

4.1. Mi-Heat Aluminum Heating Mat

• Спажываная магутнасць: 150 Вт/м²
• Аперацыйная Voltage: 230 В
• Макс. Працоўная тэмпература: 80 °C
• Мін. Працоўная тэмпература: -10 °C
• Heating Mat Width: 50 см
• Дыяметр кабеля: 1.4 мм
• Даўжыня злучальнага кабеля: 3.8 м
• Рэйтынг абароны IP: IPX7
• Protection Measure: Requires 30 mA RCD (Residual Current Device)
• Тэхналогія: Twin conductor technology

4.2. E51 Digital Thermostat

• Макс. Магутнасць пераключэння: 16 А / 3680 Вт
• Тып кіравання: Two-point ON/OFF control
• Працоўная тэмпература: 5-50 °C
• Датчыкі: Internal (room) and External (floor)
• Temperature Setting Range (Internal/Room Sensor): 5-55 °C
• Temperature Setting Range (External/Floor Sensor): 5-55 °C
• Абарона ад замярзання: так
• Floor Limit Range: 5-50 °C
• Display/Backlight: Так/Так
• Рэйтынг абароны IP: IP21

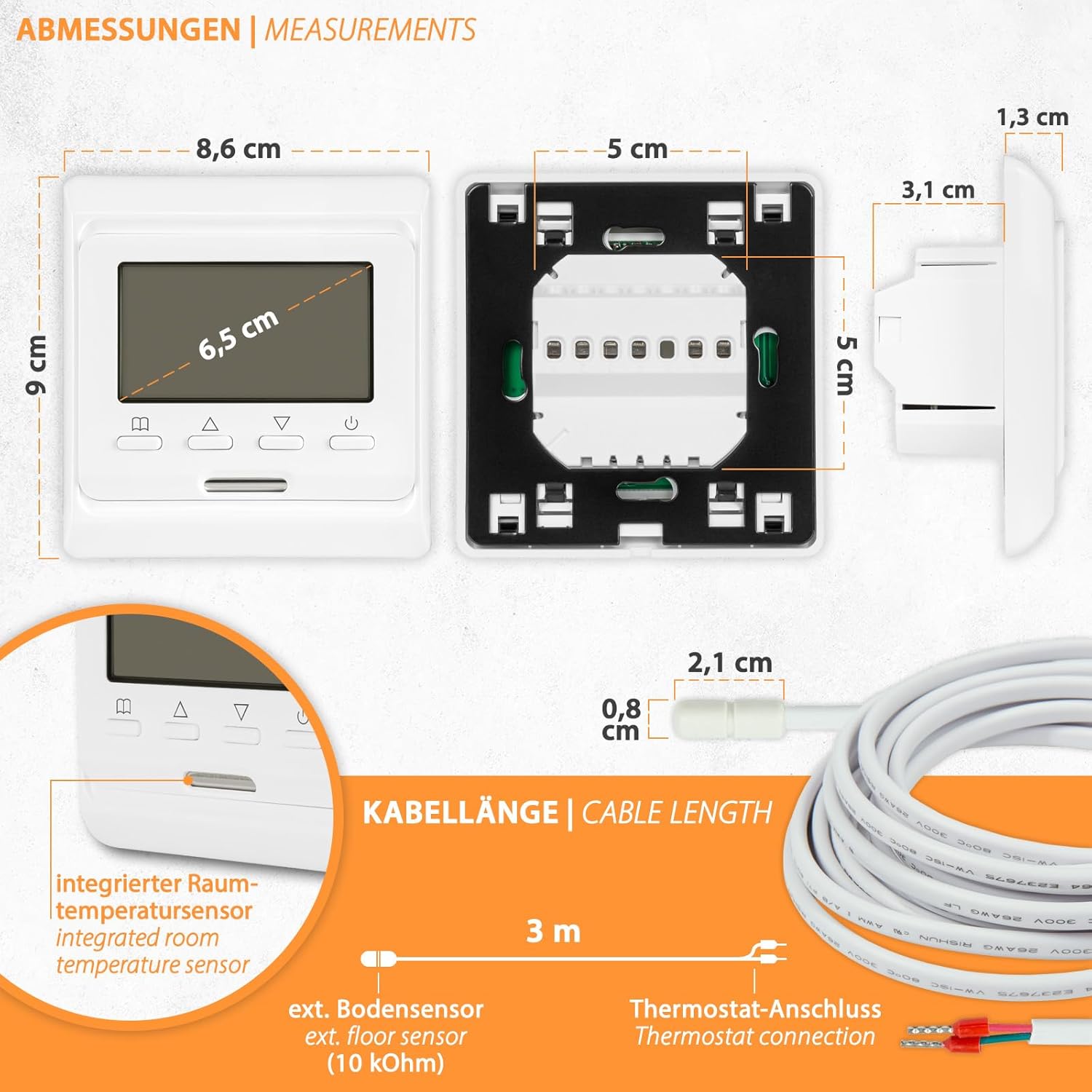

• Памеры (Ш х У х Г): 80 х 90 х 13/43 мм

5. Кіраўніцтва па ўстаноўцы

The Mi-Heat aluminum heating mat is designed for dry installation, making it suitable for floating floor coverings. This section outlines the general steps for installation. Always consult a qualified electrician for electrical connections.

5.1. Preparation of the Subfloor

• Ensure the subfloor is clean, dry, level, and free from sharp objects.
• Install appropriate impact sound insulation (3-5mm recommended) over the subfloor.

5.2. Laying the Heating Mat

• Unroll the aluminum heating mat over the impact sound insulation.
• To change direction or fit the mat around obstacles, only cut the support fabric network. Do not cut the heating cable itself.
• Use the aluminum tape to secure the mat sections and ensure good thermal contact.
• Ensure the heating cables are evenly spaced and do not overlap.

5.3. Thermostat and Sensor Installation

• Install the E51 digital thermostat in a standard electrical box at a suitable height on the wall.
• Route the external floor sensor cable through one of the corrugated pipes and place the sensor centrally between two heating cables, ensuring it is not directly over a heating element. The corrugated pipe allows for future replacement of the sensor.
• Route the heating mat's connection cable through the second corrugated pipe to the thermostat.
• Connect the heating mat, floor sensor, and power supply to the thermostat according to the wiring diagram provided with the thermostat. This must be done by a qualified electrician.

5.4. Final Flooring Installation

Once the heating mat and thermostat are installed and tested, you can proceed with laying your chosen floating floor covering (laminate, parquet, vinyl on HDF backing) directly over the aluminum heating mat. Ensure the flooring manufacturer's guidelines for underfloor heating compatibility are followed.

6. E51 Digital Thermostat Operation

The E51 digital thermostat provides precise control over your underfloor heating system with various features for comfort and energy efficiency.

6.1. Асноўныя магчымасці

• Штотыднёвае праграмаванне: Set custom heating schedules for 5/2, 6/1, or 7-day cycles.
• Функцыя абароны ад замярзання: Automatically activates heating if the temperature drops below a set minimum to prevent freezing.
• Key Lock/Child Lock: Прадухіляе несанкцыянаваную змену налад.
• Actual/Set Temperature Display: Shows both the current room/floor temperature and your desired set temperature.
• Аўтаматычная актывацыя: Heats automatically when the actual temperature falls below the set temperature.

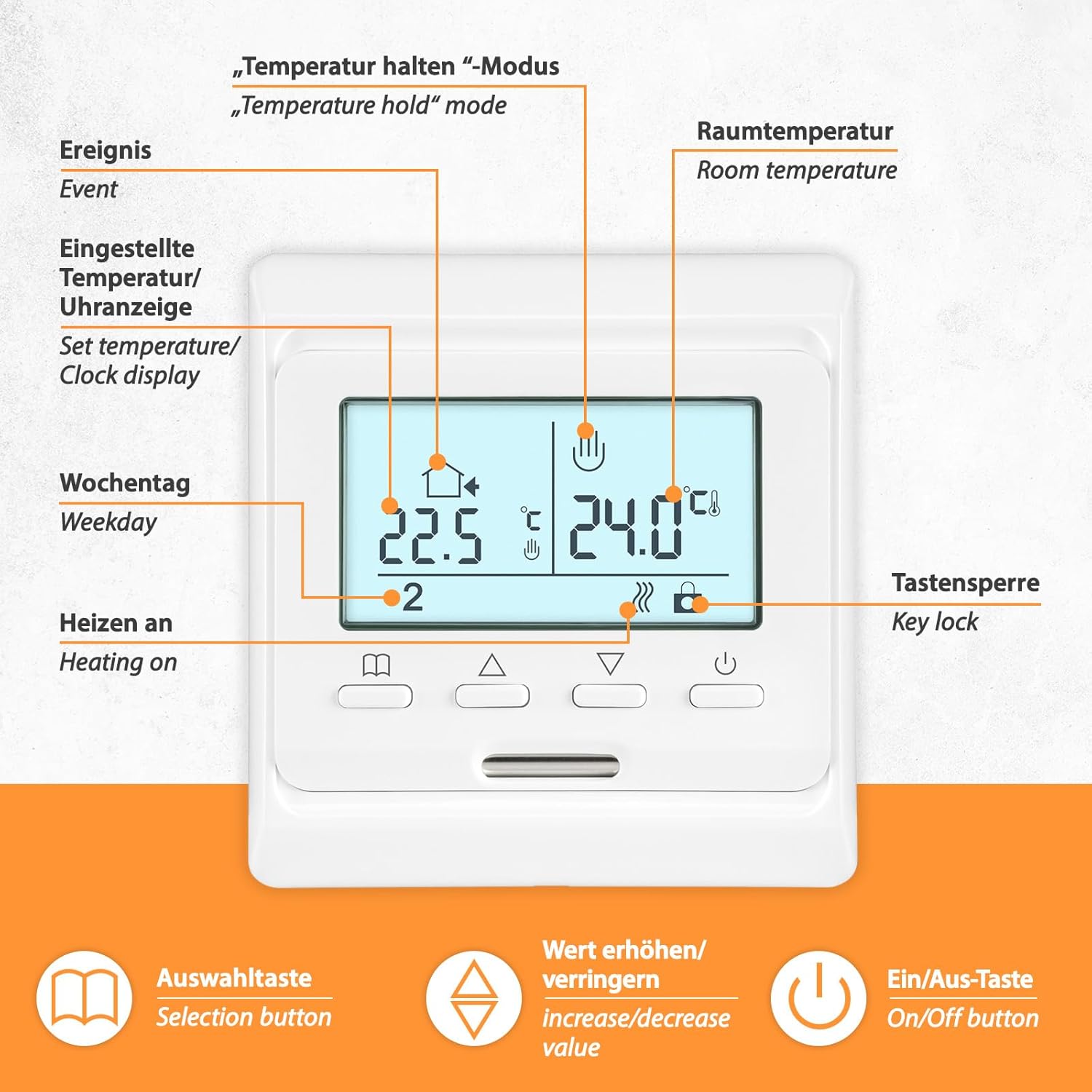

6.2. Controls and Display Elements

• Дысплей: Shows room temperature, set temperature, time, day of the week, heating status, and key lock status.
• Кнопка выбару: Выкарыстоўваецца для навігацыі па меню і пацверджання выбару.
• Increase/Decrease Value Buttons: Adjust temperature settings, time, and program parameters.
• Кнопка ўключэння/выключэння: Уключае або выключае тэрмастат.
• "Temperature Hold" Mode: Allows temporary override of programmed settings.

6.3. Асноўная аперацыя

1. Уключэнне/выключэнне харчавання: Press the On/Off button to switch the thermostat on or off.
2. Налада тэмпературы: Use the increase/decrease buttons to adjust the desired temperature. The thermostat will automatically maintain this temperature.
3. Праграмаванне: Refer to the detailed instructions in the thermostat's specific manual for setting weekly programs, time, and other advanced features.
4. Блакаванне ключа: Activate the key lock function to prevent accidental changes. Consult the thermostat manual for activation/deactivation steps.

7. Тэхнічнае абслугоўванне

• The heating mat itself requires no maintenance once installed.
• Clean the thermostat regularly with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ensure the thermostat's ventilation slots are not blocked to allow for proper temperature sensing.
• Periodically check the electrical connections for any signs of wear or damage. This should be done by a qualified electrician.

8. Выпраўленне непаладак

9. Гарантыя і падтрымка

For warranty information, technical support, or spare parts availability, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.
