Уводзіны
This manual provides comprehensive instructions for the safe and effective installation, operation, and maintenance of your Homelite 2700 PSI Pressure Washer Pump. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent injury or damage.
Інфармацыя па бяспецы
Always observe the following safety precautions when working with pressure washer pumps:
- Disconnect the pressure washer from its power source (engine off, spark plug wire disconnected) before performing any maintenance or installation.
- Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны, у тым ліку ахоўнымі акулярамі і пальчаткамі.
- Ensure all connections are secure to prevent leaks and potential hazards.
- Do not operate the pump without water supply, as this can cause severe damage.
- Трымайце дзяцей і хатніх жывёл далей ад працоўнай зоны.
Змест пакета
Праверце, ці ўсе пералічаныя ніжэй прадметы ўваходзяць у вашу ўпакоўку:
- Homelite 2700 PSI Pressure Washer Pump
- Mounting bolts and lock washers
- Ключ вала
- Цеплавой скідны клапан
- Outlet spin connector end for twist-type pressure hose
- Інструкцыі па ўстаноўцы (гэтае кіраўніцтва)
Image: The Homelite 2700 PSI Pressure Washer Pump shown with its accompanying parts, including mounting bolts, washers, and a shaft key.
Сумяшчальнасць
This replacement pump is designed for specific pressure washer configurations. Please ensure your unit meets the following requirements:
- Тып вала: Гэты помпа прызначаны для 3/4 inch horizontal shaft motors only. It is not compatible with vertical shaft engines.
- Тып помпы: This pump does not work with radial strap pumps.

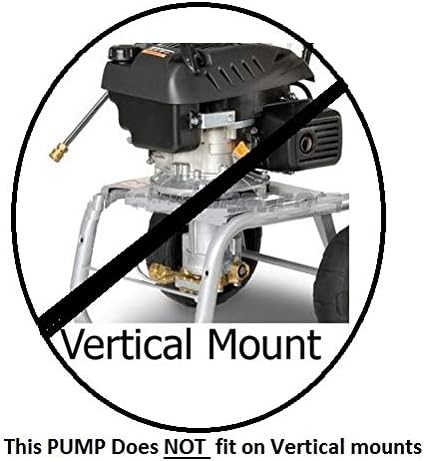

Image: A visual warning indicating that this pump is not suitable for vertical mount pressure washer engines.

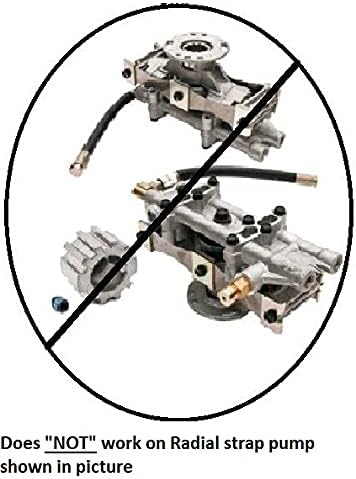

Image: A visual warning indicating that this pump is not compatible with radial strap pump designs.
Настройка і ўстаноўка
Follow these steps to install your new pressure washer pump:
- Падрыхтоўка: Ensure the pressure washer engine is off and cooled down. Disconnect the spark plug wire for safety. Remove the old pump by unbolting it from the engine.
- Чысты вал: Clean the engine's drive shaft thoroughly to remove any rust or debris.
- Install Shaft Key: Insert the provided shaft key into the keyway on the engine's drive shaft. Applying a small amount of lubricant to the shaft key can help it stay in place during installation.
- Mount New Pump: Carefully slide the new pump onto the engine's drive shaft, aligning the keyway on the pump with the shaft key. Ensure the pump seats fully against the engine.
- Бяспечны помпа: Use the provided mounting bolts and lock washers to secure the pump to the engine. Tighten the bolts evenly and securely.
- Падключыце шлангі: Connect the water inlet hose to the pump's inlet port and the high-pressure outlet hose to the pump's outlet spin connector. Ensure all connections are tight.
- Install Thermal Relief Valve: Install the thermal relief valve into its designated port on the pump.
- Канчатковая праверка: Double-check all connections and ensure the pump is securely mounted before proceeding to operation.
Інструкцыя па эксплуатацыі
Once the pump is installed, follow your pressure washer's engine starting procedure. Ensure a continuous water supply is connected and turned on before starting the engine. Squeeze the spray gun trigger to purge air from the system before applying pressure. Refer to your pressure washer's main manual for specific operating instructions.
Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and performance of your pump:
- Водазабеспячэнне: Always ensure a clean, adequate water supply to prevent cavitation and pump damage.
- Зімоўка: In freezing temperatures, drain all water from the pump or use a pump protector/antifreeze solution to prevent damage.
- захоўванне: Store the pressure washer in a dry, protected area when not in use.
- Праверка на ўцечкі: Periodically inspect for leaks around connections and seals. Address any leaks promptly.
Ліквідацыю непаладак
If you encounter issues, consider the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Ціск адсутнічае або нізкі ціск | Insufficient water supply, air in pump, clogged nozzle, worn seals | Check water source, purge air by squeezing trigger, clean/replace nozzle, inspect/replace seals. |
| Уцечка вады з помпы | Loose connections, damaged O-rings/seals, cracked housing | Tighten connections, replace O-rings/seals, inspect for physical damage. |
| Помпа выдае незвычайны шум | Air in pump, cavitation, loose components | Purge air, ensure adequate water supply, check for loose bolts. |
Тэхнічныя характарыстыкі
- Марка: Гамэліт
- Нумар мадэлі: HLNEWPump
- Рэйтынг ціску: 2700 PSI (як паказана ў назве прадукту)
- Сумяшчальнасць вала: 3/4 inch Horizontal Shaft
- матэрыял: Алюміній, пластык
- Вага прадмета: 2 фунта
- UPC: 036663577016
Гарантыя і падтрымка
For warranty information or technical support, please refer to the original pressure washer manufacturer's documentation or contact Homelite customer service directly. Keep your purchase receipt as proof of purchase.
