Уводзіны
Thank you for choosing the VIGO Ileana Single Handle Single-Hole Bathroom Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read all instructions carefully before beginning installation and retain this manual for future reference.

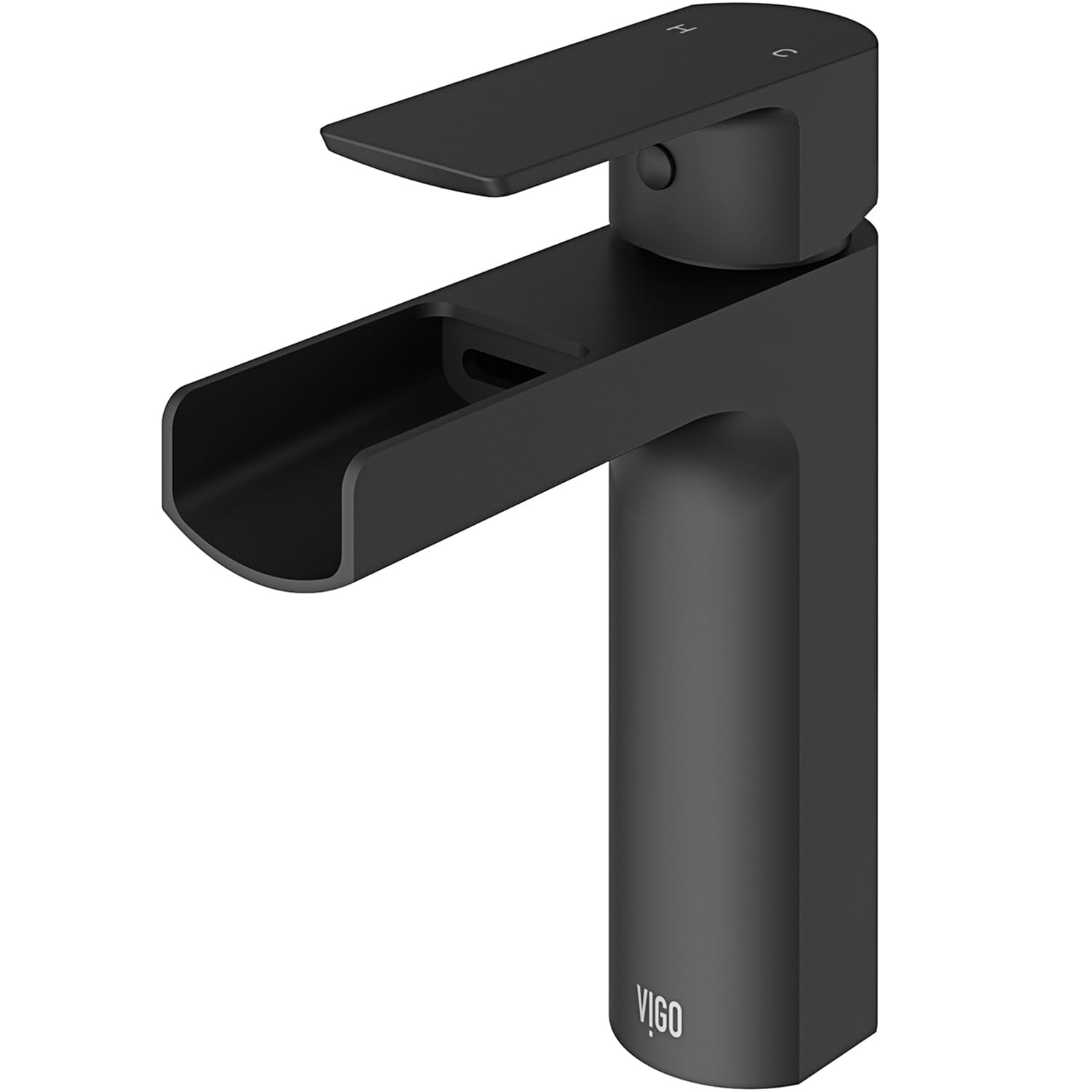

Image: VIGO Ileana Single Handle Single-Hole Bathroom Faucet in Matte Black, showcasinг яго элегантны дызайн.
Інфармацыя па бяспецы
ПАПЯРЭДЖАННЕ: California Residents - See Prop 65 WARNINGS for more information.
Always turn off the main water supply before attempting any plumbing work. Ensure all connections are secure to prevent leaks. If you are unsure about any installation steps, consult a qualified plumber. Wear appropriate personal protective equipment, such as safety glasses, during installation.
Змест пакета
Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:
- VIGO Ileana Faucet Body
- Мантажнае абсталяванне
- Hot and Cold Water Supply Lines (Metal-braided PEX)
- Optional Deck Plate (for 3-hole installations)
Інструкцыя па ўстаноўцы
This faucet is designed for single-hole installation. For 3-hole sinks, an optional deck plate is included. Standard US 3/8-inch plumbing connections and a 1-3/8-inch hole opening are required.
Image: Illustration detailing the 3/8-inch plumbing connections and 1 3/8-inch hole opening required for installation.
Пакрокавае кіраўніцтва:
- Падрыхтуйце ракавіну: Ensure the sink hole is clean and free of debris. If using the optional deck plate for a 3-hole sink, place it over the holes.
- Усталюйце кран: Insert the faucet body through the sink hole (and deck plate, if used). From underneath the sink, secure the faucet using the provided mounting hardware (washer and mounting nut). Tighten firmly but do not overtighten.
- Падключэнне ліній водазабеспячэння: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Connect the other ends of the supply lines to your hot and cold water shut-off valves. Ensure all connections are hand-tightened, then use a wrench for a quarter turn to secure.
- Тэст на ўцечкі: Slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks occur, tighten the connections slightly until they stop.
- Змыйце кран: Turn on the faucet and let the water run for a few minutes to flush out any debris from the lines.
Відэа пра ўстаноўку:
Video: Official VIGO product video demonstrating the installation process and features of the Ileana faucet.
Інструкцыя па эксплуатацыі
The VIGO Ileana faucet features a single handle for controlling both water temperature and flow. The unique waterfall spout design provides a gentle cascade of water.
Image: The VIGO Ileana faucet in operation, demonstrating the elegant waterfall flow.
- Паток вады: Lift the handle to turn on the water. The further you lift, the greater the flow.
- Кантроль тэмпературы: Move the handle to the left for hot water and to the right for cold water. Adjust the position to achieve your desired temperature.
- Сертыфікавана WaterSense: This faucet operates at 1.2 Gallons Per Minute (GPM), providing efficient water usage without compromising performance.
Image: Close-up of the faucet highlighting its 1.2 GPM flow rate and WaterSense certification for water efficiency.
Тэхнічнае абслугоўванне
To maintain the appearance and functionality of your VIGO Ileana faucet, follow these guidelines:
- Уборка: Рэгулярна чысціце кран мяккай тканінай і мяккім мылам. Пазбягайце абразіўных ачышчальнікаў, агрэсіўных хімікатаў або абразіўных губак, бо яны могуць пашкодзіць пакрыццё.
- Spot Resistance: The matte black finish is designed to resist fingerprints and water spots, requiring minimal effort to keep it looking clean.
- Керамічны дыскавы клапан: The faucet is equipped with a durable Sedal ceramic disc valve, tested for over 500,000 uses, ensuring long-lasting, drip-free performance.
Выява: Разабраная view illustrating the internal Sedal ceramic disc valve, highlighting its robust construction.
Ліквідацыю непаладак
If you encounter issues with your faucet, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Нізкі расход вады | Засмечаны аэратар або смецце ў падаючых трубах. | Remove and clean the aerator. Flush supply lines by disconnecting them from the faucet and running water into a bucket. |
| Уцечкі з крана | Няшчыльныя злучэнні або пашкоджаныя ўшчыльняльныя кольцы/картрыдж. | Check and tighten all supply line connections. If leaking from the handle or spout, the ceramic disc cartridge may need inspection or replacement. |
| Праблемы з тэмпературай вады | Incorrect supply line connections or issues with water heater. | Verify hot and cold supply lines are connected correctly. Check your water heater settings. |
Тэхнічныя характарыстыкі
Detailed technical specifications for the VIGO Ileana Faucet:
| Асаблівасць | Дэталь |
|---|---|
| Марка | ВІГА |
| Назва мадэлі | Ileana |
| Нумар мадэлі | VG01042MB |
| Тып аздаблення | Матавы чорны |
| Матэрыял | Латунь |
| Тып мацавання | Палубная гара |
| Колькасць лунак | 1 |
| Колькасць ручак | 1 |
| Тып ручкі | Рычаг |
| Дызайн выліўнога патрубка | Вадаспад |
| Хуткасць патоку | 1.2 літра ў хвіліну |
| Тып клапана | Disc Valve (Sedal Ceramic) |
| Вага прадмета | 4 фунта |
| Вышыня носіка | 4.5 цалі |
| Носік дабрацца | 4.75 цалі |
| Дыяметр мантажных адтулін | 1.38 цалі |
| Даўжыня шланга | 6.75 цалі |
| Сертыфікаты | CUPC, NSF-61, AB1953, WaterSense |
Image: Technical drawing providing detailed dimensions for the VIGO Ileana faucet, including front and side views.
Прадукт скончаныview Відэа:
Video: A 360-degree spin video showcasing the VIGO Ileana faucet from all angles, useful for visual inspection.
Гарантыя і падтрымка
The VIGO Ileana Faucet comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official VIGO webсайт.
For technical assistance, replacement parts, or any other inquiries, please contact VIGO customer support. Contact information can typically be found on the VIGO webна сайце або ў чэку аб куплі.
