KZYEE KS21 Auto Battery Tester User Manual

1. Уводзіны

The KZYEE KS21 Auto Battery Tester is a professional diagnostic tool designed to test 12V automotive batteries. It provides a quick and accurate analysis of battery health, cranking system performance, and charging system efficiency. This manual provides detailed instructions for the proper use and maintenance of your KS21 tester.

2. Прадукт скончыўсяview

2.1 Асноўныя магчымасці

• Tests 9-12 Volt batteries from 100 to 1700 CCA.
• Compatible with various battery types: Regular Flooded, Gel, AGM Flat Plate, AGM Spiral, and Deep Cycle batteries.
• Analyzes battery health (CCA value, voltage, internal resistance, battery life percentagе).
• Performs cranking system tests to evaluate starter motor performance.
• Conducts charging system tests to assess generator, rectifier, and rectifier diode function.
• Features reverse polarity protection for safe operation.
• Does not emit light, heat, or sparks, and does not discharge the battery during testing.
• Automatic temperature compensation for accurate results.

2.2 Змест пакета

• KZYEE KS21 Auto Battery Tester Unit
• Кіраўніцтва карыстальніка

Image 1: KZYEE KS21 Battery Tester demonstrating compatibility with various 12V lead-acid battery types.

3. Інфармацыя па бяспецы

Always observe the following safety precautions when using the KZYEE KS21 Battery Tester:

• Wear appropriate eye protection and protective clothing when working near batteries.
• Ensure good ventilation in the work area to prevent accumulation of explosive gases.
• Avoid sparks, flames, and smoking near batteries.
• Keep the tester dry and clean. Do not operate in wet conditions.
• Do not attempt to disassemble or modify the tester.
• The tester is designed with reverse polarity protection, but always double-check connections to prevent damage to the vehicle or tester.

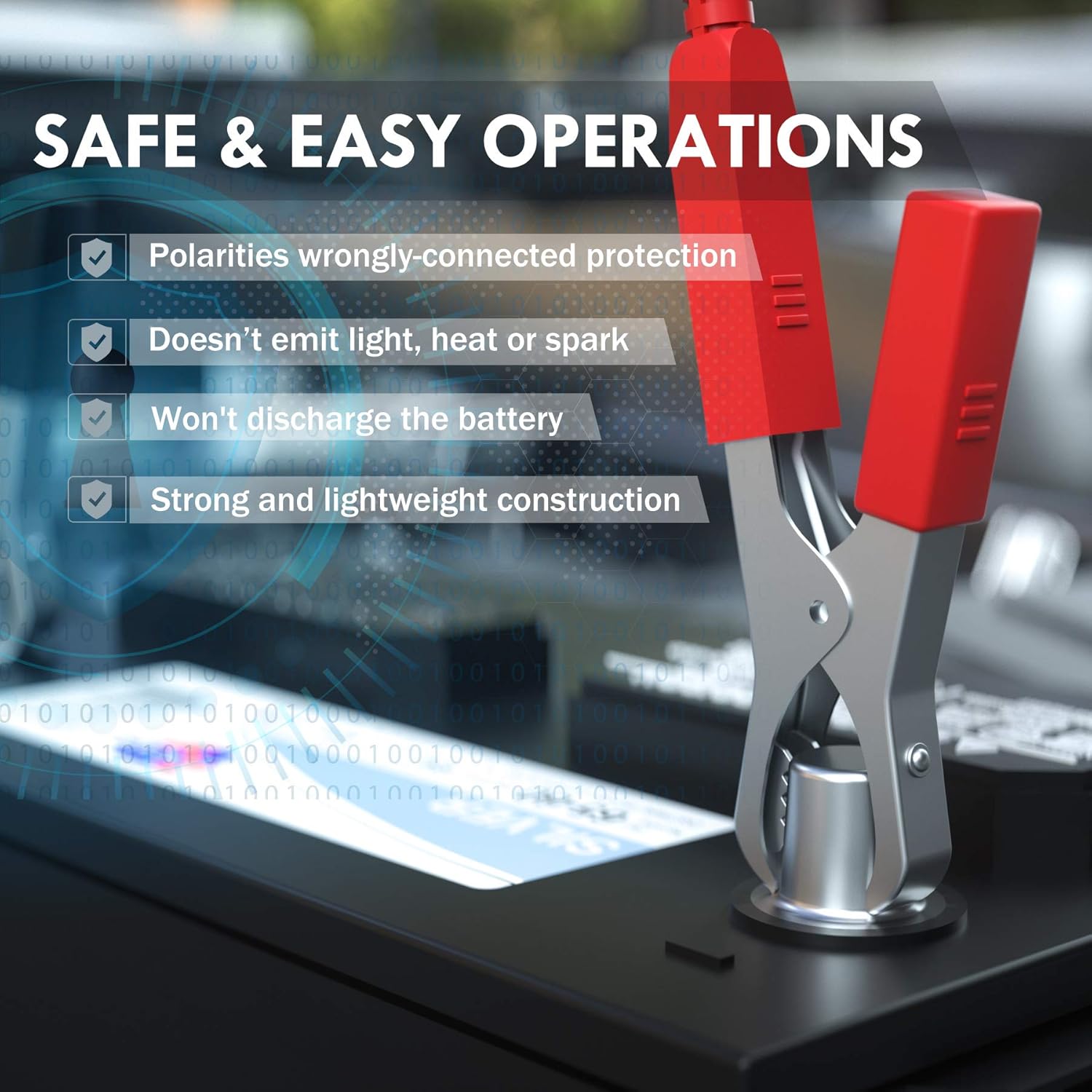

Image 2: The KS21 tester's clamps connected to a battery, illustrating safe and easy operation.

4. Настройка

1. Пераканайцеся, што запальванне аўтамабіля выключана, а ўсе аксэсуары адключаны.
2. Ачысціце клемы акумулятара, каб забяспечыць добры кантакт.
3. Злучыць чырвоны склamp тэстара да станоўчага (+) вываду акумулятара.
4. Злучыць чорны склamp тэстара да адмоўнага (-) вываду акумулятара.
5. The tester will power on automatically once connected correctly.

5. Інструкцыя па эксплуатацыі

The KZYEE KS21 offers three main testing functions: Battery Test, Cranking Test, and Charging Test. Use the "UP" and "DOWN" arrow buttons to navigate the menu and "ENTER" to select.

Image 3: Main functions display on the KZYEE KS21 tester.

5.1 Тэст акумулятара

1. From the main menu, select "1. Battery Test" and press "ENTER".
2. Input the battery's Cold Cranking Amps (CCA) rating as specified on the battery label. Use the arrow buttons to adjust the value and "ENTER" to confirm.
3. The tester will display the battery's health status, including CCA value, voltage, internal resistance, and remaining life percentage.

5.2 Cranking System Test (Start-up Test)

1. From the main menu, select "3. Start-up Test" and press "ENTER".
2. Follow the on-screen prompts to start the vehicle's engine.
3. The tester will analyze the cranking voltage and cranking time, providing a diagnosis of the starter system's performance.

5.3 Charging System Test (Charge Test)

1. From the main menu, select "2. Charge Test" and press "ENTER".
2. Follow the on-screen prompts, which may include revving the engine to a specific RPM.
3. The tester will evaluate the generator's output voltage, rectifier, and rectifier diode, indicating if the charging system is functioning correctly.

5.4 Interpreting Battery Test Results

The battery test results provide a clear indication of the battery's condition. Refer to the table below for guidance:

Image 4: Interpretation of battery test results based on battery life percentage.

6. Тэхнічнае абслугоўванне

• Keep the tester clean and dry. Wipe with a soft, damp пры неабходнасці тканіна.
• Store the tester in a safe place, away from extreme temperatures and direct sunlight.
• Inspect the cables and clampрэгулярна правярайце на наяўнасць пашкоджанняў. Пры неабходнасці замяняйце.

7. Выпраўленне непаладак

• Тэстар не ўключаецца: Пераканайцеся, што клamps are securely connected to the correct battery terminals. Check for corrosion on battery terminals.
• Няправільныя паказанні: Ensure battery terminals are clean. Verify the correct CCA value is entered for the battery test.
• "Reverse Polarity" error: Disconnect immediately and re-connect the red clamp да станоўчага (+) і чорнага колеруamp да адмоўнага (-).

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

The KZYEE KS21 Auto Battery Tester comes with a Two Years Warranty from the date of purchase. For technical support, warranty claims, or service inquiries, please contact KZYEE customer service through their official webсайт або прадаўца, дзе быў набыты прадукт. Калі ласка, захавайце пацвярджэнне пакупкі для пацверджання гарантыі.
