1. Уводзіны
Thank you for choosing the Toorx BRX-9000 Self-Powered Ergometer Exercise Bike. This professional-grade fitness equipment is designed to provide an effective and comfortable workout experience. The BRX-9000 features a self-powered system, eliminating the need for external power sources, and offers a wide range of programs and resistance levels to suit various fitness goals. This manual provides essential information for the safe assembly, operation, and maintenance of your exercise bike.
2. Важная інфармацыя па бяспецы
Before using the Toorx BRX-9000, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the equipment.
- Пракансультуйцеся з урачом перад пачаткам любой праграмы практыкаванняў.
- Трымайце дзяцей і хатніх жывёл далей ад абсталявання падчас выкарыстання.
- Пастаўце велатрэнажор на ўстойлівую, роўную паверхню з дастатковай прасторай вакол яго.
- Перад кожным выкарыстаннем пераканайцеся, што ўсе балты і гайкі надзейна зацягнуты.
- The maximum user weight for this equipment is 180 кг (396 фунтаў)Не перавышайце гэтую мяжу.
- Апранайце адпаведную спартыўную вопратку і абутак. Пазбягайце свабоднай вопраткі, якая можа трапіць у рухомыя часткі.
- Неадкладна спыніце практыкаванні, калі вы адчуваеце слабасць, галавакружэнне або боль.
- Do not attempt to service the equipment beyond the instructions in this manual. Contact qualified personnel for repairs.
3. Налада і зборка
The Toorx BRX-9000 requires some assembly. Please follow the detailed assembly instructions provided in the separate assembly guide that came with your product. Once assembled, ensure the following:
- Размяшчэнне: Position the bike on a flat, stable surface. Ensure there is at least 0.6 meters (2 feet) of clear space around the equipment for safe operation and access.
- Стабільнасць: Check that the bike is stable and does not wobble. Adjust the leveling feet if necessary.
- Self-Powered System: The BRX-9000 is self-powered. Begin pedaling to activate the console. No external power connection is required.
- Першапачатковая праверка: Before your first workout, perform a quick check of all moving parts, ensuring they operate smoothly and all connections are secure.
4. Інструкцыя па эксплуатацыі
4.1 Кансольная перадачаview
The BRX-9000 features an intuitive console with multiple displays and control buttons.
Малюнак 1: The console of the Toorx BRX-9000, showing the main LED displays and control buttons for program selection and resistance adjustment.
The console includes 6 red LED displays for primary workout data and 1 green LED diagram for program profiles. Information displayed includes:
- ЧАС: Працягласць вашай трэніроўкі.
- ХУТКАСЦЬ: Бягучая хуткасць язды на ровары.
- ДАСТАЎКА: Агульная адлегласць, пройдзеная падчас трэніроўкі.
- КАЛОРЫІ: Прыблізная колькасць спаленых калорый.
- ЧСС: Your current heart rate (requires hand sensors or chest strap).
- Абароты ў хвіліну: Абароты ў хвіліну (кадэнцыя кручэння педаляў).
- ВАТ: Power output in watts.
Use the control buttons (e.g., MODE, START/STOP, +, -) to navigate menus, select programs, and adjust resistance levels.
4.2 праграм
The BRX-9000 offers a variety of workout programs:
- Кіраўніцтва: Allows you to control resistance manually throughout your workout.
- 12 загадзя вызначаных праграм: Various intensity profiles for different fitness goals.
- 4 User Programs: Customize and save your own workout profiles.
- HRC (Heart Rate Control): Programs that adjust resistance to maintain a target heart rate zone.
- Ват: Programs that maintain a constant power output (wattage) regardless of pedaling speed.
4.3 Рэгуляванне супраціву
The exercise bike features an electronic magnetic induction braking system with 32 узроўняў супраціву. Use the '+' and '-' buttons on the console to increase or decrease the workout intensity.
4.4 Маніторынг сардэчнага рытму
Monitor your heart rate using the integrated hand pulse sensors located on the handlebars. For more accurate and continuous monitoring, the console includes a wireless receiver for a chest strap (chest strap not included).
4.5 Seat and Handlebar Adjustment
Proper adjustment of the seat and handlebars is crucial for comfort and effective exercise.

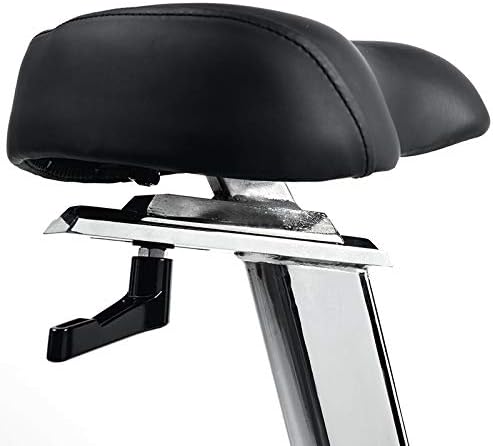

Малюнак 2: The ergonomic seat of the Toorx BRX-9000, showing the lever for horizontal and vertical adjustment to ensure optimal riding posture.
- Месца: The seat can be adjusted both horizontally and vertically. Loosen the adjustment knob/lever, slide the seat to your desired position, and then securely tighten it.
- Руль: The multi-grip handlebar with ergonomic forearm support is designed for various hand positions. Adjust its angle or height if applicable (refer to assembly guide for specific adjustment points) to find a comfortable and supportive position.
4.6 педалі
The BRX-9000 features extra-large, ergonomic pedals designed for optimal comfort and stability during your workout.

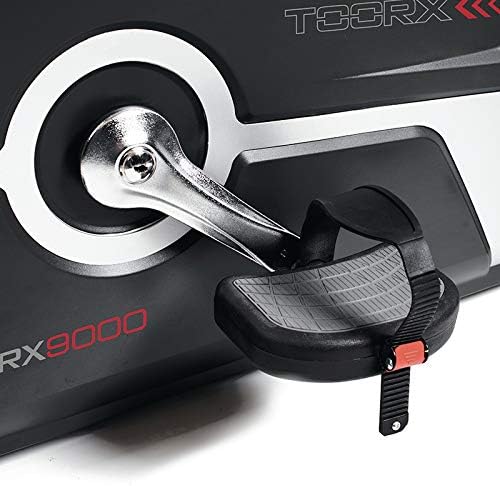

Малюнак 3: Close-up of the extra-large, ergonomic pedal on the Toorx BRX-9000, featuring an adjustable strap for secure foot placement.
Ensure your feet are securely placed in the pedal straps before beginning your workout.
5. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and safe operation of your Toorx BRX-9000.
- Уборка: Працярыце абсталяванне рэкламайamp анучай пасля кожнага выкарыстання, каб выдаліць пот і пыл. Пазбягайце абразіўных ачышчальнікаў або растваральнікаў.
- агляд: Перыядычна правярайце ўсе балты, гайкі і рухомыя дэталі на надзейнасць і знос. Падцягніце ўсе аслабленыя крапежныя элементы.
- змазка: The BRX-9000 uses a magnetic braking system and belt drive, which typically require minimal lubrication. Refer to the assembly guide for any specific lubrication points if mentioned.
- захоўванне: Store the exercise bike in a clean, dry environment away from extreme temperatures and direct sunlight.
6. Выпраўленне непаладак
This section addresses common issues you might encounter with your BRX-9000.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Console does not turn on. | Not enough pedaling to generate power. | Begin pedaling at a moderate pace to activate the self-powered system. |
| Resistance does not change. | Electronic adjustment issue or internal fault. | Ensure console buttons are functioning. If issue persists, contact customer support. |
| Heart rate reading is inaccurate or absent. | Improper hand placement on sensors; dry hands; chest strap not paired or faulty. | Ensure firm, consistent contact with hand sensors. Moisten hands slightly if dry. Check chest strap battery and pairing. |
| Bike wobbles during use. | Uneven surface; loose frame bolts. | Adjust leveling feet on the base of the bike. Check and tighten all assembly bolts. |
For issues not listed here or if solutions do not resolve the problem, please contact Toorx customer support.
7. Тэхнічныя характарыстыкі прадукту
Detailed technical specifications for the Toorx BRX-9000 Ergometer Exercise Bike:
- мадэль: BRX-9000
- Тармазная сістэма: Магнітная індукцыя
- Узроўні супраціву: 32 (Electronic Adjustment)
- Сістэма харчавання: Аўтаномнае харчаванне
- Дысплей: 6 Red LED displays + 1 Green LED diagram
- Displayed Information: Time, Speed, Distance, Calories, Heart Rate, RPM, Watt
- праграмы: Manual, 12 Predefined, 4 User, HRC, Watt
- Маніторынг сардэчнага рытму: Hand Pulse Sensors, Integrated Wireless Receiver for Chest Strap (chest strap not included)
- Рэгуляванне сядзення: Гарызантальны і вертыкальны
- Руль: Multi-grip with Ergonomic Forearm Support
- Педалі: Extra-large, Ergonomic
- Максімальная вага карыстальніка: 180 кг (396 фунтаў)
- Памеры (Д х Ш х У): 110 х 59 х 148 см (43.3 х 23.2 х 58.3 цалі)
- Вага прадукту: 70 кг (154 фунтаў)
8. Гарантыя і падтрымка
The Toorx BRX-9000 Ergometer Exercise Bike comes with a Гарантыя 2 год з даты пакупкі. Гэтая гарантыя распаўсюджваецца на вытворчыя дэфекты пры нармальных умовах выкарыстання.
For warranty claims, technical support, or replacement parts, please contact your retailer or the official Toorx customer service. Keep your proof of purchase for warranty validation.
For further assistance, please refer to the contact information provided with your product packaging or visit the official Toorx webсайт.
