Уводзіны
This manual provides essential information for the installation, operation, and maintenance of the Endurance Pro S97012038 Ventilation Fan Motor and Blower Wheel. This product is designed as a replacement part for various Broan Nutone ventilation fan models. Proper installation and maintenance are crucial for ensuring the longevity and efficient operation of your ventilation system.
Прадукт скончаныview
The Endurance Pro S97012038 is a replacement motor and blower wheel assembly for bathroom exhaust fans. It is designed to restore proper ventilation by moving odor, steam, and hot vapor. The motor is UL certified for stable and durable operation.
Змест пакета:
- 1 x Ventilation Fan Motor
- 1 x Blower Wheel Fan Blade
Image: The Endurance Pro S97012038 ventilation fan motor and blower wheel, shown assembled for reference. Note that the product ships unassembled.
Сумяшчальнасць
This replacement part is compatible with the following Broan Nutone models:
- Broan Nutone 659, 662, 663A, 663B, 663C, 663D, 663E
- Broan Nutone 668, 688, 678, 678B
- Broan Nutone 688A, 688B, 688C, 688D, 688E
Important: Verify your appliance's model number before purchase. Model numbers are typically found on a sticker or plate on the appliance itself, not solely on the user manual cover. Ensure an exact fit for proper function.
Image: An illustration demonstrating where to locate the model number on an appliance's identification sticker or plate.
Інструкцыя па ўстаноўцы
Safety First: Before beginning any installation, ensure the power supply to the ventilation fan is completely disconnected at the circuit breaker. Failure to do so may result in electrical shock or injury.
- Access the Fan Unit: Carefully remove the fan cover and any light fixtures to expose the motor and blower wheel assembly.
- Адлучыце стары рухавік: Disconnect the wiring from the old motor. Note the orientation of the wires and the plug.
- Remove Old Motor and Blower Wheel: Unscrew or unclip the old motor from its housing. Carefully remove the old blower wheel from the motor shaft.
- Праверце і падрыхтуйце: Clean any dust or debris from the fan housing. Inspect the existing fan blade if you intend to reuse it.
- Assemble New Motor and Blower Wheel: The new motor and blower wheel come unassembled. Slide the new blower wheel onto the motor shaft. Ensure it is securely fastened. Note: Some installations may require reusing the original fan blade if the new one does not fit perfectly or if the shaft length requires adjustment.
- Усталюйце новы рухавік: Secure the new motor into the fan housing using the existing mounting points. Ensure it is stable and properly aligned.
- Падключэнне правадоў: Connect the new motor's 2-prong plug to the fan unit's power receptacle. Ensure connections are secure.
- Тэставая аперацыя: Before reattaching the cover, restore power at the circuit breaker and briefly test the fan to ensure it operates smoothly and quietly. If any unusual noise or vibration occurs, disconnect power and re-check the installation.
- Зборка: Once confirmed operational, disconnect power again, then reattach the fan cover and any light fixtures. Restore power.
Image: The Endurance Pro S97012038 motor and blower wheel shown separately, illustrating how they are packaged and need to be assembled.
Аперацыя
Once installed, the Endurance Pro S97012038 motor and blower wheel will operate automatically when the ventilation fan is switched on. The fan is designed for continuous duty, providing effective air movement to remove moisture and odors from your bathroom.
Expected performance:
- Airflow: 50 CFM (Cubic Feet per Minute)
- Speed: 3000 RPM (Revolutions Per Minute)
- Rotation: CCW (Counter-Clockwise)
Тэхнічнае абслугоўванне
Regular maintenance helps ensure optimal performance and extends the life of your ventilation fan motor.
- Уборка: Periodically remove the fan cover and gently clean the blower wheel and motor housing to remove accumulated dust and debris. Use a soft brush or vacuum cleaner. Ensure power is disconnected before cleaning.
- змазка: The motor's bearings are typically sealed and do not require lubrication. If the motor begins to produce unusual noise, it may indicate wear. Do not attempt to lubricate sealed bearings.
- агляд: Annually inspect the motor and blower wheel for any signs of wear, damage, or corrosion. Check wiring for secure connections.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Вентылятар не ўключаецца | No power, loose wiring, faulty switch, motor failure | Check circuit breaker. Ensure all wiring connections are secure. Test the wall switch. If motor is new and correctly installed, contact support. |
| Fan is noisy or vibrating | Blower wheel unbalanced, debris in fan housing, motor mounting loose, worn motor bearings | Disconnect power and clean the blower wheel and housing. Ensure blower wheel is securely attached to the shaft. Tighten motor mounting screws. If noise persists, motor bearings may be worn. |
| Fan runs slowly or with reduced airflow | Blocked airflow, dirty blower wheel, motor nearing end of life | Clean the blower wheel and fan grille. Ensure exhaust ducting is clear of obstructions. |
| Blower wheel does not fit shaft | Incorrect shaft size, manufacturing variation | Verify the shaft dimensions (3/16 x 1.75 inches). If the new blower wheel does not fit, consider reusing the original blower wheel if it is in good condition. |
Тэхнічныя характарыстыкі
- Нумар мадэлі: S97012038
- Shaft Dimensions: 3/16 inch diameter x 1.75 inches length with splines
- Даўжыня провада: 6 1/2 inches with 2-prong plug
- Fan Blade Dimensions: 4 5/8 inches x 1 1/8 inches
- тtage: 120 вольт
- Частата: 60 Гц
- Бягучы: 1 Amp
- Паток паветра: 50 CFM
- хуткасць: 3000 XNUMX абаротаў у хвіліну
- Кручэнне: CCW (Counter-Clockwise)
- матэрыял: Легаваная сталь
- Сертыфікаты: Сертыфікавана UL
- Вага прадмета: 4.2 унцый
- вытворца: Вынослівасць Pro

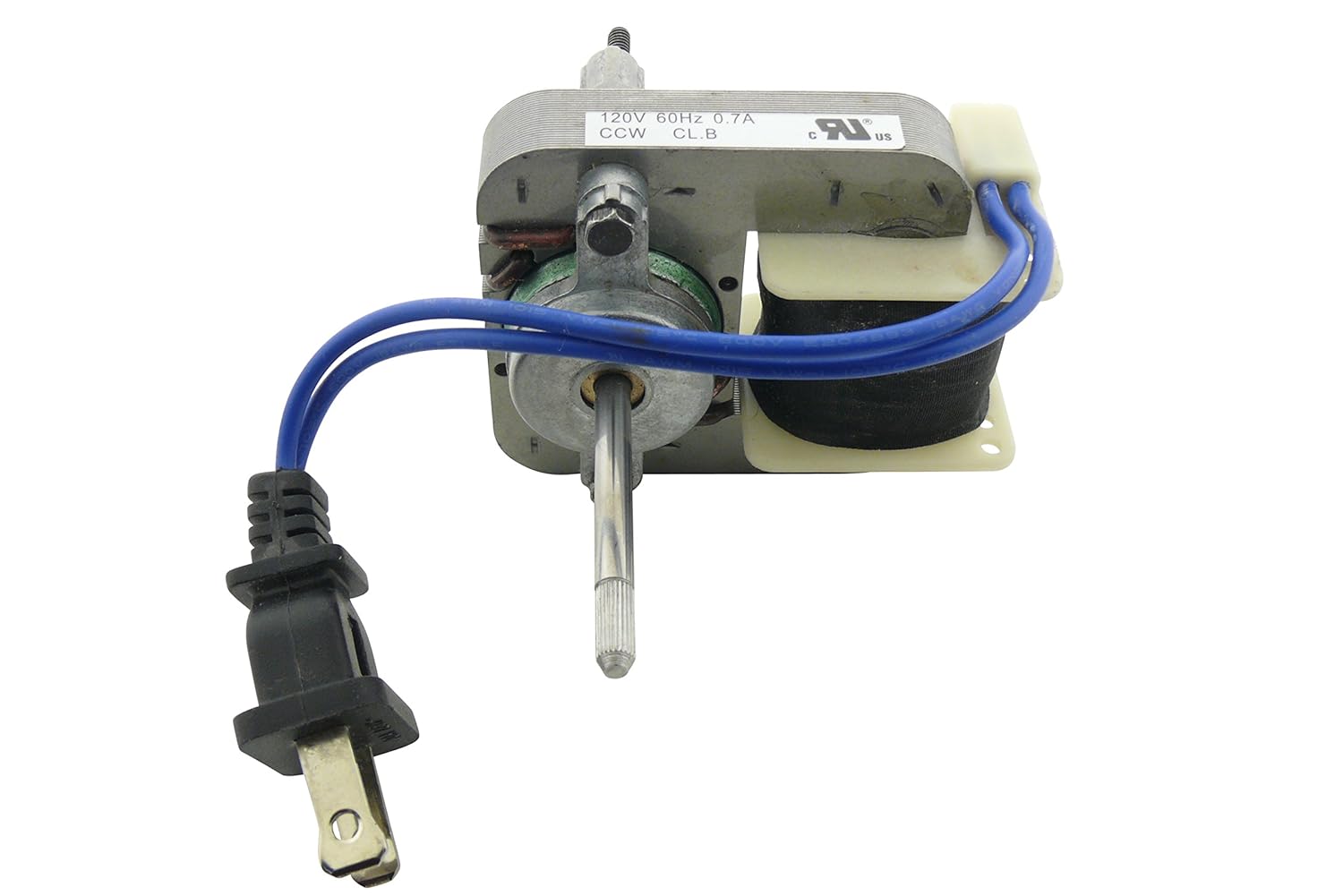

Выява: буйны план view of the Endurance Pro S97012038 motor, showing the specifications label including voltage, frequency, and rotation direction.
Гарантыя і падтрымка
The Endurance Pro S97012038 comes with a 1-year warranty. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Endurance Pro webсайт.
This product is UL/CSA approved, ensuring safe operation and long life.
