FTVOGUE Refrigerant Halogen Freon Leak Detector User Manual

1. Уводзіны

This manual provides instructions for the safe and effective use of your FTVOGUE Refrigerant Halogen Freon Leak Detector, Model B07MZ8QDMB. This device is designed to detect leaks of various halogen-containing refrigerants, including CFCs (R12, R11, R500, R503), HCFCs (R22, R123, R124, R502), and HFCs (R134a, R404a, R125), as well as AZ-50 and MP39. It features adjustable sensitivity, an audible alarm, and an indicator light to pinpoint leak locations in systems such as automotive air conditioning and HVAC units.

2. Інфармацыя па бяспецы

Калі ласка, прачытайце і зразумейце ўсе інструкцыі па тэхніцы бяспекі перад выкарыстаннем гэтай прылады. Невыкананне гэтых інструкцый можа прывесці да паражэння электрычным токам, пажару або сур'ёзных траўмаў.

• Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working with refrigerants.
• Ensure adequate ventilation in the work area to prevent the accumulation of refrigerant gases.
• Do not expose the detector to extreme temperatures or direct sunlight.
• Трымайце прыладу далей ад вады і іншых вадкасцей.
• Не спрабуйце рамантаваць або мадыфікаваць прыладу. Звяртайцеся па ўсё абслугоўванне да кваліфікаванага персаналу.
• Утылізуйце батарэйкі і прыладу ў адпаведнасці з мясцовымі правіламі.

3. Змесціва ўпакоўкі

Пераканайцеся, што ўсе прадметы наяўныя пры распакаванні:

• FTVOGUE Refrigerant Halogen Freon Leak Detector (Model B07MZ8QDMB)
• Кіраўніцтва карыстальніка
• (Batteries may or may not be included, check product packaging)

4. Прадукт скончыўсяview

Familiarize yourself with the components of your leak detector:

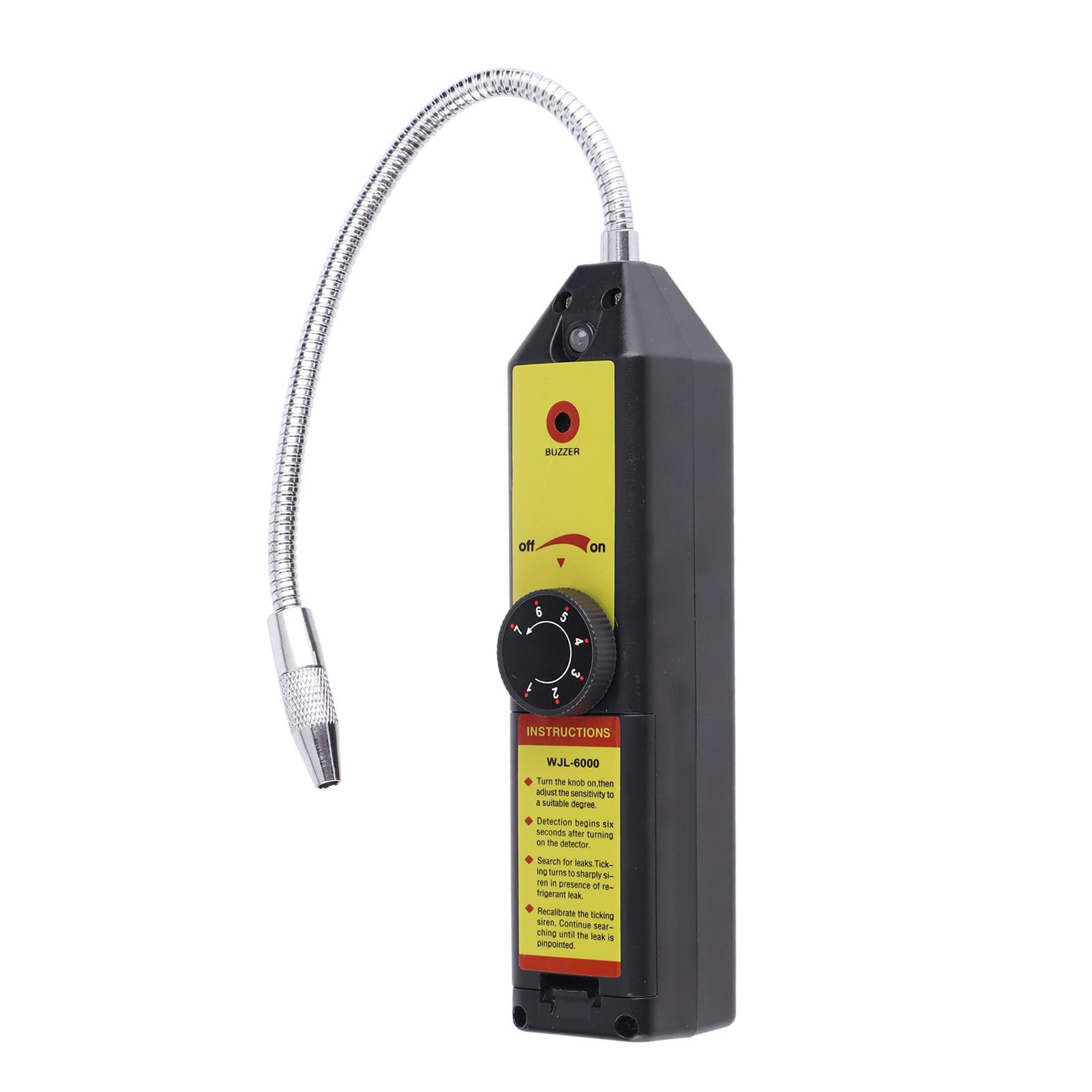

Малюнак 4.1: Фронт view of the FTVOGUE Halogen Leak Detector, showing the flexible probe and main body with a yellow label.

Малюнак 4.2: Назад view of the FTVOGUE Halogen Leak Detector, illustrating the ON/OFF switch, sensitivity adjustment dial (1-7), and buzzer indicator.

• Flexible Probe: Allows access to hard-to-reach areas for leak detection.
• Наканечнік датчыка: The detection element located at the end of the flexible probe.
• Пераключальнік уключэння/выключэння: Уключае або выключае прыладу.
• Sensitivity Adjustment Dial: A 7-level manual adjustment for detection sensitivity.
• Зуммер: Provides an audible alarm when a leak is detected.
• Светлавы індыкатар: A visual indicator that flashes more frequently as a leak is detected.
• Батарэйны адсек: Located at the bottom of the device for battery installation.

5. Настройка

5.1 Устаноўка батарэі

The device requires batteries for operation. Follow these steps to install them:

1. Locate the battery compartment cover at the bottom of the detector.
2. Зрушыце або адшчэпіце вечка, каб адкрыць адсек.
3. Устаўце патрэбныя батарэйкі, сачыце за правільнай палярнасцю (+/-).
4. Надзейна зачыніце крышку батарэйнага адсека.

6. Аперацыя

6.1 Powering On and Initial Calibration

1. Павярніце выключальнік ON/OFF у становішча «ON».
2. The detector will emit a regular beeping sound, and the indicator light will flash regularly. This indicates the device is warming up and performing initial calibration.
3. Allow approximately 6 seconds for the detector to stabilize and enter the detection state.

6.2 Рэгуляванне адчувальнасці

The detector features a 7-level manual adjustable sensitivity. Turn the sensitivity adjustment dial to a suitable degree based on the expected leak size and environmental conditions. Higher numbers indicate higher sensitivity.

6.3 Leak Detection Procedure

1. With the detector powered on and calibrated, slowly move the flexible probe around the suspected leak area.
2. When the sensor detects halogen gas, the beeping sound will become more frequent, and the indicator light will flash more rapidly. The frequency of the beeps and flashes correlates with the concentration of the detected gas.
3. Continue to move the probe to pinpoint the exact source of the leak. The highest frequency of beeps and flashes indicates the leak's origin.
4. If the detector moves away from the leak source, the beeping and flashing will return to their regular, slower pace.
5. The detector has a boot reset and automatic follow function, allowing it to ignore ambient halogen gas concentrations and focus on new leak sources.

6.4 Supported Refrigerants

This detector is capable of testing all refrigerants that contain halogen, including:

• ХФУ: 12, 11, 500, 503 руб
• HCFCs: 22, 123, 124, 502 руб
• HFCs: R134a, R404a, R125
• Also tests AZ-50, MP39.

7. Тэхнічнае абслугоўванне

• Уборка: Wipe the exterior of the detector with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Сыход за датчыкам: Keep the sensor tip clean and free from debris. Avoid touching the sensor directly.
• захоўванне: Store the detector in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods to prevent leakage.
• Замена датчыка: The sensor has a long life expectancy. If detection accuracy degrades significantly over time, the sensor may need replacement. Contact customer support for assistance.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

This FTVOGUE product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact your retailer. For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact FTVOGUE customer service through their official channels or your point of purchase.

You can visit the FTVOGUE store for more information: FTVOGUE Store
