BLACK+DECKER BESTA512CM 12-inch 3-in-1 Compact Electric Lawn Mower

Важныя інструкцыі па бяспецы

Read and understand all instructions before using this appliance. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. Save these instructions for future reference.

• Асабістая бяспека: Always wear eye protection, long pants, and sturdy footwear when operating the tool. Keep children, bystanders, and pets at a safe distance (at least 50 feet/15 meters) from the operating area.
• Электрабяспека: Use only with a properly rated extension cord suitable for outdoor use. Ensure the cord is in good condition and avoid cutting or damaging it. Disconnect the tool from the power supply before making any adjustments, cleaning, or when not in use.
• Бяспека ў рабочай зоне: Do not operate in wet conditions. Clear the work area of objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the cutting line.
• Аперацыя: Do not overreach. Maintain proper footing and balance at all times. Do not operate the tool if you are tired, ill, or under the influence of drugs or alcohol.
• Тэхнічнае абслугоўванне: Keep all guards and safety devices in place and in working order. Replace worn or damaged parts with genuine BLACK+DECKER replacement parts.

Прадукт скончаныview

The BLACK+DECKER BESTA512CM is a versatile 3-in-1 electric tool designed for lawn care. It functions as a compact lawn mower, a string trimmer, and an edger, providing flexibility for various yard maintenance tasks. Its corded electric design ensures consistent power for effective performance.

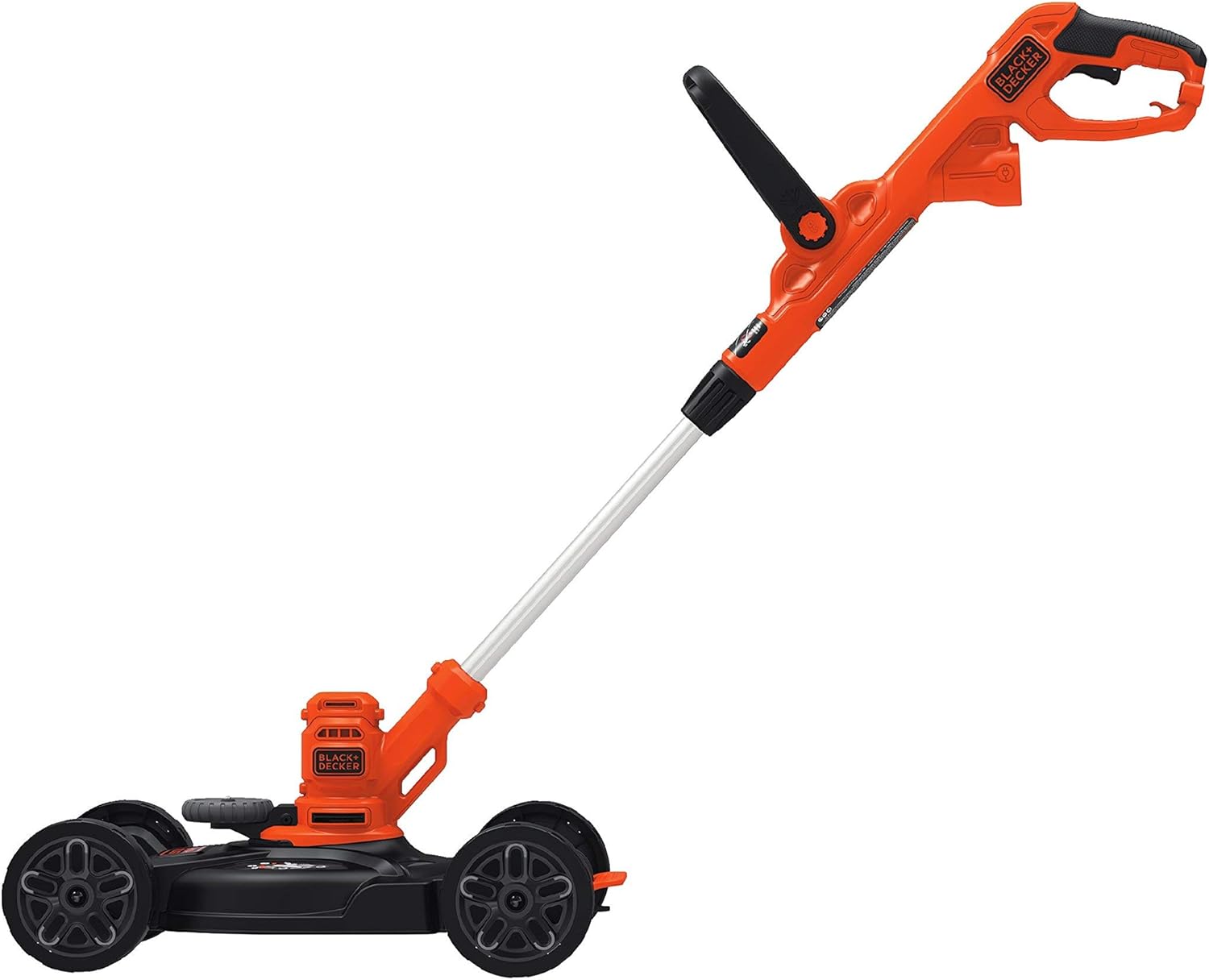

Figure 1: The BLACK+DECKER BESTA512CM 3-in-1 Compact Electric Lawn Mower in its assembled form, ready for use.

Змест пакета

Праверце, ці ёсць у вашай упакоўцы ўсе пералічаныя ніжэй прадметы:

• (1) BESTA512 String Trimmer
• (1) MTD100 Detachable Mower Deck
• (1) AF-100 Spool (pre-installed or separate)
• (1) Дапаможная ручка
• (1) Ахоўнік
• Кіраўніцтва па эксплуатацыі

зборка

Follow these steps to assemble your 3-in-1 lawn care tool:

1. Прымацуйце дапаможную ручку: Slide the auxiliary handle onto the main shaft and secure it at a comfortable position using the provided fasteners.
2. Усталюйце ахоўную прыладу: Position the guard over the cutting head and fasten it securely with the screws or clips provided. Ensure it is firmly in place before operation.
3. Connect to Mower Deck: Align the string trimmer with the MTD100 mower deck. Slide the trimmer into the deck until it clicks securely into place. Ensure the connection is firm and stable.

Figure 2: Illustrates the assembly process, showing the string trimmer component being attached to the mower deck.

Настройка

Before operating, ensure the tool is properly set up for your task:

1. Адрэгуляваць вышыню ручкі: Loosen the adjustment collar on the main shaft and extend or retract the shaft to a comfortable operating height. Tighten the collar firmly.
2. Adjust Cutting Height (Mower Mode): The mower deck offers fixed cutting heights of 1.6 inches and 2.4 inches. Ensure the trimmer is correctly seated in the deck for the desired height.
3. Кіраванне шнуром: Use the cord retention system to prevent accidental disconnection of the extension cord during operation.

Figure 3: A user demonstrating the tool's use in edging mode, highlighting proper posture and handling.

Інструкцыя па эксплуатацыі

Always wear appropriate safety gear, including eye protection, before starting the tool.

Касіць

• Ensure the trimmer is securely attached to the mower deck.
• Plug the tool into a suitable extension cord.
• Start the tool and push it forward in overlapping rows, similar to a traditional lawn mower.
• Avoid cutting wet grass, as this can clog the tool and reduce efficiency.

Figure 4: A user demonstrating the tool in mowing configuration, cutting grass on a residential lawn.

Абрэзка

• Detach the trimmer from the mower deck.
• Вазьміце трымер абедзвюма рукамі, пераканаўшыся, што яго моцна трымаеце.
• Паварочвайце трымер з боку ў бок, трымаючы лінію рэзу паралельна зямлі.
• The Automatic Feed Spool (AFS) will automatically feed line as needed.

Акантоўка

• Detach the trimmer from the mower deck.
• Rotate the trimmer head 90 degrees for edging.
• Guide the cutting line along the edge of sidewalks, driveways, or flower beds.
• Maintain a steady pace for a clean, even edge.

Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае аптымальную прадукцыйнасць і падаўжае тэрмін службы вашага інструмента. Заўсёды адключайце сілкаванне перад выкананнем любога тэхнічнага абслугоўвання.

Уборка

• Пасля кожнага выкарыстання чысціце інструмент з дапамогай рэкламыamp тканіна. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя ачышчальнікі.
• Remove any grass clippings or debris from the cutting head, guard, and mower deck.
• Пераканайцеся, што ў вентыляцыйных адтулінах няма перашкод.

Замена лескі трымера

• The tool uses an Automatic Feed Spool (AFS) system. When the line runs out, replace the AF-100 spool with a genuine BLACK+DECKER replacement spool.
• Refer to the diagrams in the full manual for specific instructions on spool replacement.

Захоўванне

• Захоўвайце інструмент у сухім, бяспечным месцы, недаступным для дзяцей.
• Калі інструмент захоўваецца працяглы час, пераканайцеся, што ён чысты і без смецця.

Ліквідацыю непаладак

If you encounter issues, refer to the table below for common problems and solutions:

Тэхнічныя характарыстыкі

Key technical specifications for the BLACK+DECKER BESTA512CM:

Figure 5: Detailed product specifications, including power, cutting dimensions, and weight.

Гарантыя і падтрымка

This BLACK+DECKER product is covered by a 90-day limited warranty. This warranty covers defects in material or workmanship for the specified period from the date of purchase.

For warranty claims, technical assistance, or to order replacement parts, please contact BLACK+DECKER customer support. Keep your proof of purchase for warranty validation.

For the most up-to-date contact information, please visit the official BLACK+DECKER webсайт або звярніцеся да кантактнай інфармацыі, указанай на ўпакоўцы прадукту.
